Garbage Truck - ERMHD 028

Overview

Garbage truck model ERMHD 028 is a new product line with compact design, suitable for narrow streets, making it easier to transport garbage to the gathering place.

The combination of HYUNDAI NEW PORTER 150 cab chassis, by HYUNDAI and SAMCO's Upper body will give the customer the appropriate choice. Besides, with the garbage tailgate cover equipped, which will preserve the hygiene and ensure the urban aesthetics.

  • Chassis : HYUNDAI NEW PORTER 150
  • Payload : 820 kg
  • Gross vehicle weight: 3,500 kg
  • Volume: 2.8 m³
  • Emission Standard: EURO 4
Brochure download
<p>Garbage Truck, Mini Garbage Truck, Hyundai Truck</p>

Technical Specifications

Cab chassis HYUNDAI NEW PORTER 150
Engine D4CB
Max. output 95.6 /3,800 kW/rpm
Displacement 2,497 cc
Wheelbase 2,640 mm
Overall Dimensions (L x W x H) 5,370 x 1,760 x 1,970 mm
G.V.W 3,500 kg
Kerb Mass 2,485 kg
Payload 820 kg

Volume 2.8 m³
Tank Body profile: Straight wall, curve top
Tank material: SPA-H steel, Japan
Hydraulic equipment Imported from Europe
Operating accelerator Uninterrupted electric accelerator
Options Standard garbage loading structure combined with removable garbage bulldoze
Anti-leakage System Prevent leachate out and limit diffusion of odor
Garbage loading control by automatic mechanism - Turn up bulldoze into the trough
- Turn back the bulldoze to initial position
Garbage compacting control by automatic mechanism in two modes - Continuous automatic operation
- Manual control

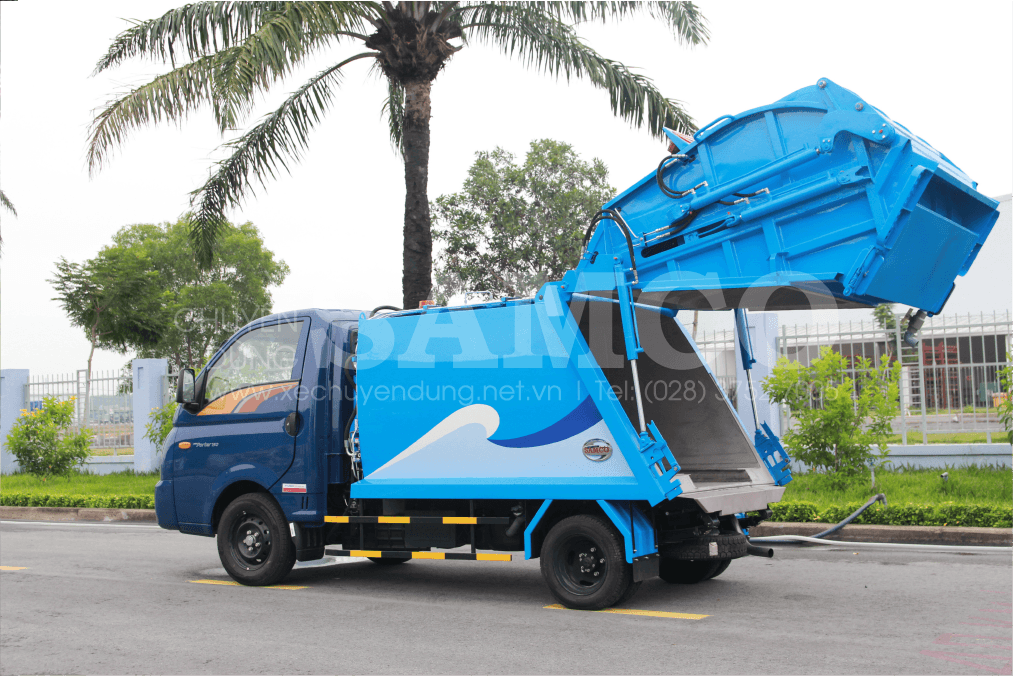

Garbage ejecting control by manual control - Opening locks and lifting tailgate
- Ejecting garbage
- Moving the ejecting plate pack
- Lowering and locking the tailgate
Tank Blue Green Orange White Or design marquette base on customer's request
Product policy In accordance with our policy of constant product improvement, all specifications could be changed without notice.
Trucks

Detail images

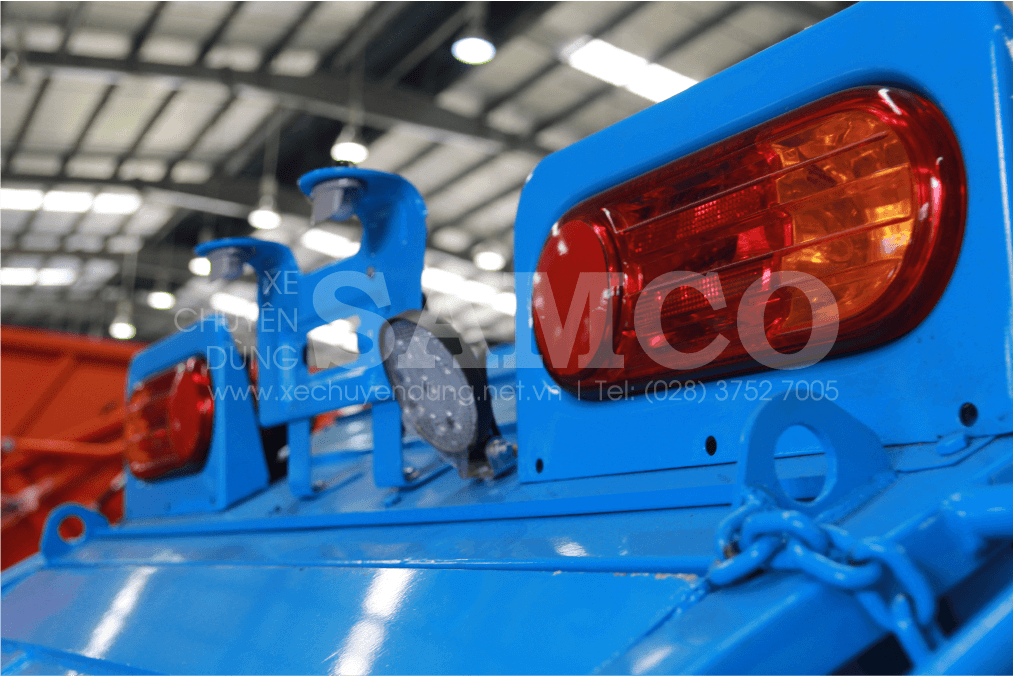

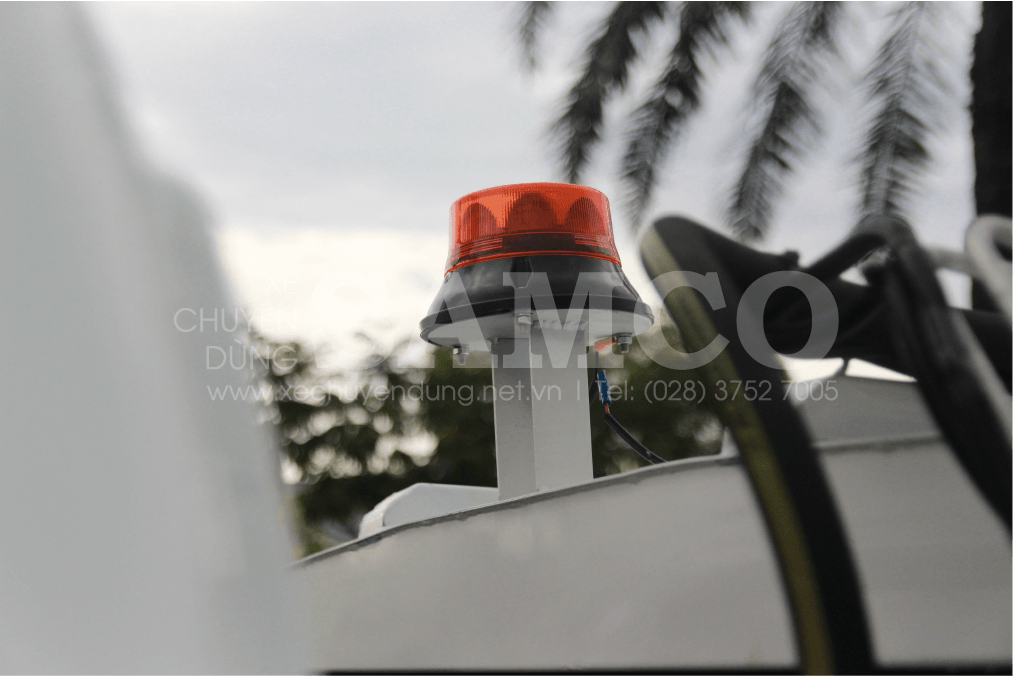

Hệ thống đèn làm việc Hệ thống đèn làm việc

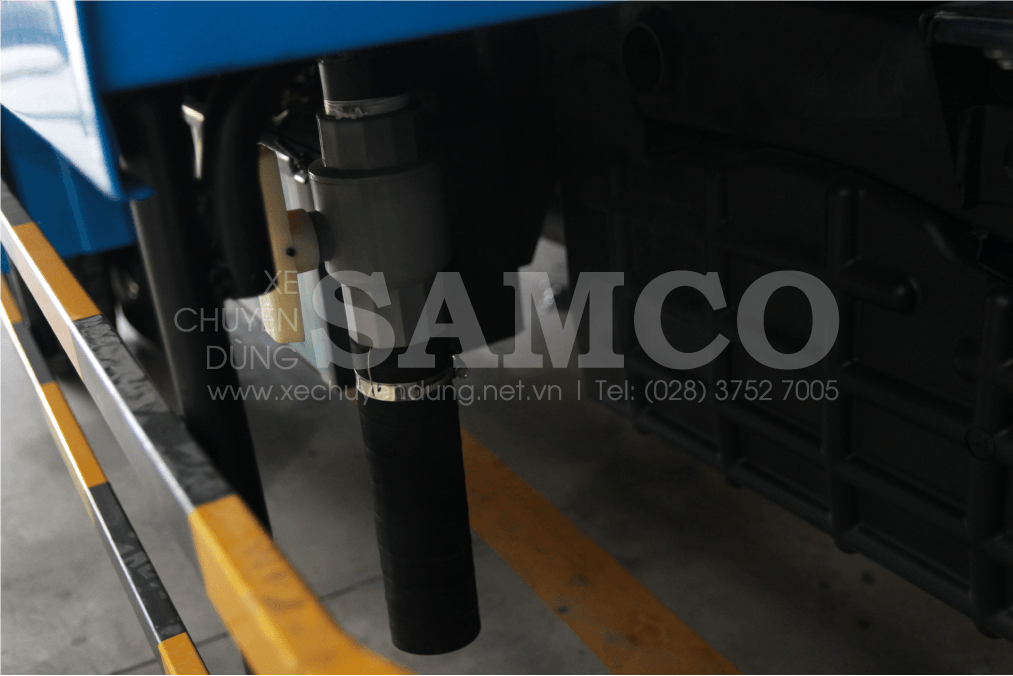

Hệ thống xả nước rĩ rác Hệ thống xả nước rĩ rác

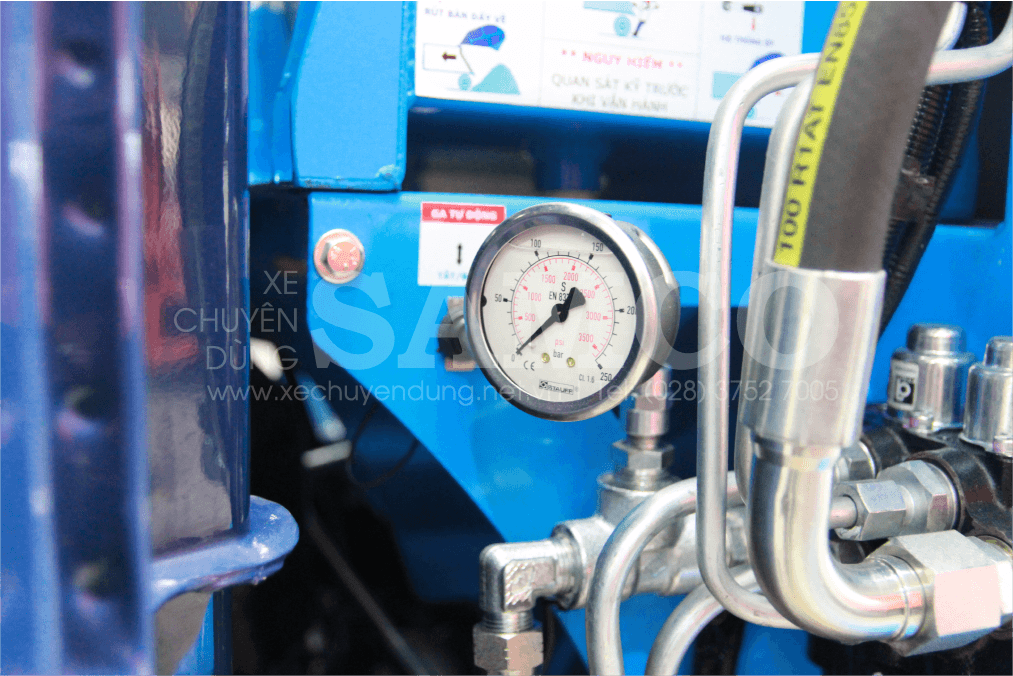

Đồng hồ đo công suất thủy lực Đồng hồ đo công suất thủy lực

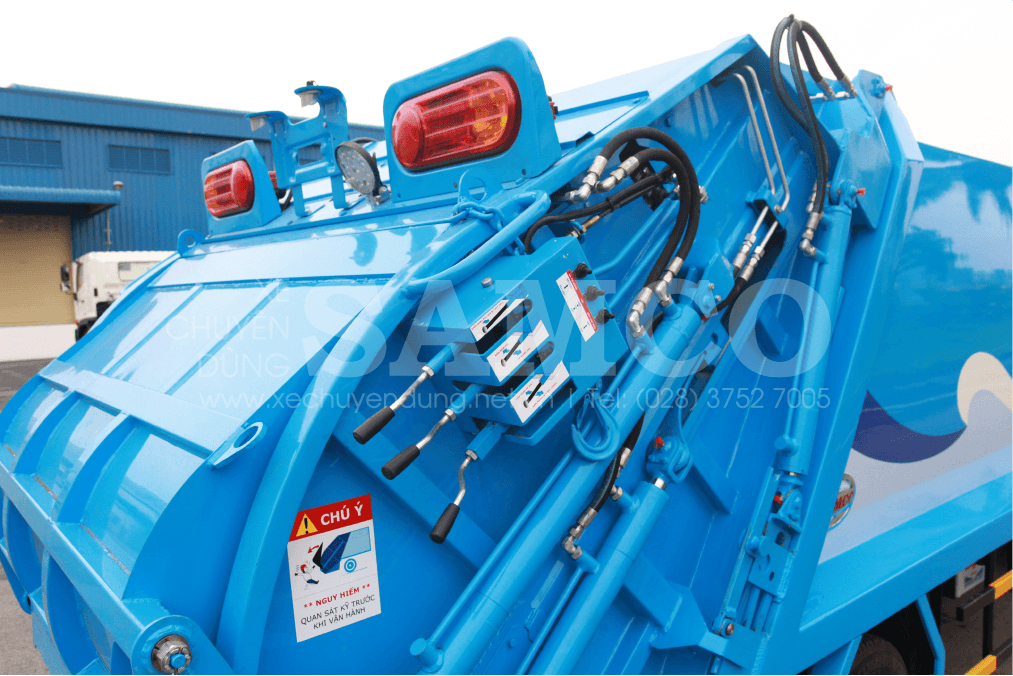

Cần gạt điều khiển hệ thống chuyên dùng Cần gạt điều khiển hệ thống chuyên dùng
