Garbage Truck - ERMHI 090

Overview

Garbage truck model ERMHI 090 is designed fully compatible with Vietnamese condition. The combination of HINO FC9JETC cab chassis, by Hino Motors Vietnam and SAMCO's will give the customer the appropriate choice. Equipped with bulldoze device, garbage truck model ERMHI 090 can load solid waste in everywhere, includes place do not have standard bins.

  • Chassis : Hino FC9JETC
  • Payload : 4,700 kg
  • Gross vehicle weight : 11,000 kg
  • Volume : 9.0 m³
  • Emission Standard : EURO 4
Brochure download
garbage truck, Hino, bulldoze

Technical Specifications

Cab chassis Hino FC9JETC
Max. output 132/ 2,500 kW/rpm
Engine model  J05E-UA
Displacement 5123 cc
Overall Dimensions (L x W x H) 6,500 x 2,290 x 2,870 mm
Wheelbase 3,420 mm
G.V.W 11,000 kg
Payload 4,700 kg
Kerb mass 6,105 kg
Volume 9.0 m³
Tank Body profile: Curve wall, curve top
Tank material: SPA-H steel, Japan
Hydraulic equipment Imported from Europe
Operating accelerator: Uninterrupted electric accelerator
Options For bulldozing garbage structure
Anti-leakage System Prevent leachate out and limit diffusion of odor
Garbage loading control - Turn up bulldoze into the trough
- Turn back bulldoze to initial position
Garbage compacting control - Continuous automatic operation
- Manual control
Garbage ejecting control - Opening locks and lifting tailgate
- Ejecting garbage
- Moving the ejecting plate pack
- Lowering and locking the tailgate
Tank Blue, Green, Orange, White, Customers demand
Product policy In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation

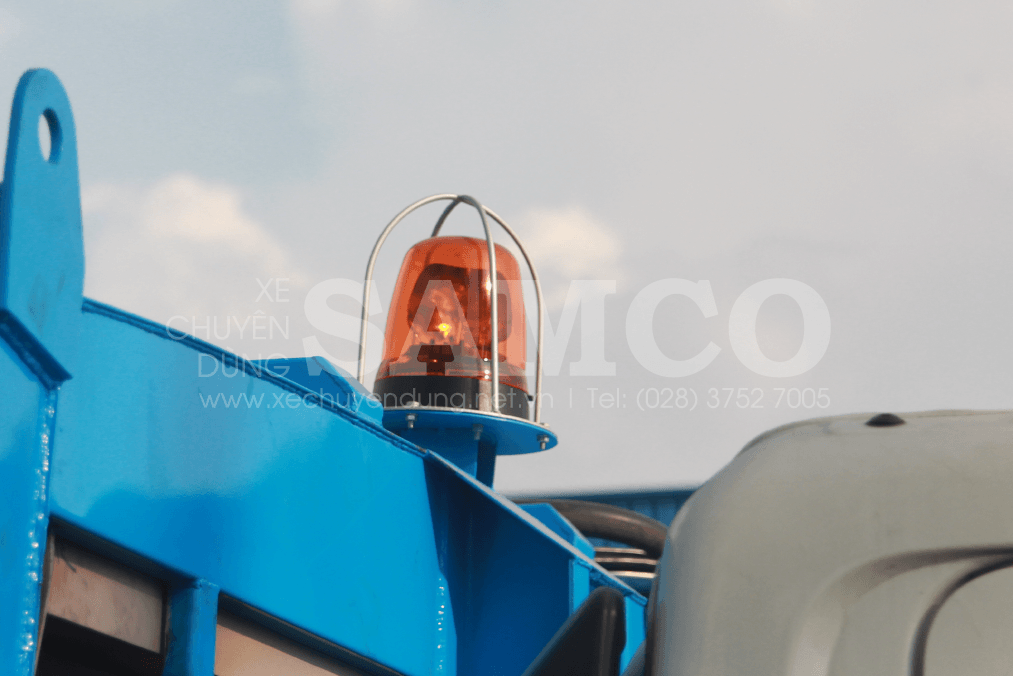

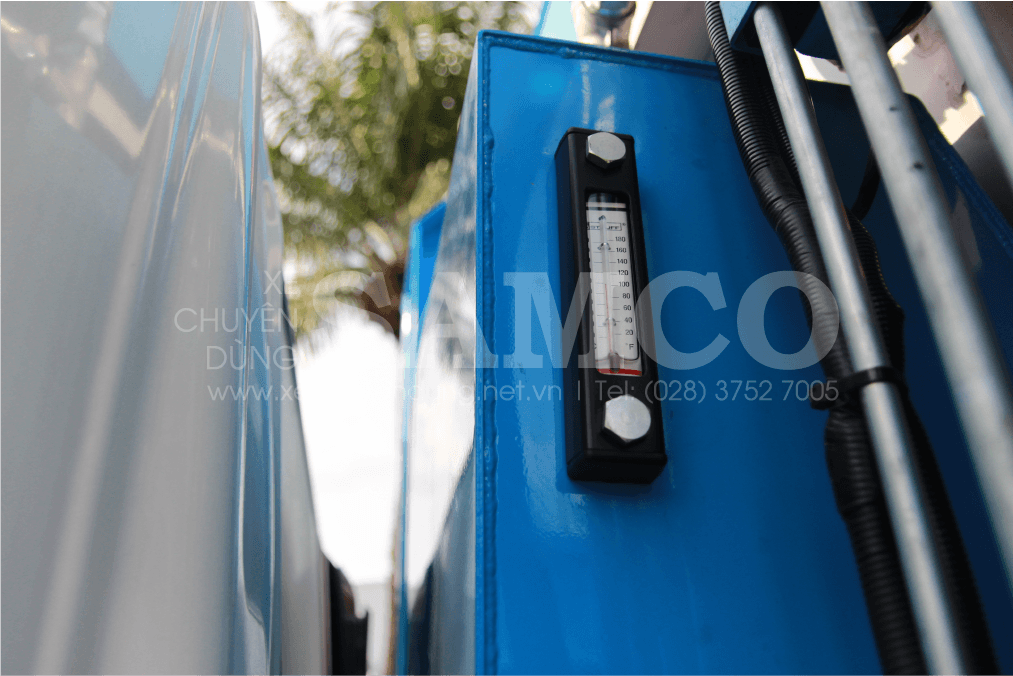

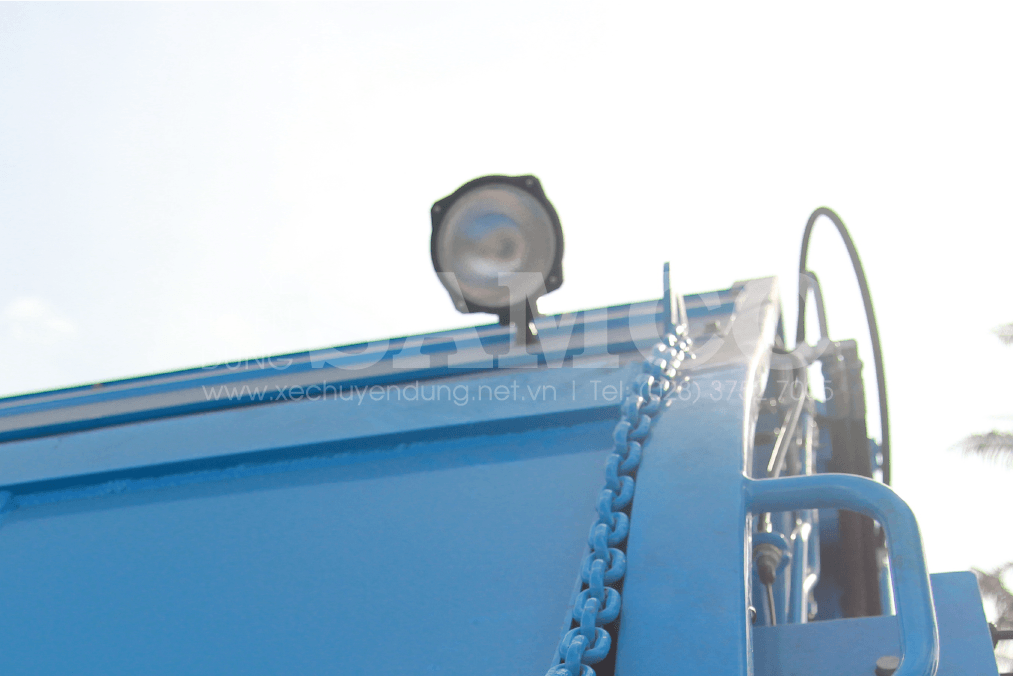

Detail images
