Garbage Truck - ERMHI 125

Overview

For the developed traffic system city, equipping our 14.0 m³ garbage is a reasonable upgrading to transfer solid waste. By many years experiences, SAMCO designed and calculated the maximum compatibly rate between HINO FG8JJ7A cab chassis and our special system to ensure the investment of customers. Besides, with the bulldoze equipped, this truck is very compatible with the urban don't have standard bins.

  • Chassis: Hino FG8JJ7A
  • Payload: 6,400 kg
  • Gross vehicle weight: 16,000 kg
  • Volume: 14.0 m³
  • Emission Standard: EURO 4
Brochure download
<p>Garbage truck, Garbage truck 14m3, HINO FG truck</p>

Technical Specifications

Cab chassis Hino FG8JJSB
Engine model J08E-WE
Max. output 191 / 2,500 kW/rpm
Displacement 7.684 cc
Overall Dimensions (L x W x H) 8,100 x 2,500 x 3,100 mm
Wheelbase 4,330 mm
G.V.W 16,000 kg
Payload 6,400 kg
Kerb mass 9,405 kg
Tank Volume: 14 m³
Body profile: Curve wall, curve top
Tank material: SPA-H steel, Japan
Compacting force 19,000 kgf
Hydraulic equipment Imported from Europe
Operating accelerator: Uninterrupted electro-pneumatic accelerator
Options For bulldozing garbage structure
Operating accelerator Uninterrupted electric accelerator
Garbage loading control - Turn up bulldoze into the trough
- Turn back bulldoze to initial position
Garbage compacting control - Continuous automatic operation
- Manual control
Garbage ejecting control - Opening locks and lifting tailgate
- Ejecting garbage
- Moving the ejecting plate pack
- Lowering and locking the tailgate
Tank Blue, Green, Orange, White, or design marquette base on customer's request
Product policy In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation
Trucks

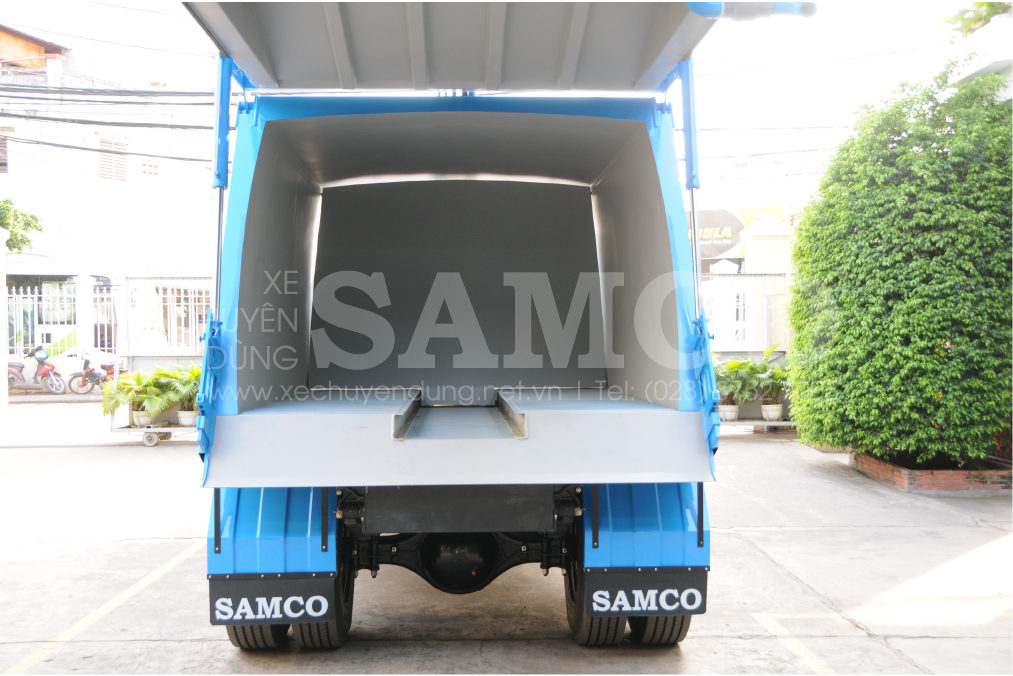

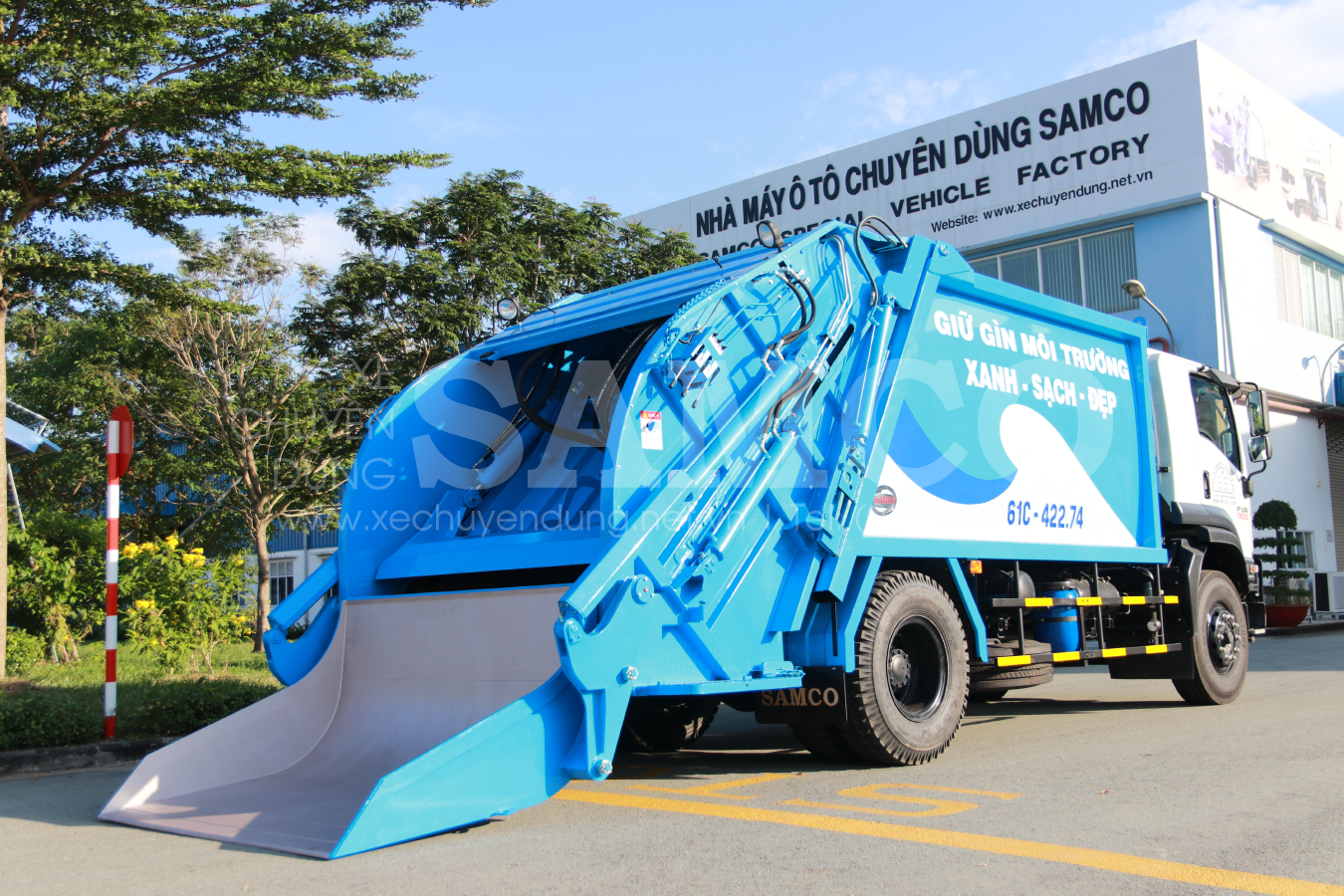

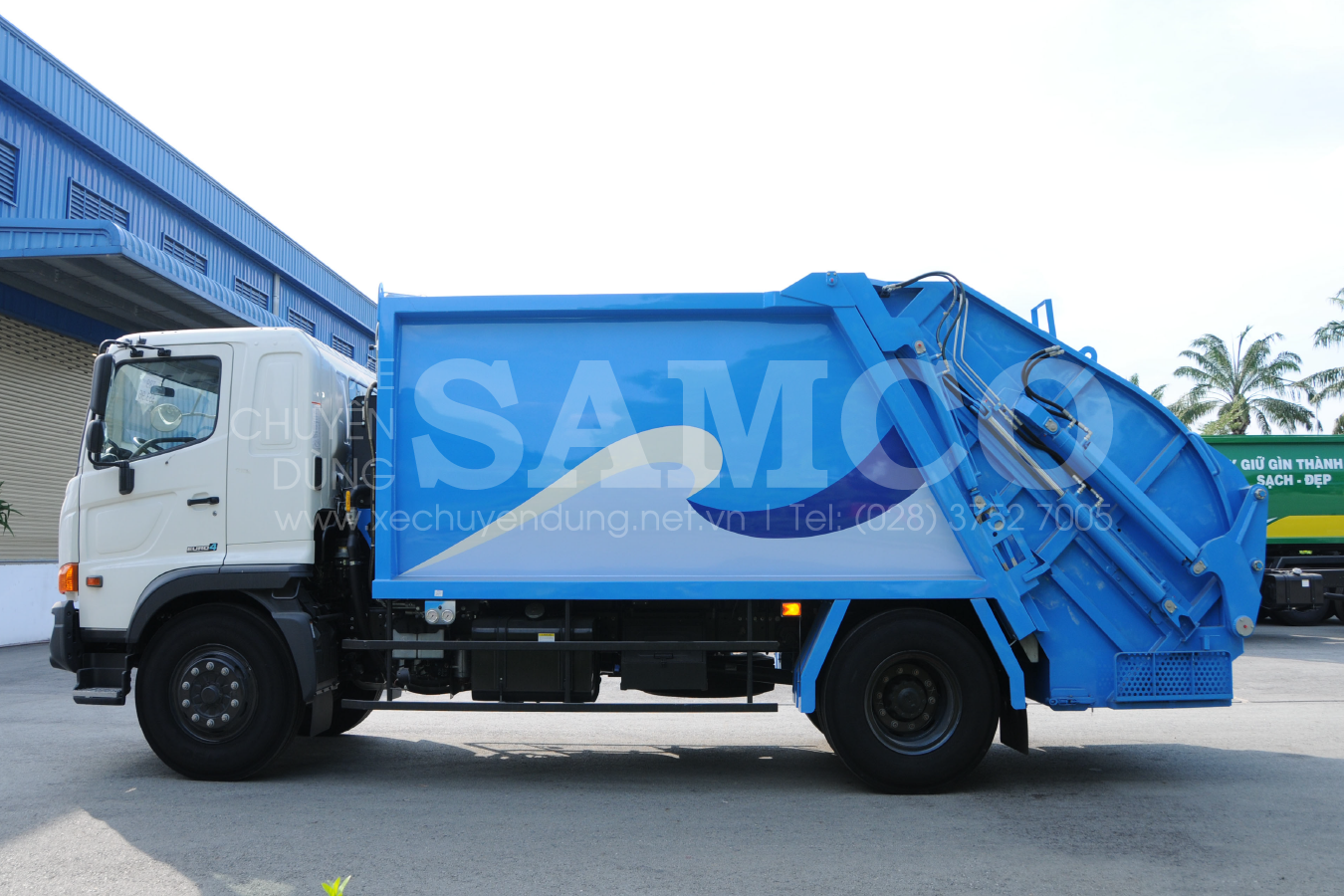

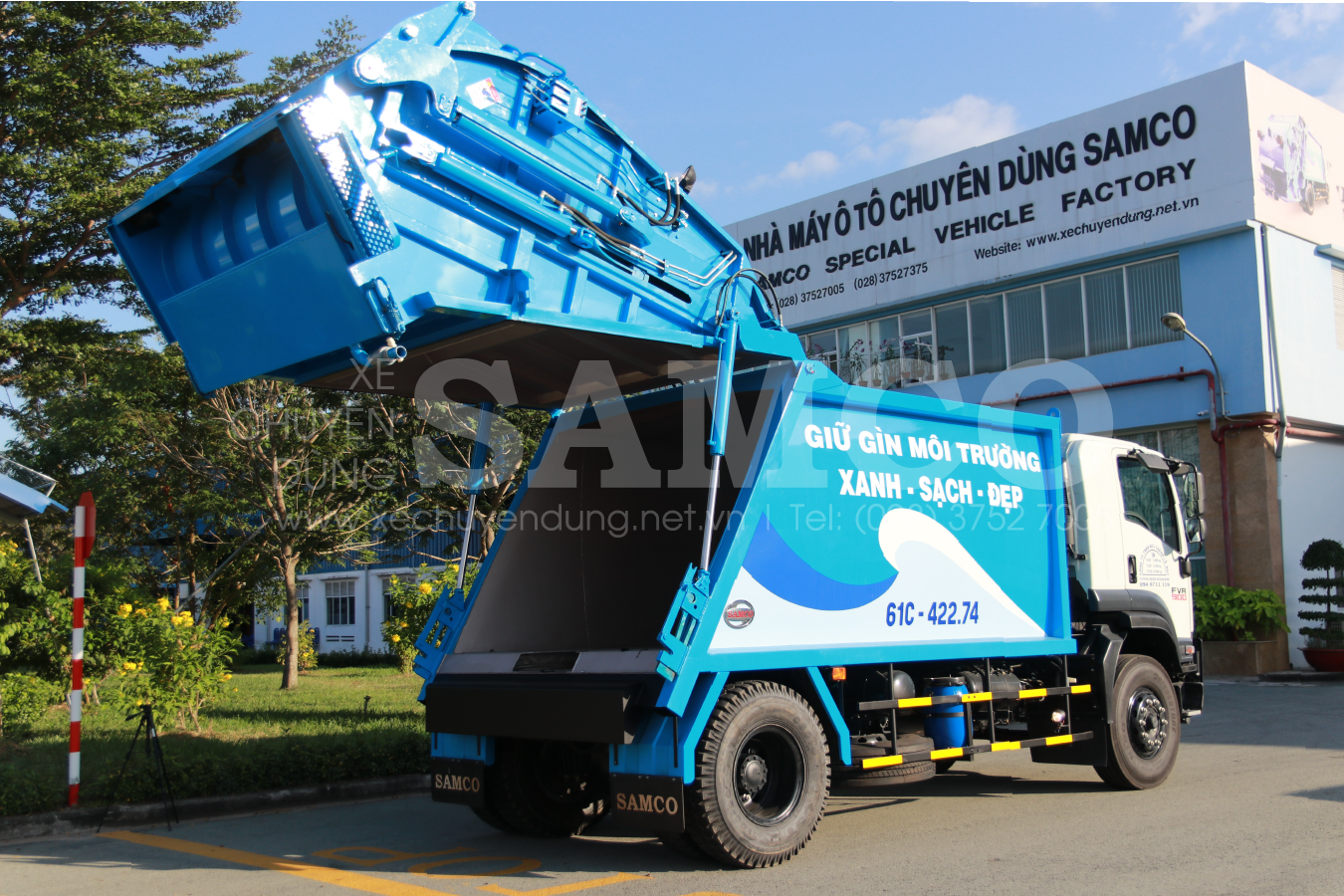

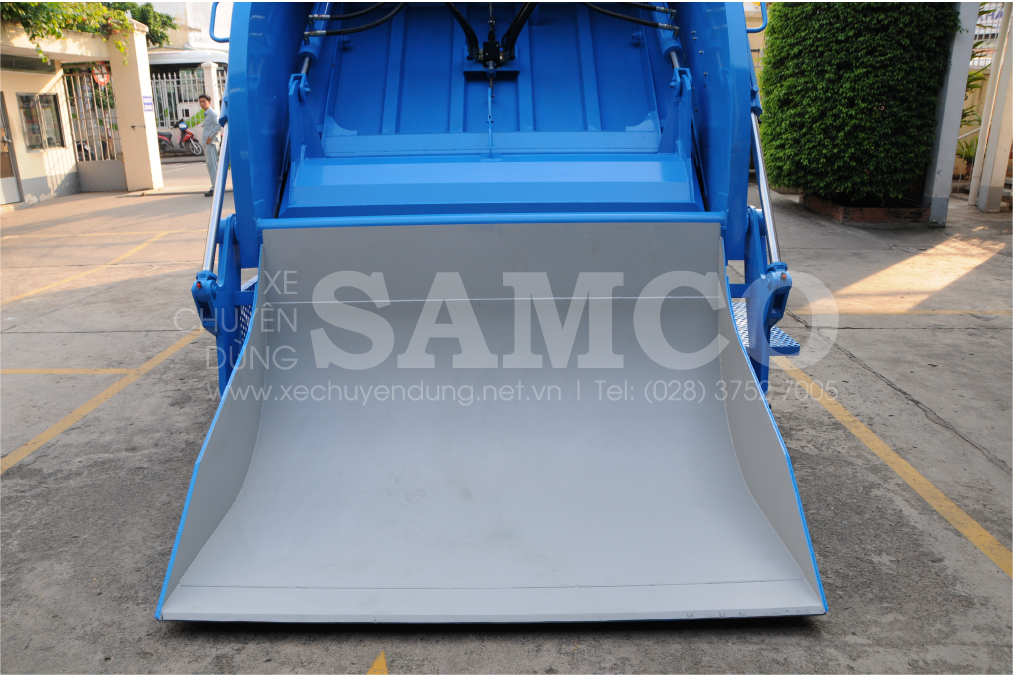

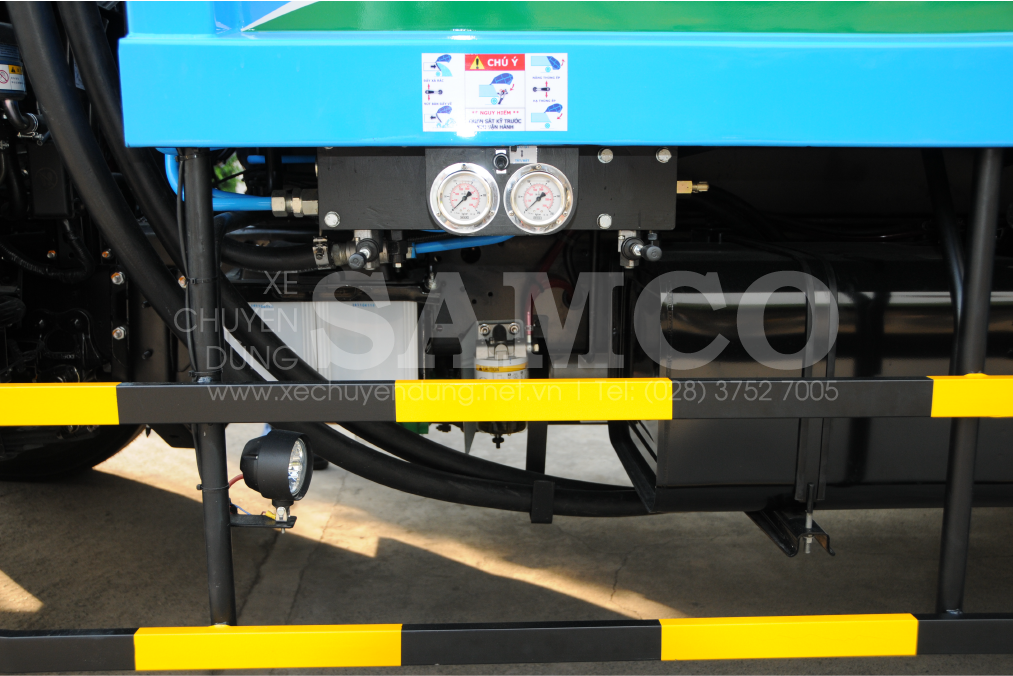

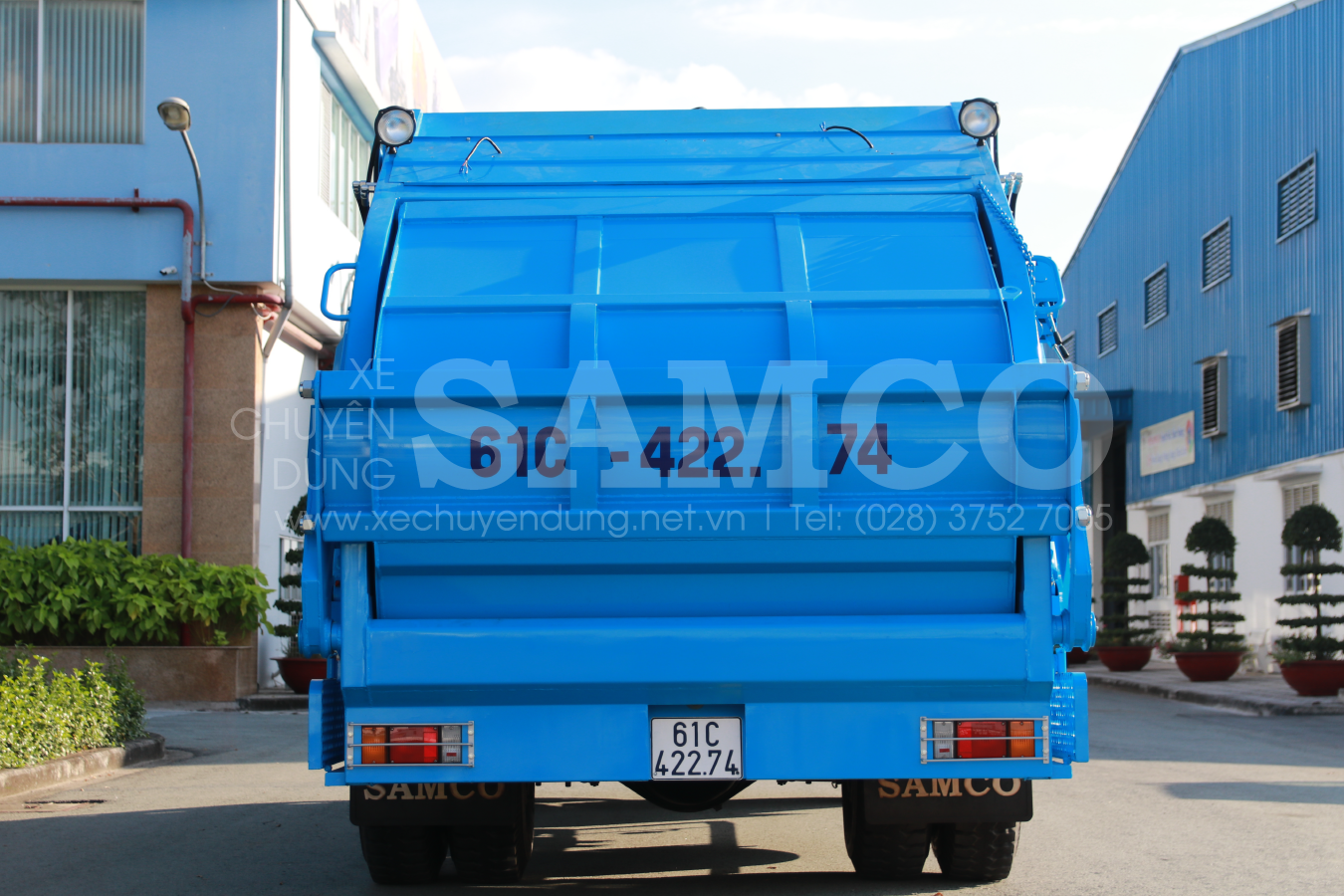

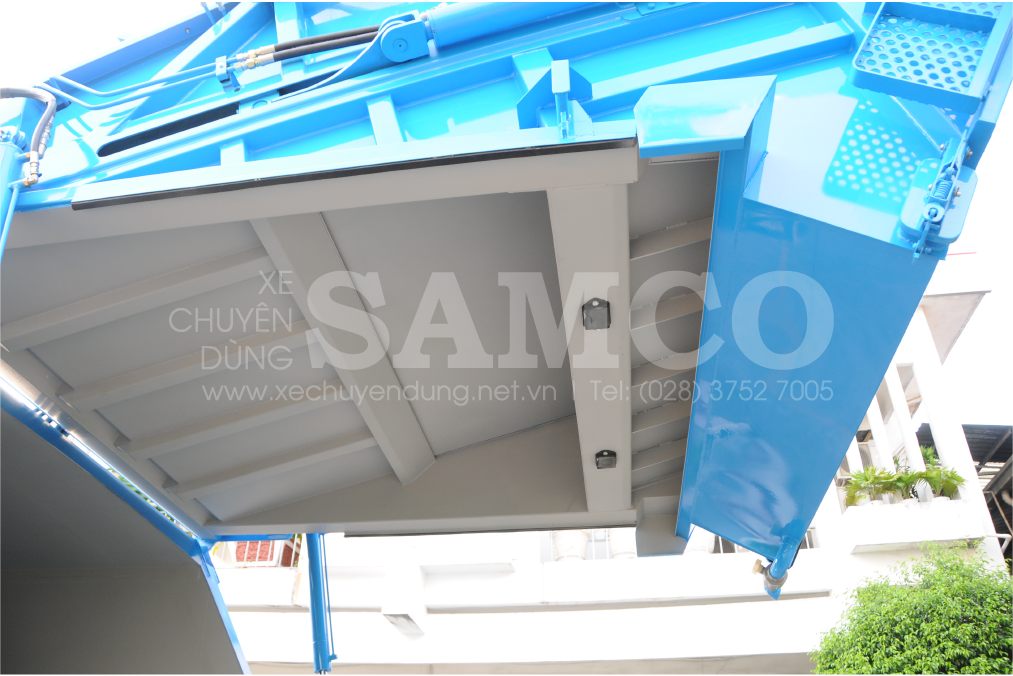

Detail images
