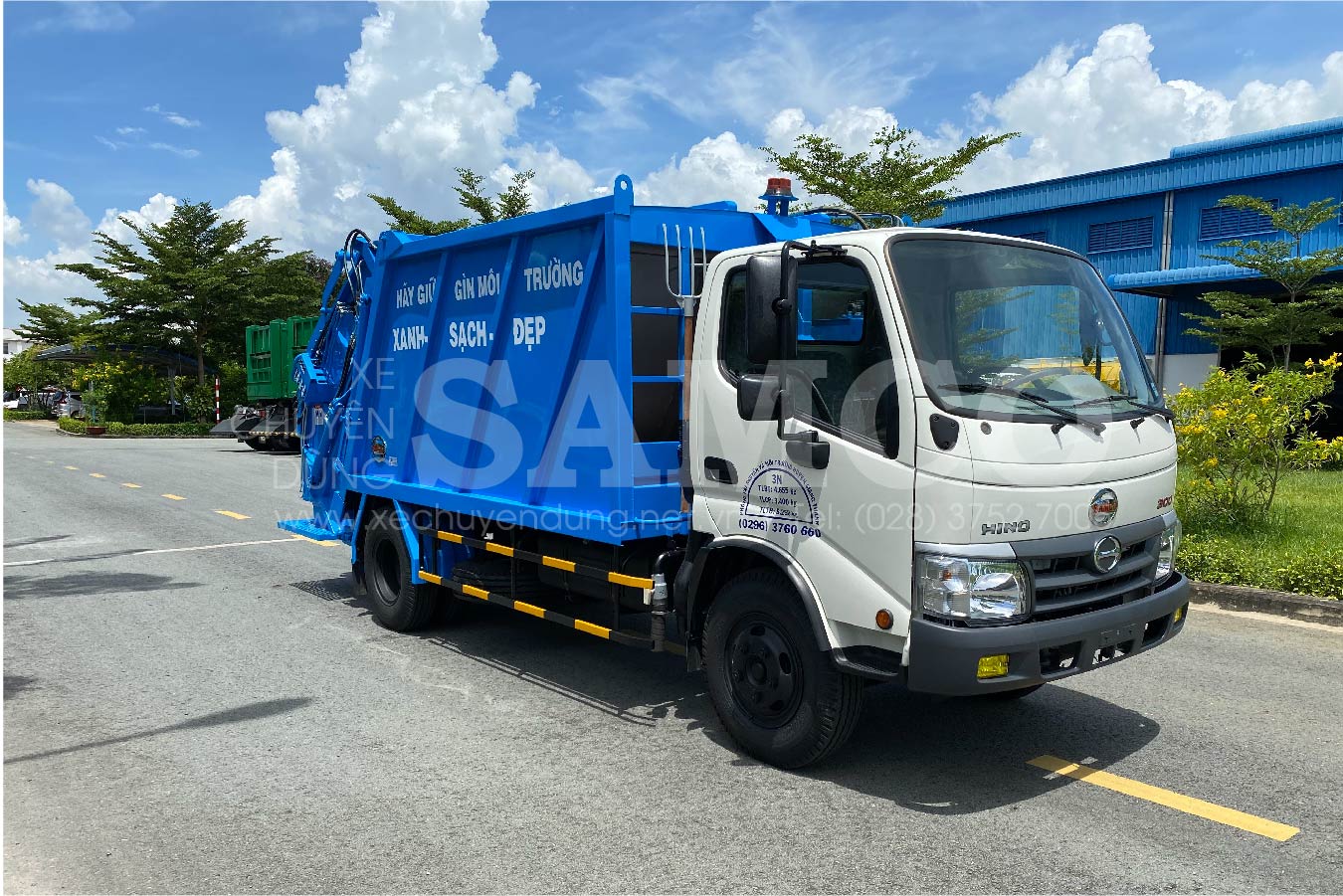

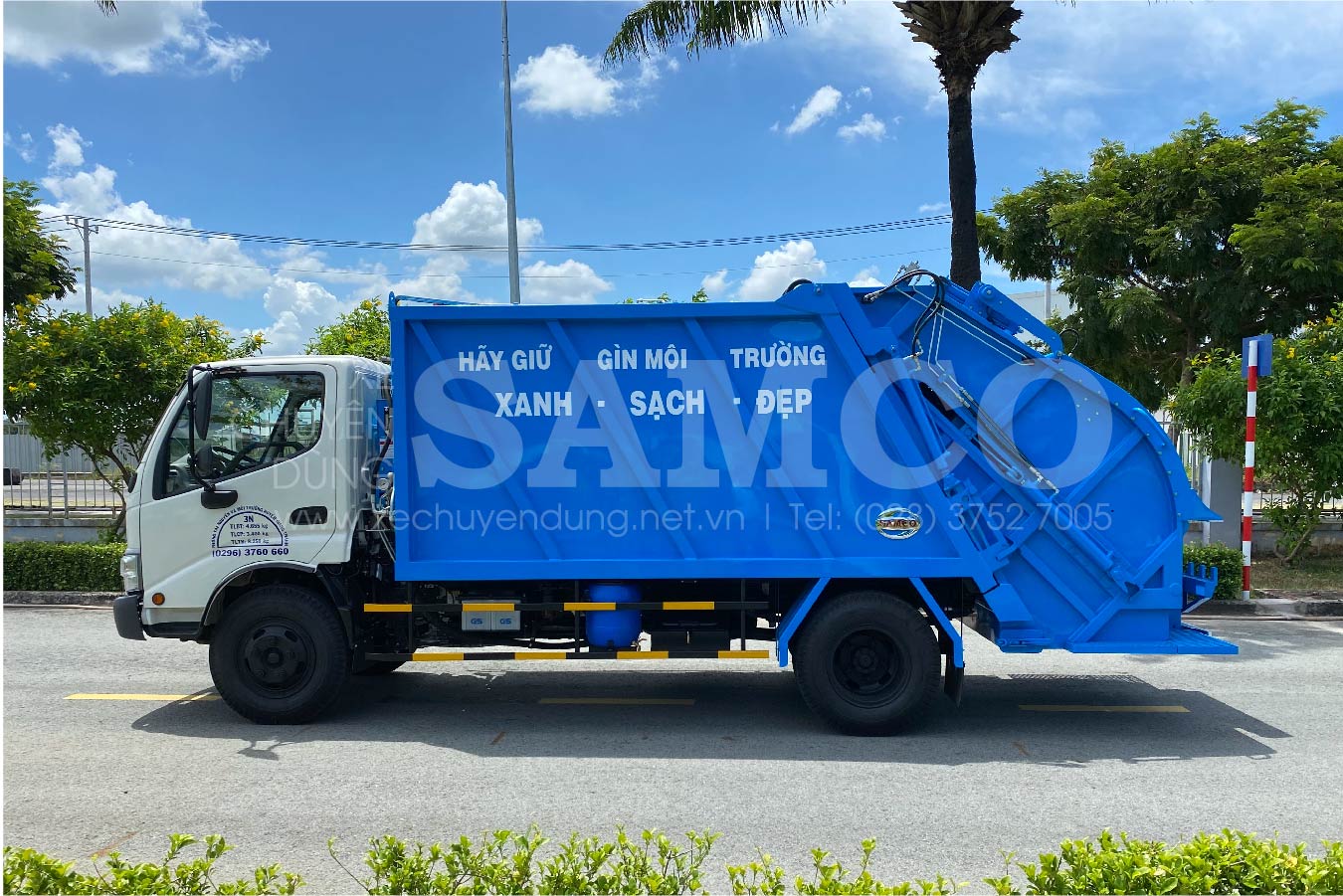

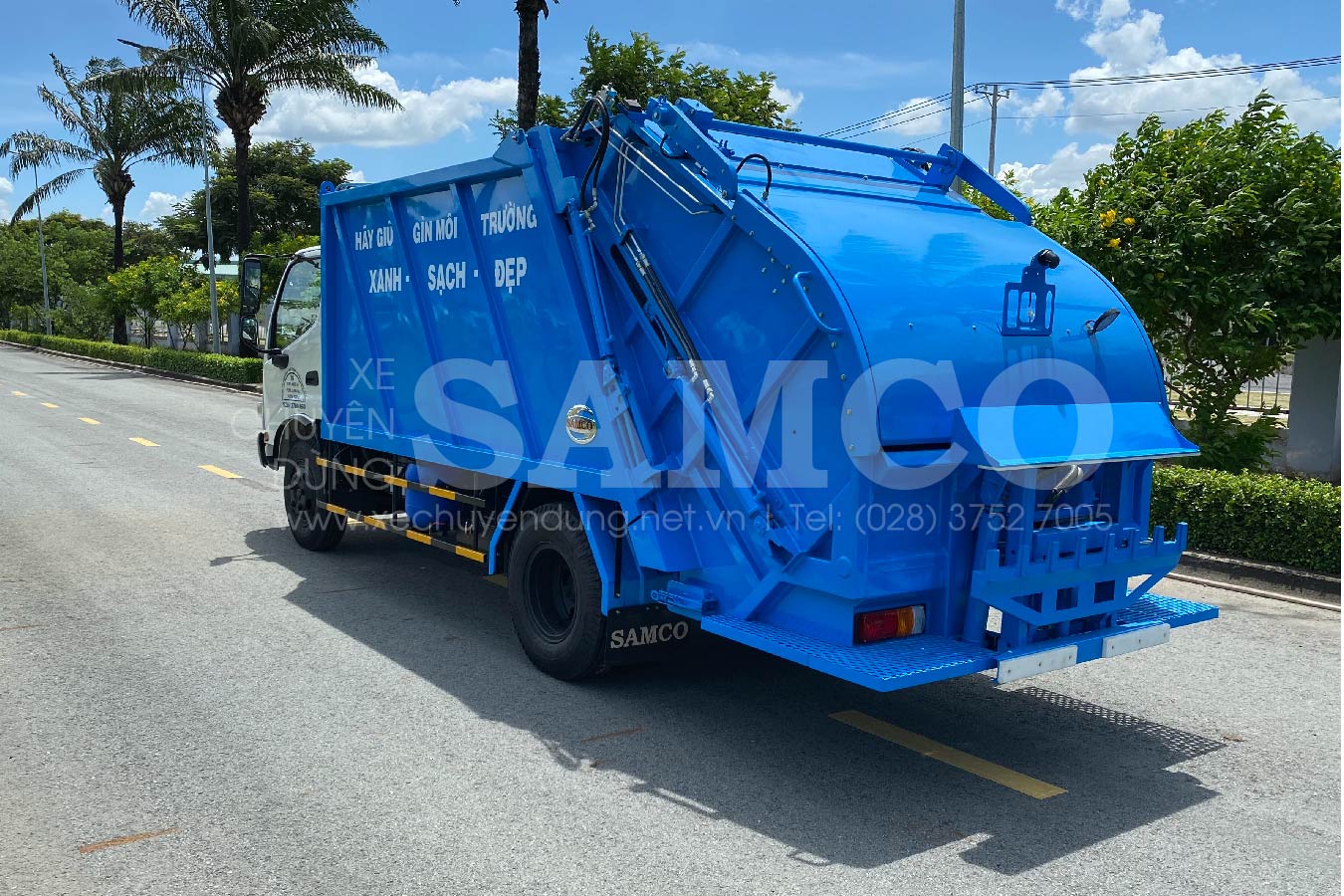

Garbage Truck - ERNHI 070

Overview

Garbage truck model ERNHI 070 is designed fully compatible with Vietnamese condition. The combination of HINO XZU342L cab chassis, by Hino Motors Vietnam and SAMCO's body will give the customer the appropriate choice. Besides, with the garbage tailgate cover equipped, which will preserve the hygiene and ensure the urban aesthetics.

  • Chassis: Hino XZU342L
  • Payload: 3,450 kg
  • Gross vehicle weight: 8,250 kg
  • Volume: 7.0 m³
  • Emission Standard: EURO4
Brochure download
<p>Garbage truck, Hino, Garbage 7m3</p>

Technical Specifications

Cab chassis Hino XZU342L
Engine N04C-VC
Max. output 104.1 / 2500 kW/rpm
Displacement 4,009 cc
Overall Dimesions (L x W x H) 6,470 x 1,990 x 2,450 mm
G.V.W 8,250 kg
Vehicle mass 4,605 kg
Payload 3,450 kg
Volume 7.0 m³
Tank Body profile: Rectangle shape with reinforced plane wall
Tank material: SPA-H steel, Japan
Compacting force 10,200 kgf

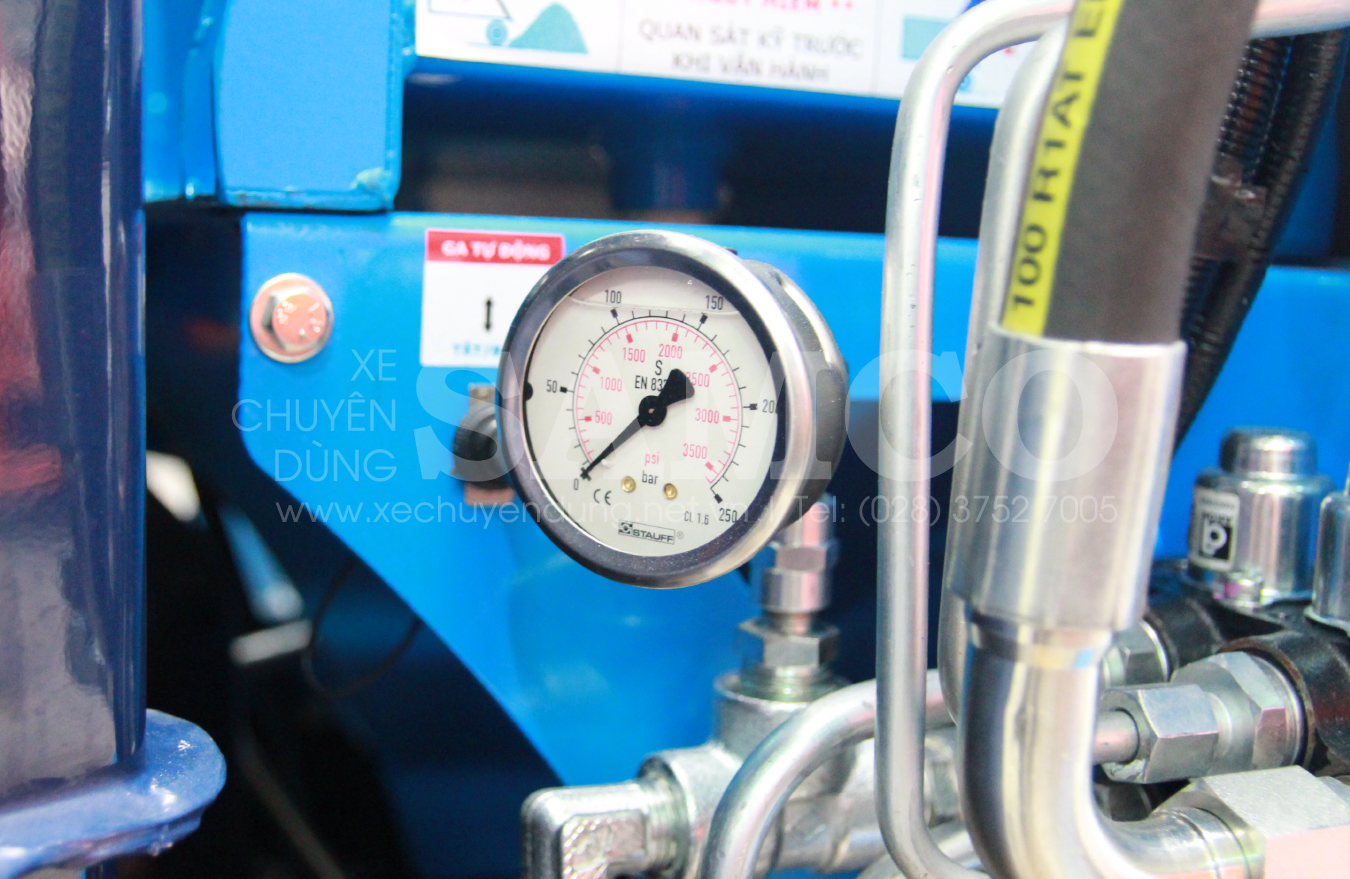

Hydraulic equipments Imported from Europe
Operating accelerator: Uninterrupted electric accelerator
Loading garbage system 240 littre / 660 littre garbage bin clipper
Two-arms garbage loading structure

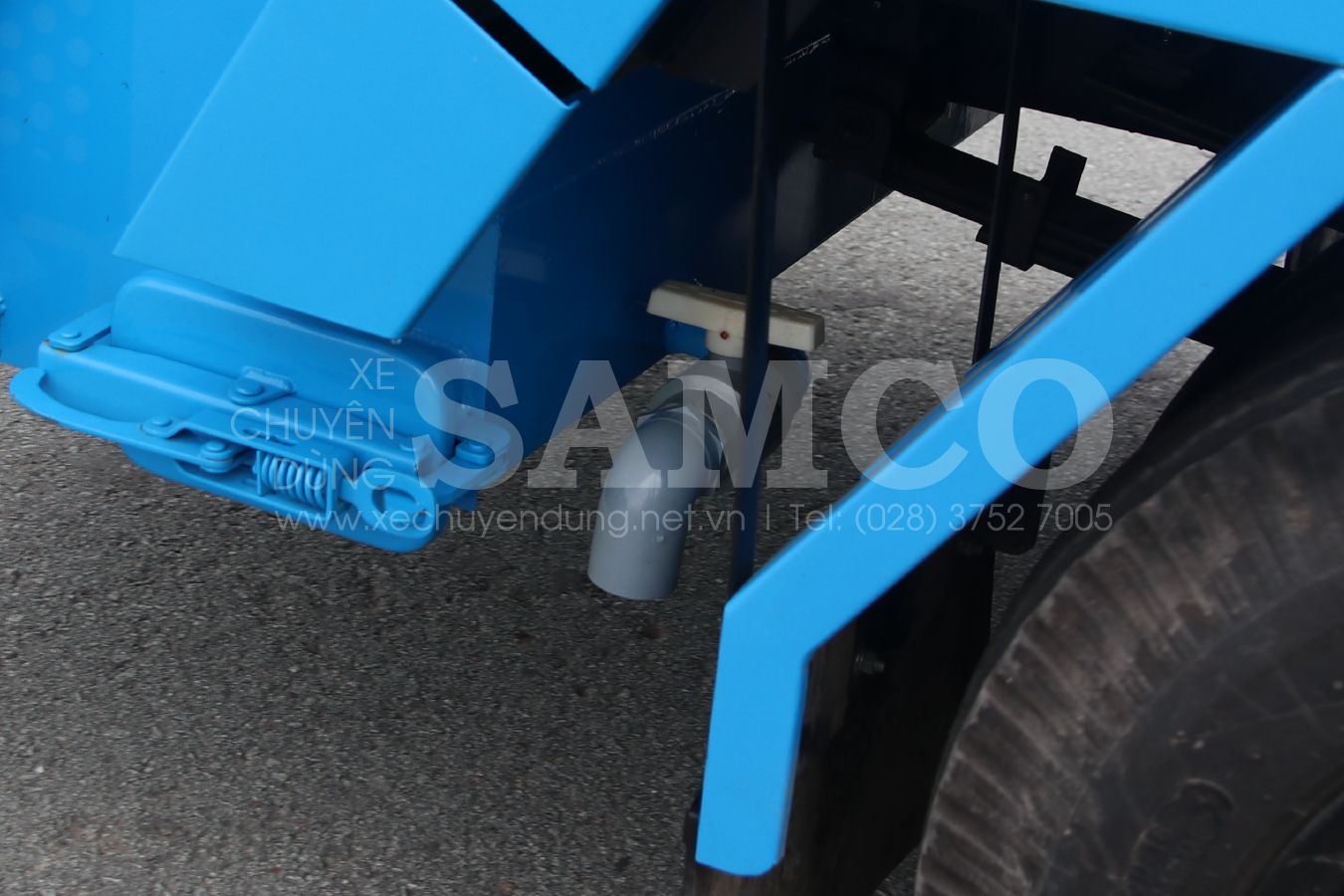

Anti-leakage System Prevent leachate out and limit diffusion of odor

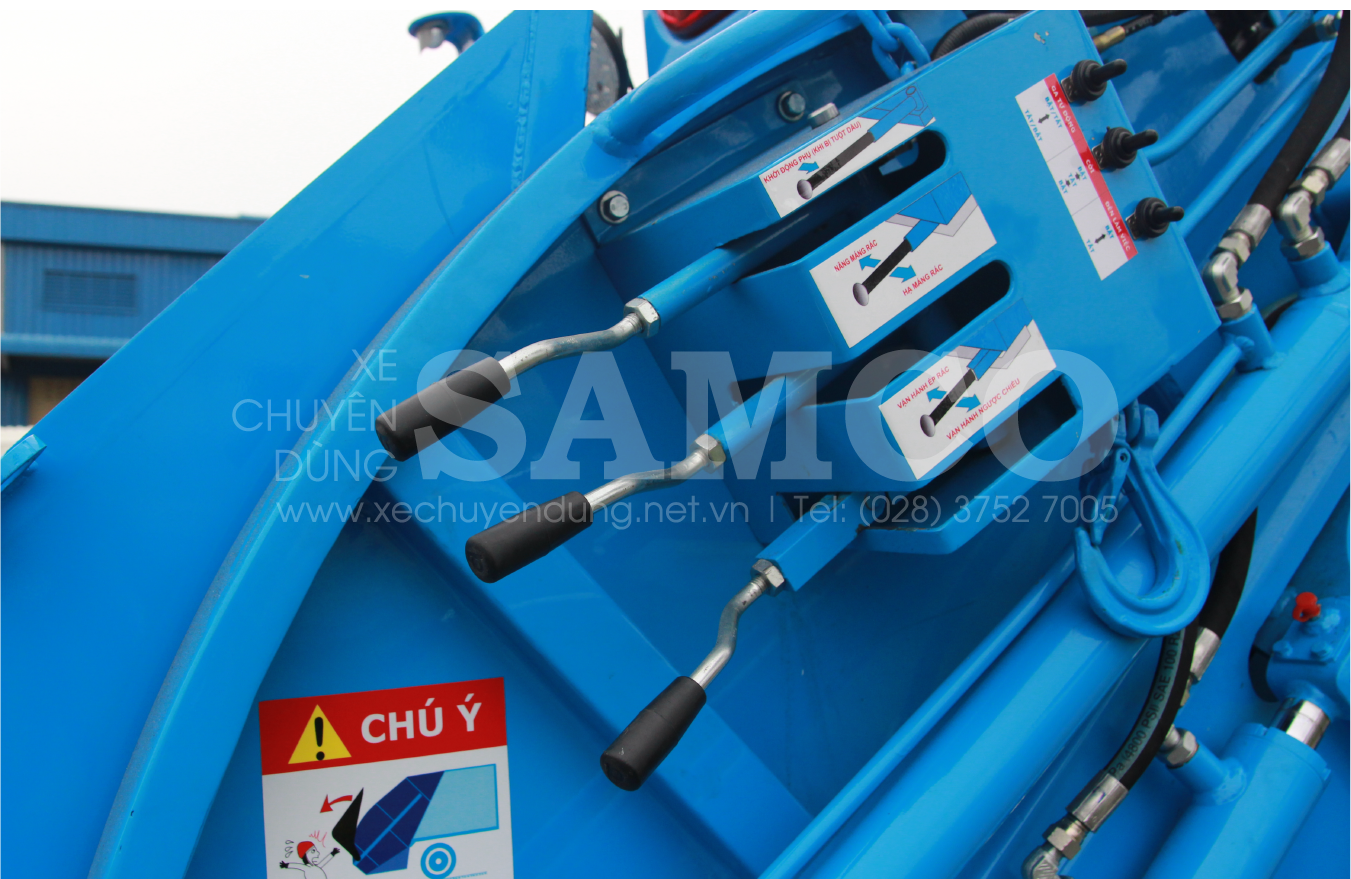

Garbage loading control - Clip bin
- Turn up bin into the trough
- Turn bin down
- Release bin
Garbage compacting control - Continuous automatic operation
- Manual operation
Garbage ejecting control - Opening locks and lifting tailgate
- Ejecting garbage
- Moving the ejecting plate pack
- Lowering and locking the tailgate
Tank Blue, Green, Orange, White, or design marquette base on customer's request
Product policy In accordance with our policy of constant product improvement, all specifications could be changed without notice.
The Garbage Tailgate Cover for standard garbage truck, bulldozing garbage truck, two-arms loading garbage truck is protected for industrial design under Vietnamese Law of Intellectual Property. All copy without SAMCO authorizing is unlawful.
Trucks

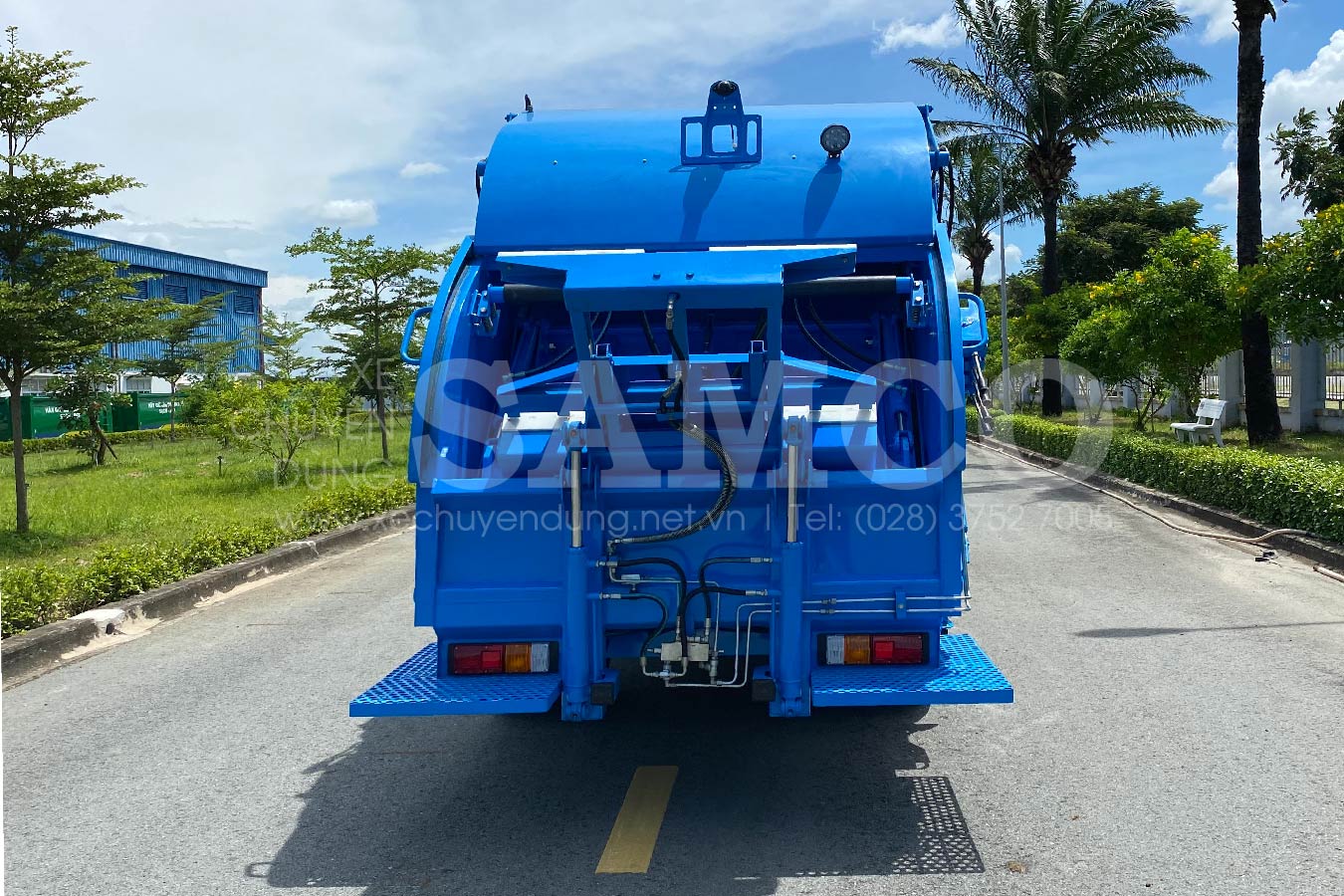

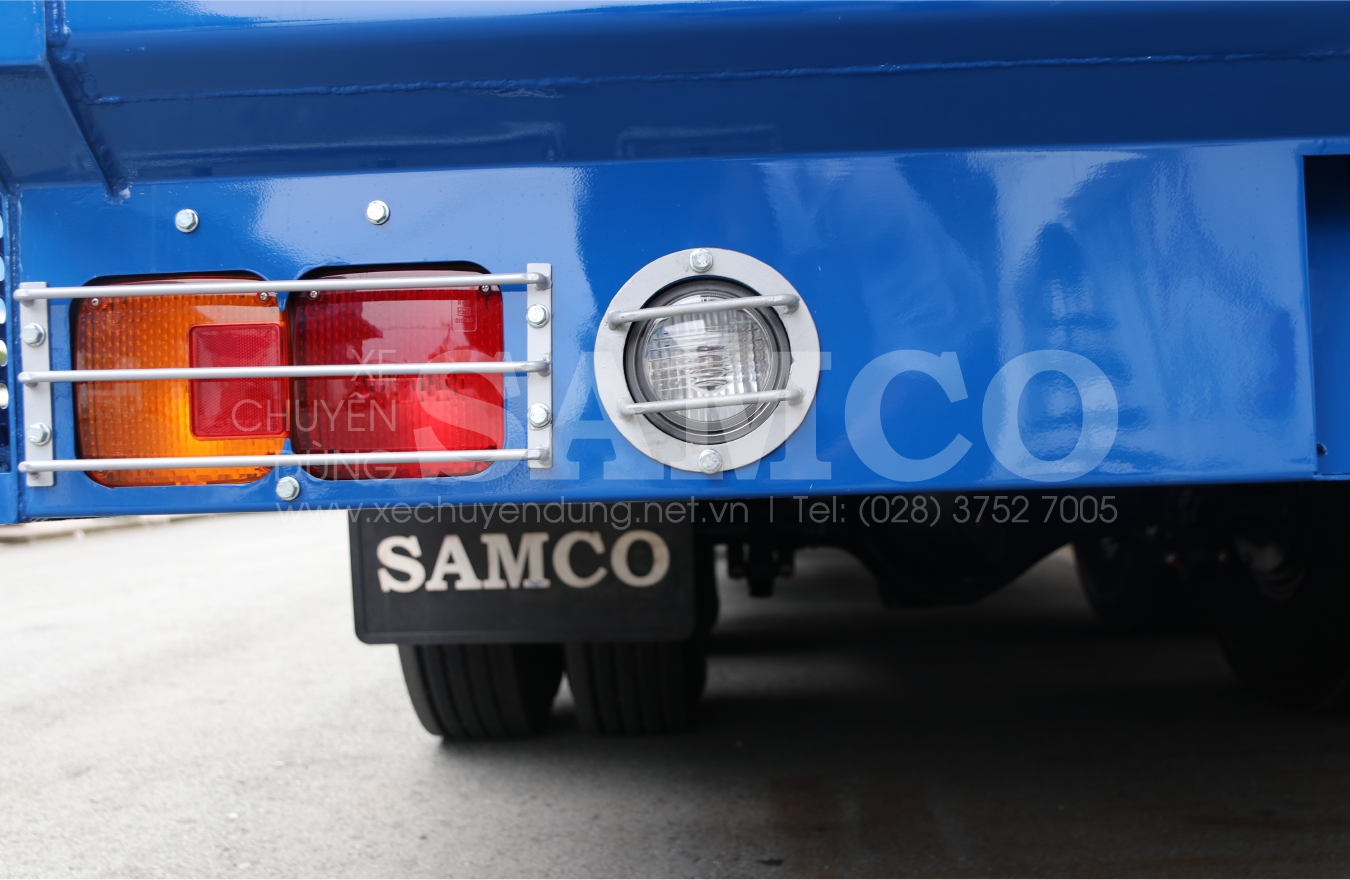

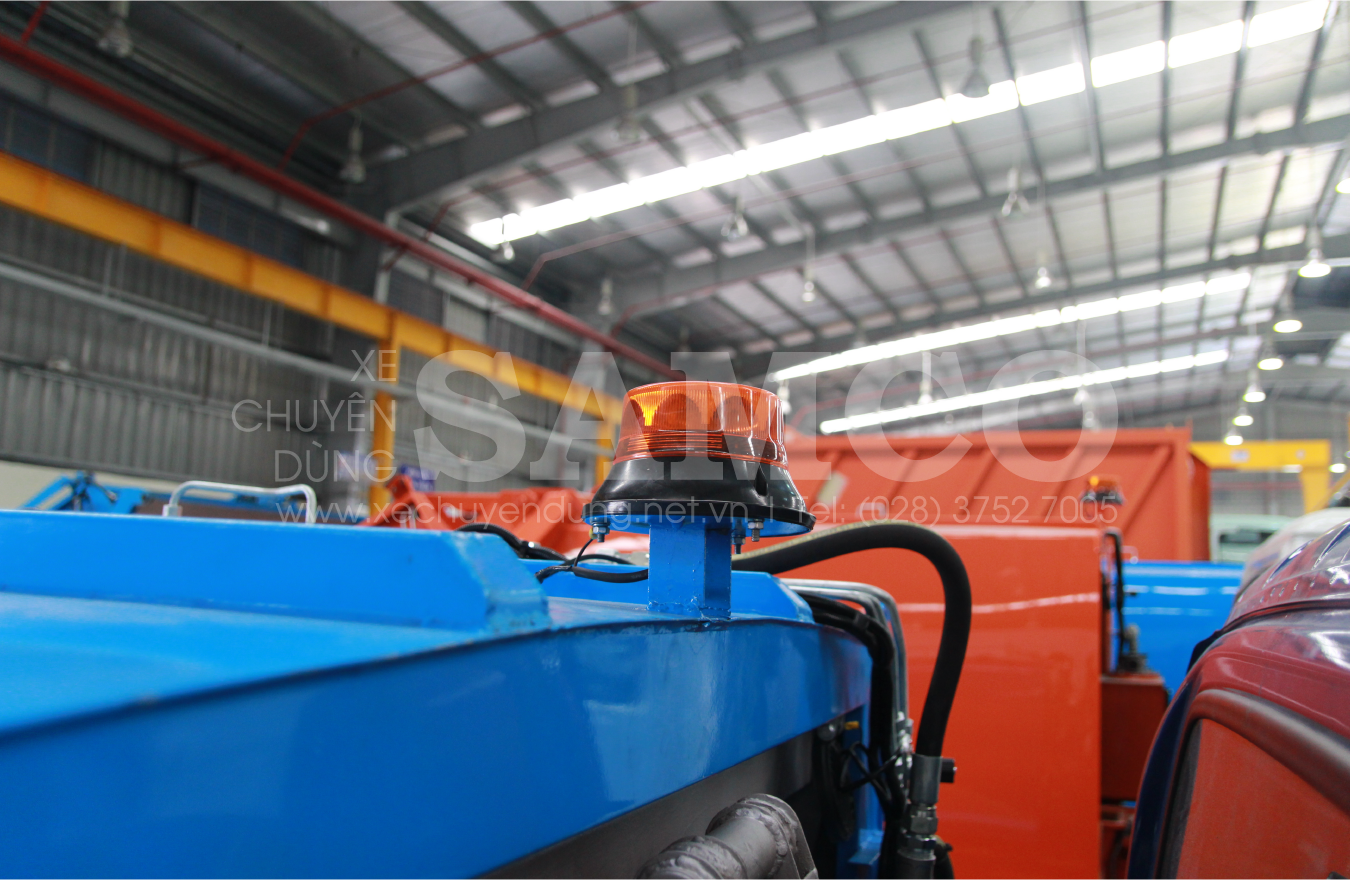

Detail images
