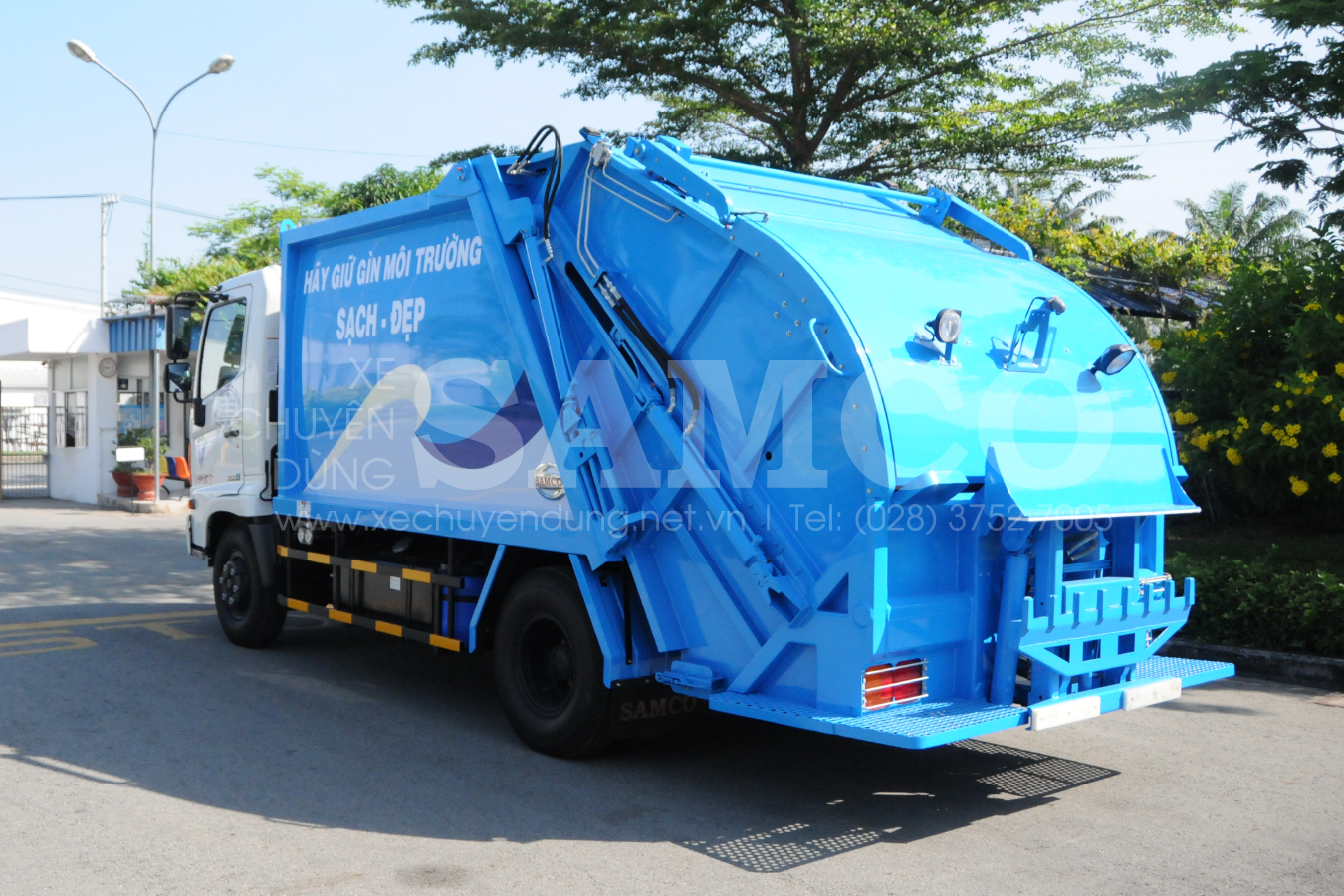

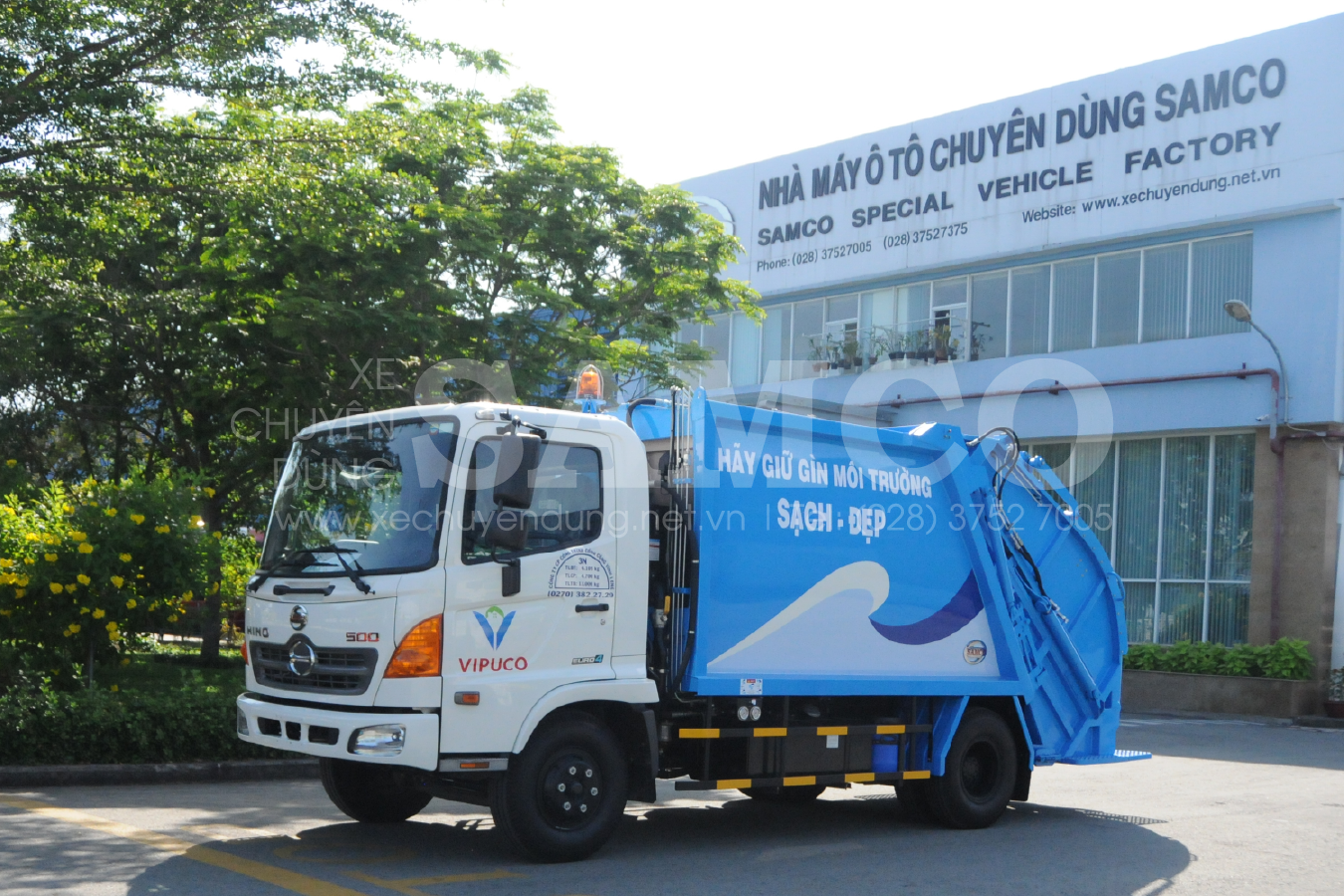

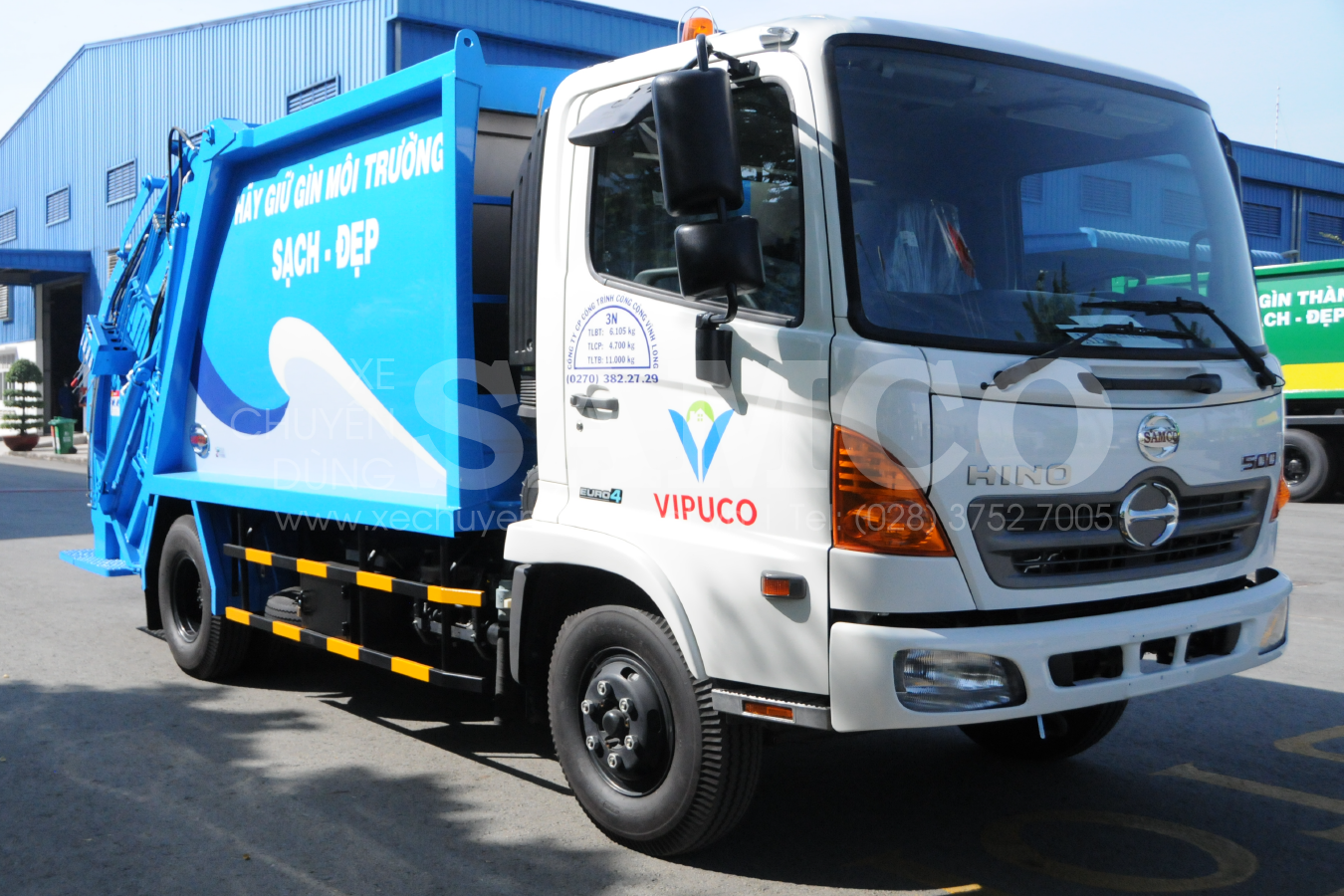

Garbage Truck - ERNHI 090

Overview

Garbage truck model ERNHI 090 is designed fully compatible with Vietnamese condition. The combination of HINO FC9JETC cab chassis, by Hino Motors Vietnam and SAMCO's body will give the customer the appropriate choice.

  • Chassis : Hino FC9JETC
  • Payload : 4,700 kg
  • Gross vehicle weight : 11,000 kg
  • Volume : 9.0 m³
  • Ermission Standard : EURO 4
Brochure download
<p>Garbage truck, Hino, Garbage 9m3</p>

Technical Specifications

Xe cơ sở Hino FC9JETC
Kiểu động cơ J05E-UA
Công suất lớn nhất 132 / 2.500 kW/rpm
Dung tích xy lanh 5.123 cc
Kích thước tổng thể (D x R x C) 6.615 x 2.290 x 2.940 mm
Chiều dài cơ sở 3.420 mm
Tổng trọng tải 11.000 kg
Tự trọng 6.105 kg
Tải trọng cho phép 4.700 kg
Volume 9.0 m³
Tank Body profile: Curve wall, curve top
Tank material: SPA-H steel, Japan
Compacting force 15,000 kgf
Hydraulic equipment Imported from Europe
Operating accelerator: Uninterrupted electro-pneumatic accelerator
Options 240 litter / 660 litter garbage bin clipper
Two-arms garbage loading structure
Operating accelerator Uninterrupted eletric accelerator
Garbage loading control by automatic mechanism - Clip bin
- Turn up bin into the trough
- Turn bin down
- Release bin
Garbage compacting control by automatic mechanism in two modes - Continuous automatic operation
- Manual operation
Garbage ejecting control by manual control - Opening locks and lifting tailgate
- Ejecting garbage
- Moving the ejecting plate pack
- Lowering and locking the tailgate
Tank Blue, Green, Orange, White, or design marquette base on customer's request
Product policy In accordance with our policy of constant product improvement, all specifications could be changed without notice.
The Garbage Tailgate Cover for standard garbage truck, bulldozing garbage truck, two-arms loading garbage truck is protected for industrial design under Vietnamese Law of Intellectual Property. All copy without SAMCO authorizing is unlawful.
