Garbage Truck - RNXHD 030

Overview

Garbage truck model  RNXHD 030 is a new product line with compact design, suitable for narrow streets, making it easier to transport garbage to the gathering place.

The combination of HYUNDAI NEW PORTER 150 cab chassis, by HYUNDAI and SAMCO's Upper body will give the customer the appropriate choice. Besides, with the garbage tailgate cover equipped, which will preserve the hygiene and ensure the urban aesthetics.

  • Chassis : HYUNDAI NEW PORTER 150
  • Payload : 800 kg
  • Gross vehicle weight: 3,500 kg
  • Volume: 3.0 m³
  • Emission Standard: EURO 4
Brochure download

Technical Specifications

Cab chassis HYUNDAI NEW PORTER 150
Engine D4CB
Max. output 95.6 /3,800 kW/rpm
Displacement 2,497 cc
Wheelbase 2,640 mm
Overall Dimensions (L x W x H) 4,680 x 1,880 x 2,230 mm
G.V.W 3,500 kg
Kerb Mass 2,505 kg
Payload 800 kg

Volume 3.2 m³
Tank Body profile: Rectangle shape with reinforced plane wall
Tank material: SPA-H Steel, Japan
Hydraulic Equipment Imported from Europe
Truck Outriggers
 Equipped in the behind vehicle to create stability and safety when lifting and littering from garbage body
Operating accelerator Uninterrupted electric accelerator
Anti-leakage System Prevent leachate out and limit diffusion of odor
Garbage loading control by automatic mechanism - Manual
Garbage compacting control by automatic mechanism in two modes - Continuous automatic operation
- Manual control
Garbage ejecting control by manual control - Opening locks, lifting upper body with "X" cylinder system
- Ejecting garbage
- Moving the ejecting plate pack
- Lowering and locking the tailgate
Tank Blue Green Orange White Or design marquette base on customer's request
Product policy In accordance with our policy of constant product improvement, all specifications could be changed without notice.
Trucks

Detail images

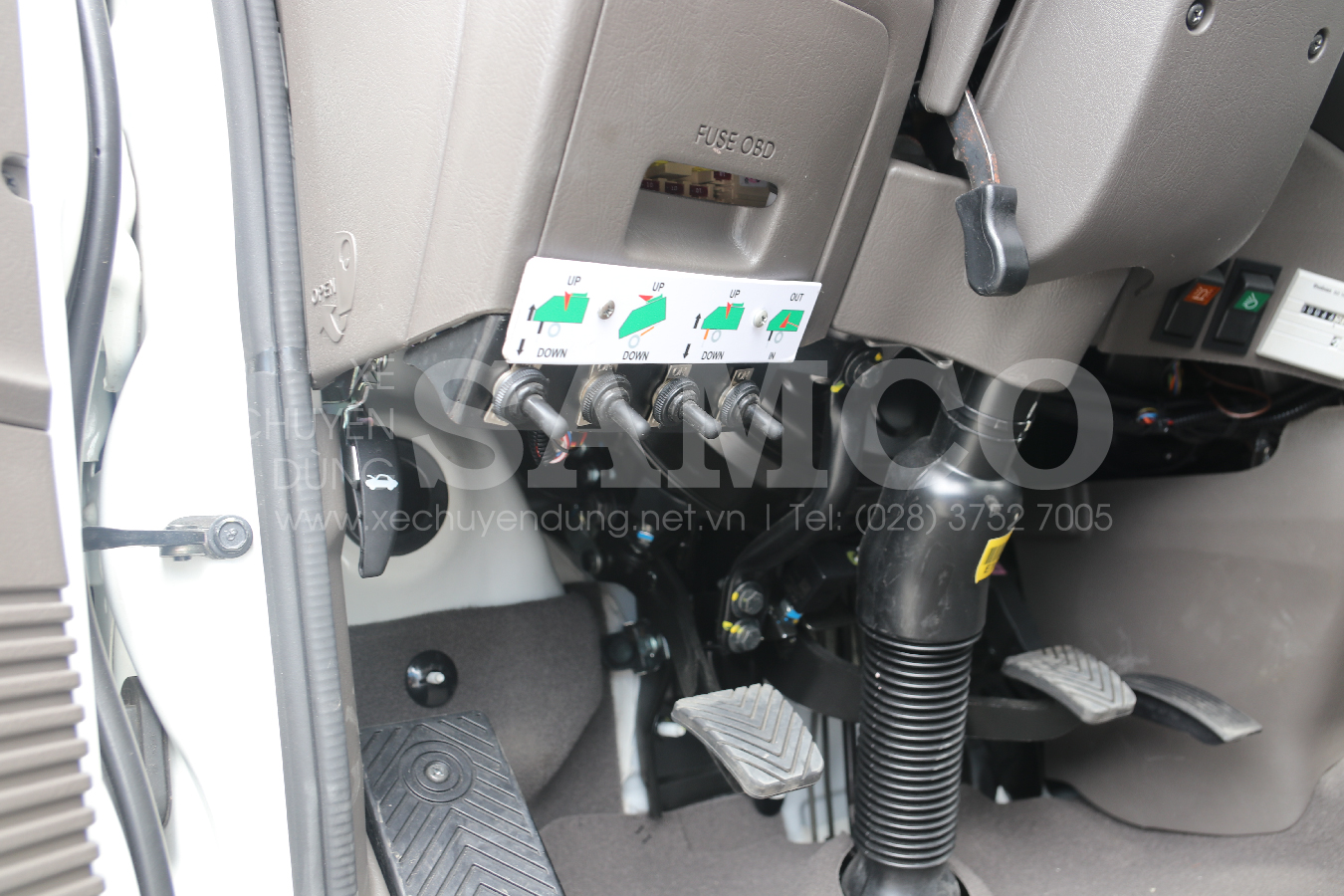

Hệ thống điều khiển đèn làm việc và chân chống ổn định xe Hệ thống điều khiển đèn làm việc và chân chống ổn định xe

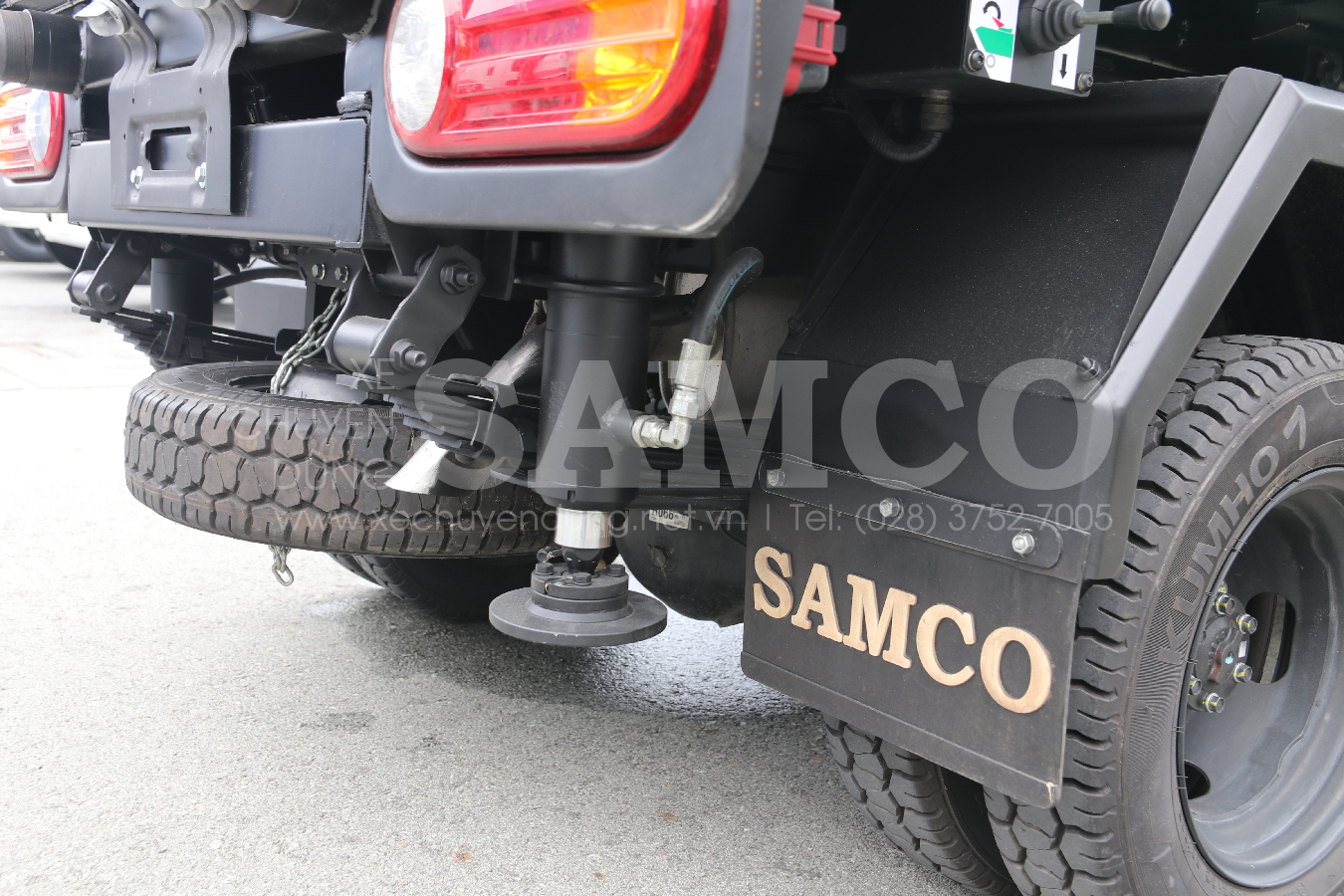

Chân chống ổn định Chân chống ổn định

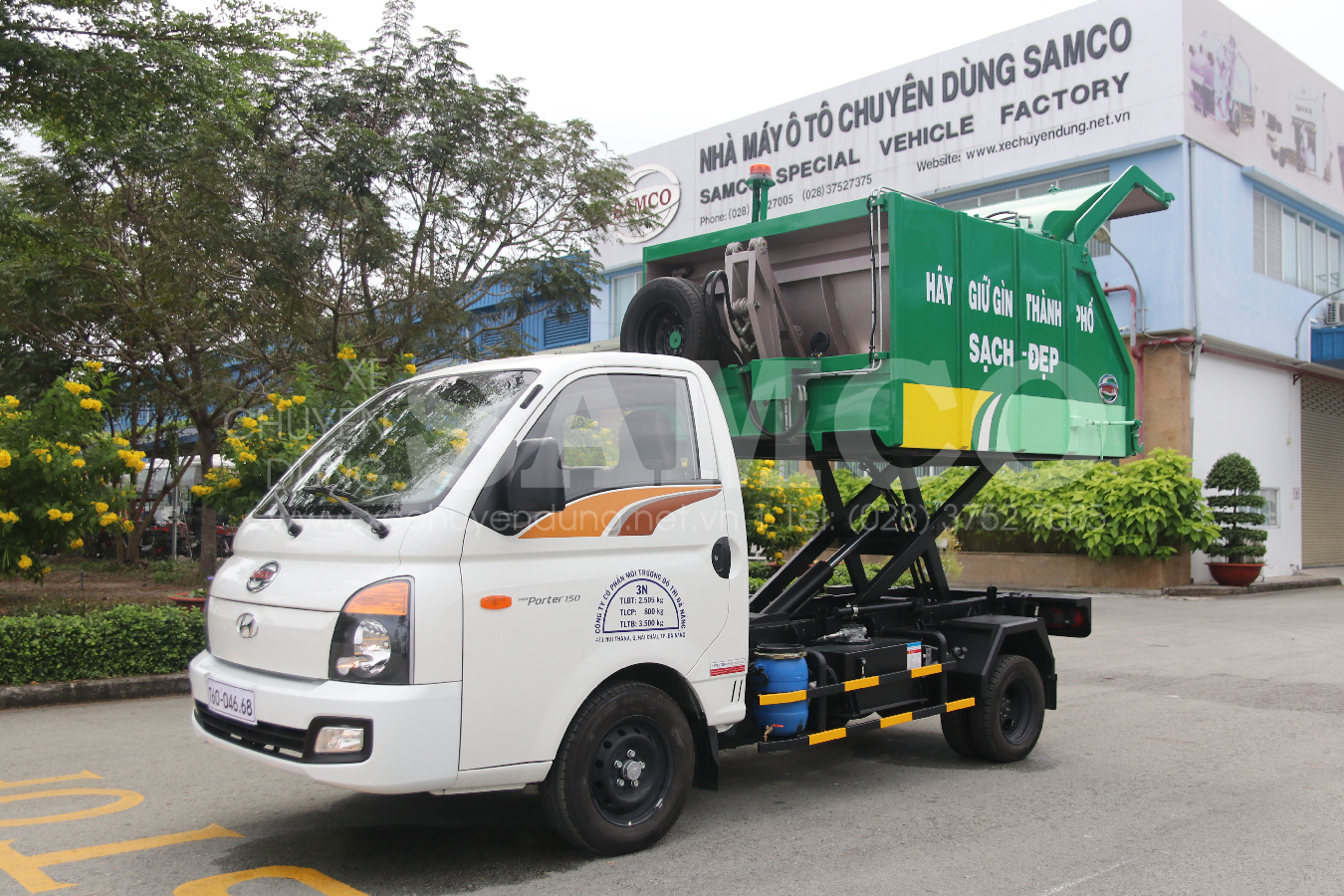

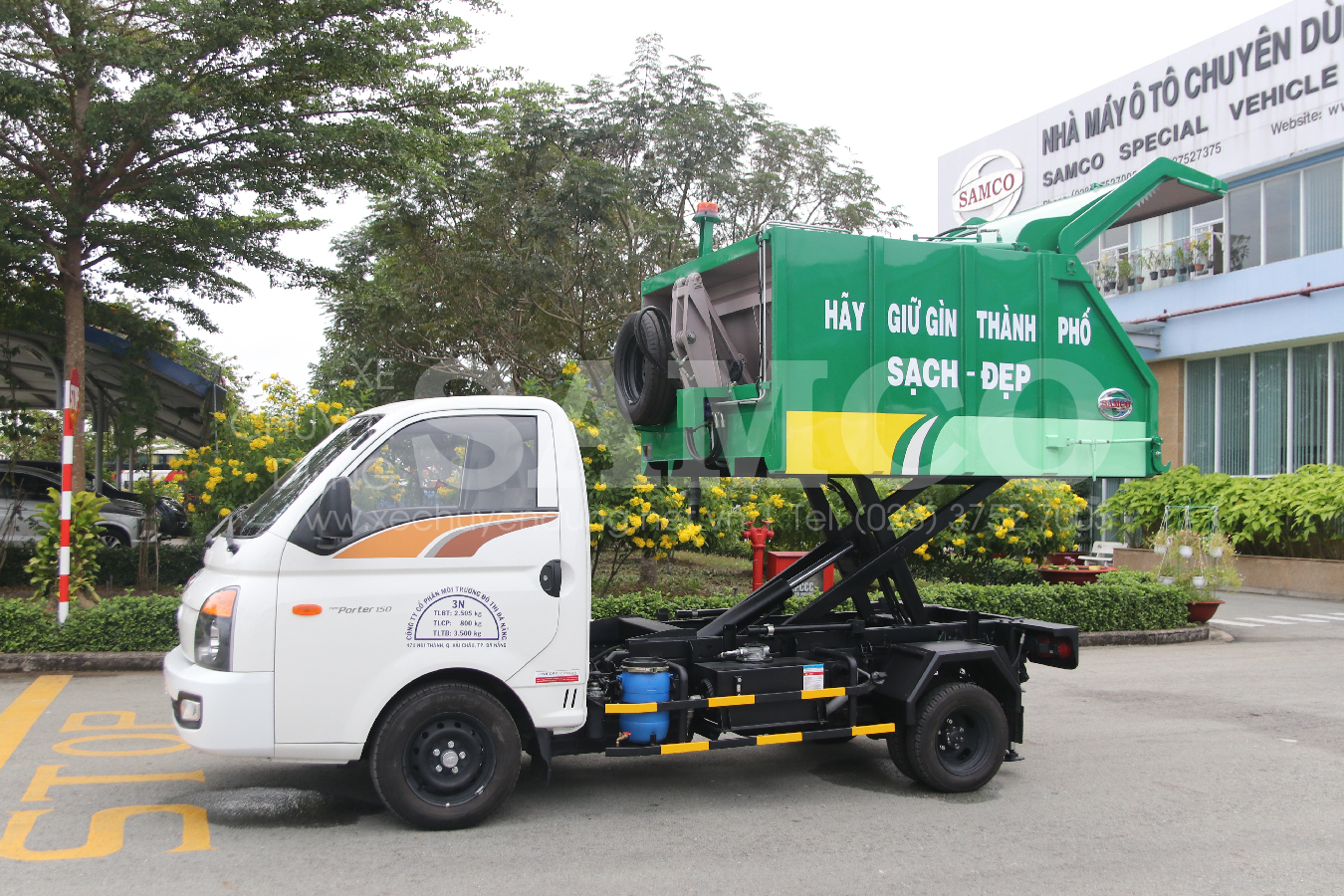

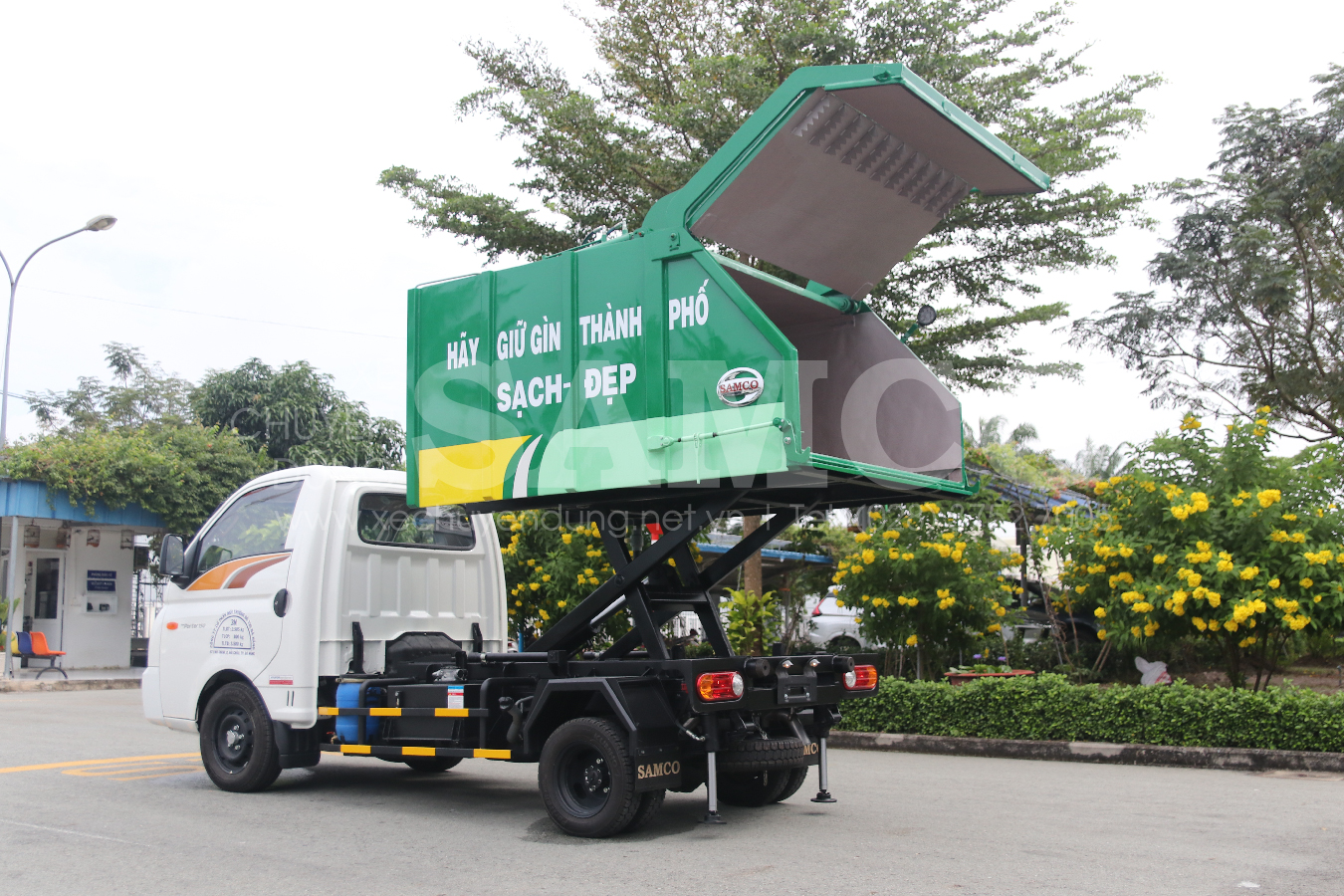

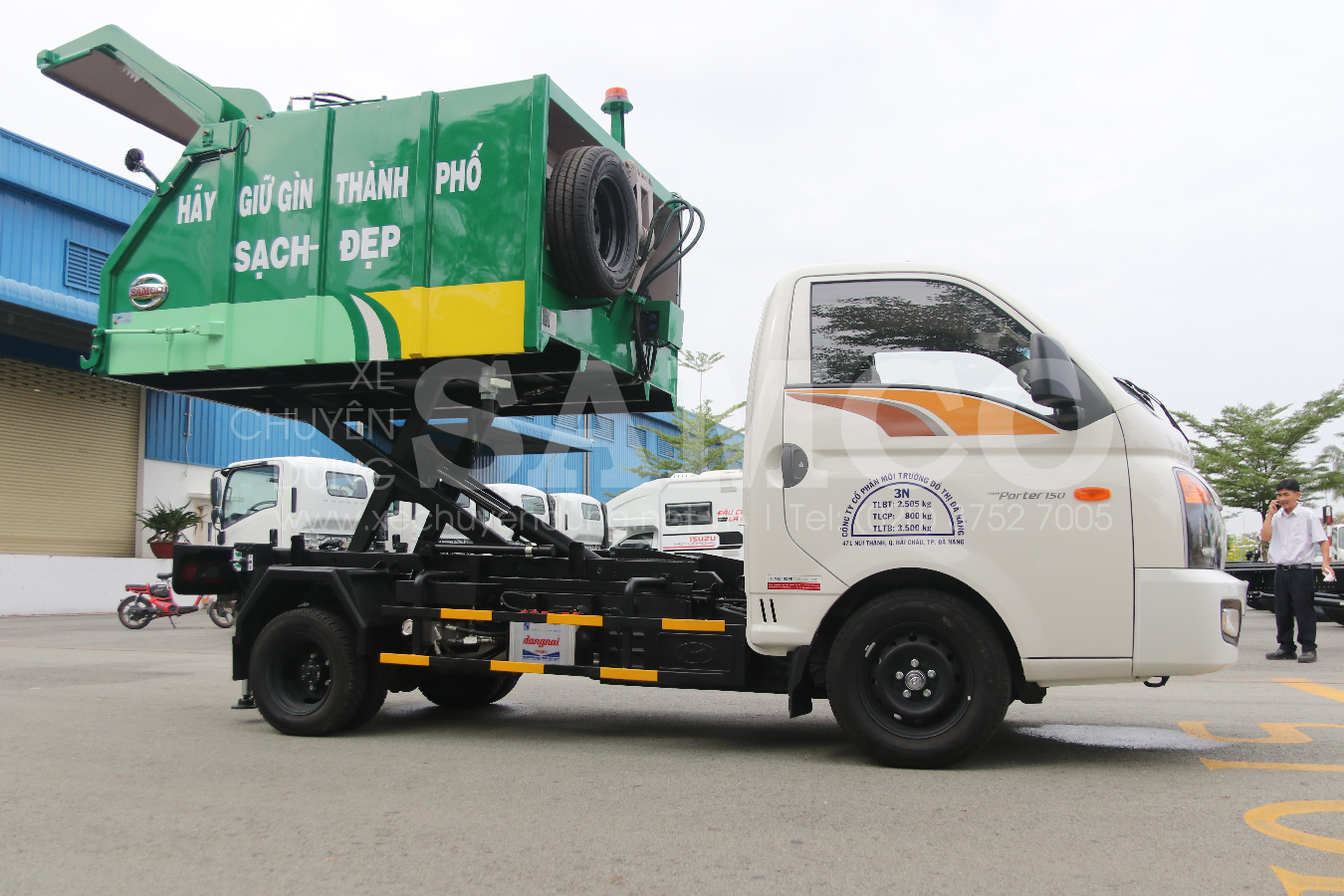

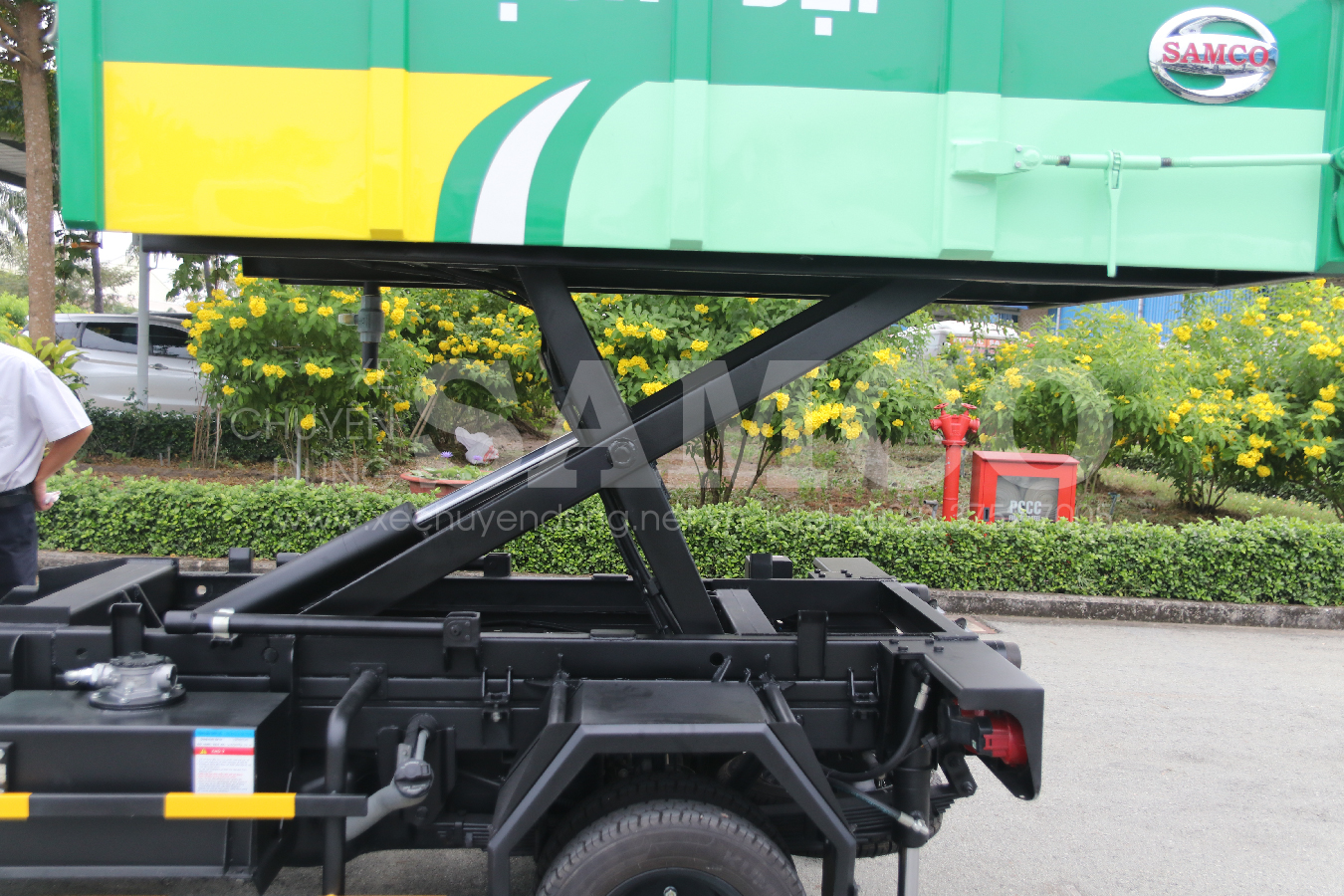

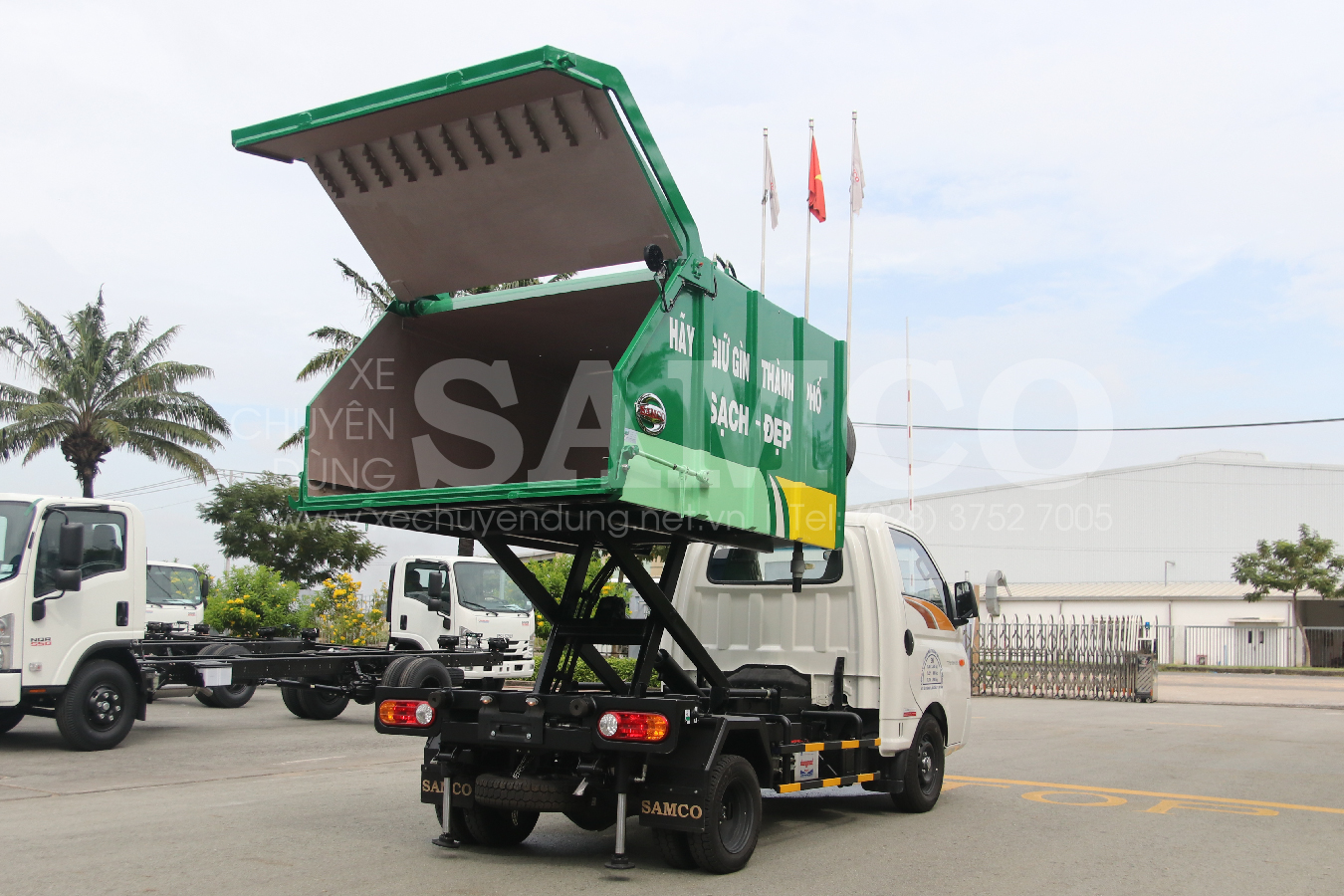

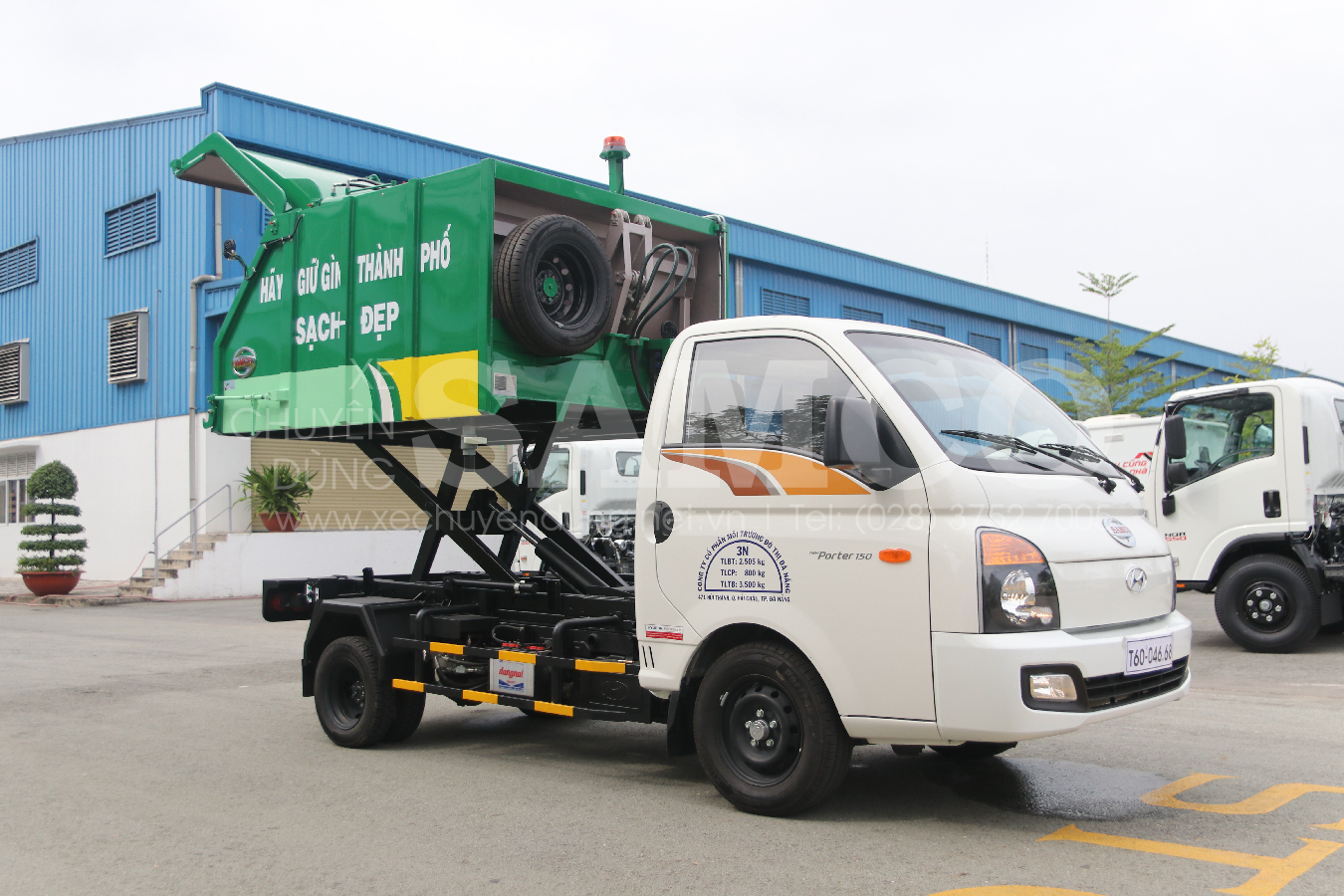

Cơ cấu ben nâng chữ X Cơ cấu ben nâng chữ X

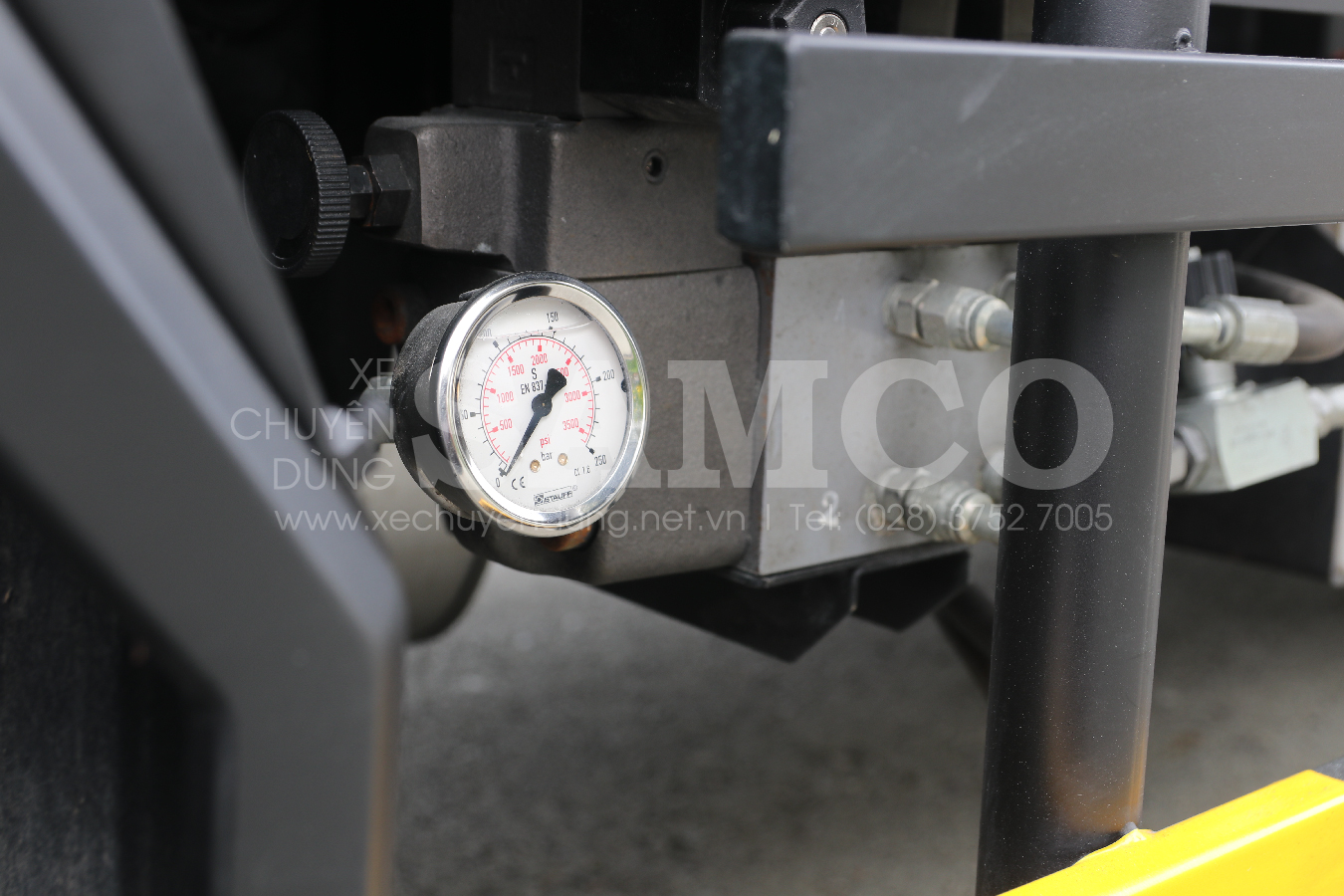

Đồng hồ đo áp suất Đồng hồ đo áp suất

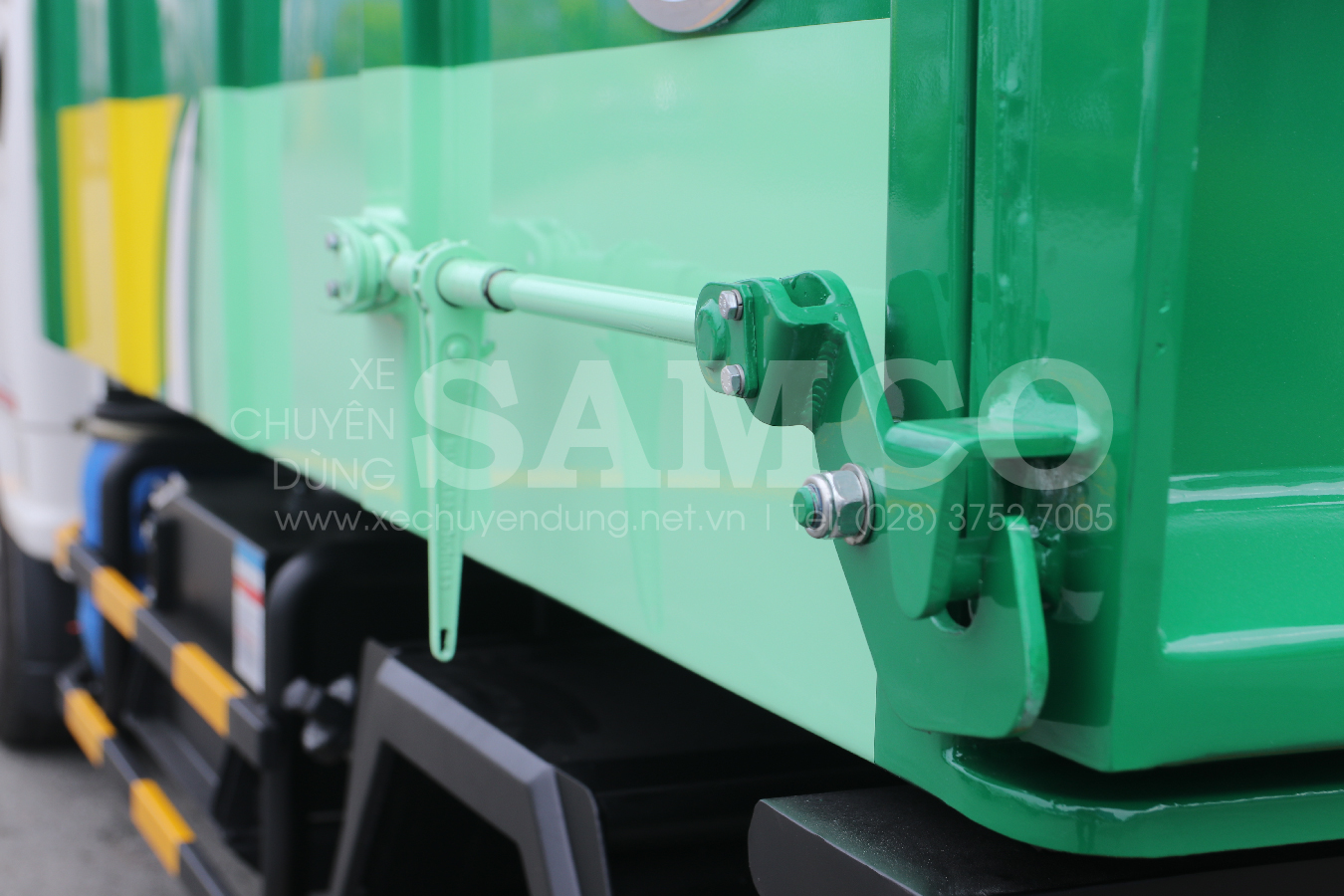

Khóa cửa xả Khóa cửa xả

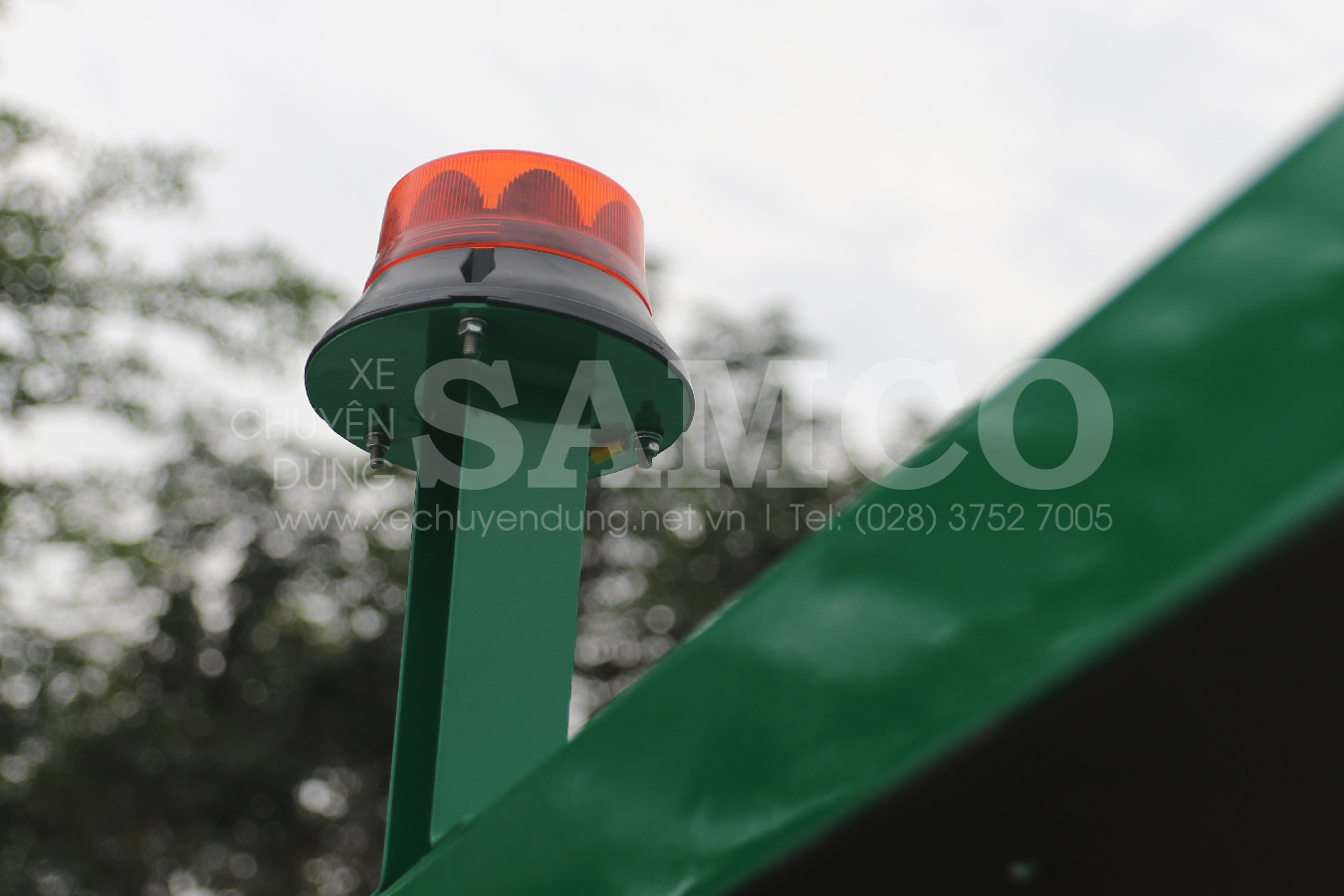

Đèn báo hiệu làm việc Đèn báo hiệu làm việc

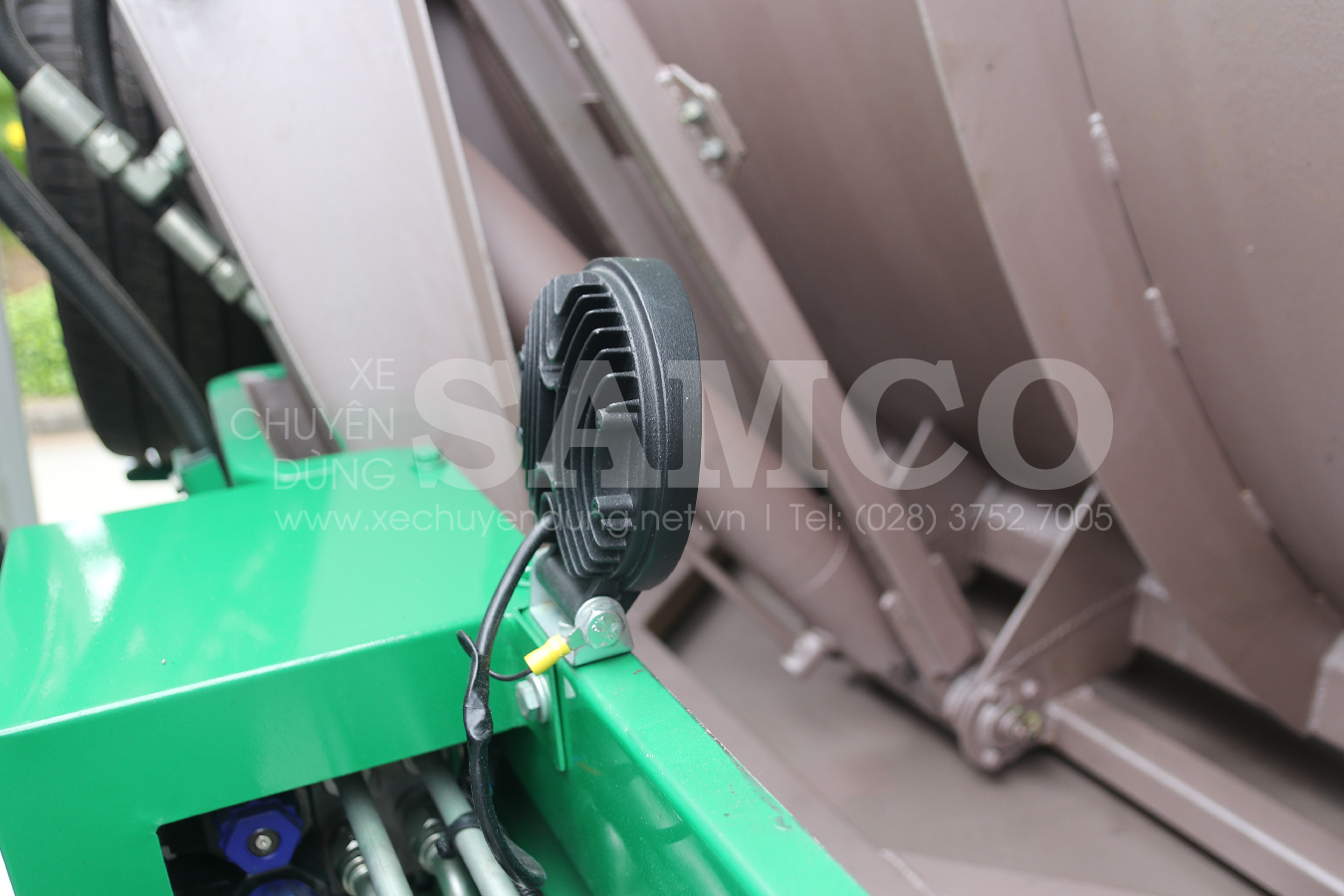

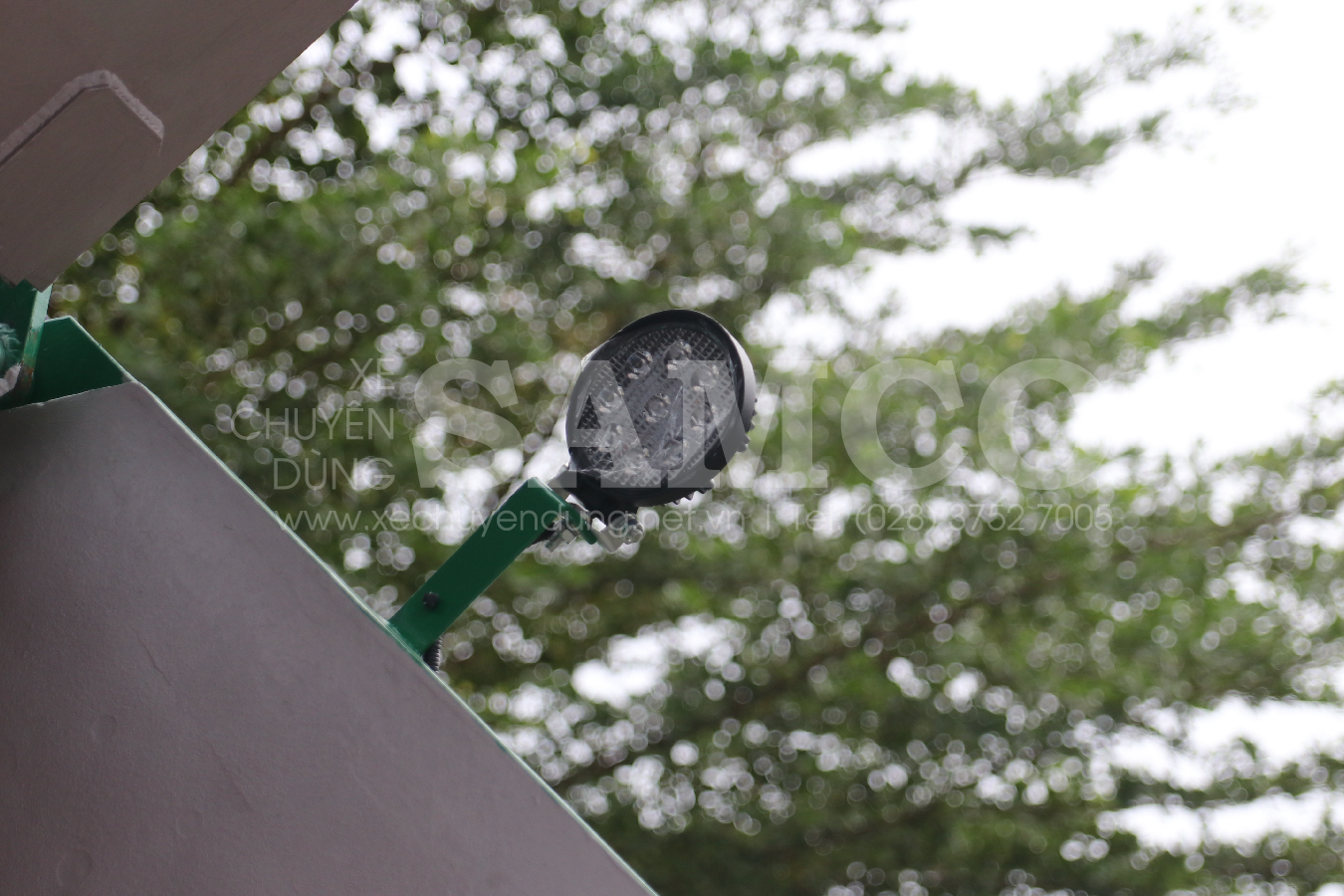

Đèn chiếu sáng làm việc Đèn chiếu sáng làm việc
Đèn chiếu sáng làm việc Đèn chiếu sáng làm việc

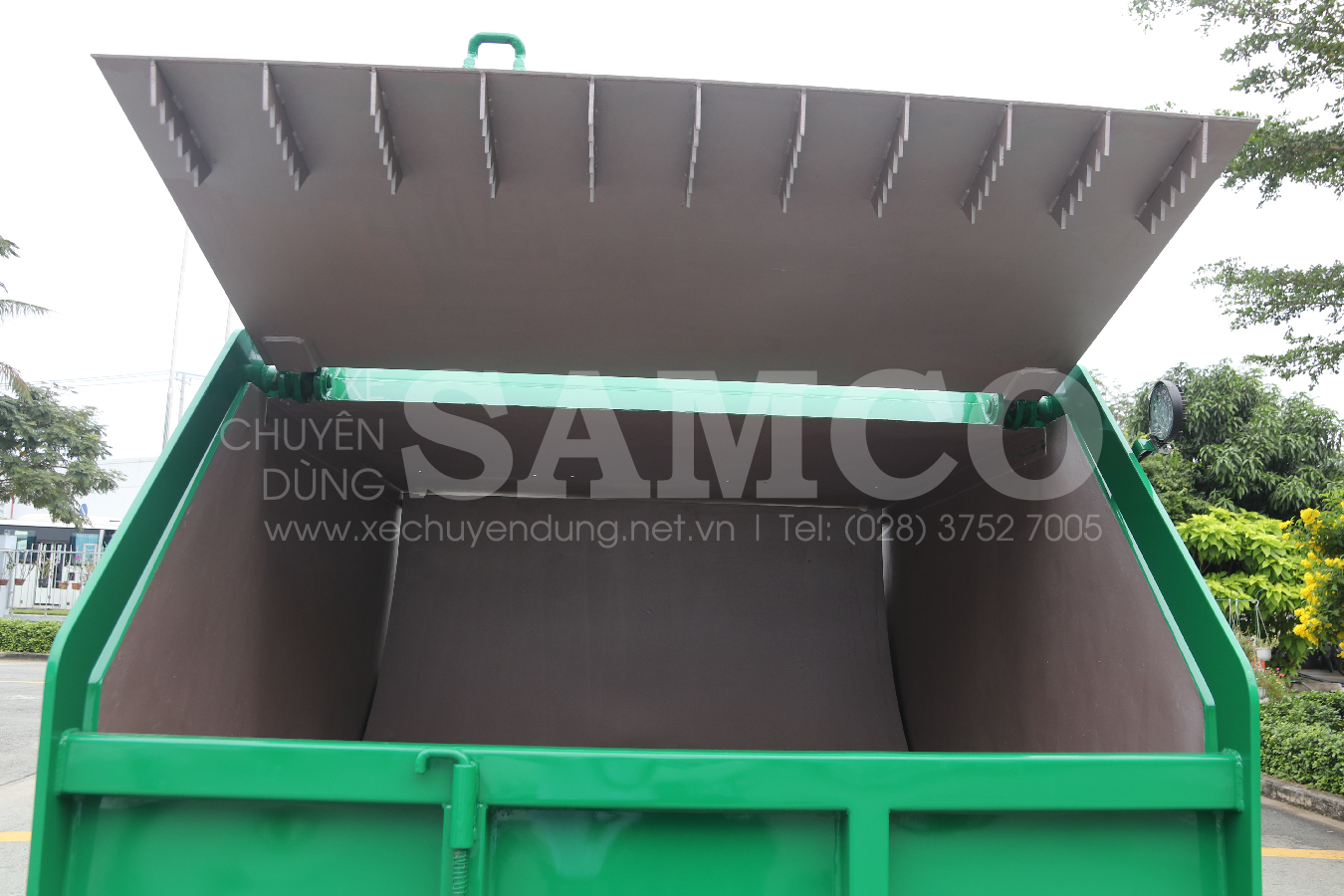

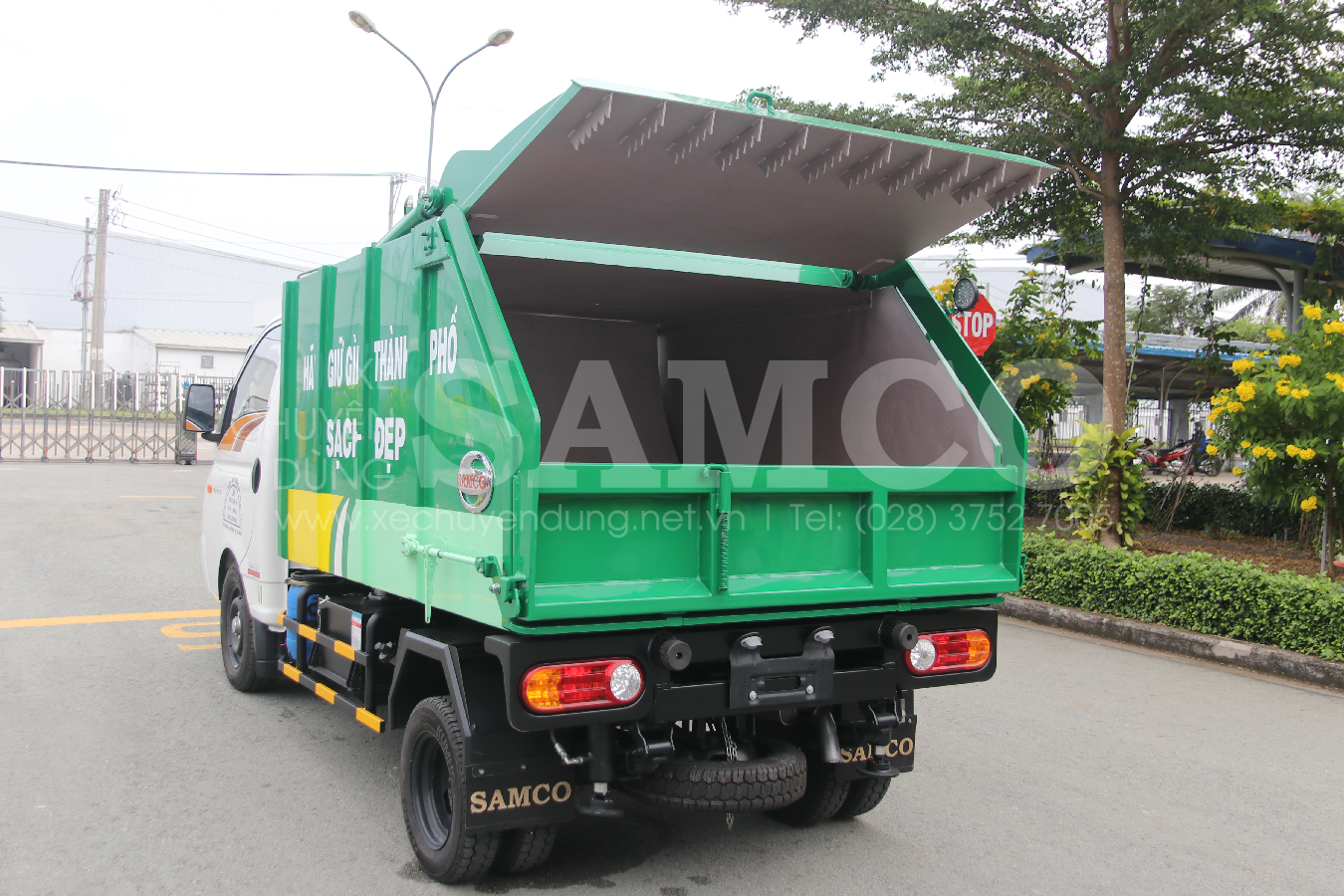

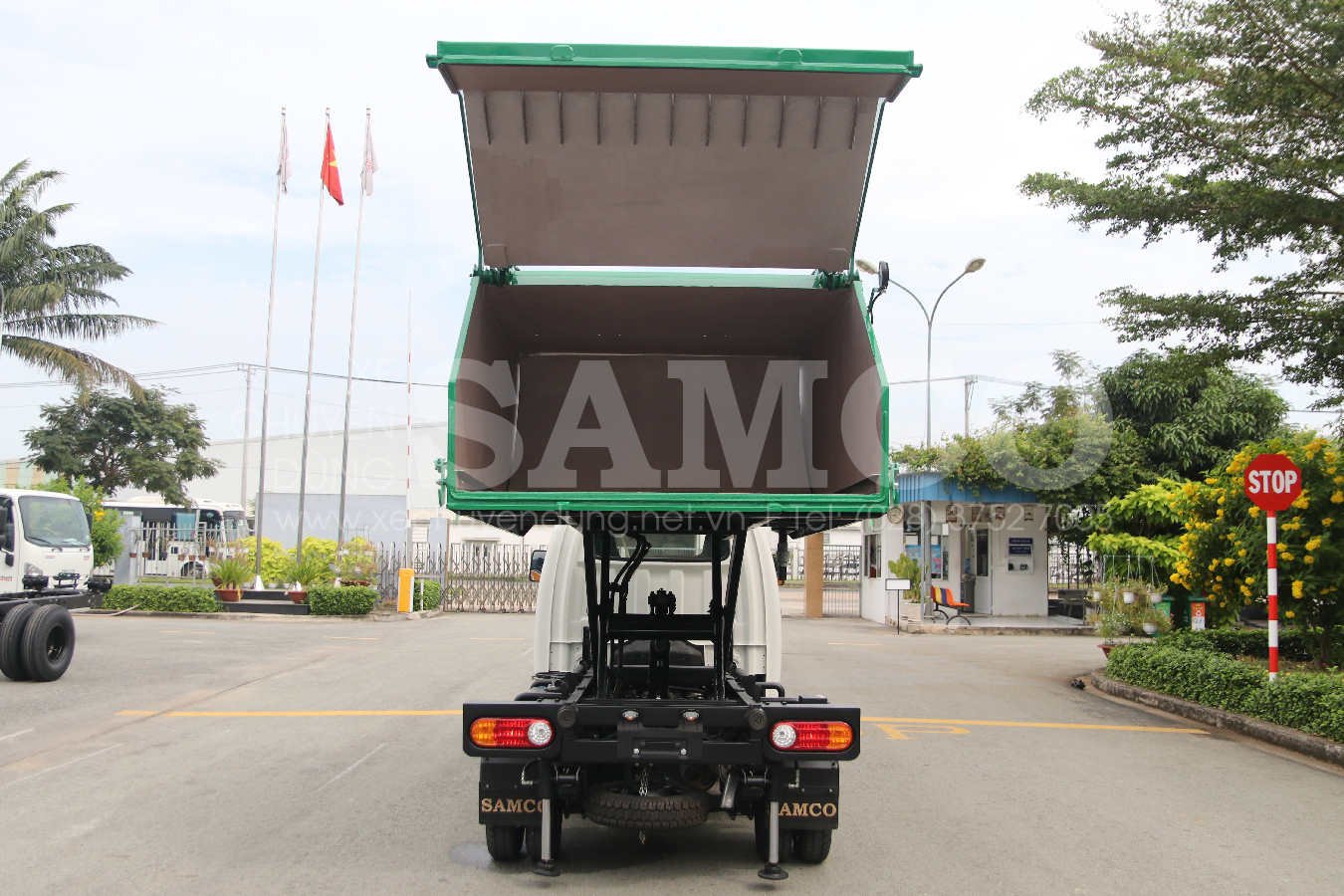

Nắp đậy kết hợp bàn ép rác Nắp đậy kết hợp bàn ép rác

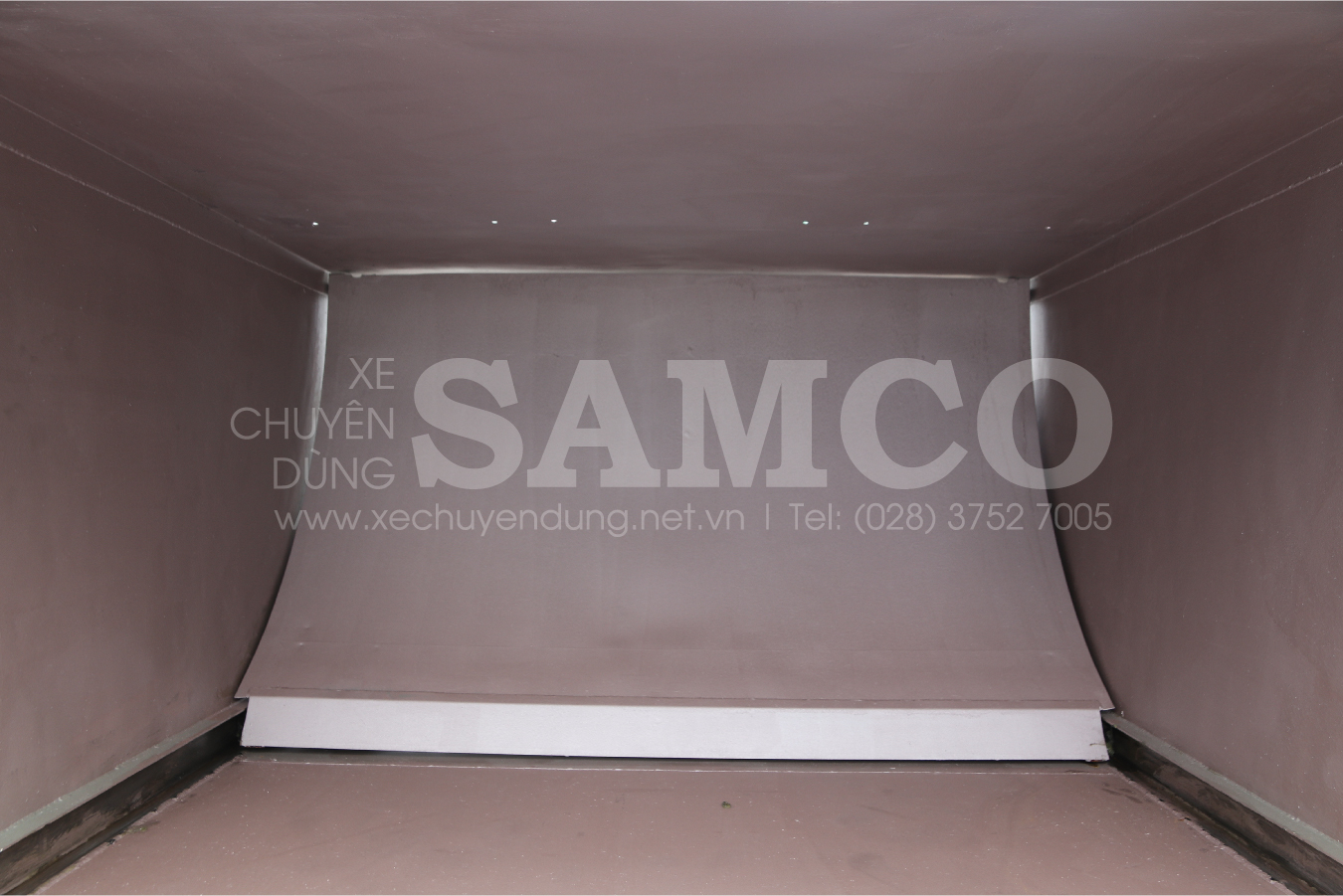

Bàn đẩy rác Bàn đẩy rác
