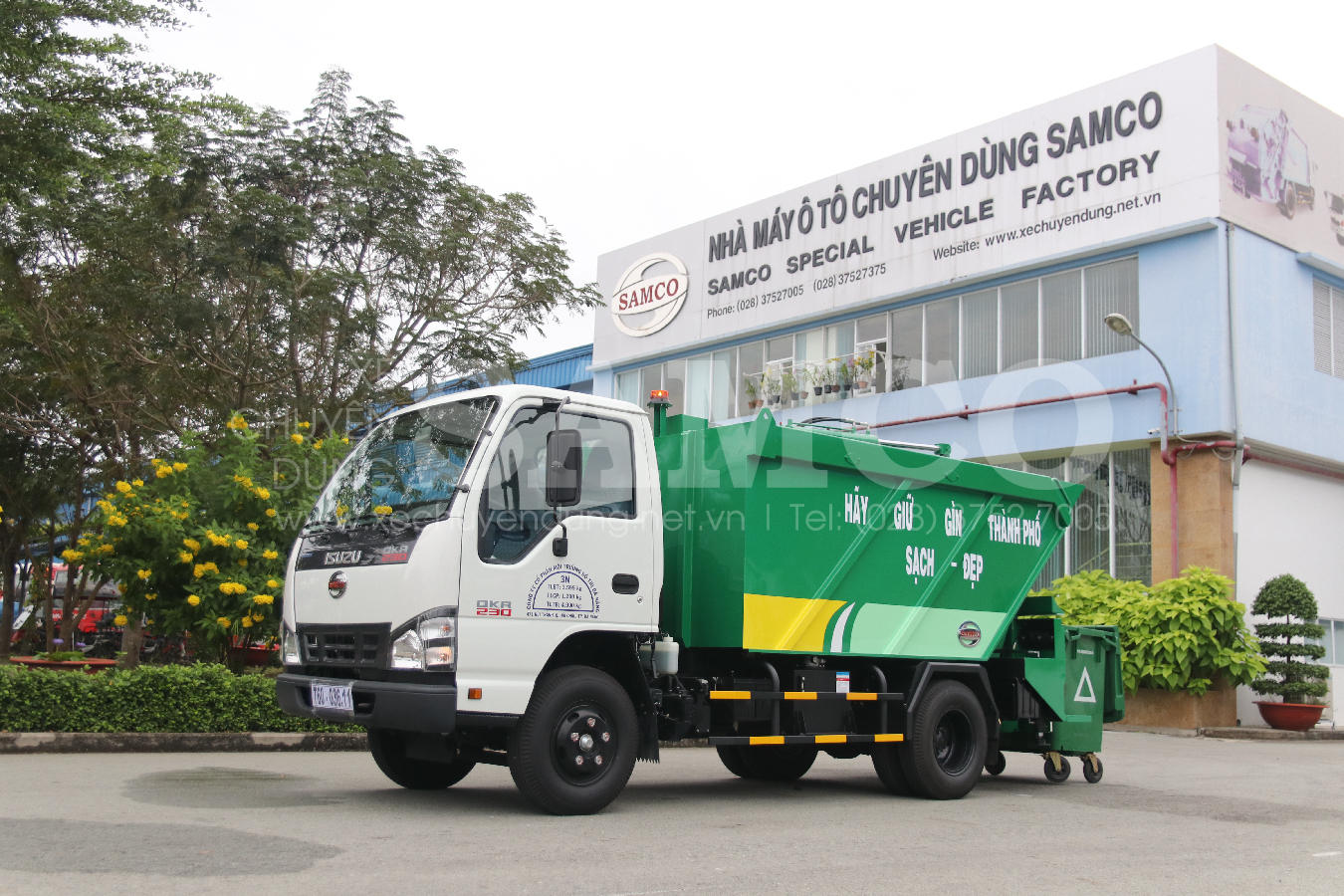

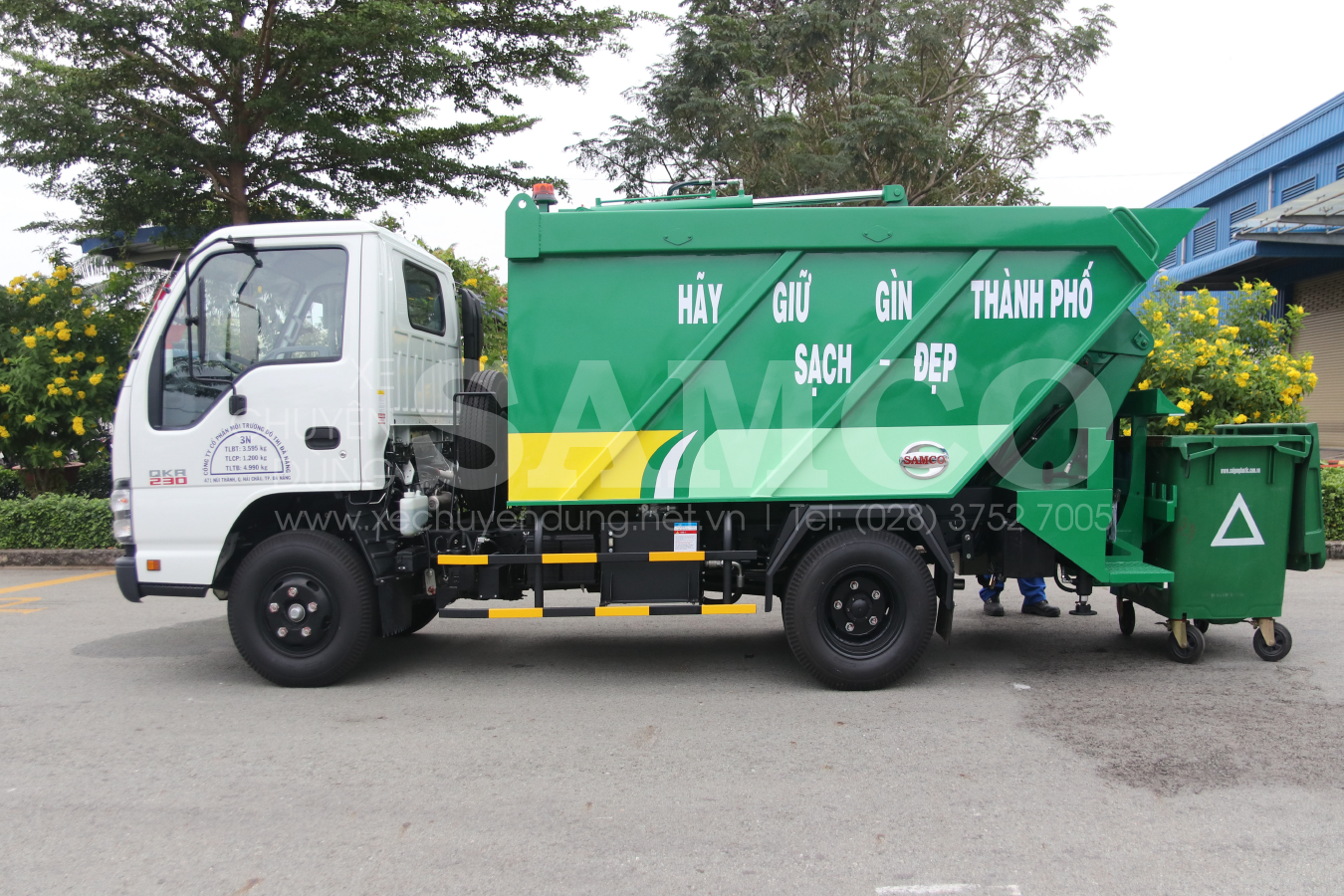

Garbage Truck - RTDIS 040

Overview

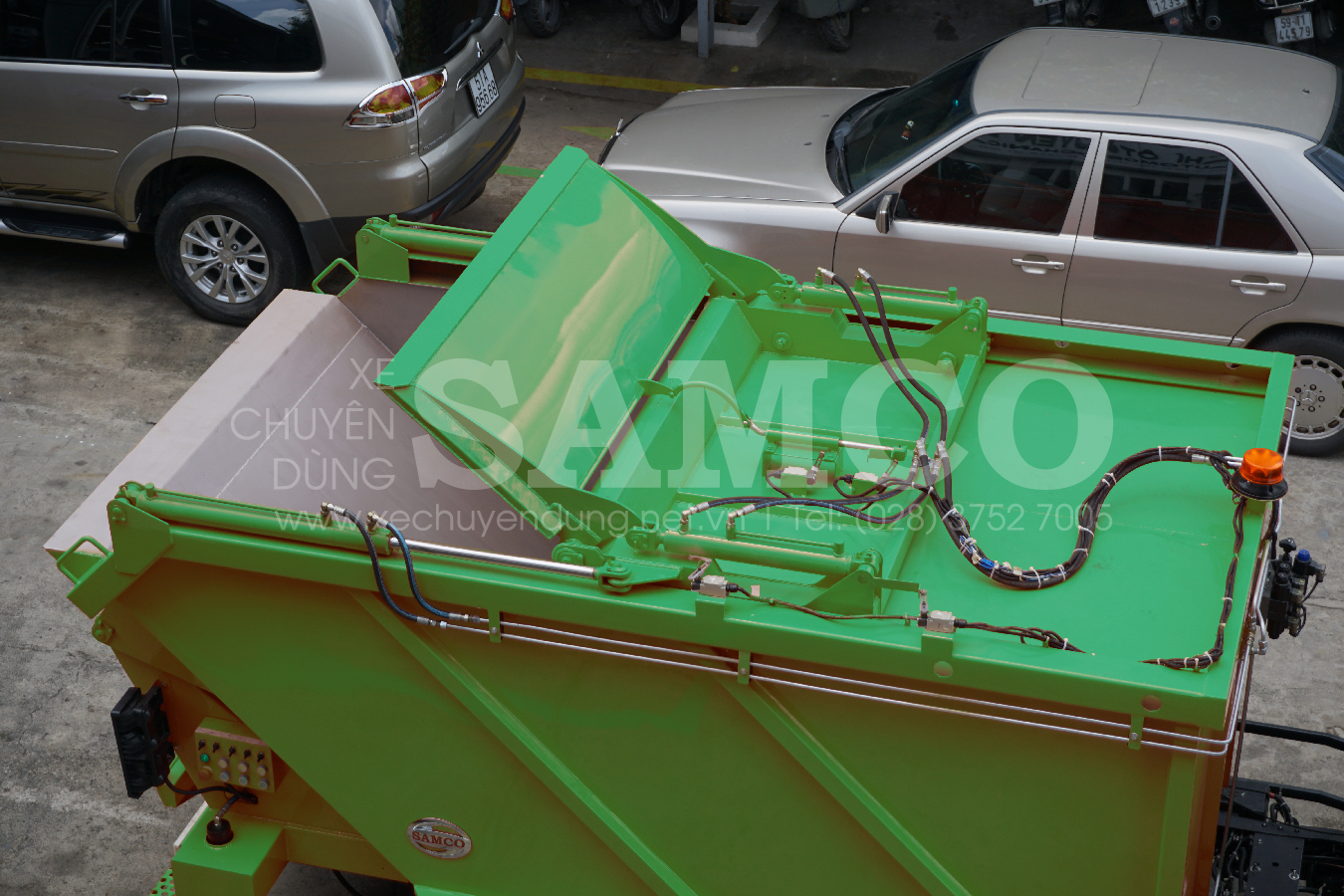

Garbage truck model RTDIS 040 is designed fully compatible with Vietnamese condition. The combination of ISUZU cab chassis, by ISUZU VIETNAM with SAMCO's Upper body will give the customer the appropriate choice. Besides, with the garbage tailgate cover equipped, which will preserve the hygiene and ensure the urban aesthetics.

  • Chasis : ISUZU QKR77FE4
  • Payload : 1,200 kg
  • G.M.W : 4,990 kg
  • Volume: 4.0 m³
  • Emision Standard: EURO 4
Brochure download
<p>Garbage truck, mini garbage truck, samco, spsamco</p>

Technical Specifications

Cab Chasis ISUZU QKR77FE4
Engine Model  4JH1E4NC
Max. Output 77/3,200 kW/rpm
Wheel Spase 2,750 mm
Displacement 2,999 cc
Overall Dimension (L x W x H) 5,410 x 1,860 x 2,400 mm
G.M.W 4,990 kg
Payload 1,200 kg
Kerb mass 3,595 kg
Tank Volume: 4,0 m³
Body profile: Straight wall, curve top
Tank material: SPA-H steel, Japan

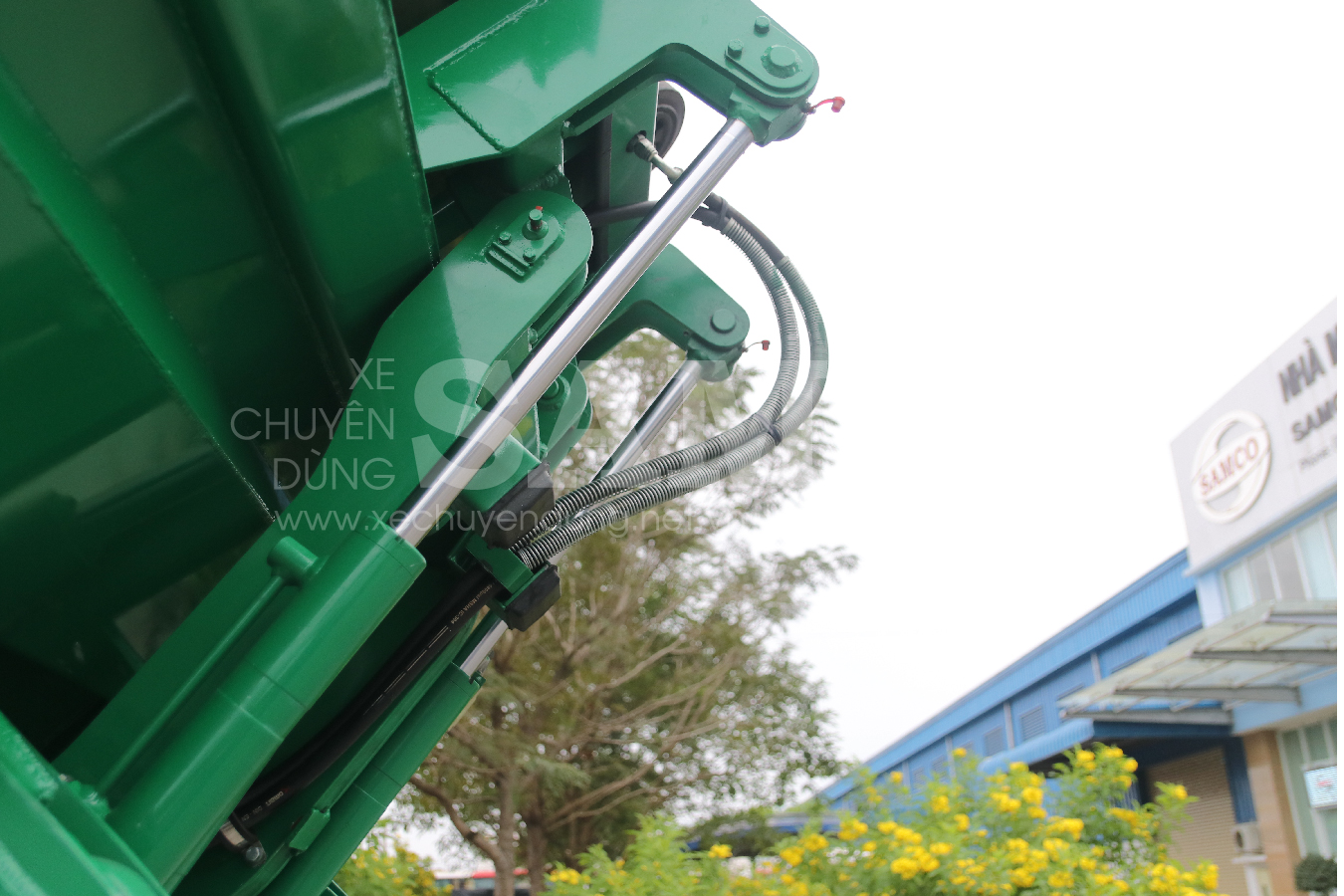

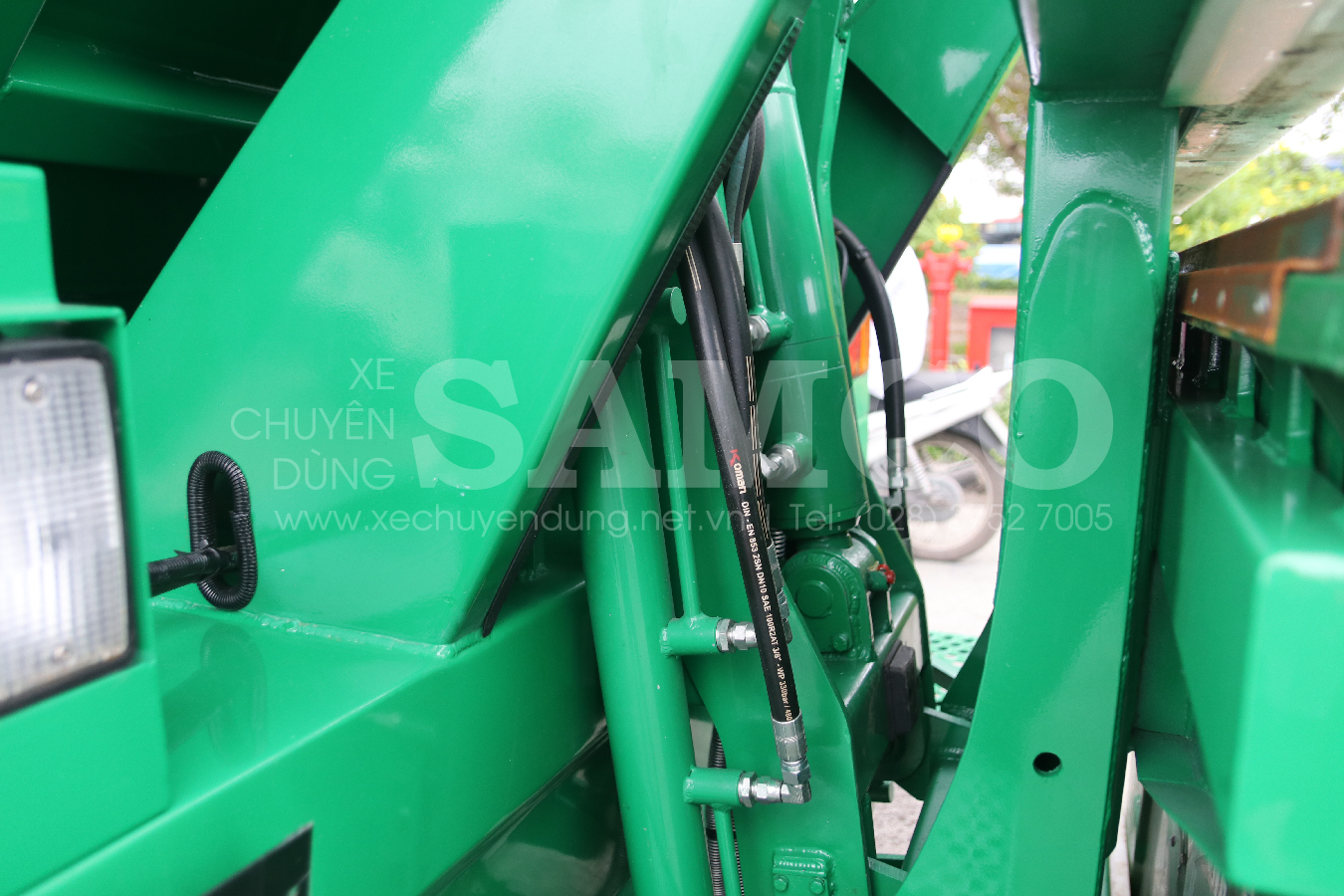

Hydraulic equipment Imported from Europe
Truck Outriggers Equipped in the behind vehicle to create stability and safety when lifting and littering from garbage body
Anti-leakage System Prevent leachate out and limit diffusion of odor

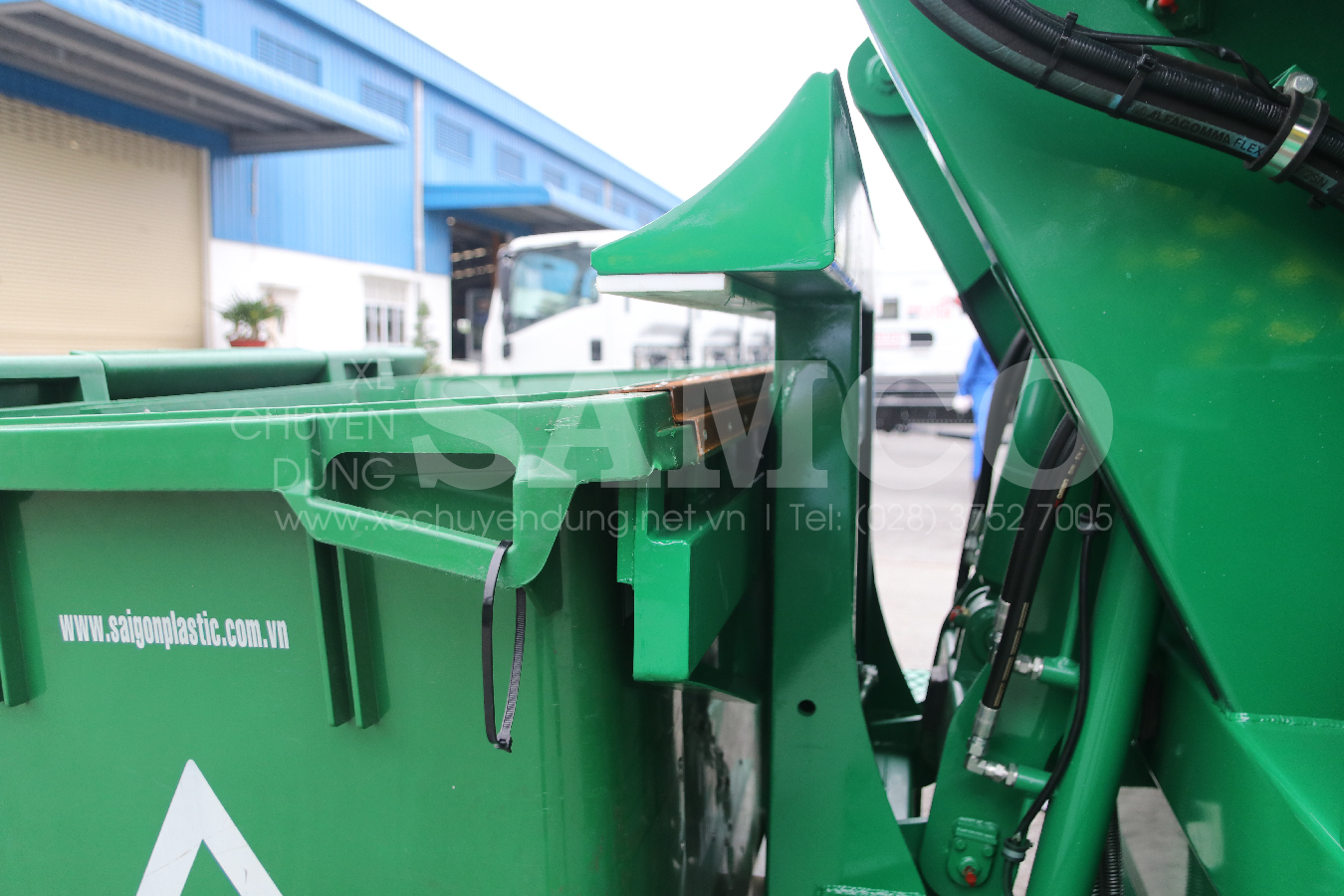

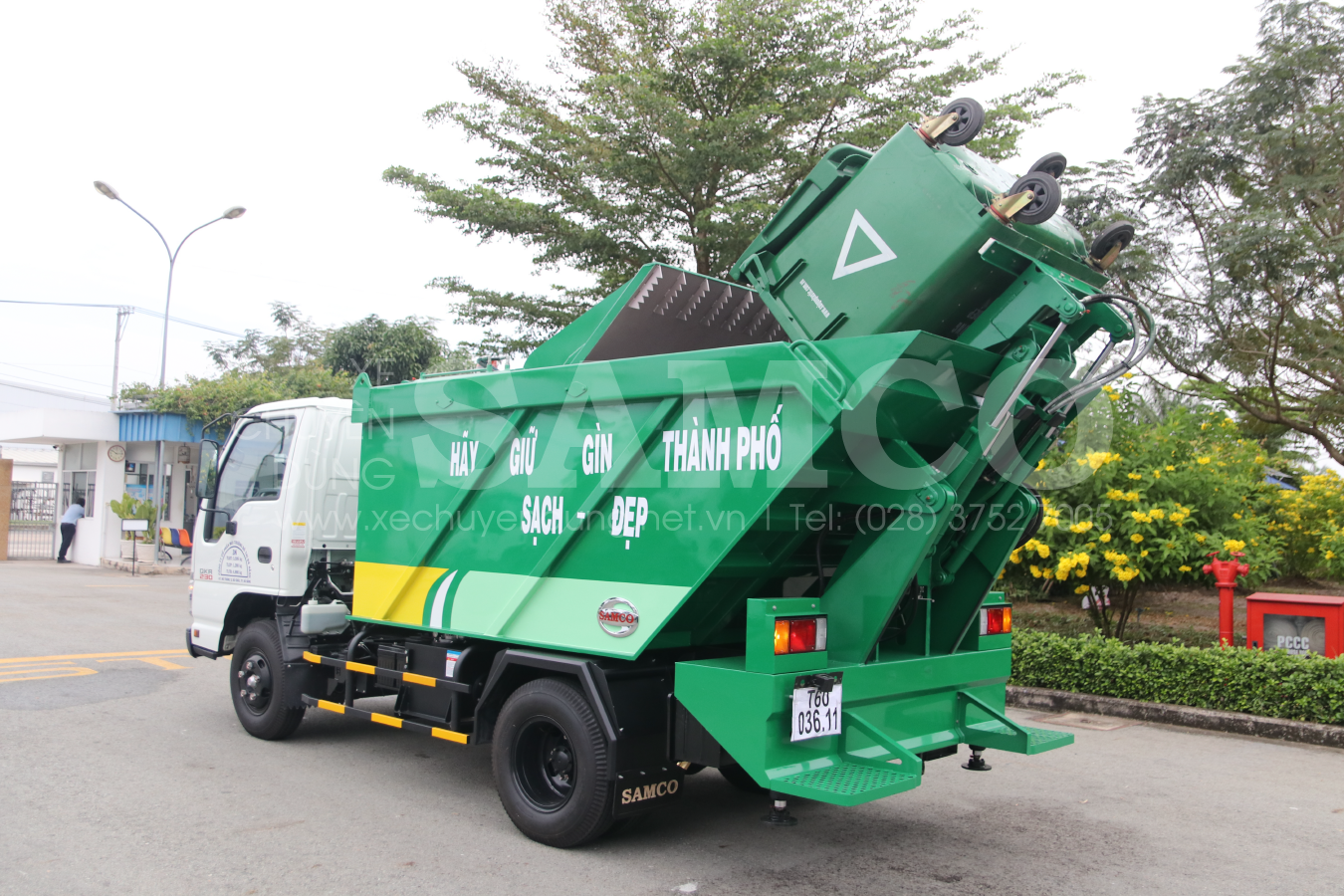

Garbage loading control by mechanism Clip bin
Turn up bin into the trough
Turn bin down
Release bin

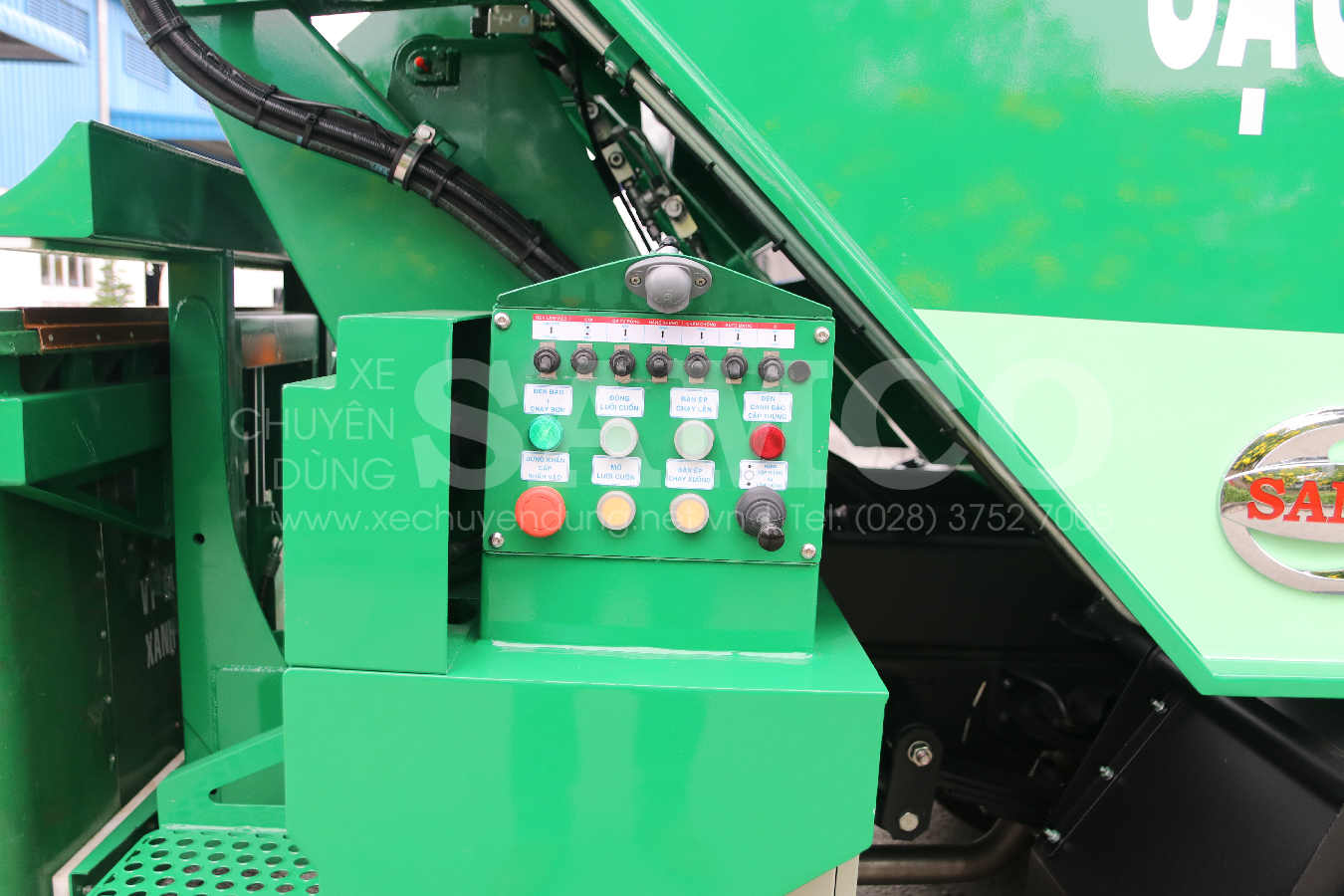

Garbage compacting control by mechanism in two modes Continuous automatic operation
Manual operation

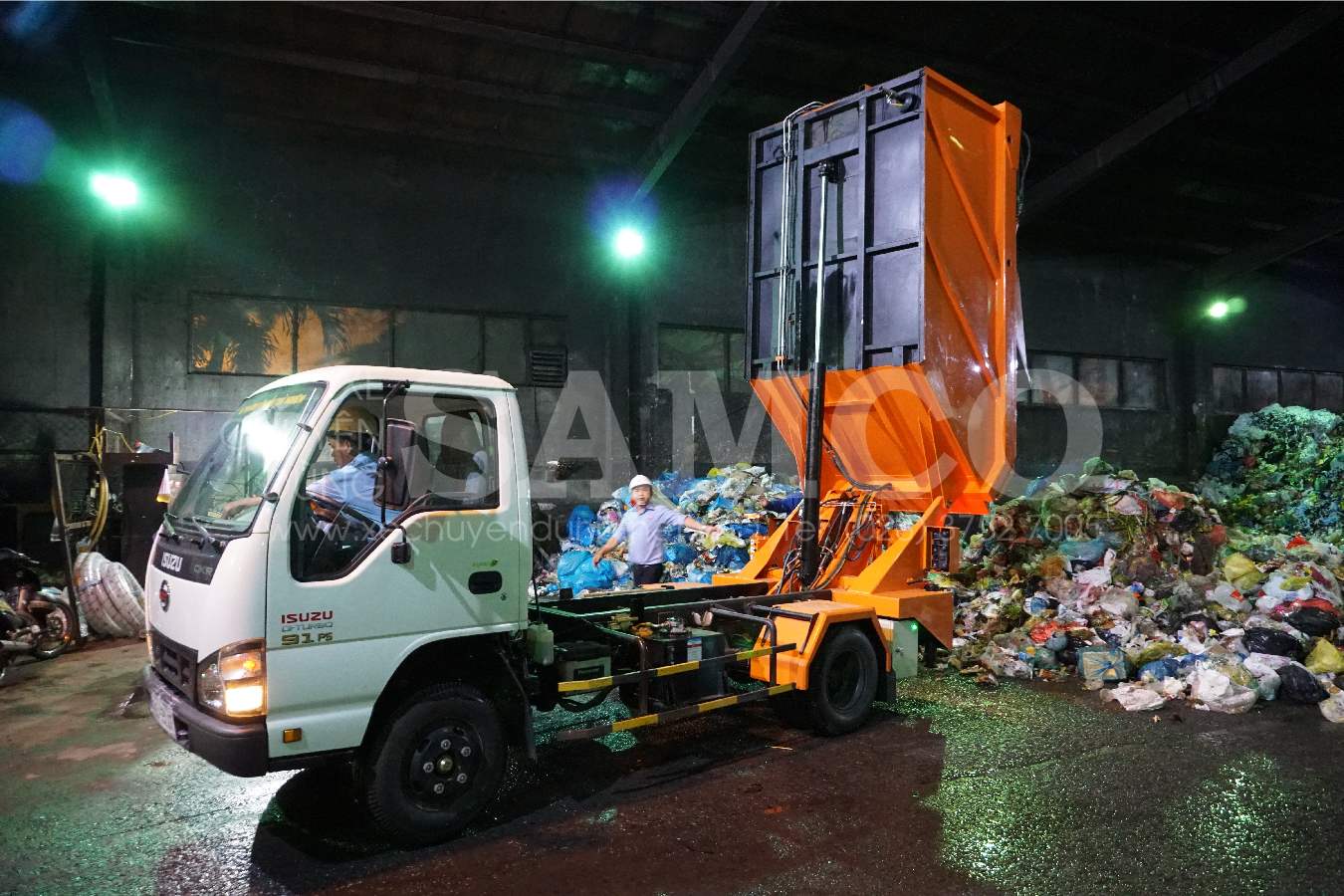

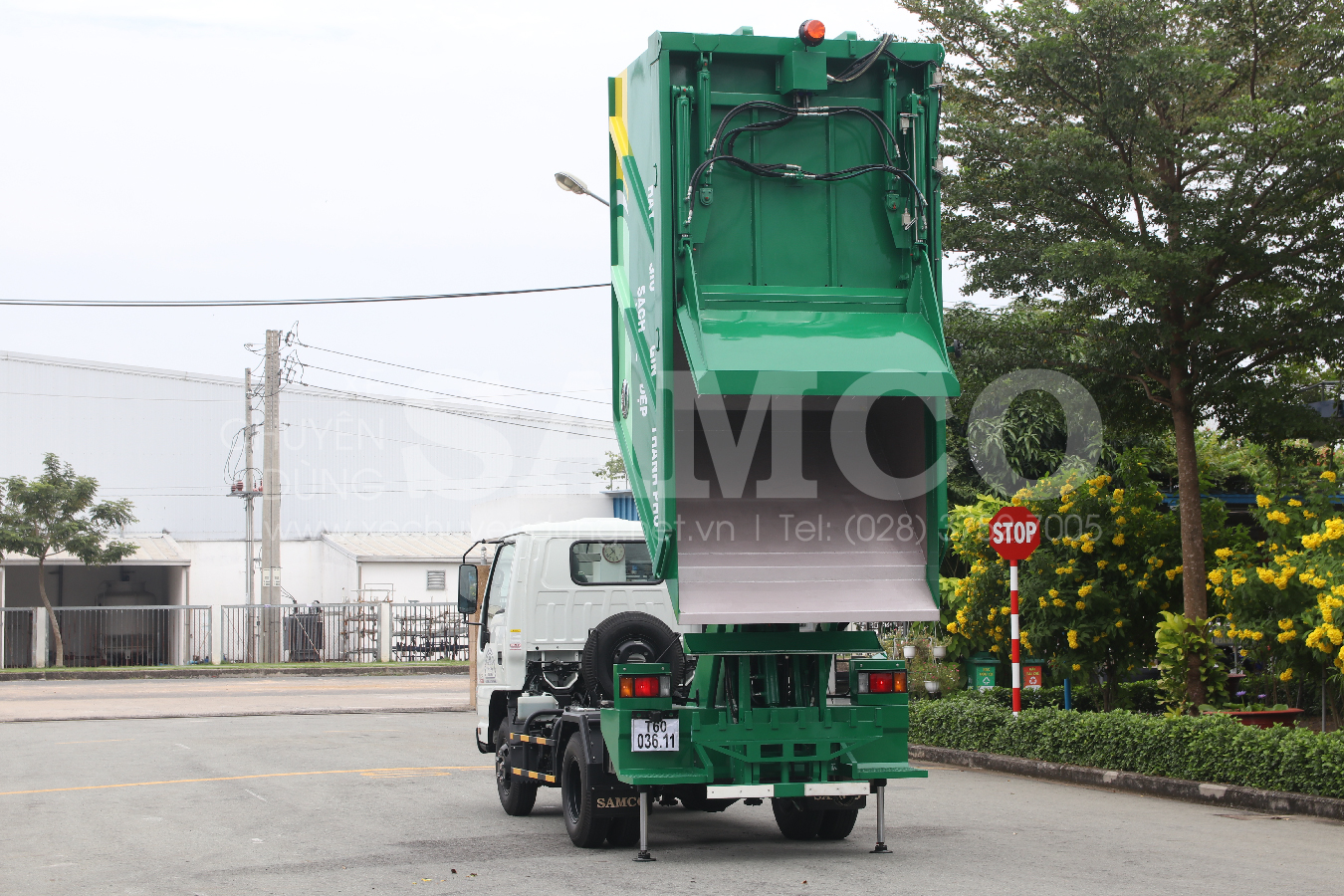

Garbage ejecting control by manual control Opening locks and lifting tailgate
Ejecting garbage
Moving the ejecting plate pack
Lowering and locking the tailgate
Tank Blue, Green, Orange, White, Customers demand
Product policy In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation
The Garbage Tailgate Cover for garbage truck, bulldozing garbage truck, two-arms loading garbage truck is protected for industrial design under Vietnamese Law of Intellectual Property. All copy without SAMCO authorizing is unlawful.
Trucks

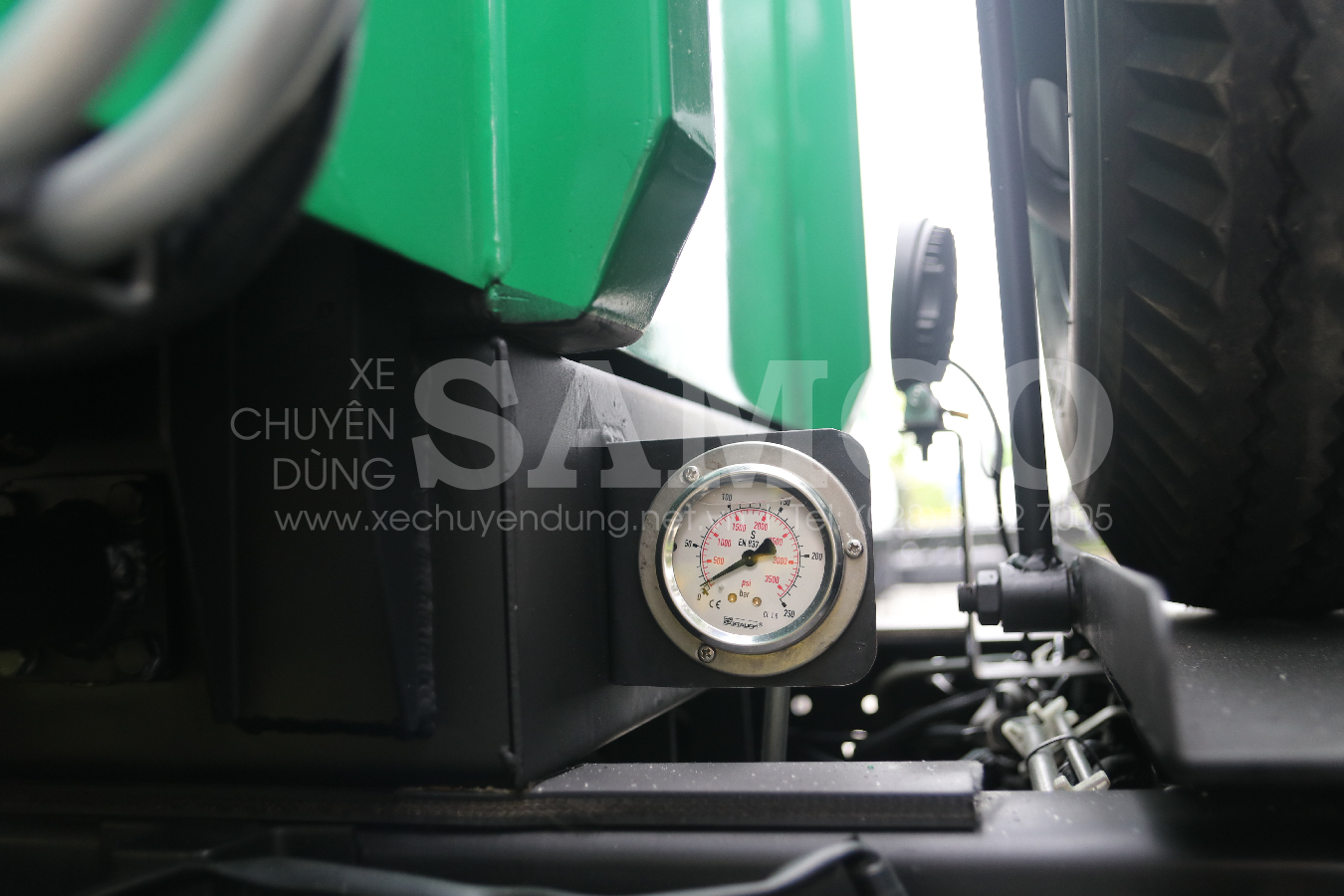

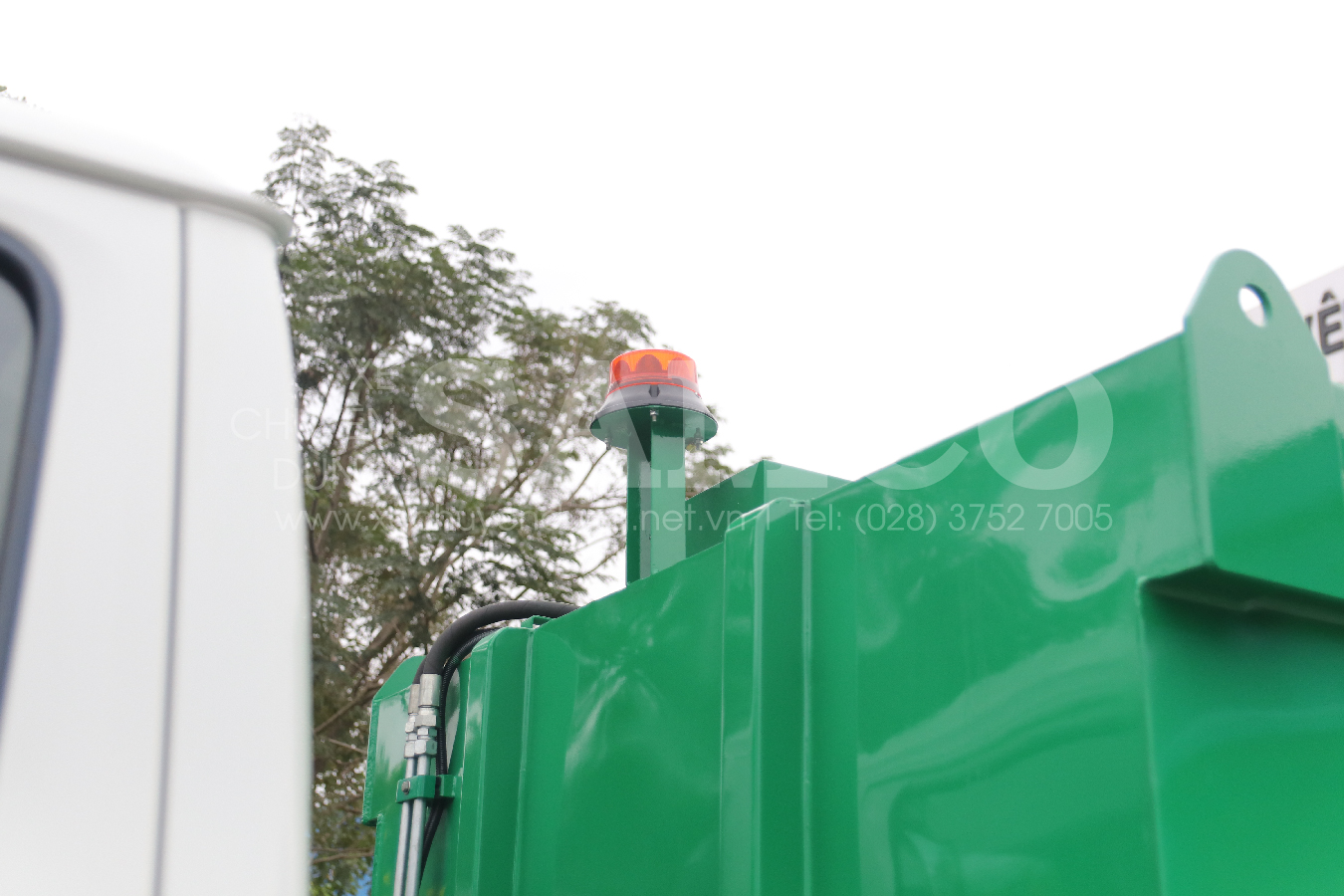

Detail images
