Garbage Truck - RTDSU 020

Overview

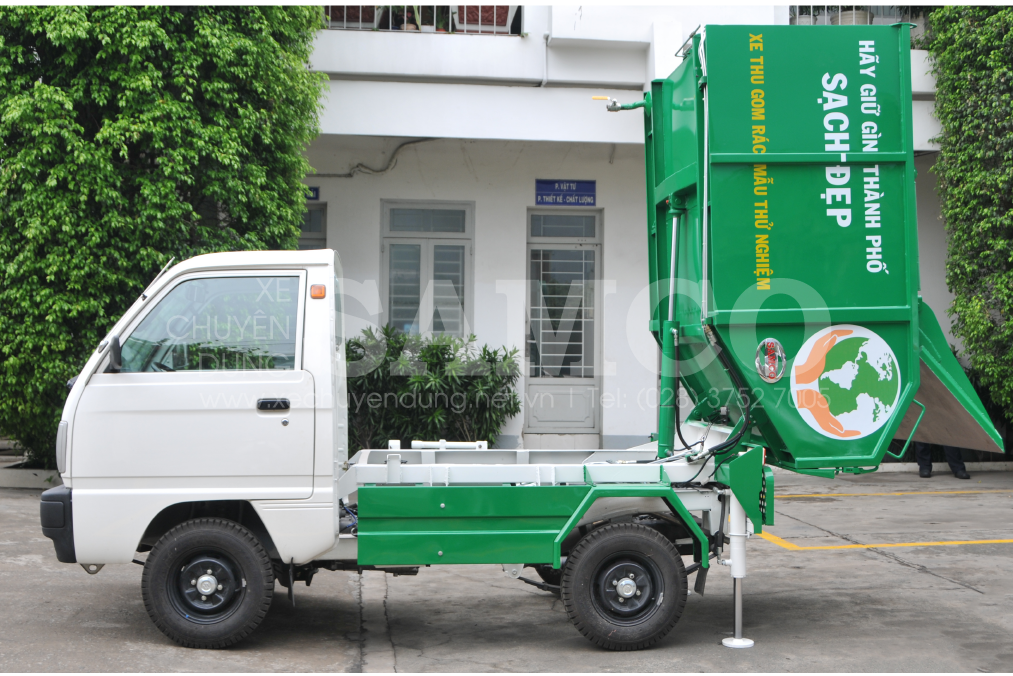

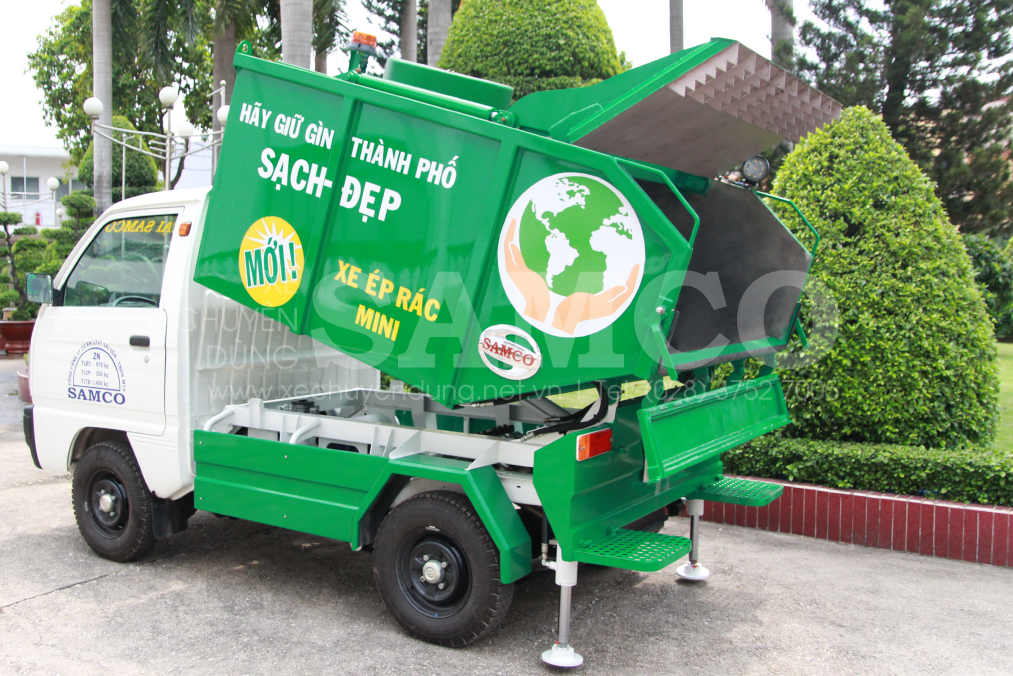

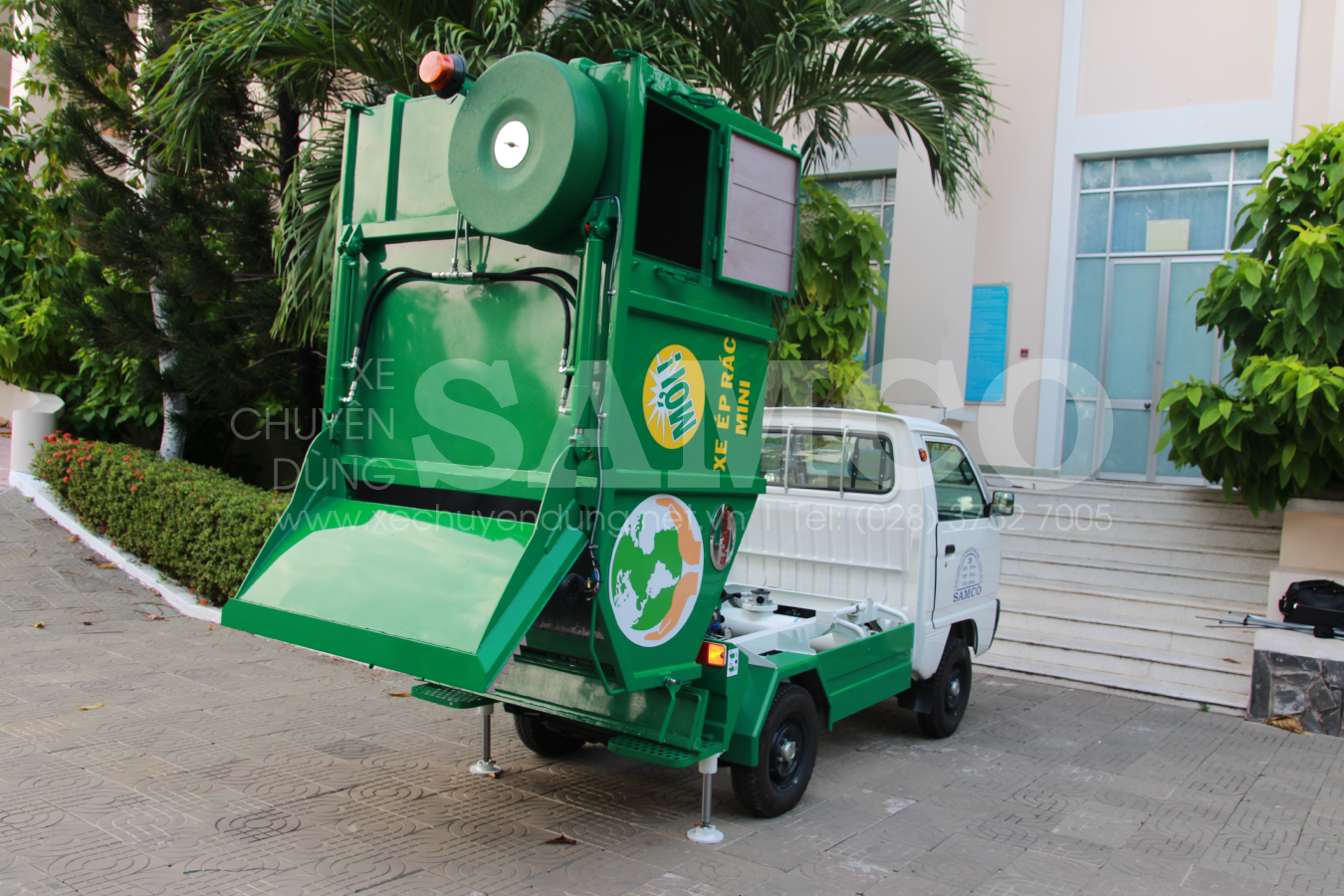

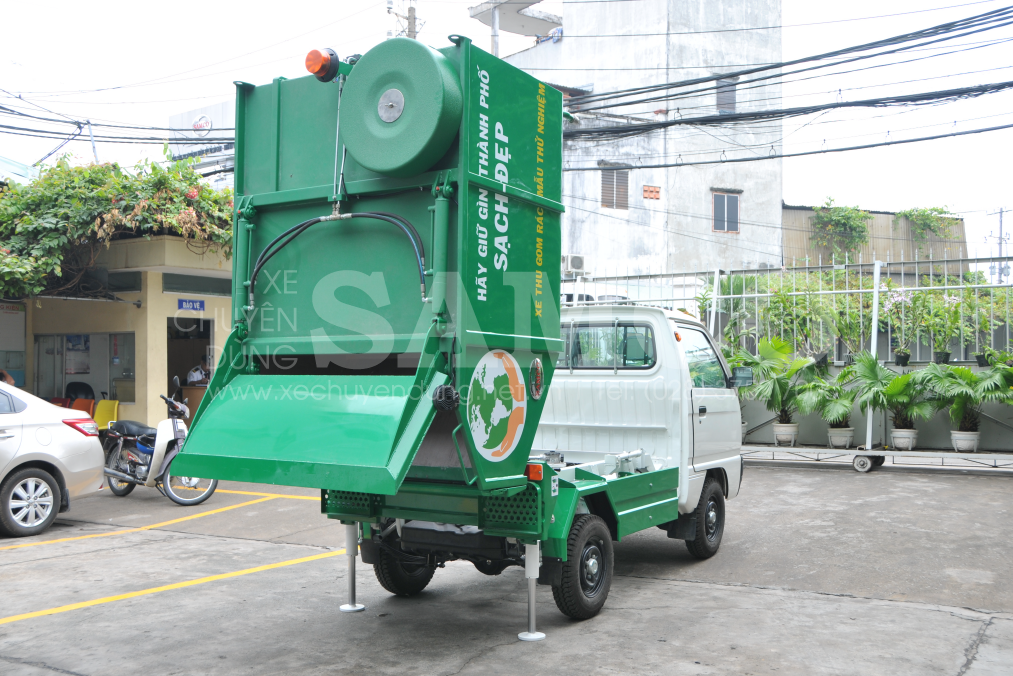

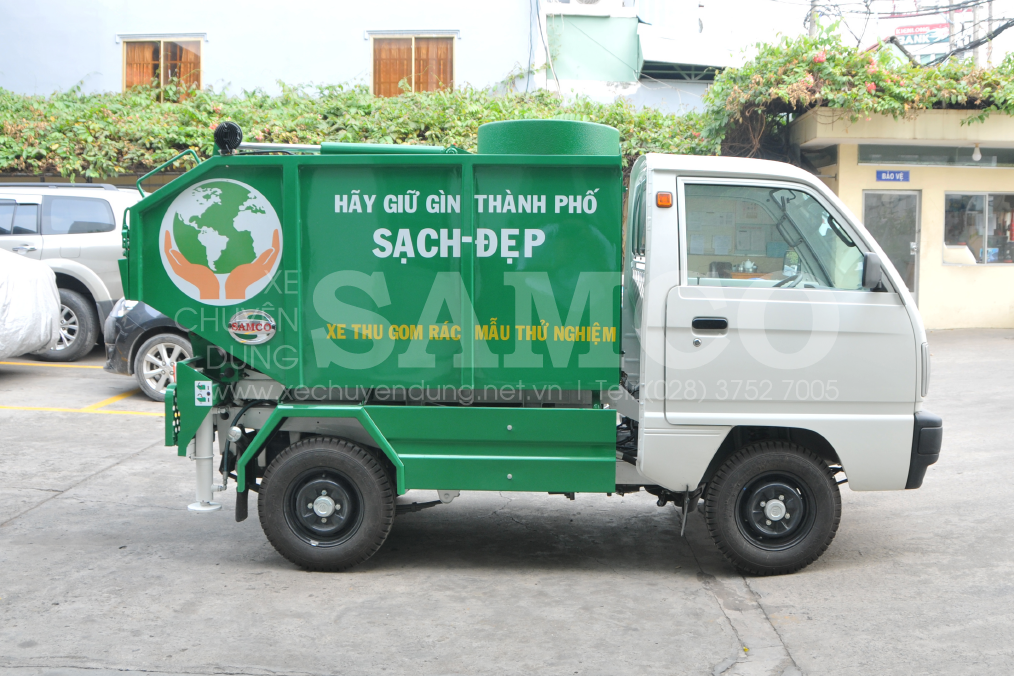

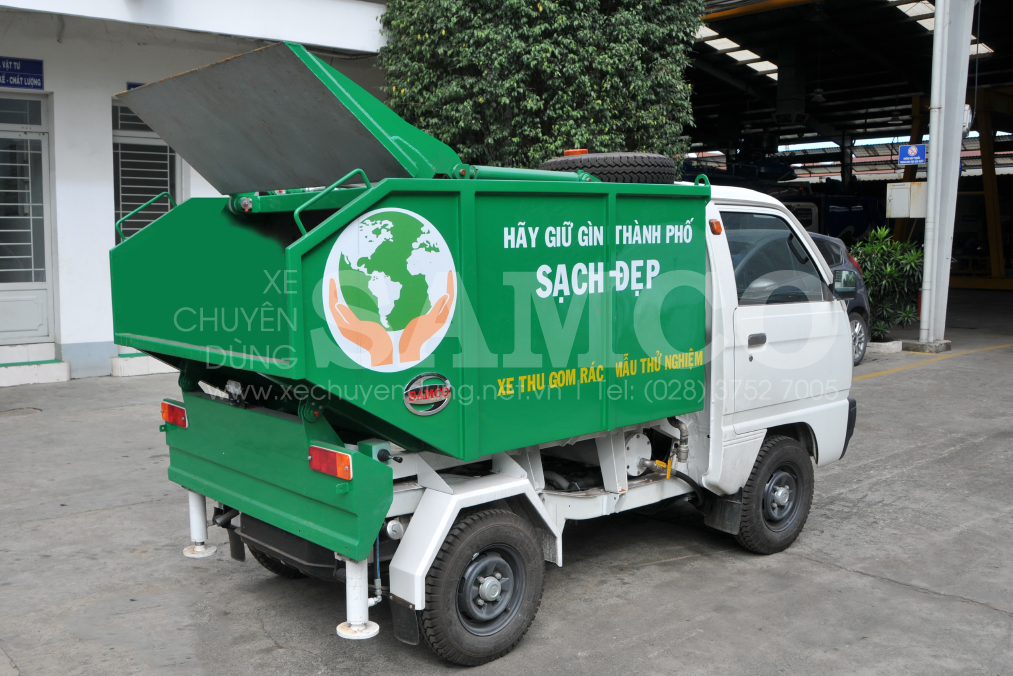

Garbage truck model RTDSU 020 is a new product line with compact design, suitable for narrow streets, making it easier to transport garbage to the gathering place.

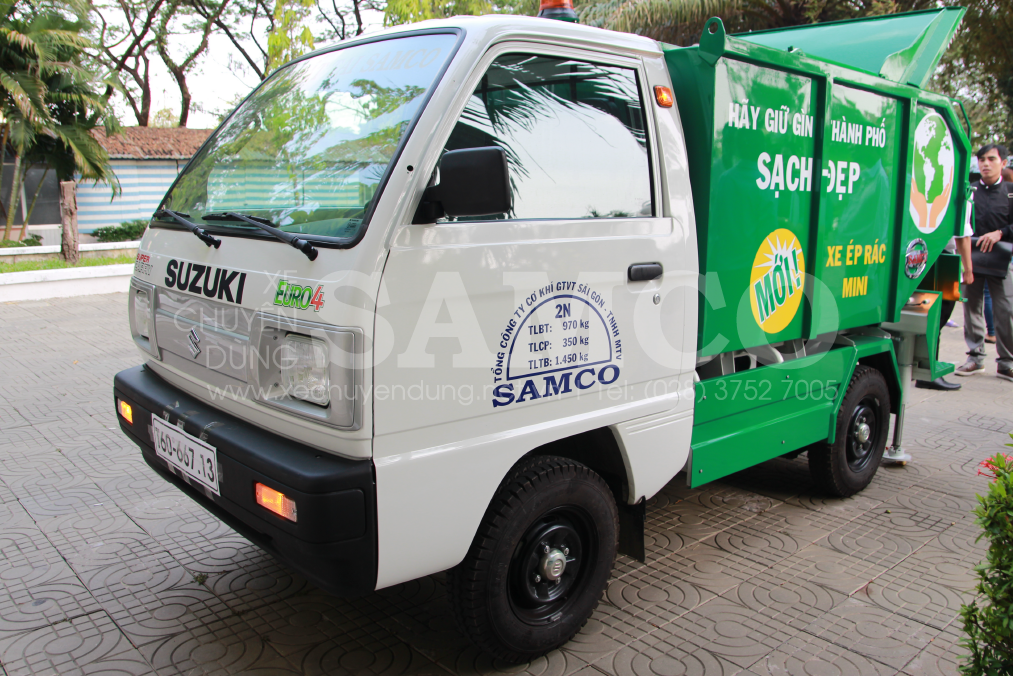

The combination of SUZUKI SK410K4 cab chassis, by Suzuki Motors Vietnam and SAMCO's Upper body will give the customer the appropriate choice. Besides, with the garbage tailgate cover equipped, which will preserve the hygiene and ensure the urban aesthetics.

  • Chassis: SUZUKI SK410K4
  • Payload: 360 kg
  • Gross vehicle weight: 1,450 kg
  • Volume: 2.0 m³
  • Emission standard : EURO 4
Brochure download
<p>Mini garbage truck, SUZUKI Truck</p>

Technical Specifications

Cab chassis SUZUKI SK410K4
Engine model F10 A
Max. output 31 / 5,500 kW/rpm
Displacement 970 cc
Overall Dimensions (L x W x H) 3,360 x 1,420 x 1,880 mm
Wheelbase 1,840 mm
G.V.W 1,450 kg
Kerb mass 960 kg
Payload 360 kg
Volume 2.0 m³
Tank Body profile: Rectangle shape with reinforced plane wall
Tank material: Inox SUS
Hydraulic Equipment Imported from Europe
Truck Outriggers Equipped in the behind vehicle to create stability and safety when lifting and littering from garbage body
Operating accelerator Uninterrupted electric accelerator
Anti-leakage System Prevent leachate out and limit diffusion of odor

Garbage loading control Garbage loading by hands
Garbage compacting control Manual operation
Garbage ejecting control Electric control
Tank Blue, Green, Orange, White, or design marquette base on customer's request
Product policy In accordance with our policy of constant product improvement, hence all specifications could be changed without notice.
Trucks

Detail images

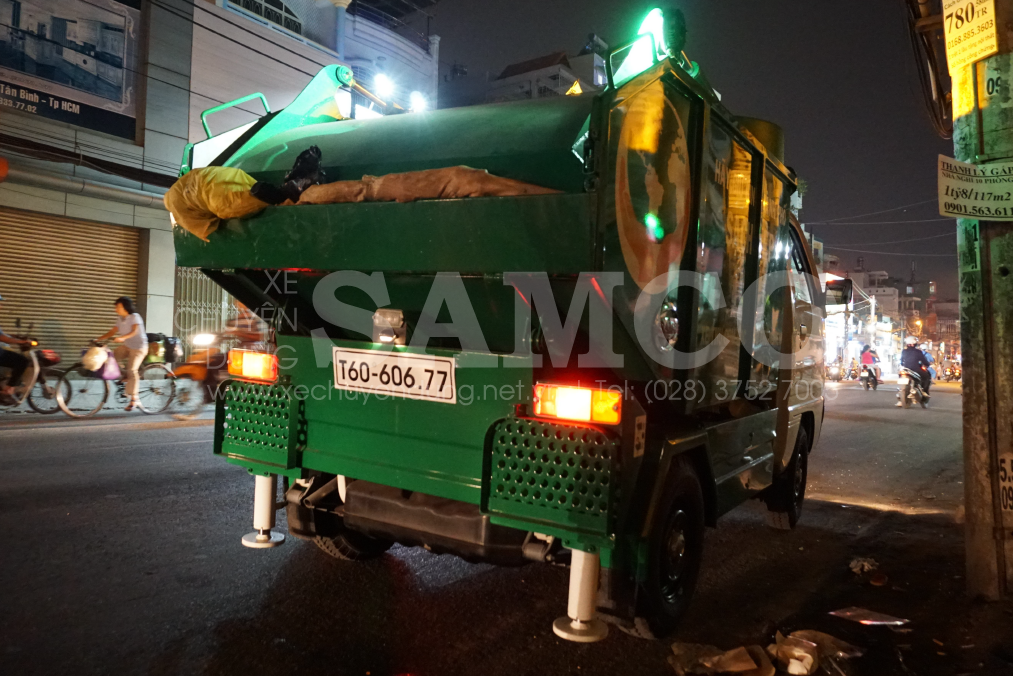

Hệ thống đèn chiếu sáng, làm việc ban đêm Hệ thống đèn chiếu sáng, làm việc ban đêm

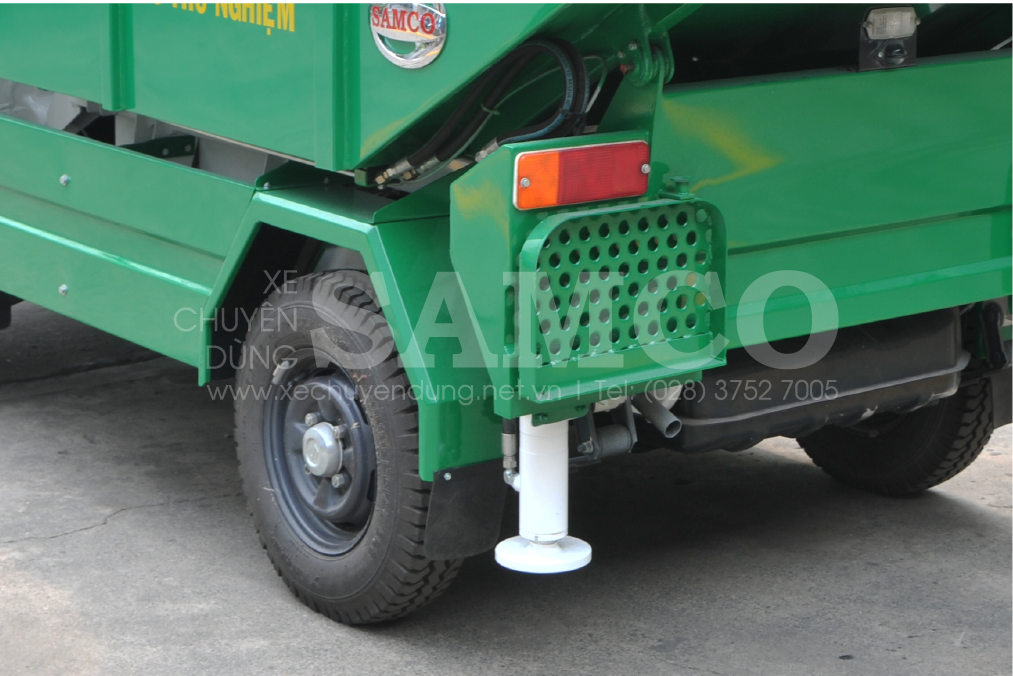

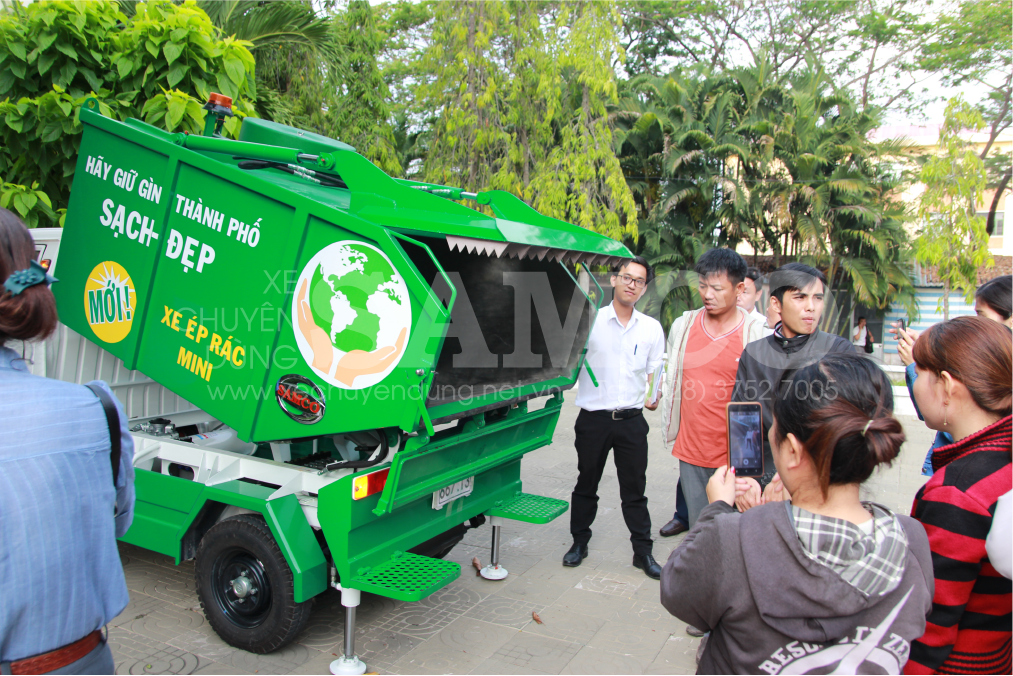

Chân chống ổn định Chân chống ổn định
