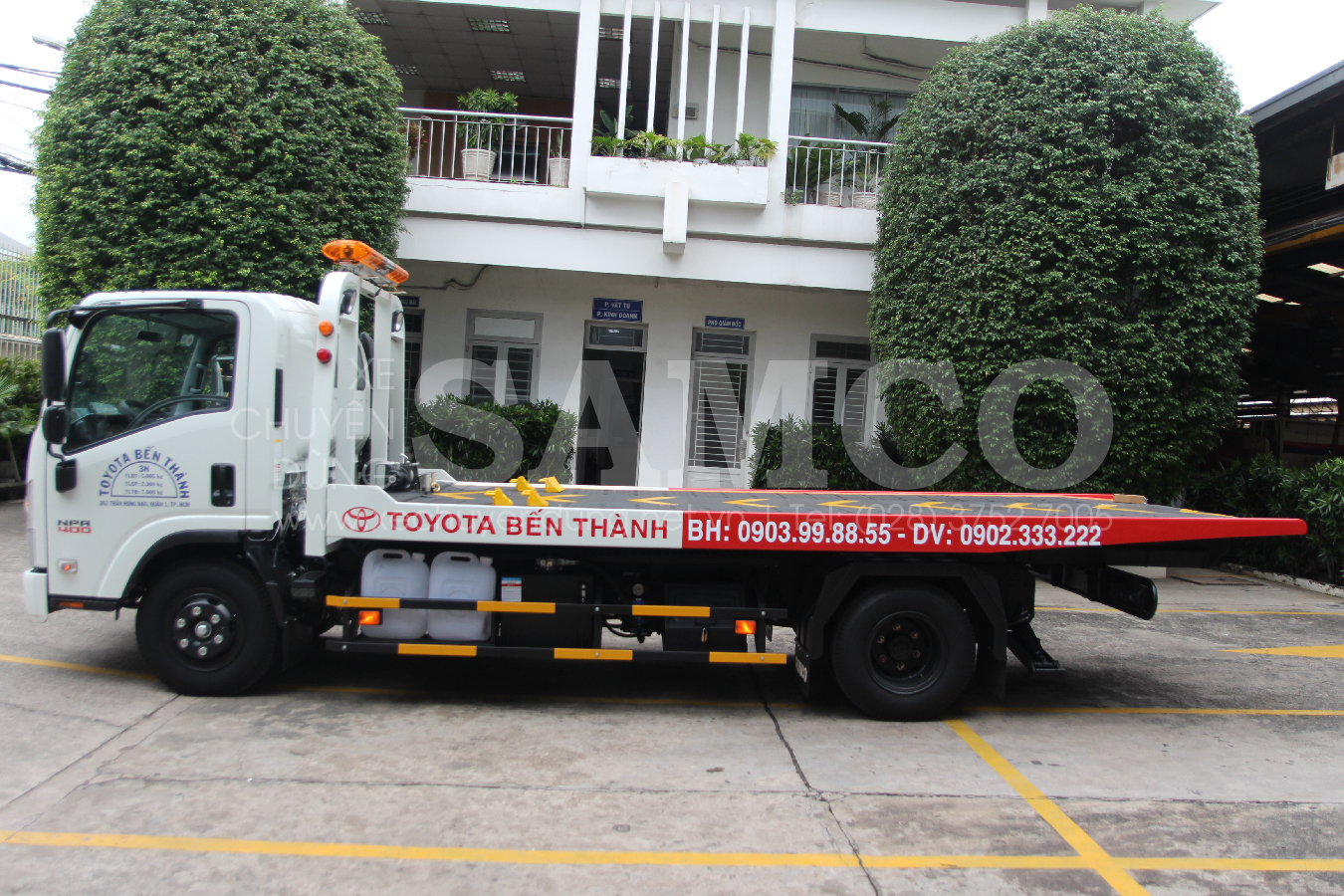

Recovery Truck - CHCIS 023

Overview

CHCIS 023 is the best choice of automobile showroom in Vietnam.

With the payload up to 2.3 tons, and build on Isuzu NPR85K cab chassis,  CHCIS 023 can transport all kinds of passenger car, commercial car in safety and convenient way. It can meet the demand of delivering car for long distance customers.

Besides, CHCIS 023 can use for rescuing by fork, winch equipped.

  • Chasis: ISUZU NPR85K
  • G.M.W: 7,500 kg
  • Payload: 2,300 kg
  • Kerb mass: 5,005 kg
  • Emision standard: EURO 4
  • Lowering stage: on floor
passenger car carrier, rescuing, delivering car

Technical Specifications

Cab chasis ISUZU NPR85KE4
Engine model ISUZU 4JJ1-E4NC
Max. Output 91/2,600 kW/rpm
Displacement 2,999 cc
Dimensions (L x W x H) 7,200 x 2,180 x 2,570 mm
Wheel Spase 3,845 mm
G.V.W 7,500 kg
Payload 2,300 kg
Kerb mass 5,005 kg
Carrying floor Dimensions: 5,200 x 2,180 mm
Made of atmospheric corrosion resistant steels SPA-H (Japan)

Max. angle of inclined: 03 degree
Tow system Lifting and pulling vehicles from 4 to 16 seats, trucks with total tonnage of 5 tons or less
Towing winch Operated by hydraulic motor

 Traction 2.500 (kgf)
Outriggers Hydraulic stabilized outrigger
Hydraulic system Imported from EURO
Operation Operated by hydraulic system
Lifting carrying floor control Control box at rear of the vehicle

Wireless remote control
Tow system control Hydraulic lifting mechanism, 2-stage sliding box
Product policy:
   In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation.
Warning lights 02 pcs.
Light support working 01 pc.
Ropes to fix the wheel 04 pcs.
Wheel blocker 04 pcs.
Cabin As truck or customers demand
Carrying system Customers demand
Trucks

Detail images

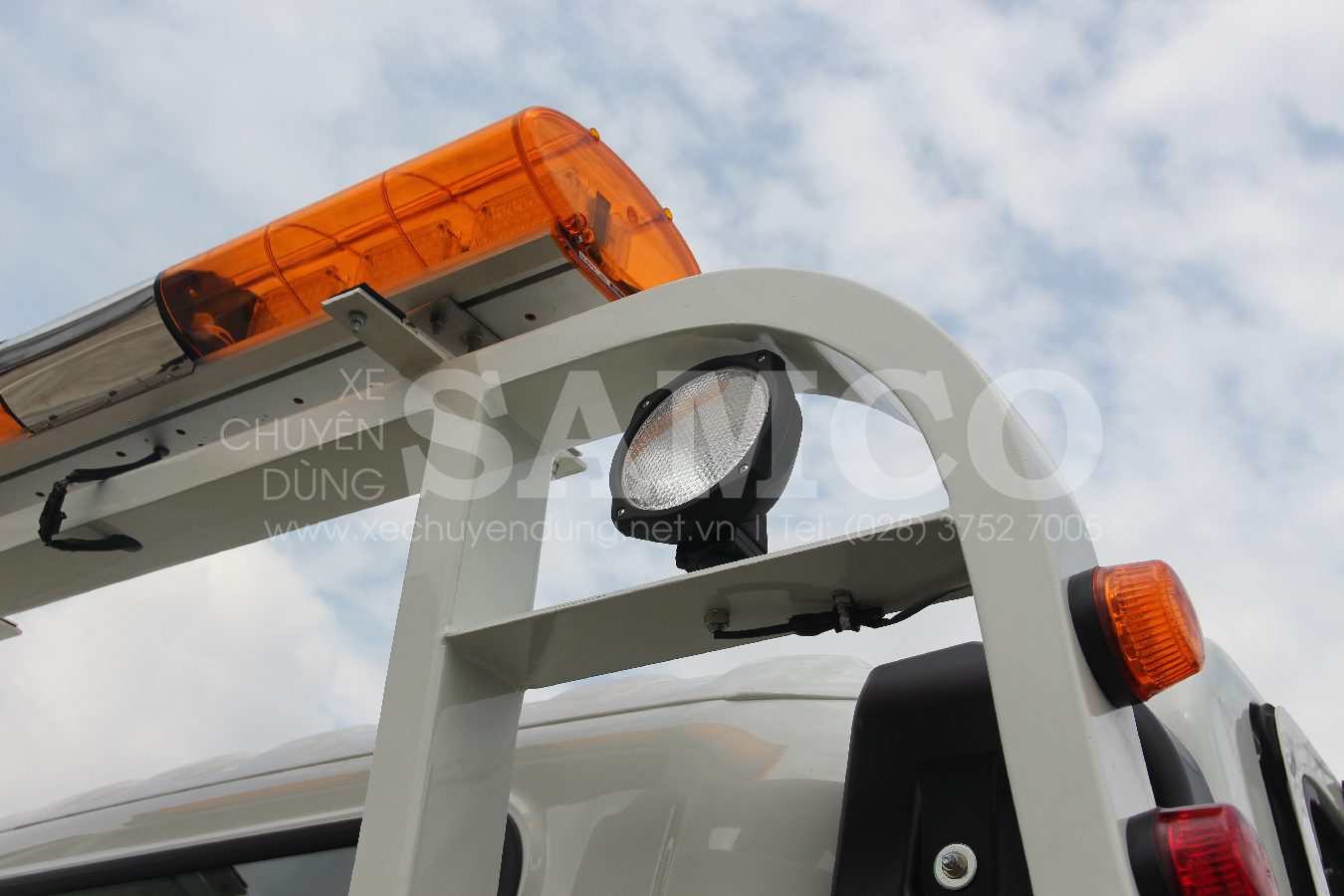

Đèn chiếu sáng làm việc Đèn chiếu sáng làm việc

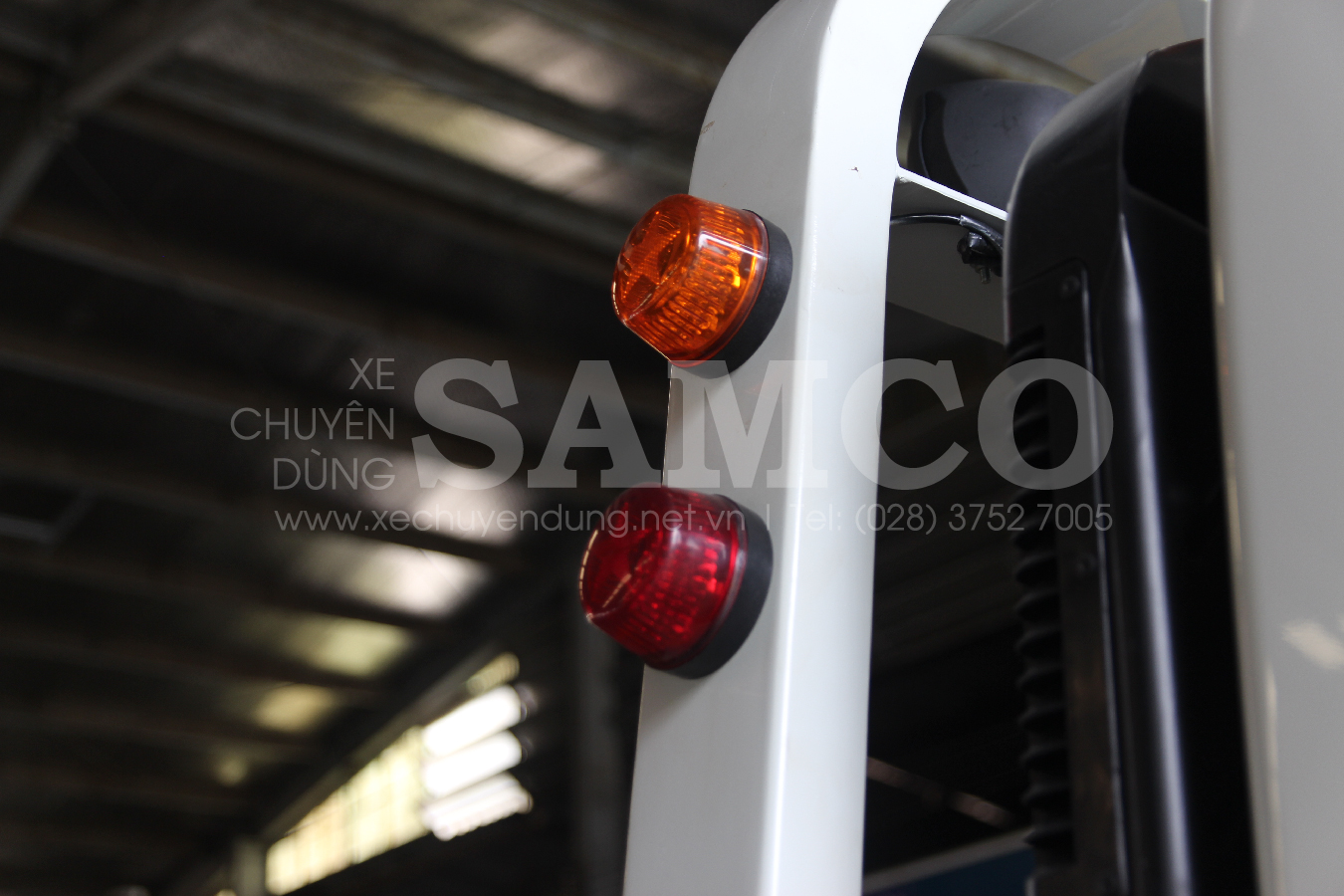

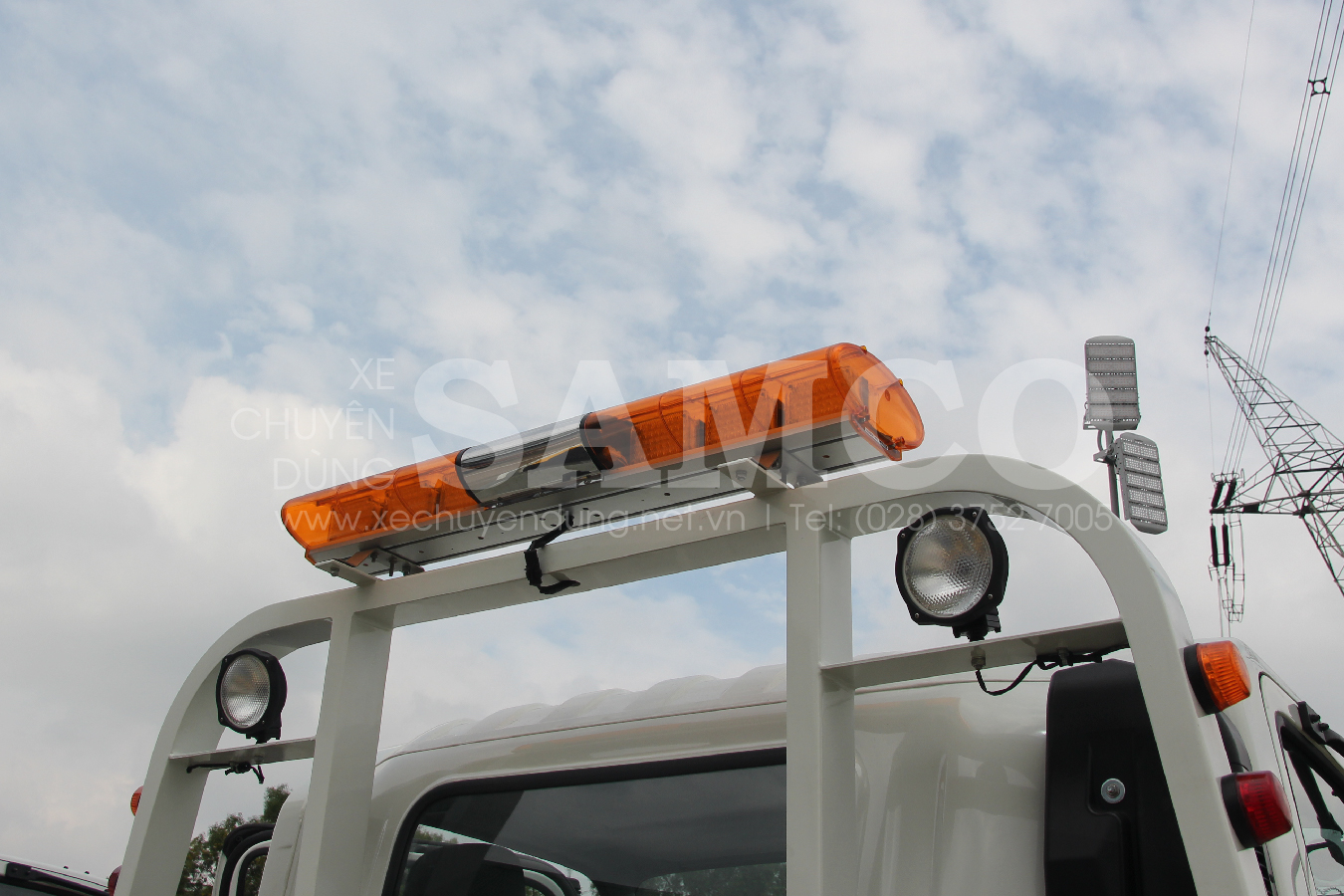

Đèn cảnh báo Đèn cảnh báo

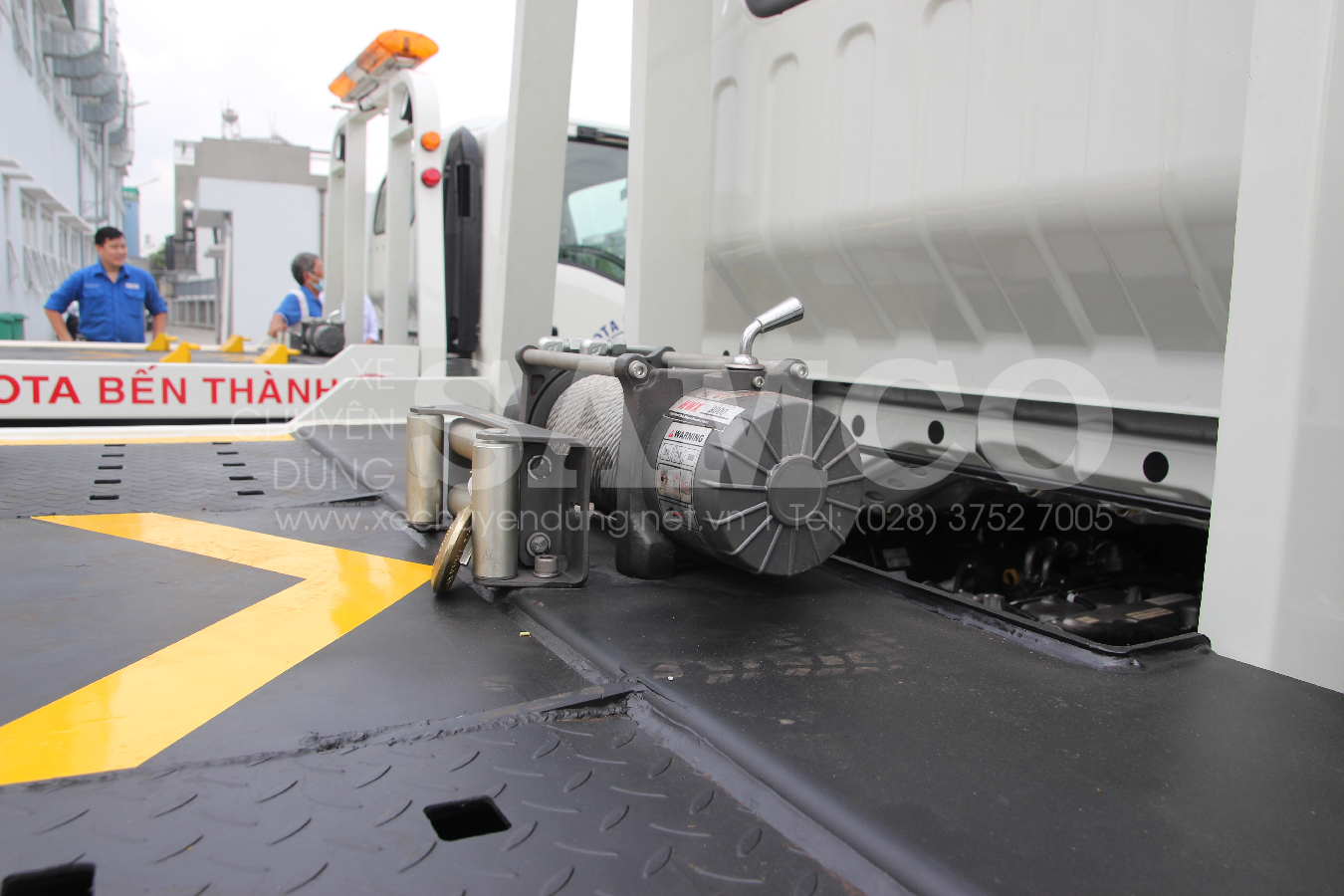

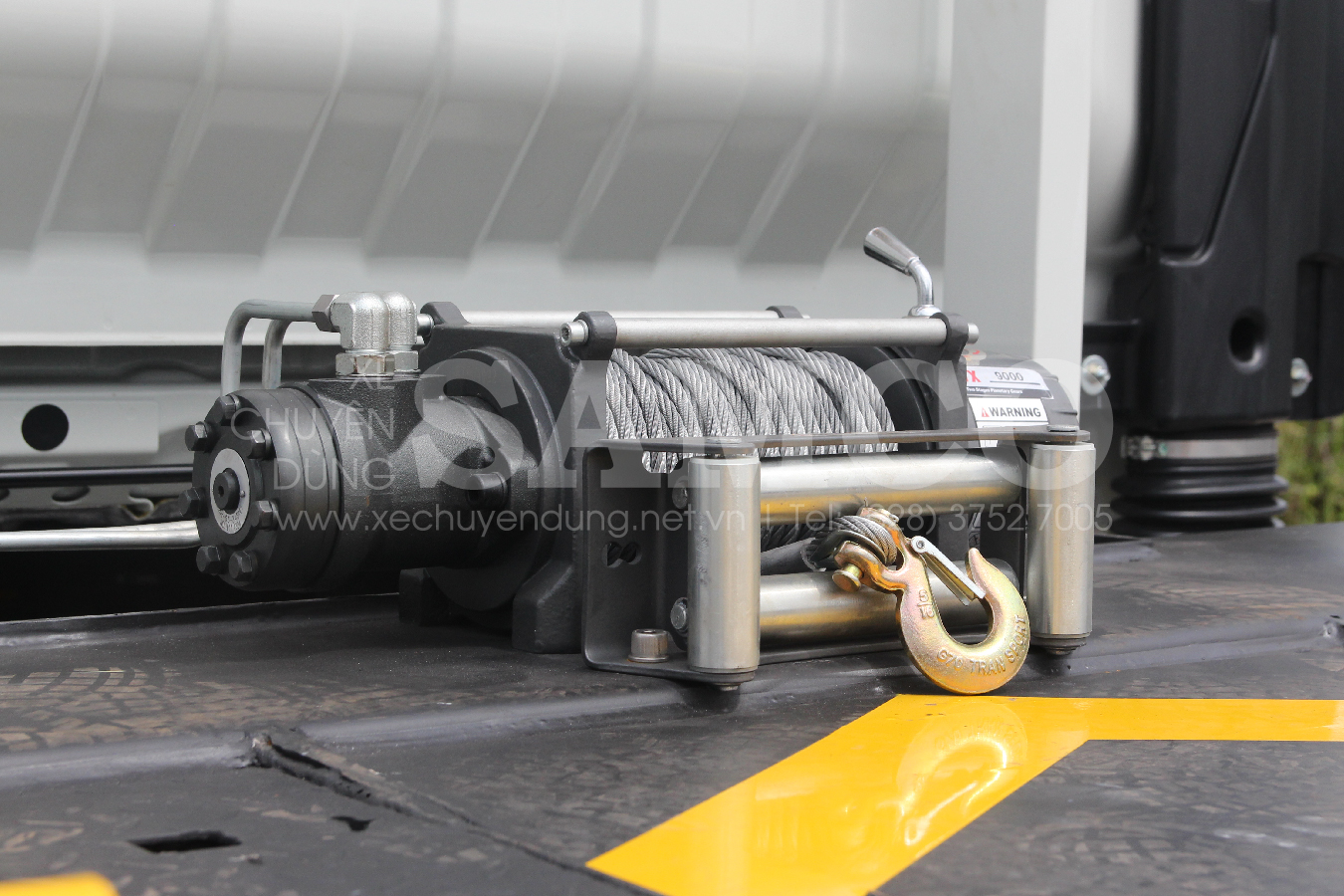

Tời kéo xe Tời kéo xe

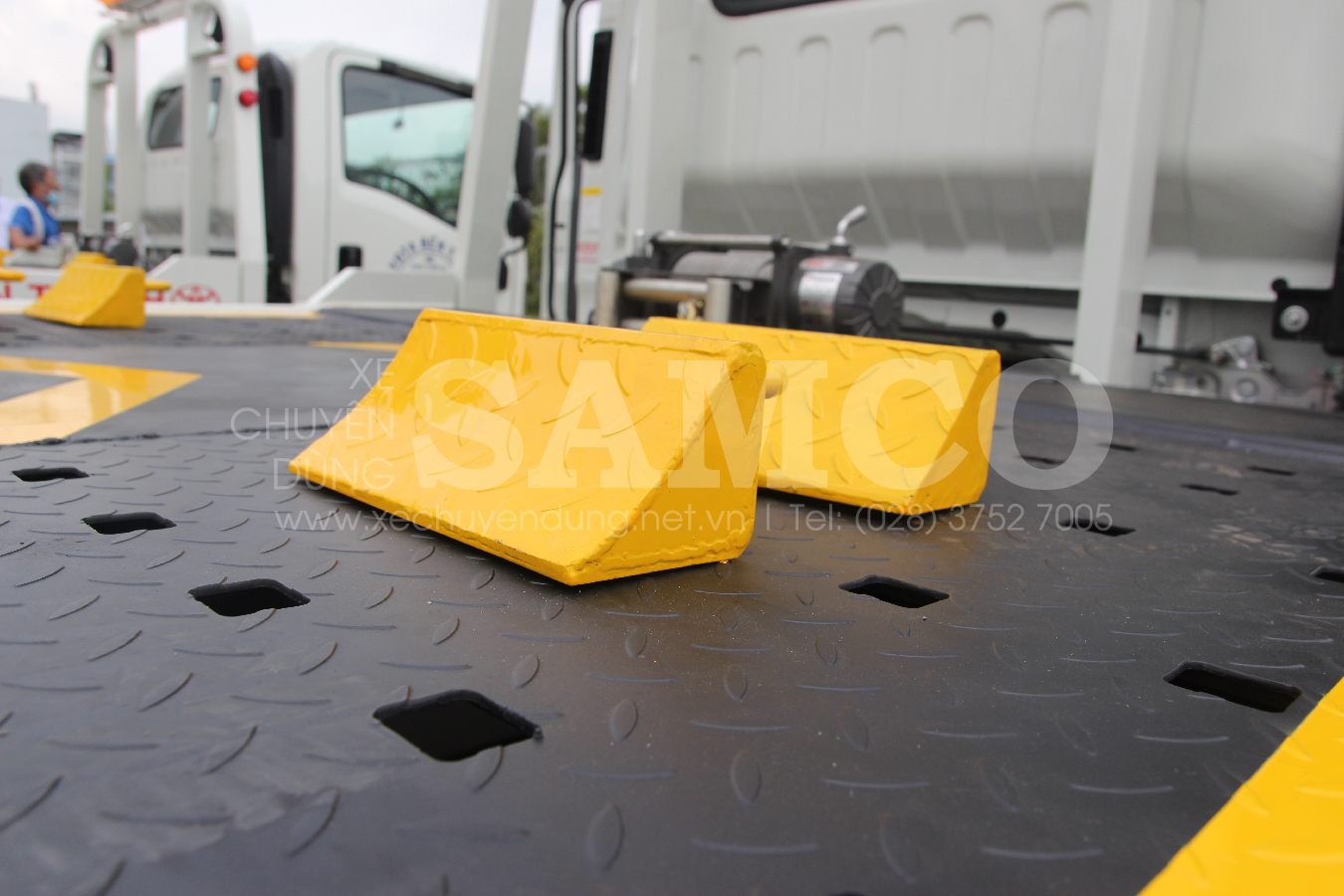

Bục cố định xe Bục cố định xe

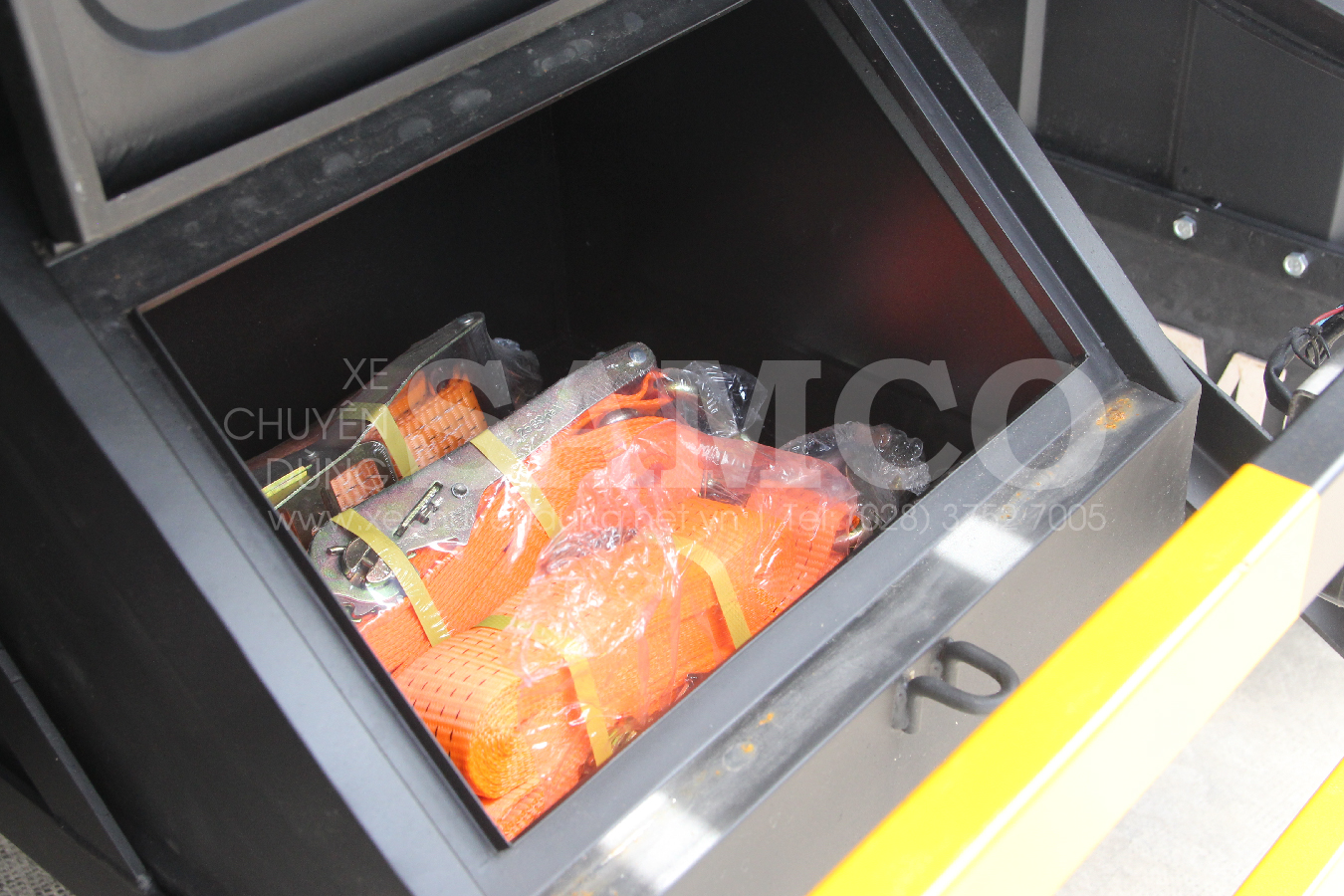

Thùng đựng đồ nghề và đai cố định xe Thùng đựng đồ nghề và đai cố định xe

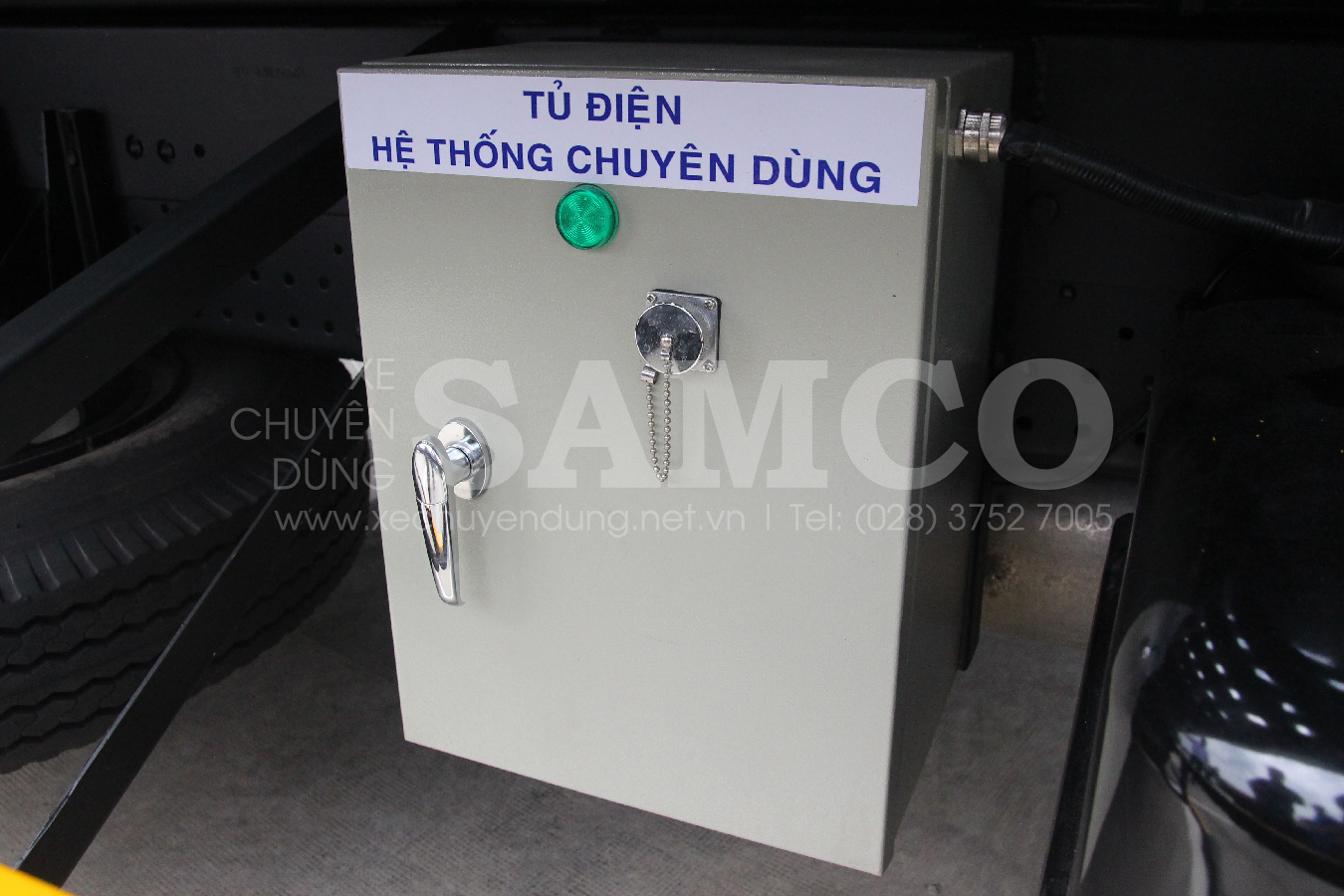

Hộp điều khiển sàn xe Hộp điều khiển sàn xe

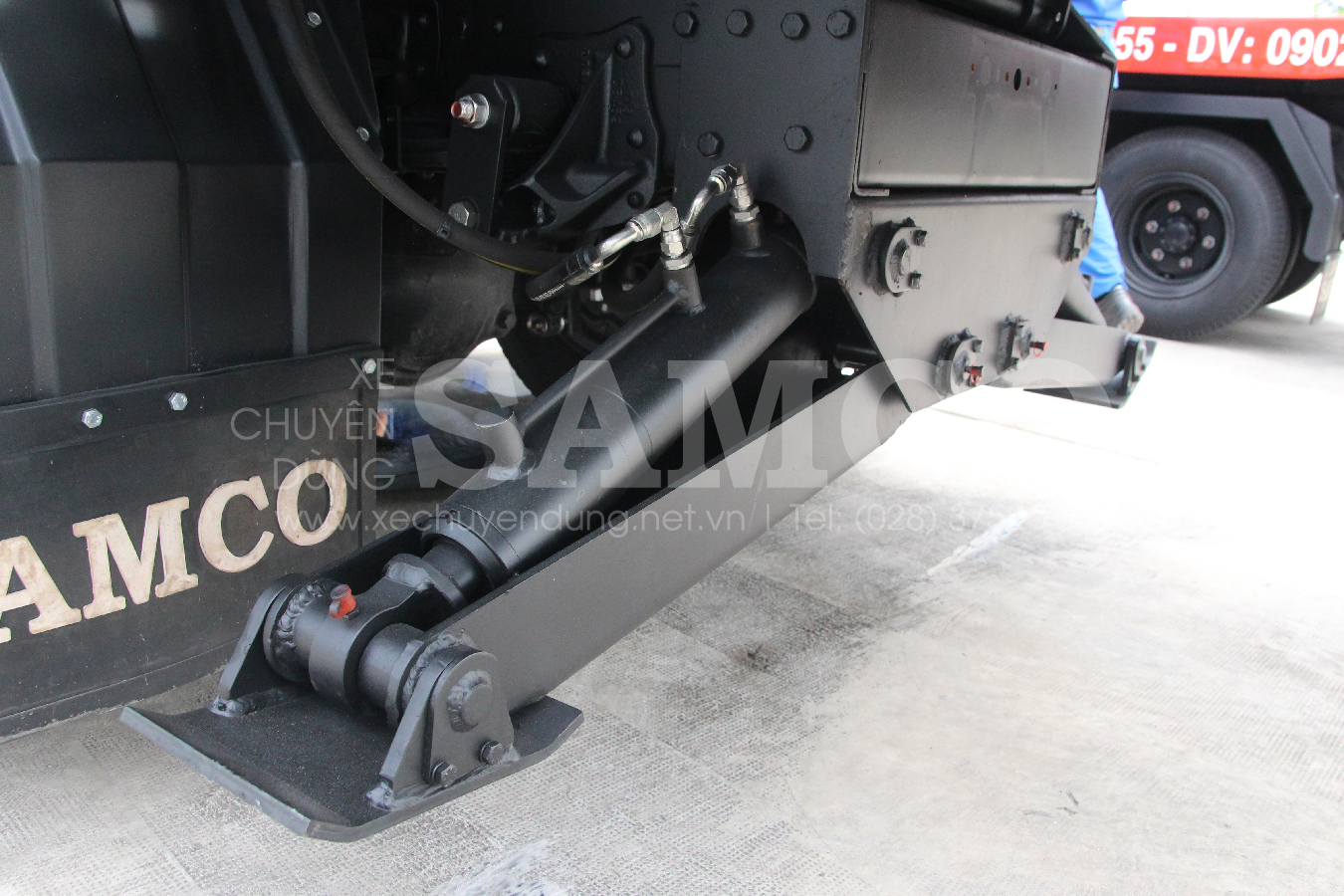

Chân chống ổn định Chân chống ổn định

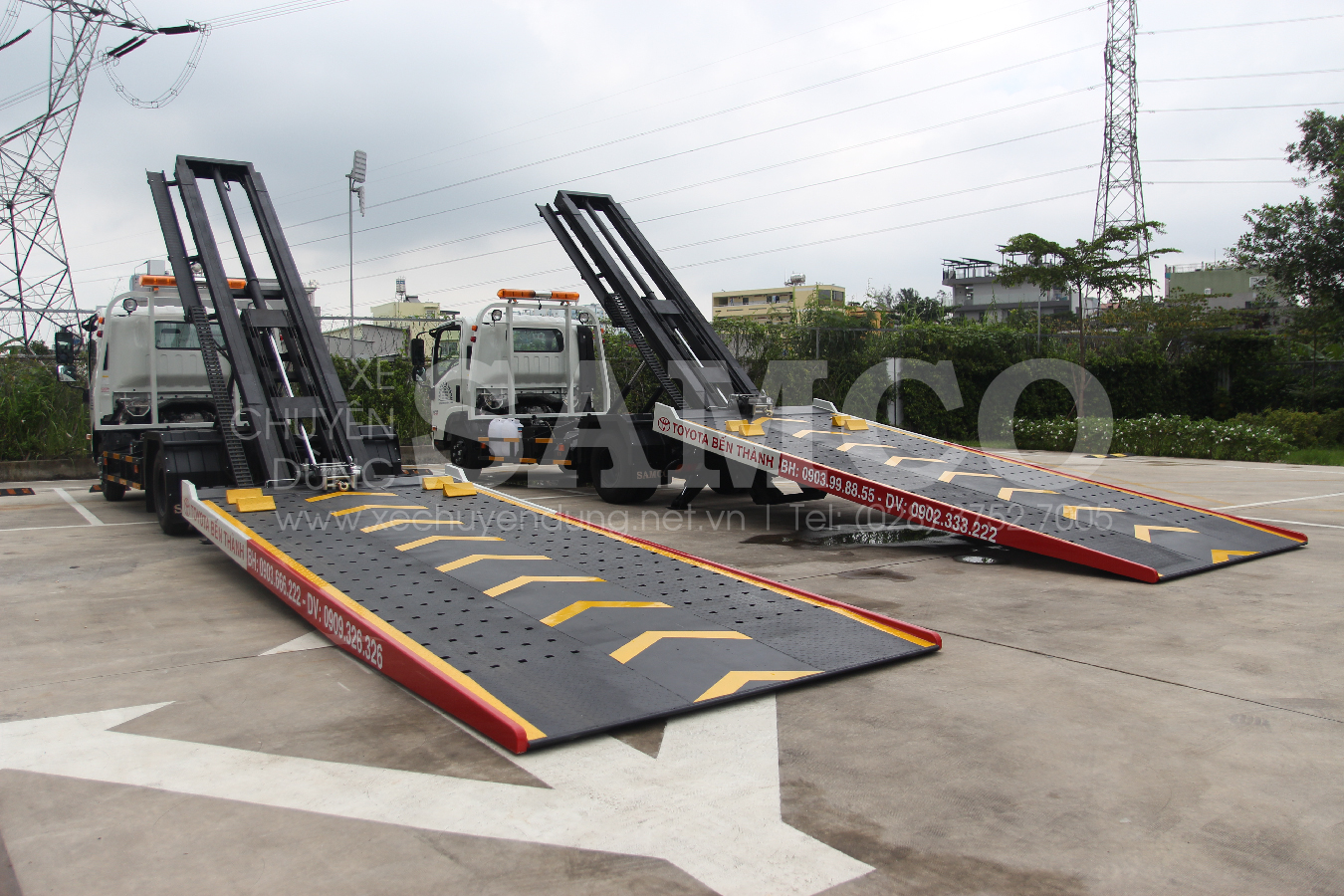

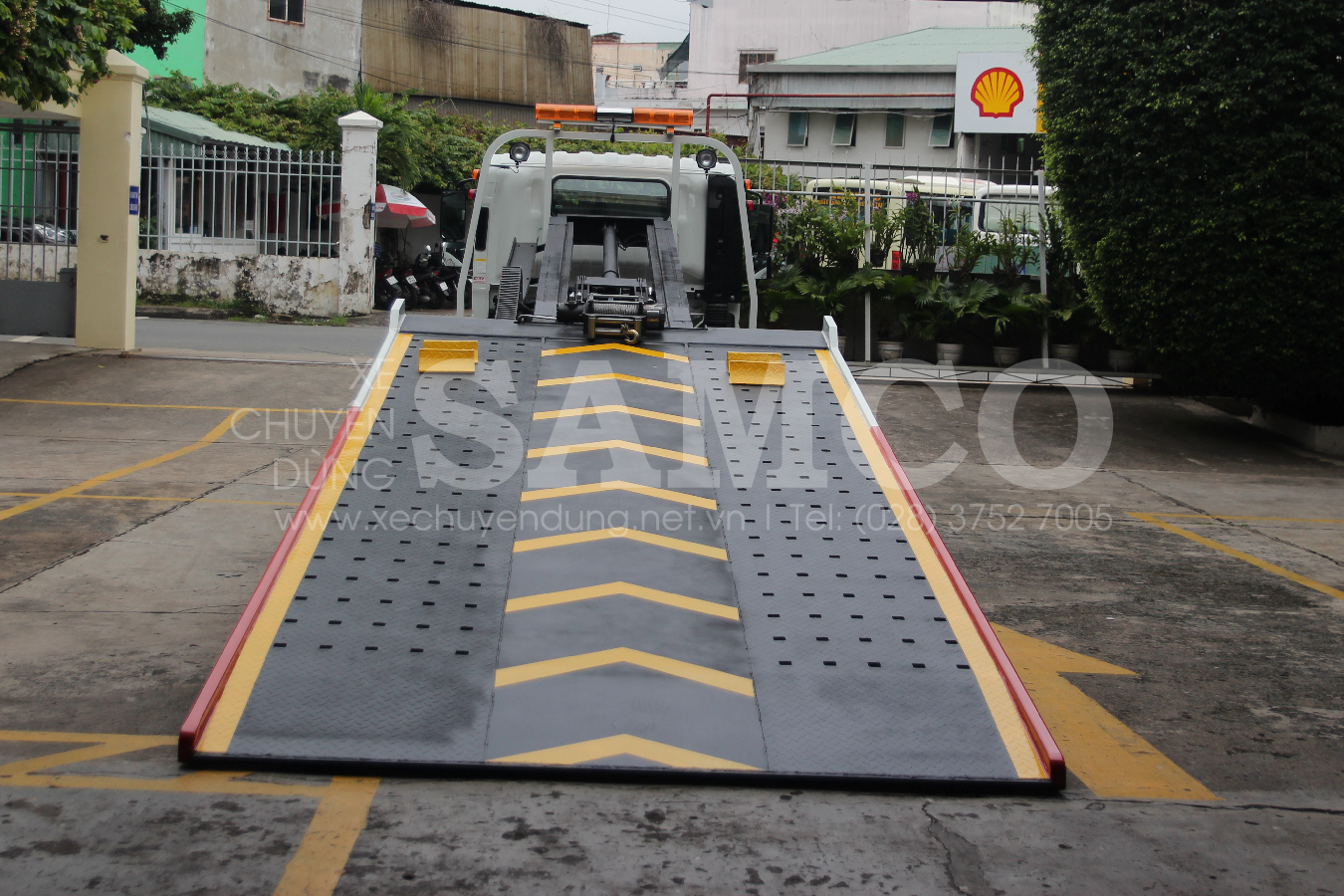

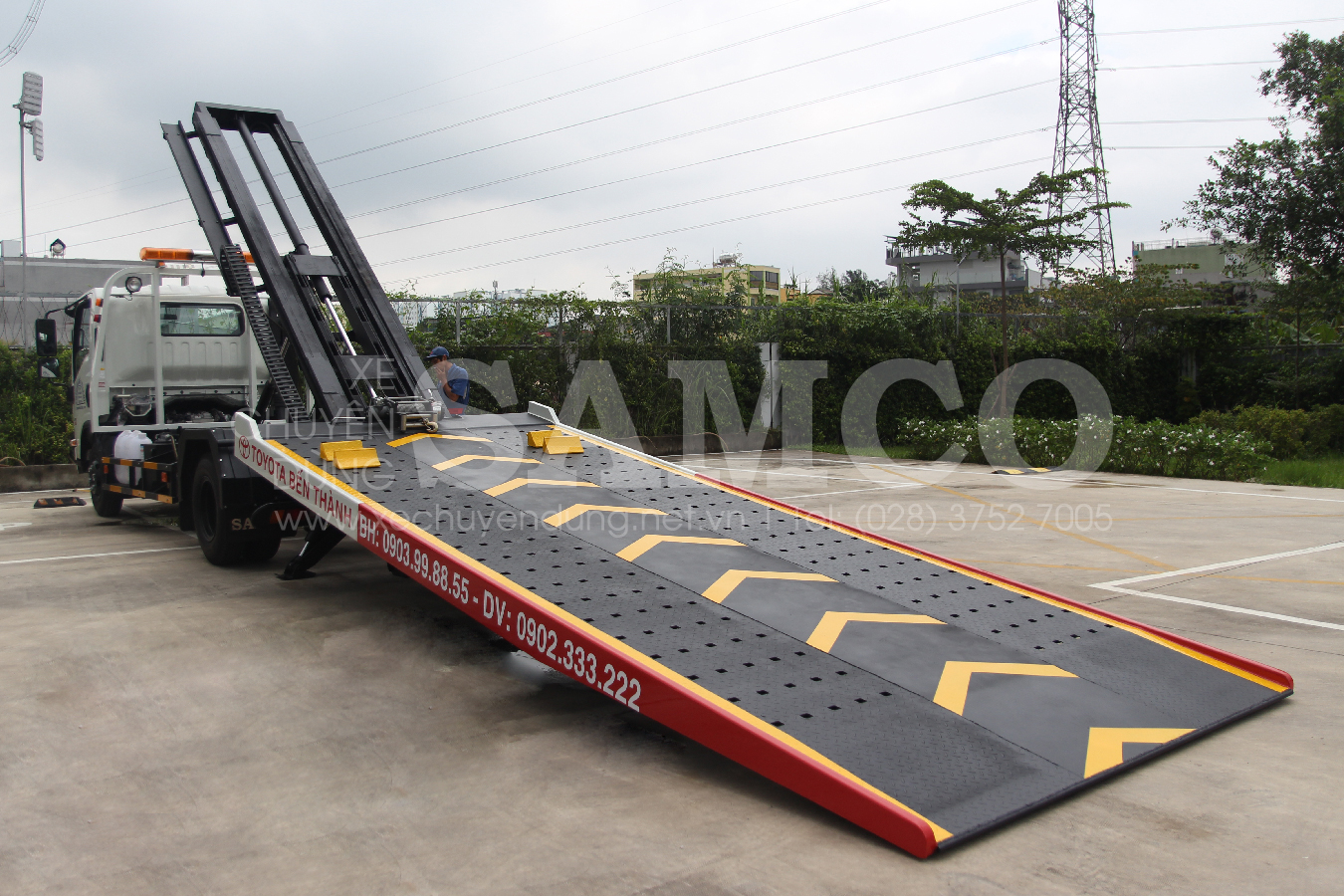

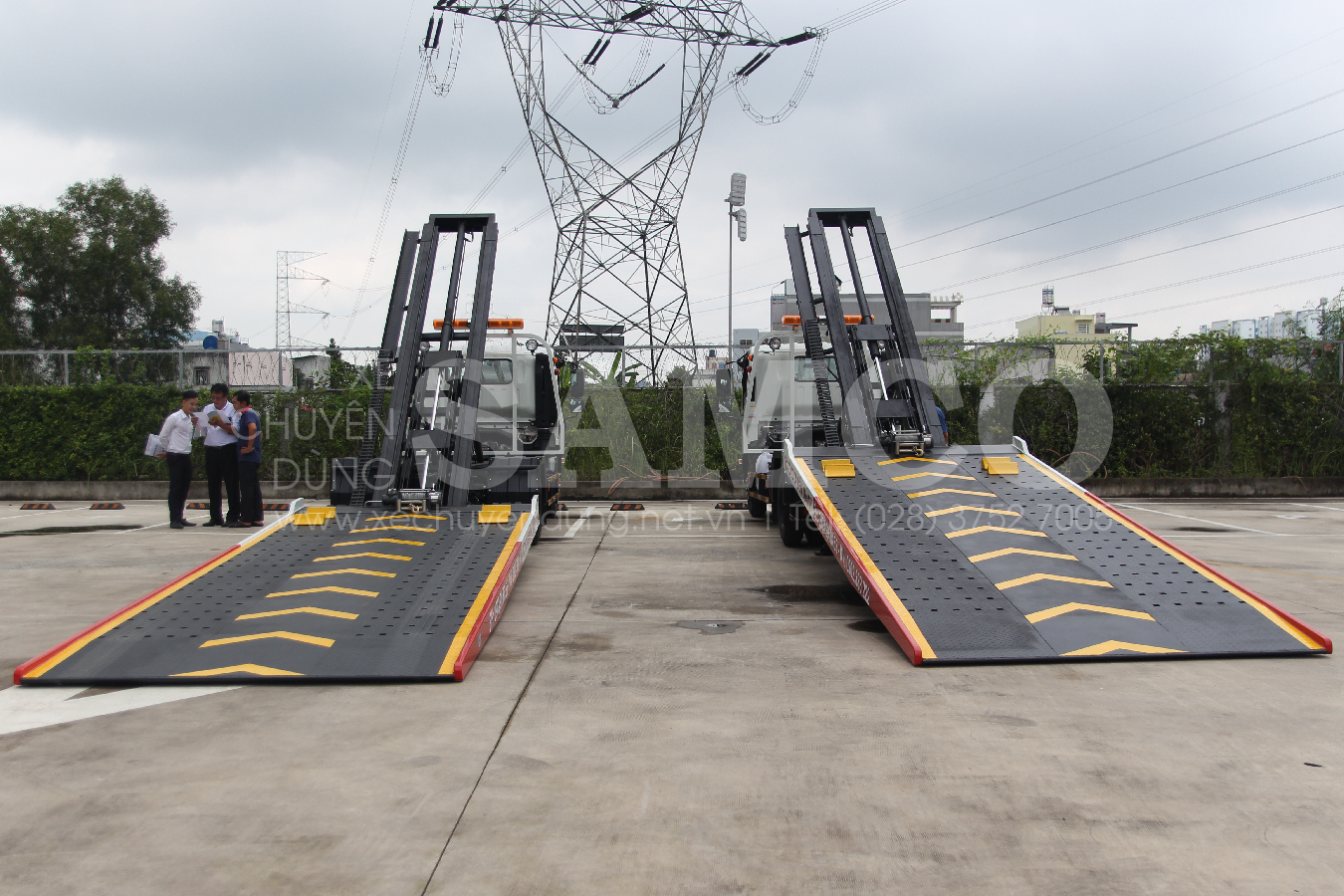

Sàn chở xe Sàn chở xe
