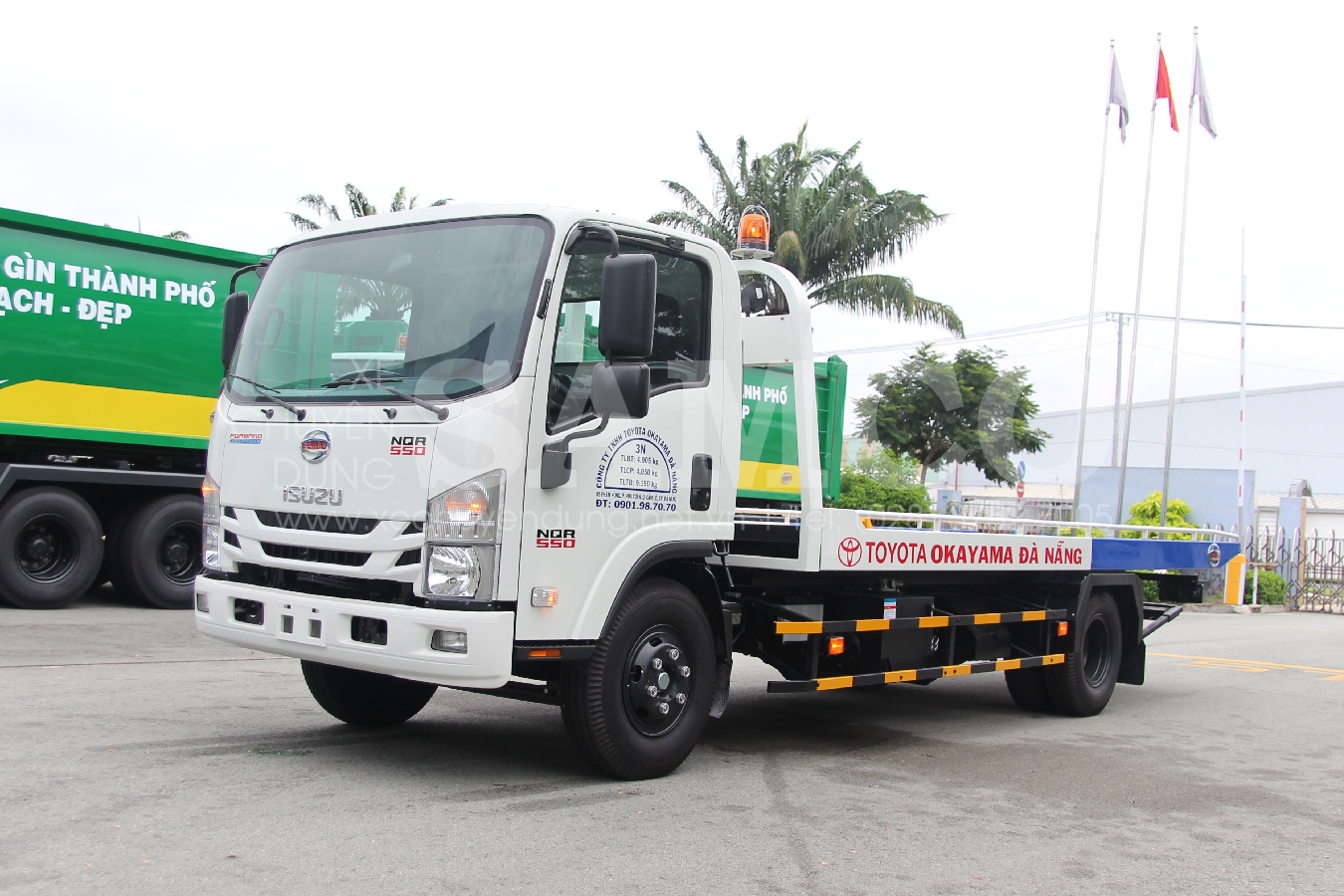

Recovery Truck - CHCIS 040

Overview

CHCIS 040 is the best choice of automobile showroom in Vietnam.

With the payload up to 4.0 tons, and build on Isuzu NQR75L cab chassis, CHCIS 040 can transport all kinds of passenger car, commercial car in safety and convenient way. It can meet the demand of delivering car for long distance customers.
Besides, CHCIS 040 can use for rescuing by fork, winch equipped.
  • Chasis: ISUZU NQR75L
  • G.M.W: 9,150 kg
  • Payload: 4,050 kg
  • Kerb mass: 4,905 kg
  • Emision standard: EURO 4

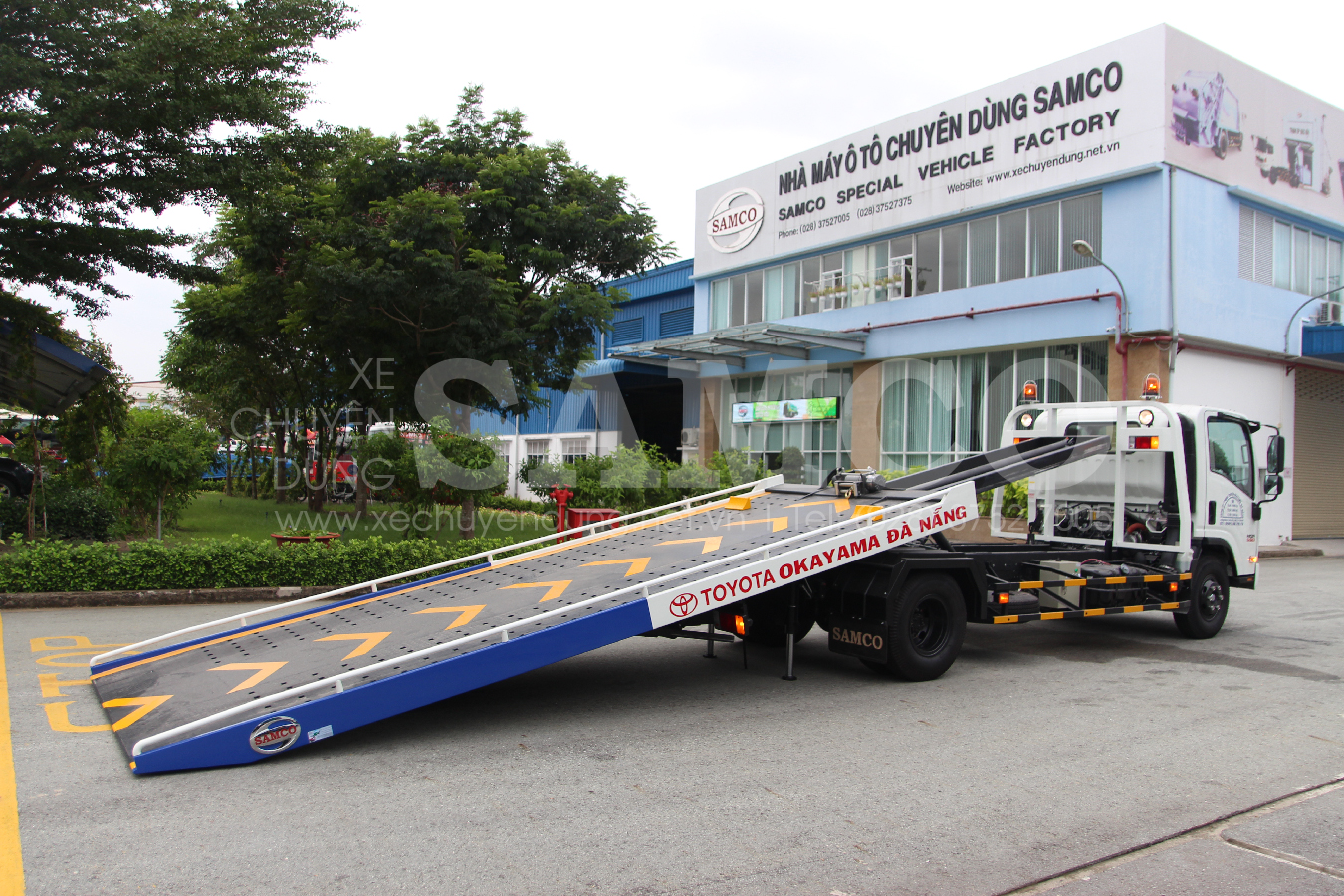

  • Lowering stage: Tilt positioning stage
<p>passenger car carrier, Isuzu</p>

Technical Specifications

Cab chasis ISUZU NQR75LE4
Engine model ISUZU 4HK1-E4NC
Max. Output 114/2,600 kW/rpm
Displacement 5,193 cc
Dimensions (L x W x H) 7,790 x 2,250 x 2,570 mm
Wheel Spase 4,175 mm
G.V.W 9,150 kg
Payload 4,050 kg
Kerb mass 4,905 kg
Carrying floor Dimensions: 5,900 x 2,260 mm
Made of atmospheric corrosion resistant steels SPA-H (Japan)

Max. angle of inclined: 12 degree
Tow system Lifting and pulling vehicles from 4 to 16 seats, trucks with total tonnage of 5 tons or less
Towing winch Operated by hydraulic motor

Traction 2.500 (kgf)
Outriggers Hydraulic stabilized outrigger
Hydraulic system Imported from EURO
Operation Operated by hydraulic system
Lifting carrying floor control Control box at rear of the vehicle

Wireless remote control
Tow system control Hydraulic lifting mechanism, 1-stage sliding box, 2 wheel lifters
Warning lights 02 pcs.
Light support working 01 pc.
Ropes to fix the wheel 04 pcs.
Wheel blocker 04 pcs.
Cabin  As truck or customers demand
Carrying system   Customer demand
Product policy:
 In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation.
Trucks

Detail images

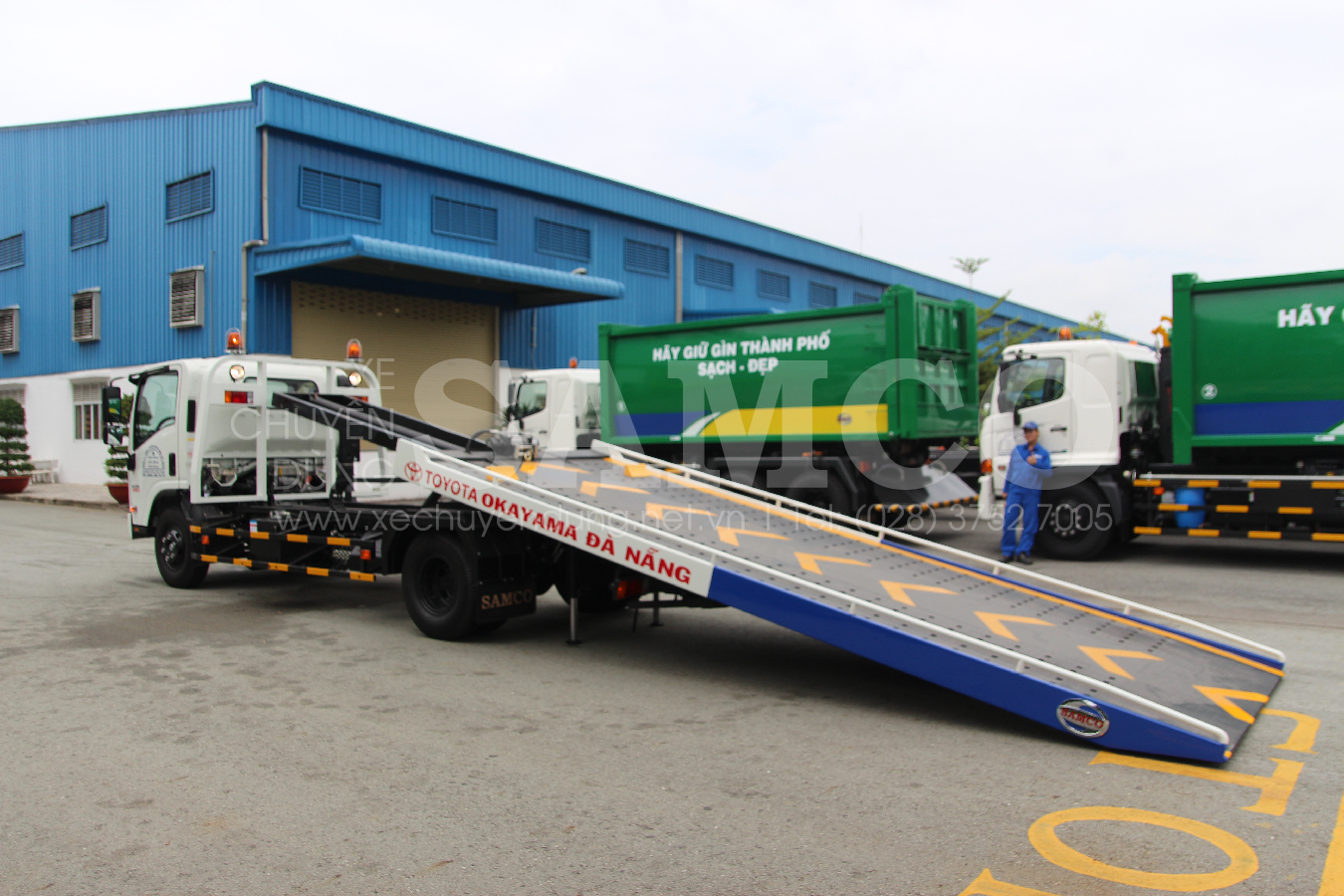

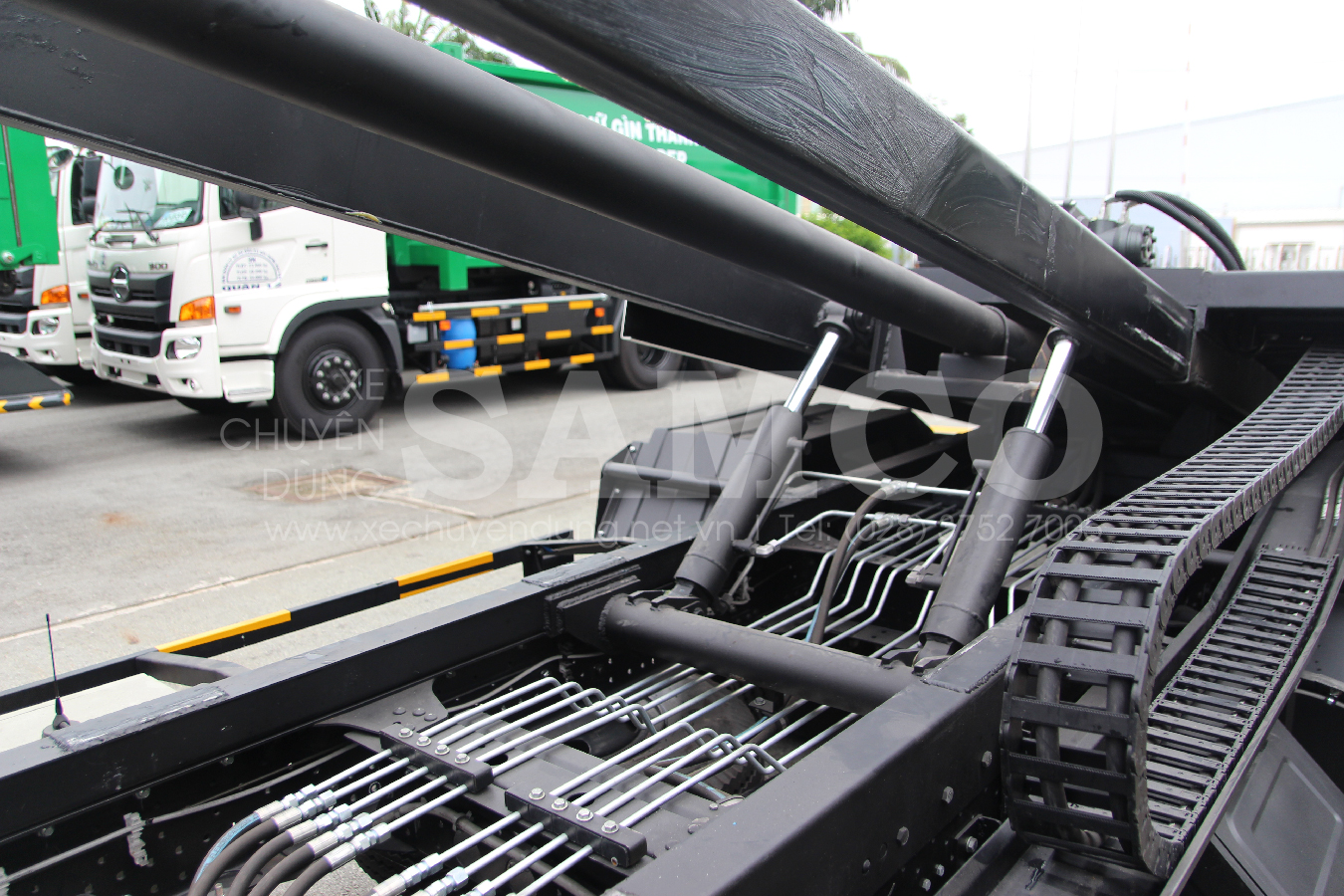

Hệ thống xi lanh nâng sàn Hệ thống xi lanh nâng sàn

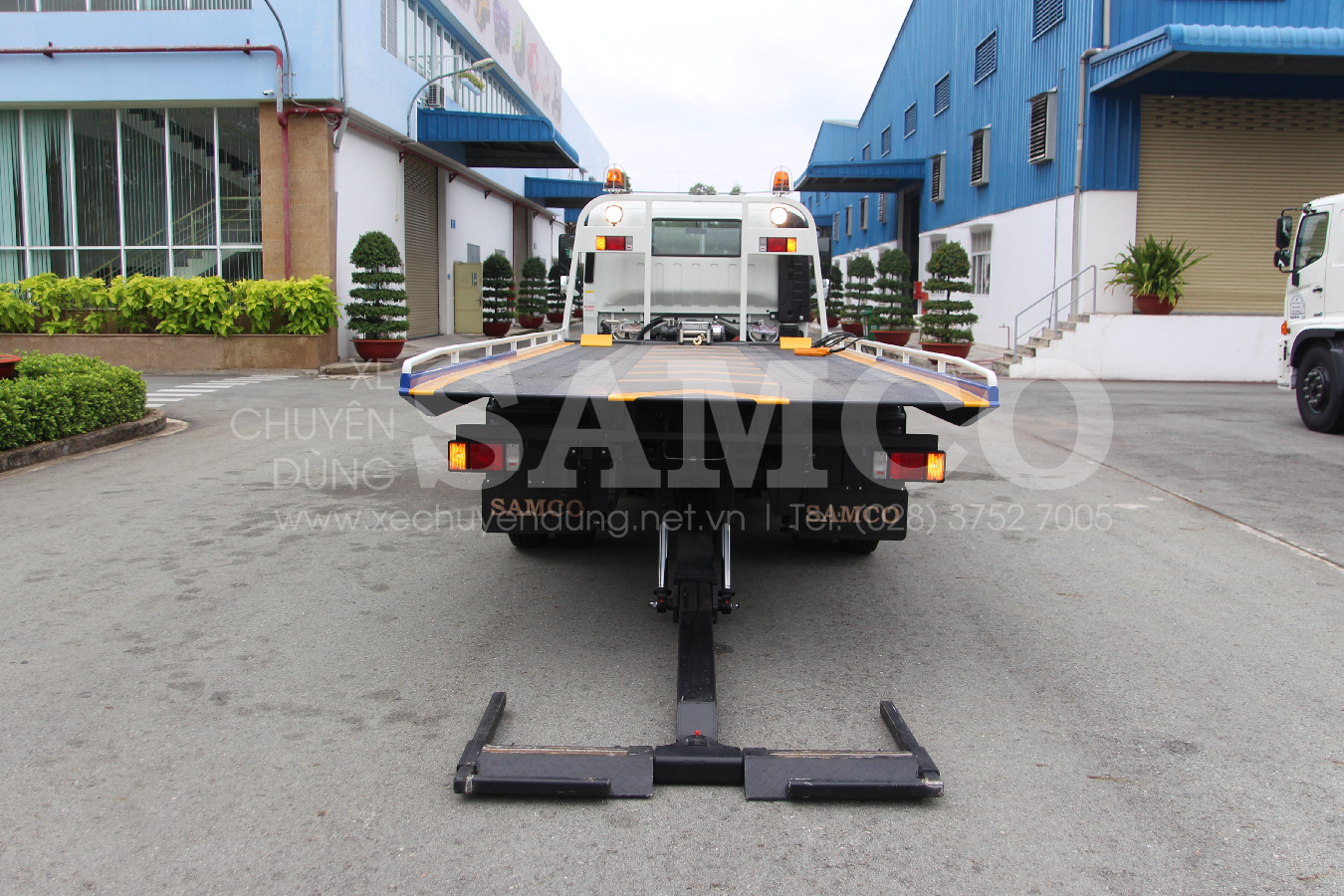

Đầu kéo xe Đầu kéo xe

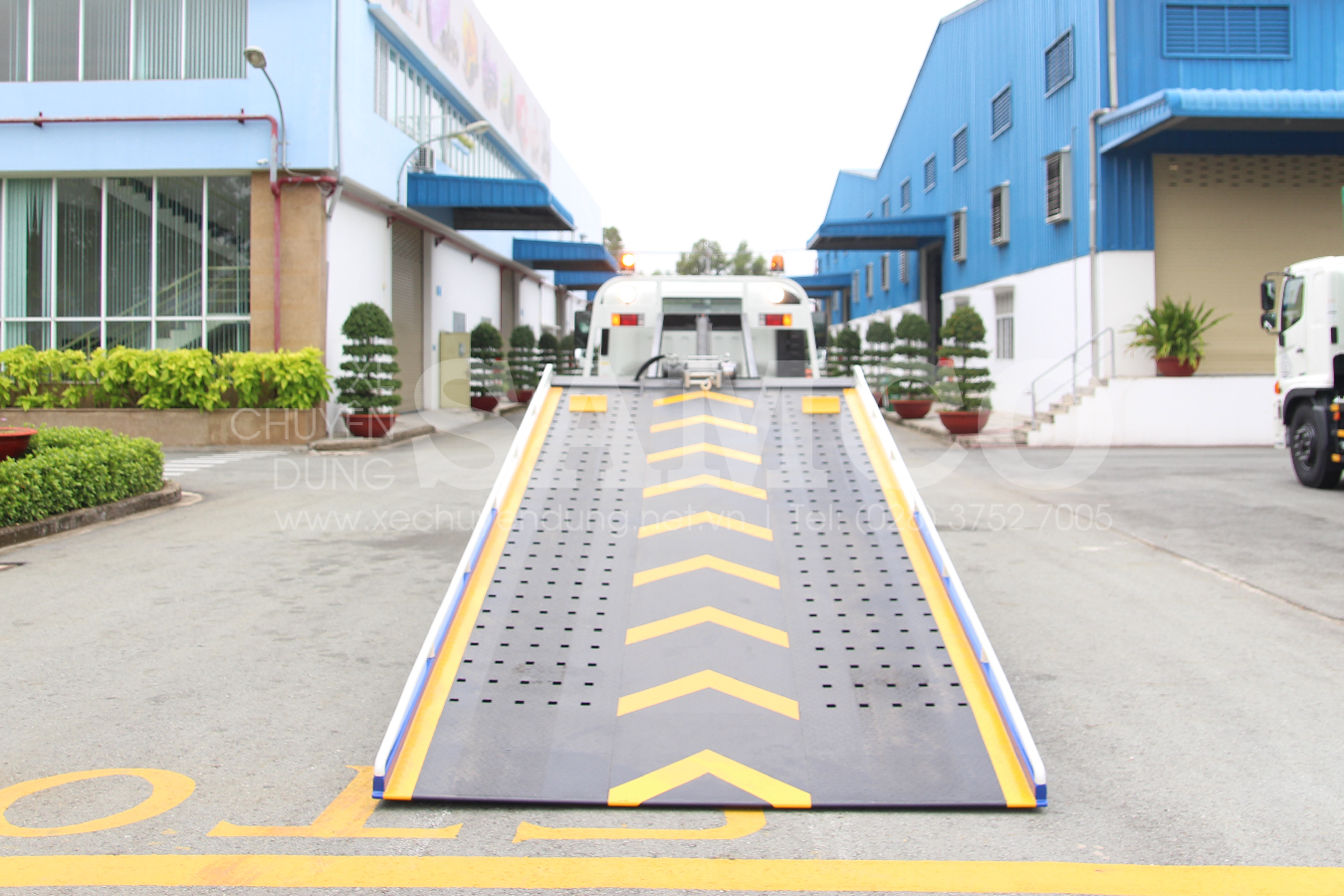

Sàn chở xe Sàn chở xe

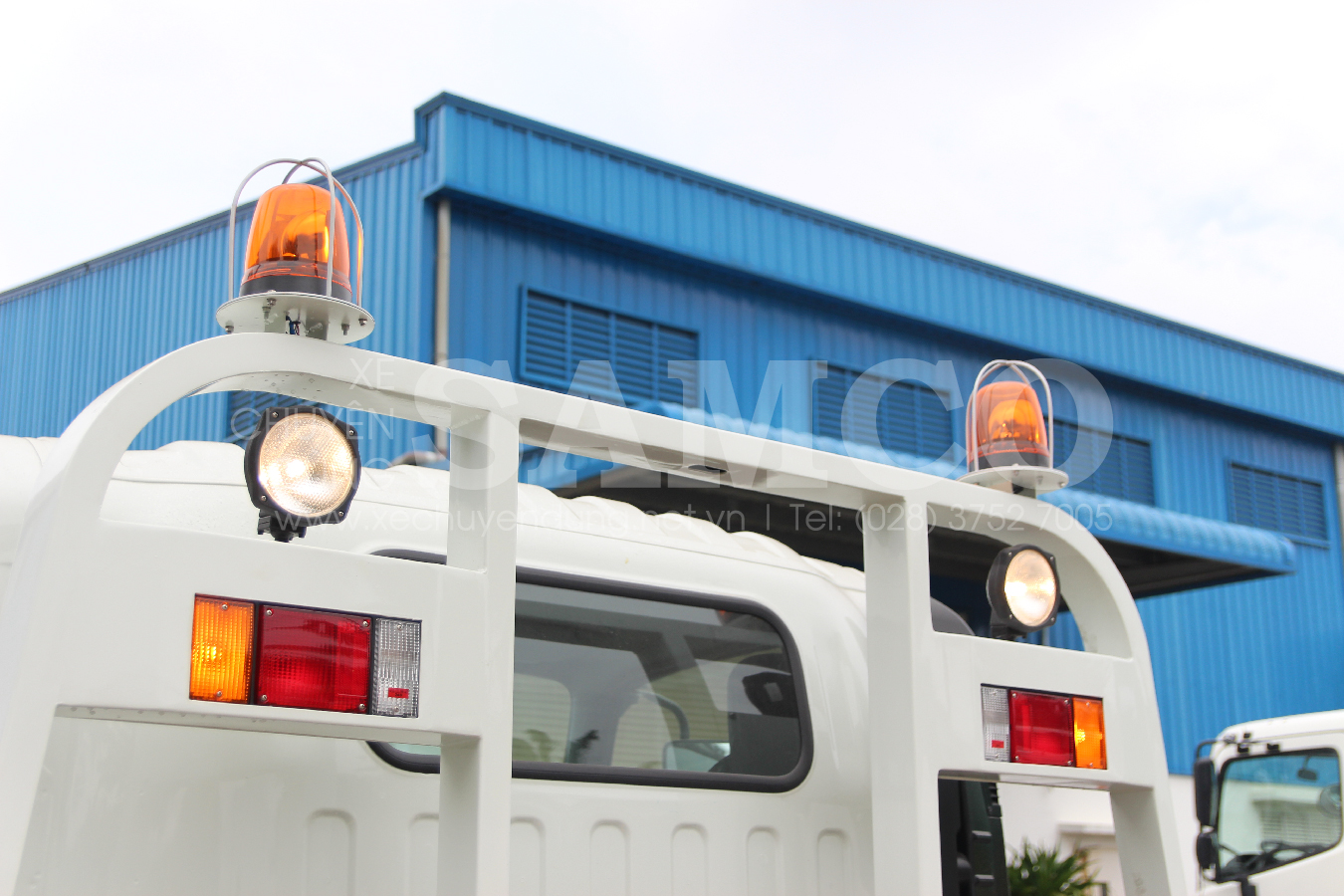

Đèn tín hiệu Đèn tín hiệu

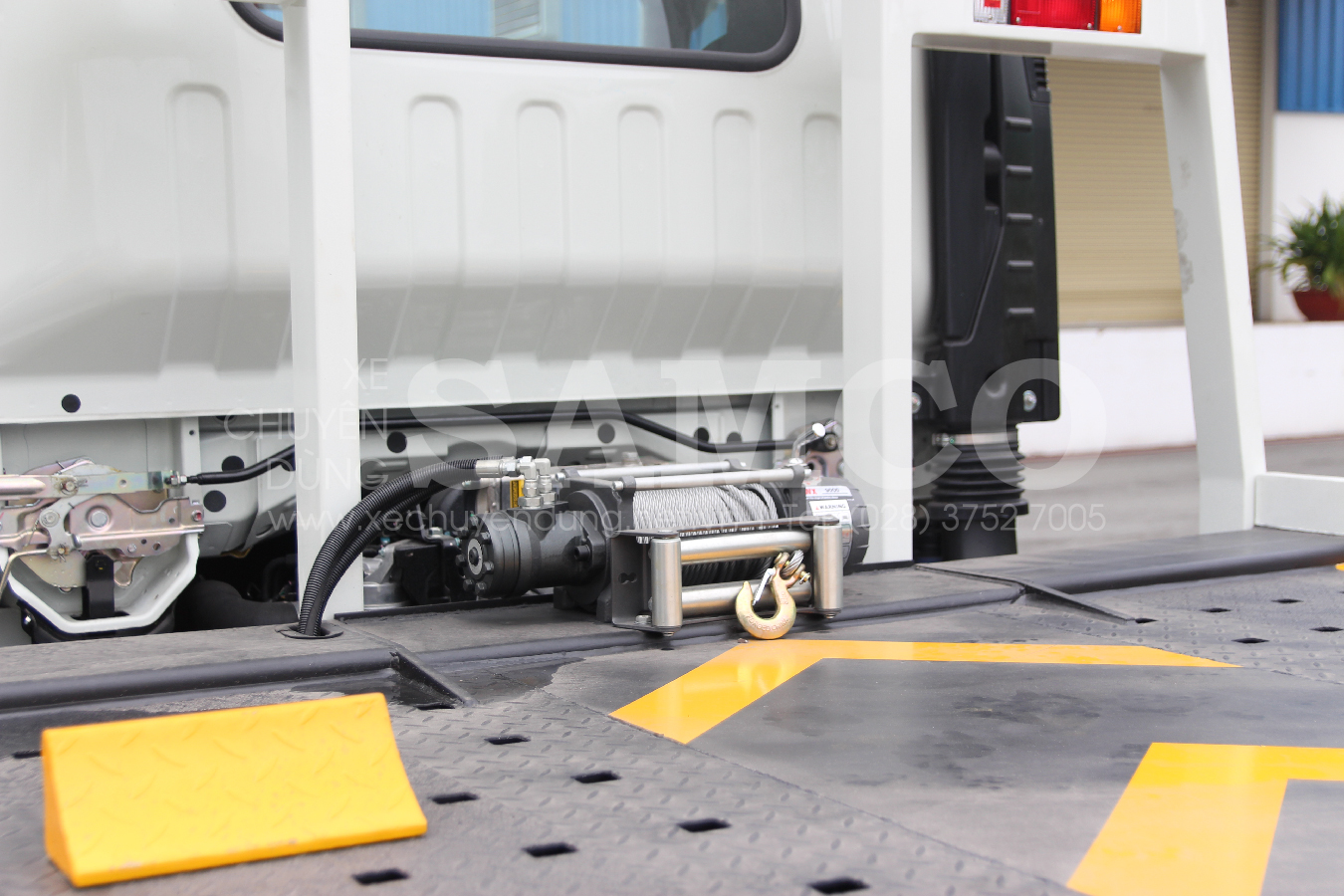

Tời kéo xe Tời kéo xe
