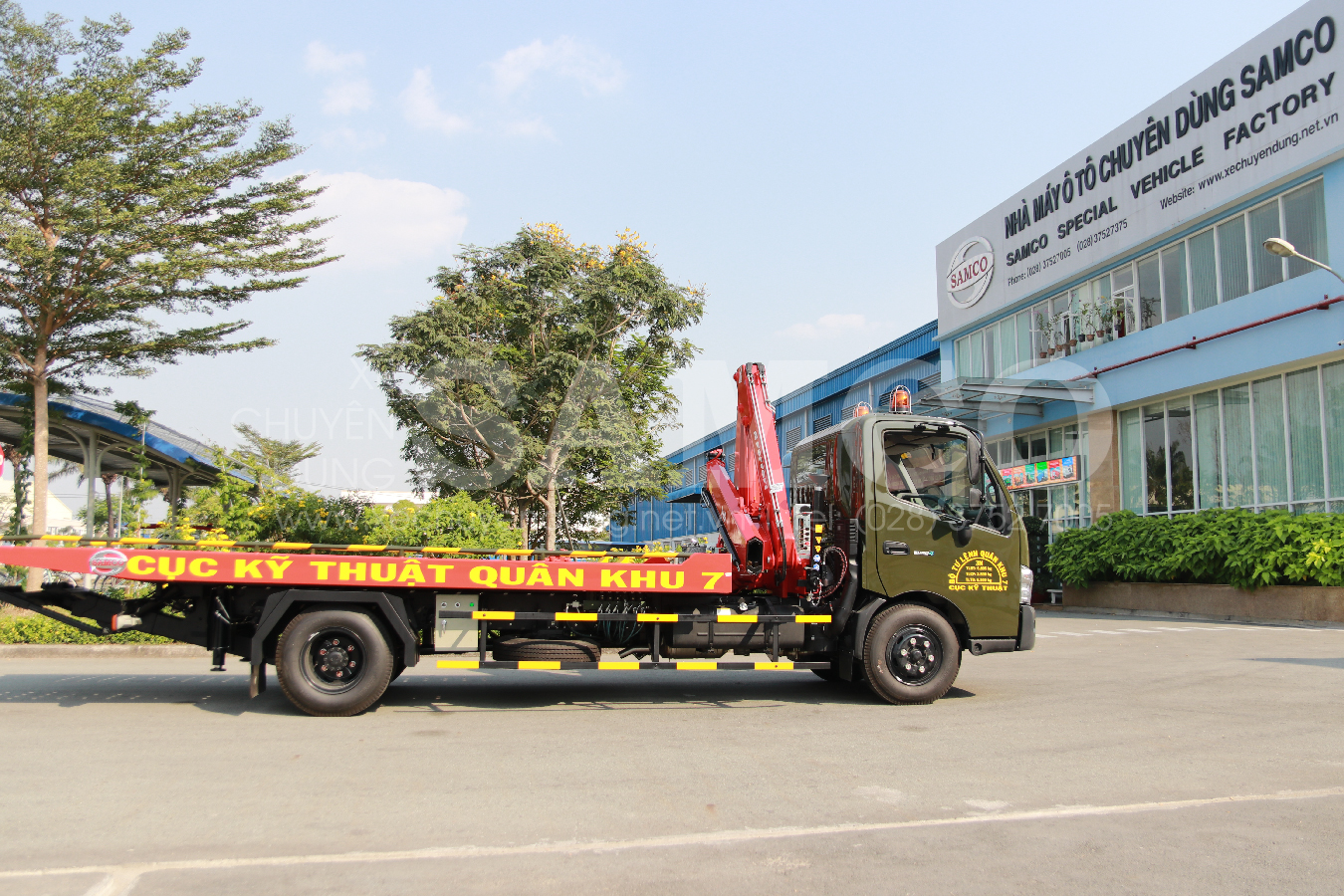

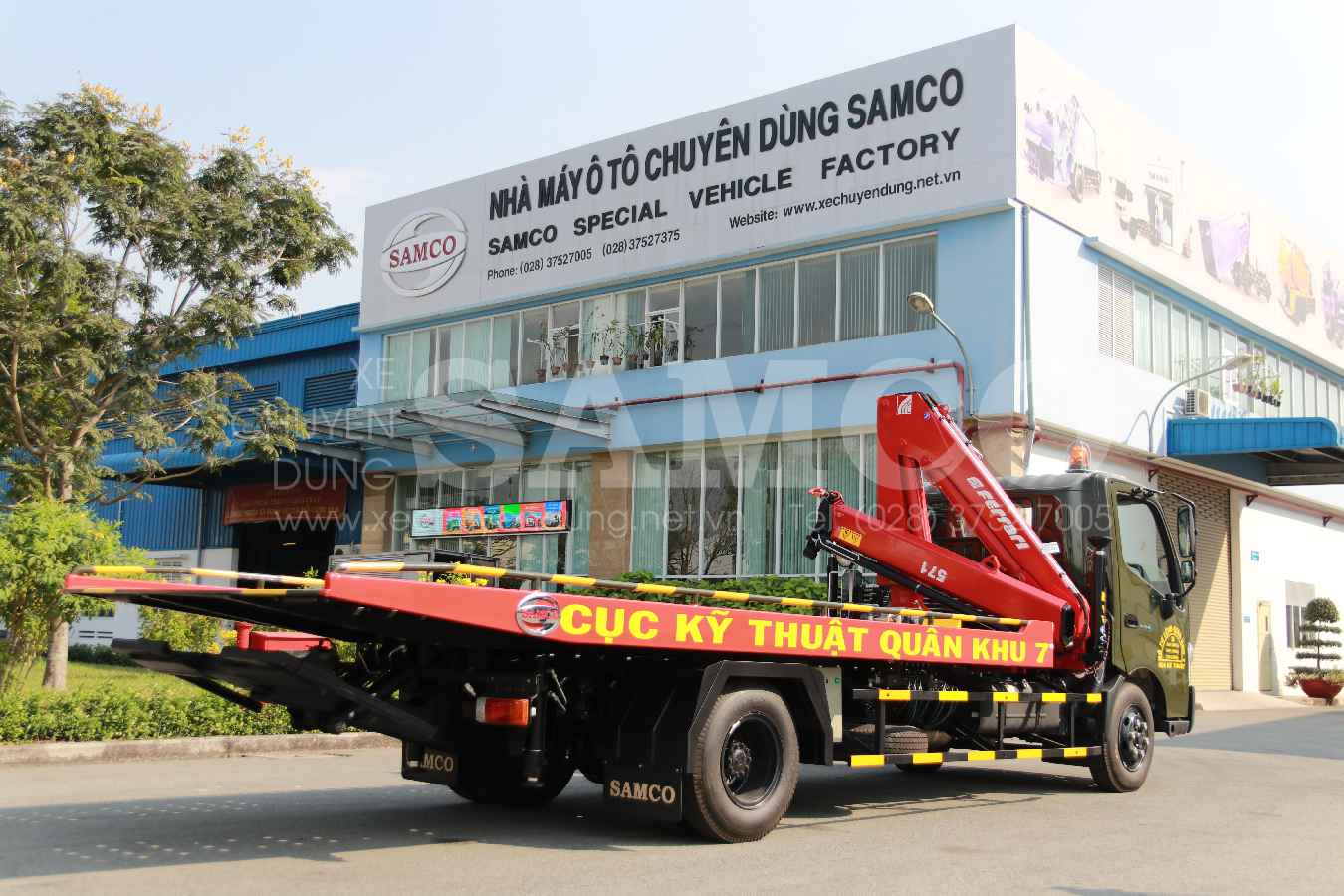

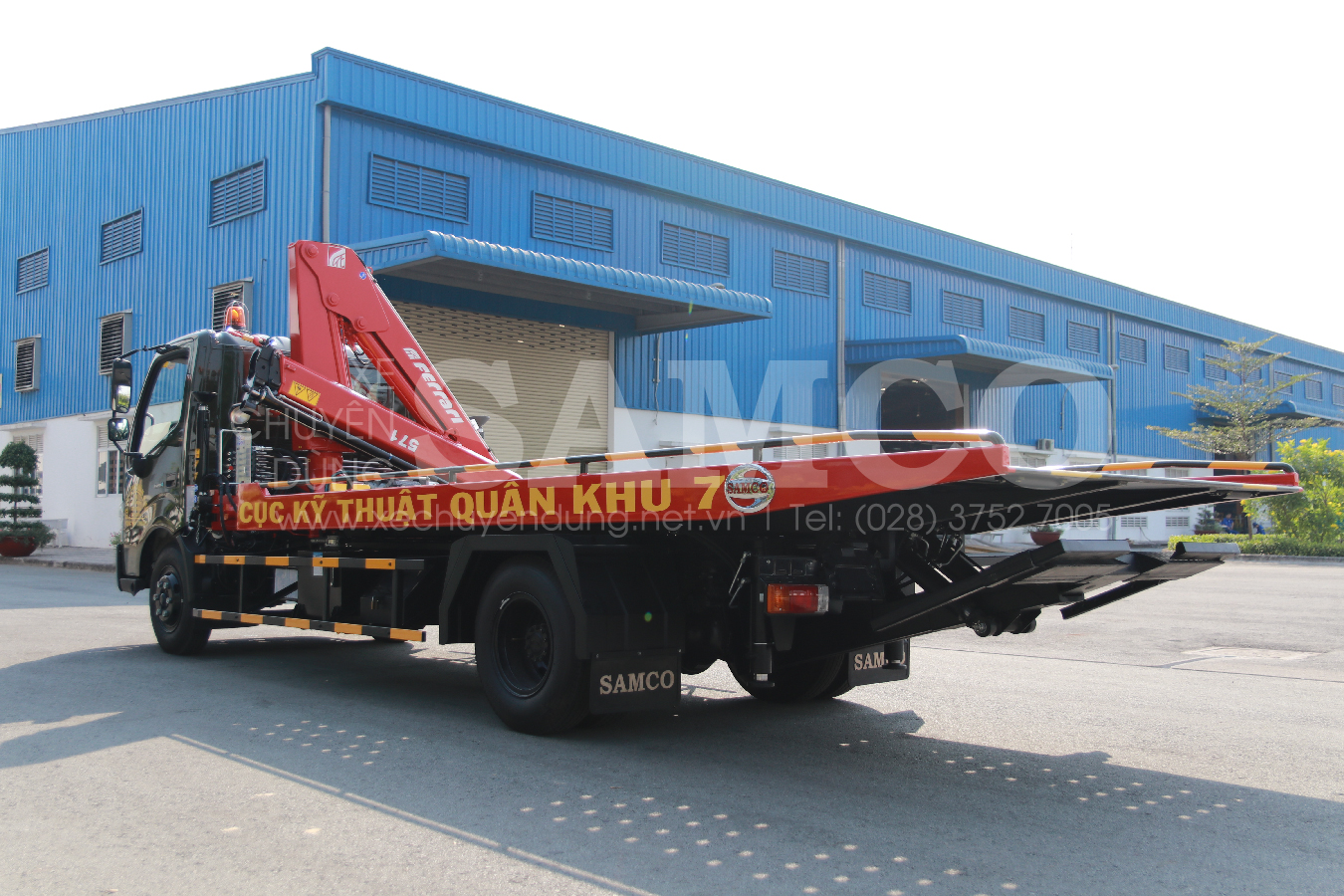

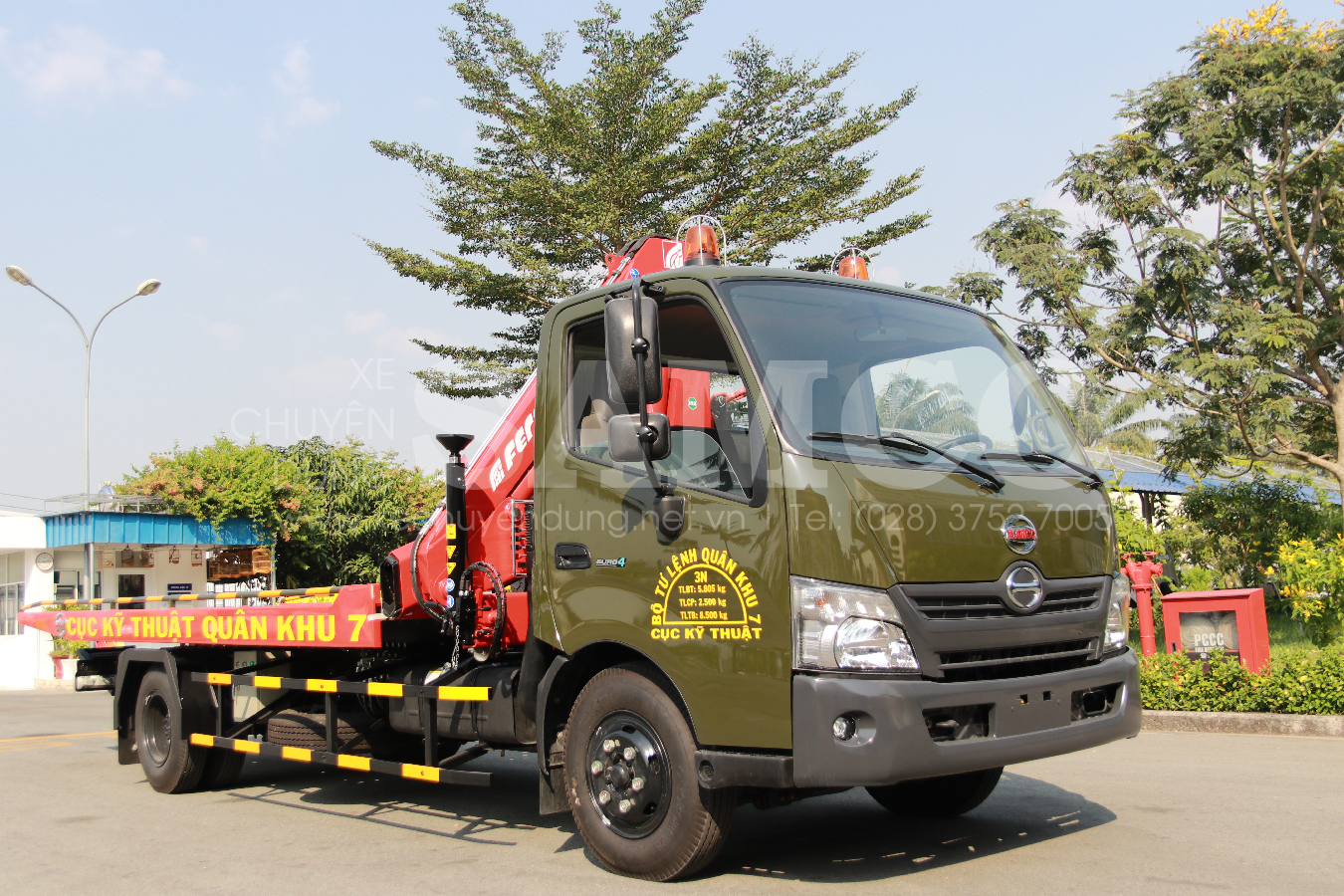

Recovery Truck - CHKHI 025

Overall

CHKHI 025 recovery trucks are very popular with car dealers in Vietnam.

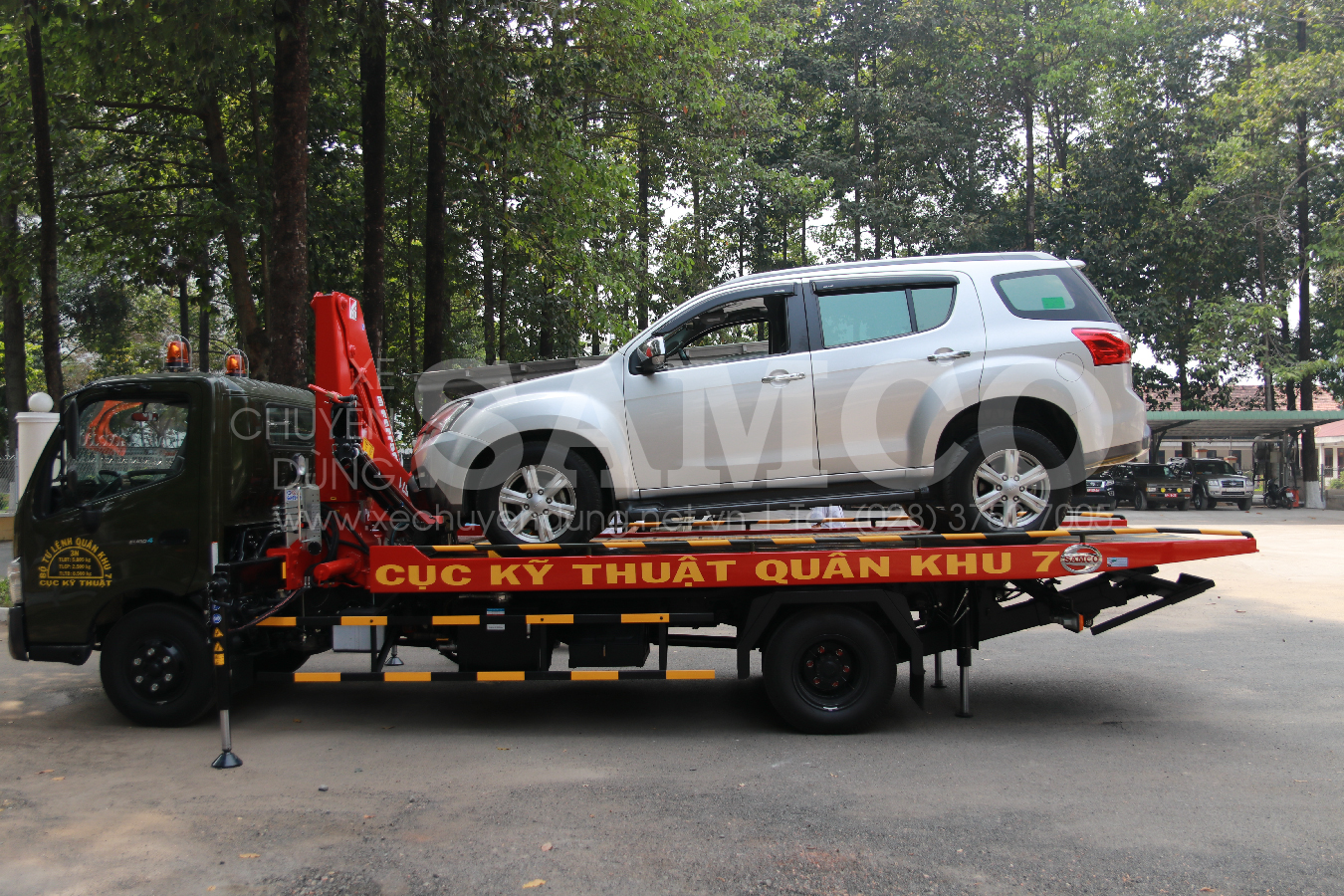

With a maximum payload of 2.5 tons, built on HINO XZU730L- HKFTP3 chasis, CHKHI 025 can transport 4-seats and 7-seats vehicle safely and conveniently.

Besides, the vehicle is equipped with a tow to pull the accidental vehicle that cannot be loaded onto the floor or towing a vehicle at the same time recovering another one. In addition, SAMCO also installs a 360-degree rotating crane, which is convenient for hoisting an accident vehicle.

  • Chasis: HINO XZU730L- HKFTP3
  • G.M.W: 8,500 kg
  • Payload: 2,500 kg
  • Kerb mass: 5,805 kg
  • Emision standard: EURO 4
  • Lowering Stage: Tilt positioning Stage
<p>Recovery truck</p>

Technical Specifications

Chasis HINO XZU730L-HKFTP3
Engine model HINO N04C - UV
Max. output 110/2,500 kW/rpm
Displacement 4,009 cc
Dimensions (L x W x H) 7,830 x2,310 x 2,790 mm
Wheel Spase 4,200 mm
G.V.W 8,500 kg
Payload 2,500 kg
Kerb mass 5,805 kg
Carrying floor Dimensions: 5,200 x 2,180 mm
Made of atmospheric corrosion resistant steels SPA-H (Japan)

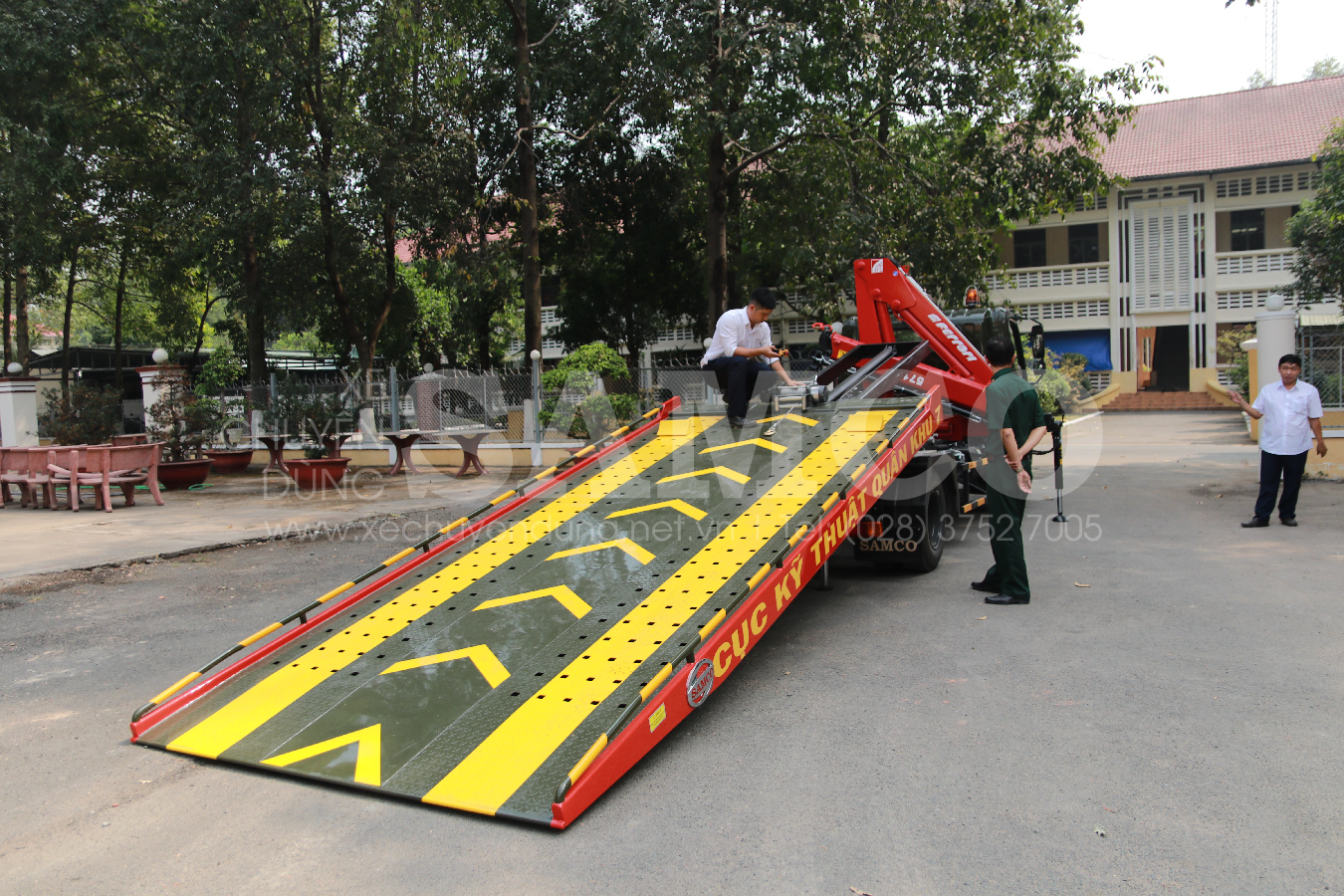

Max. angle of inclined: 12 degree
Tow system Lifting and pulling vehicles from 4 to 16 seats, trucks with total tonnage of 5 tons or less
Towing winch Operated by hydraulic motor

 Traction 2.500 (kgf)
Outriggers Hydraulic stabilized outrigger
Hydraulic system Imported from EURO

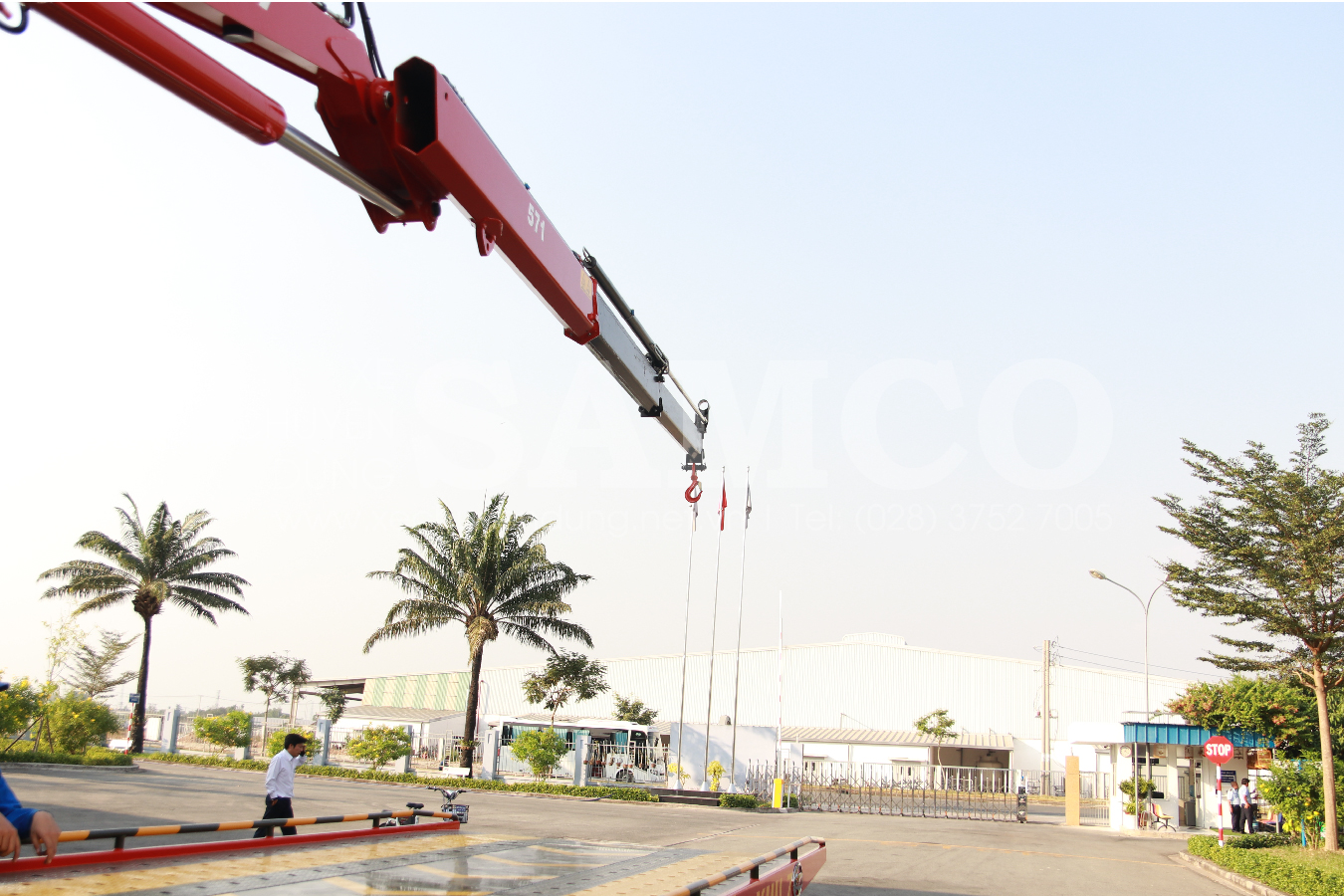

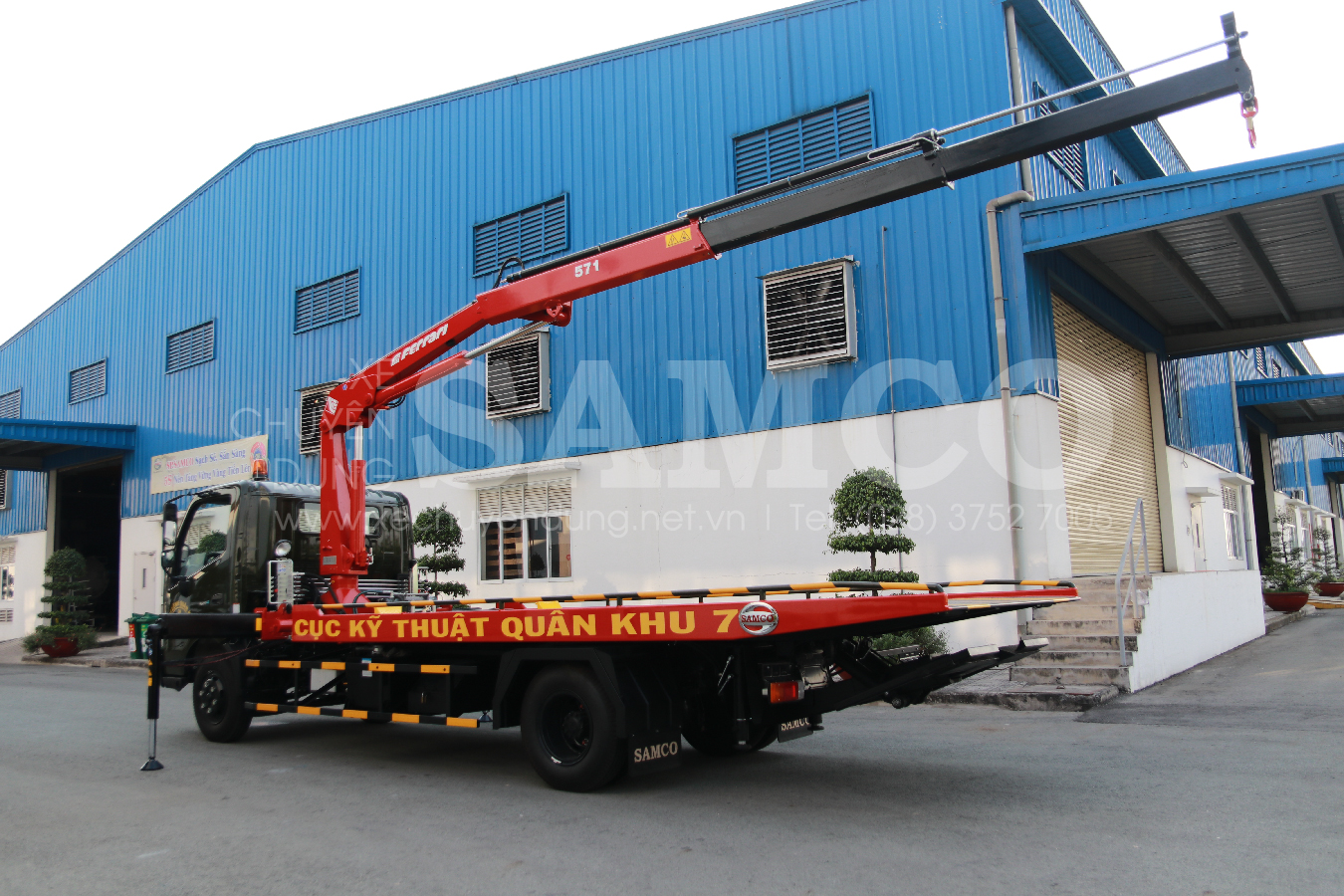

Mounted crane Branded F.lii FERRARI 571 A2 (from Italia)
Knuckle boom crane
Lifting power 925 ~ 2685 kg (depends on the outreach radius )
Max. working height: 10,2 m
Max working radius: 7,17 m
Lifting angle: 83 degree and Rotating angle: 400 degree
Operation Operated by hydraulic system
Lifting carrying floor control Control box at rear of the vehicle

Wireless remote control
Tow system control Hydraulic lifting mechanism, 1-stage sliding box, 2 wheel lifters
Warning lights 02 pcs.
Light support working 01 pc.
Ropes to fix the wheel 04 pcs.
Wheel blocker 04 pcs.
Cabin As truck or customers demand
Carrying system Customers demand
Product policy In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation.
Truck

Detail images

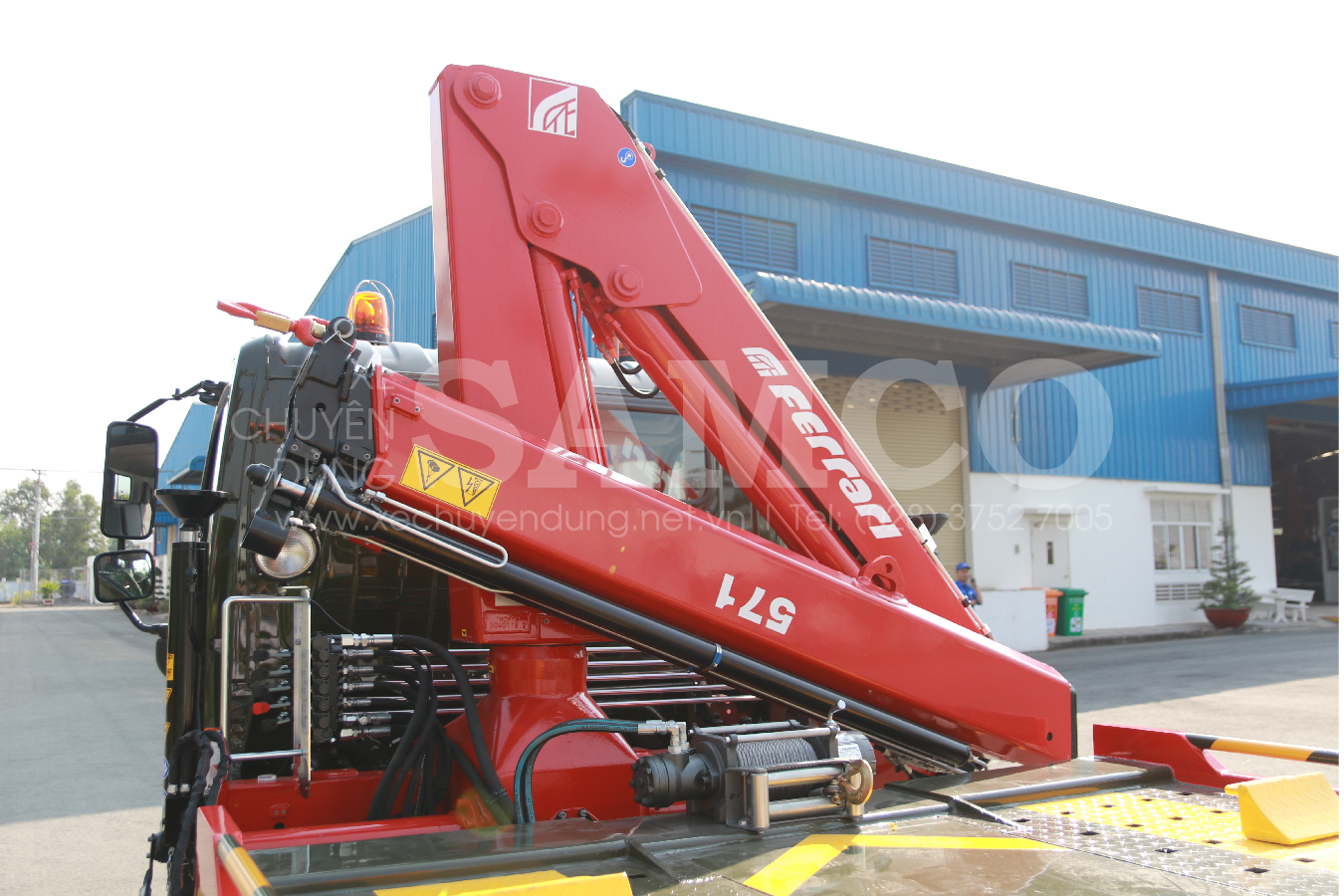

Cẩu F.Ferari được trang bị Cẩu F.Ferari được trang bị

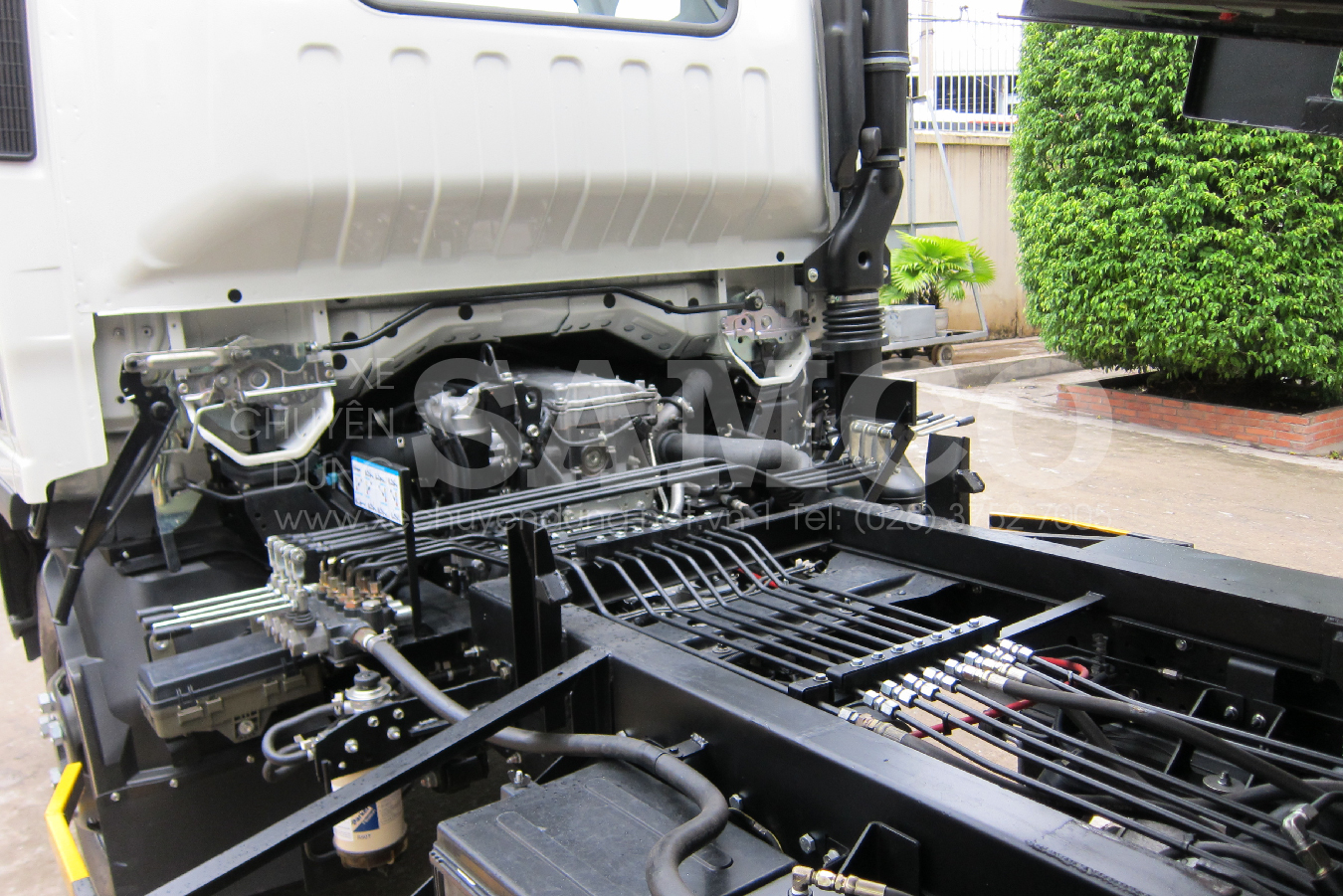

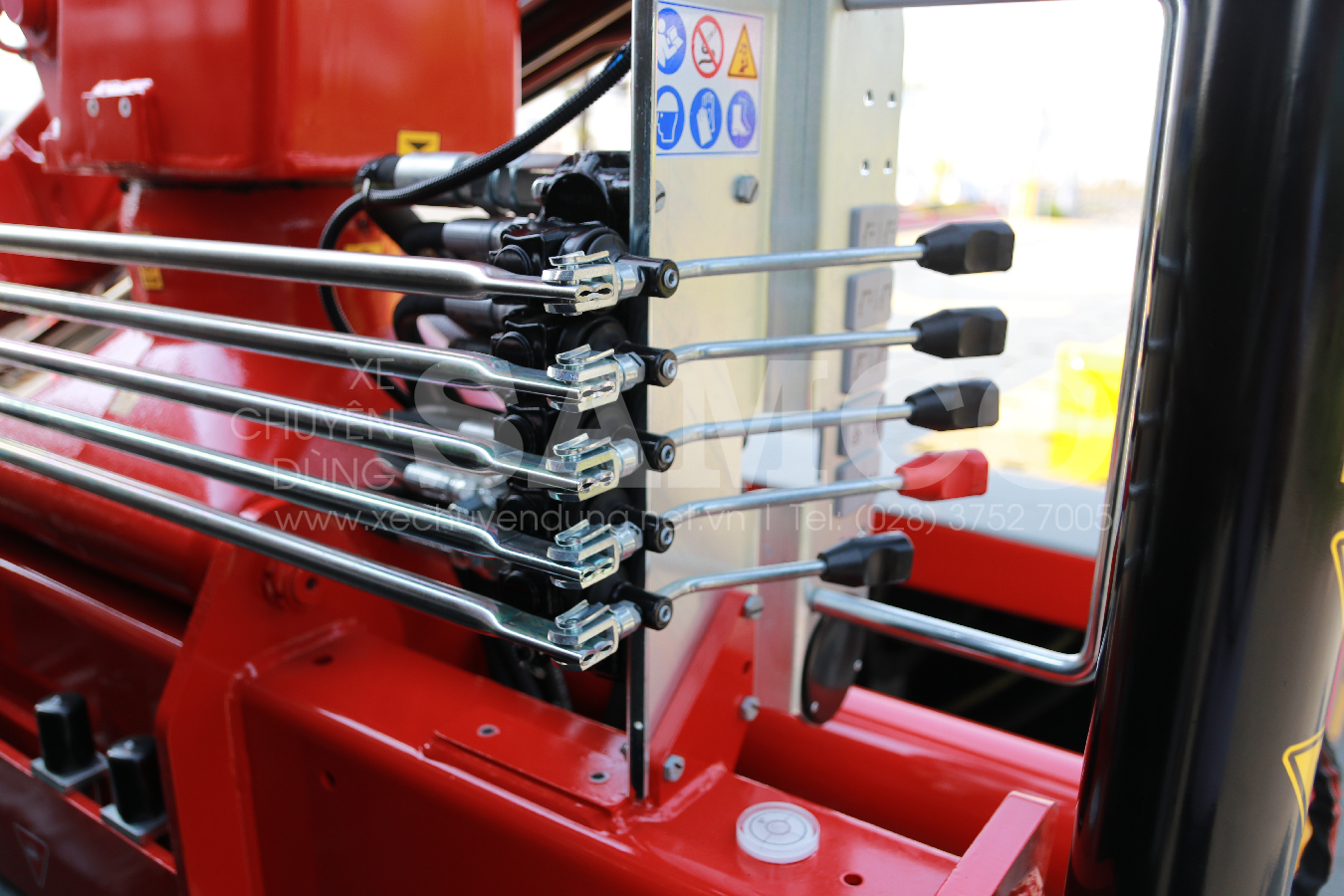

Hệ thống cần điều khiển cẩu Hệ thống cần điều khiển cẩu
Chân chống cố định được trang bị đi cùng theo cẩu cứu hộ Chân chống cố định được trang bị đi cùng theo cẩu cứu hộ

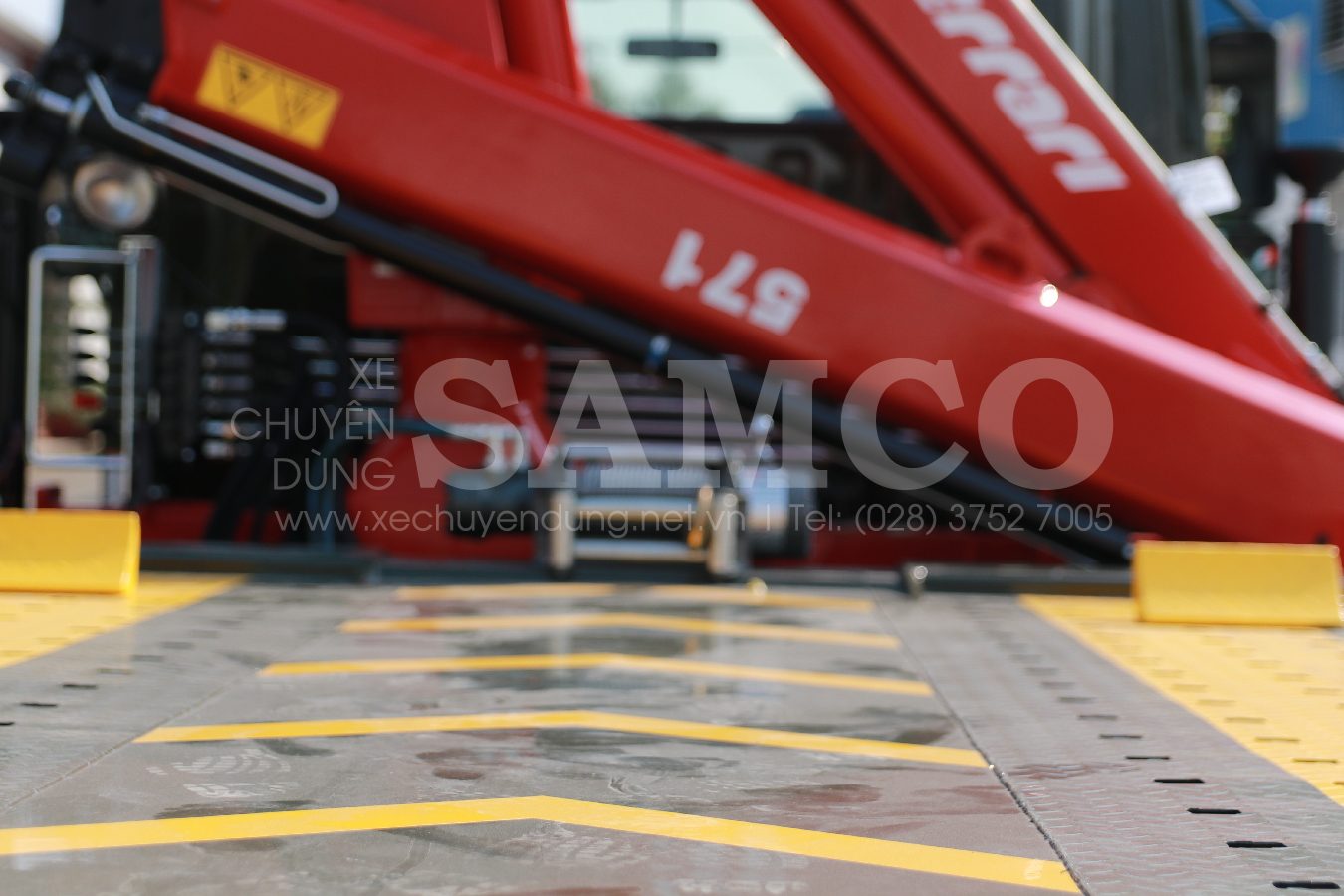

Sàn xe được làm từ thép SPA-H Nippon Steel với độ dày: 2,5 ~ 6 mm Sàn xe được làm từ thép SPA-H Nippon Steel với độ dày: 2,5 ~ 6 mm

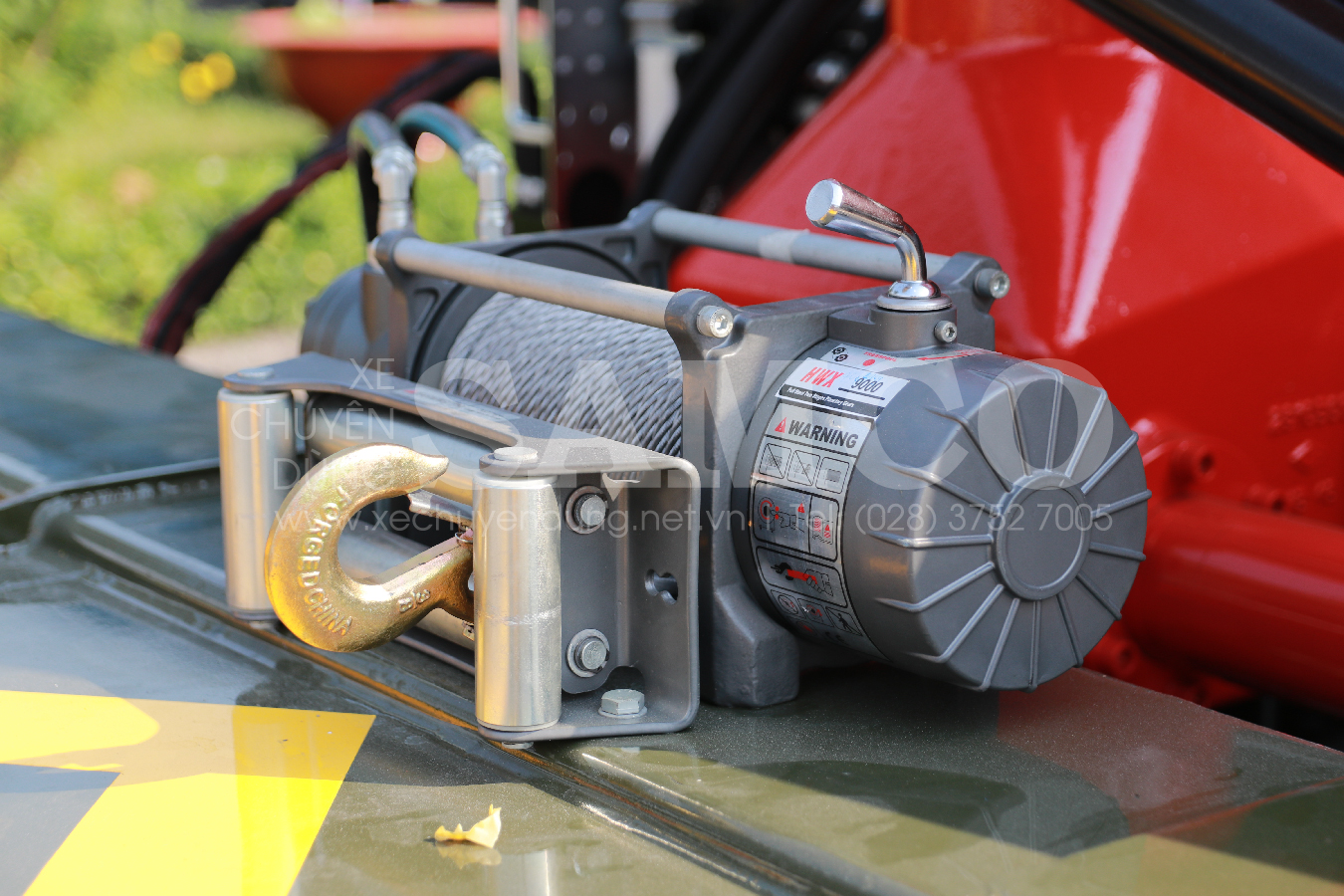

Tời kéo xe với lực kéo lên đến 2.500 kgf Tời kéo xe với lực kéo lên đến 2.500 kgf

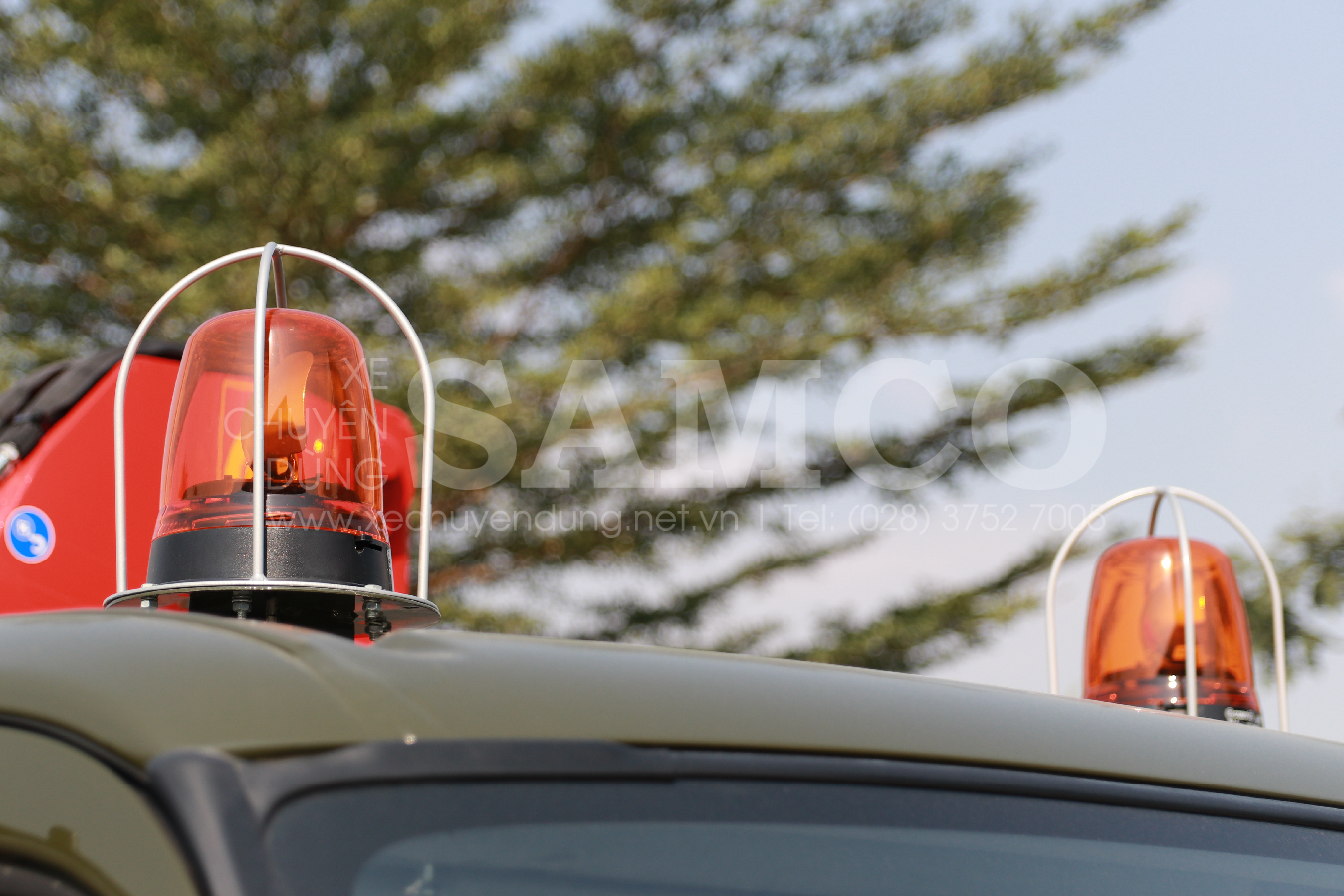

Hệ thống đèn báo hiệu Hệ thống đèn báo hiệu

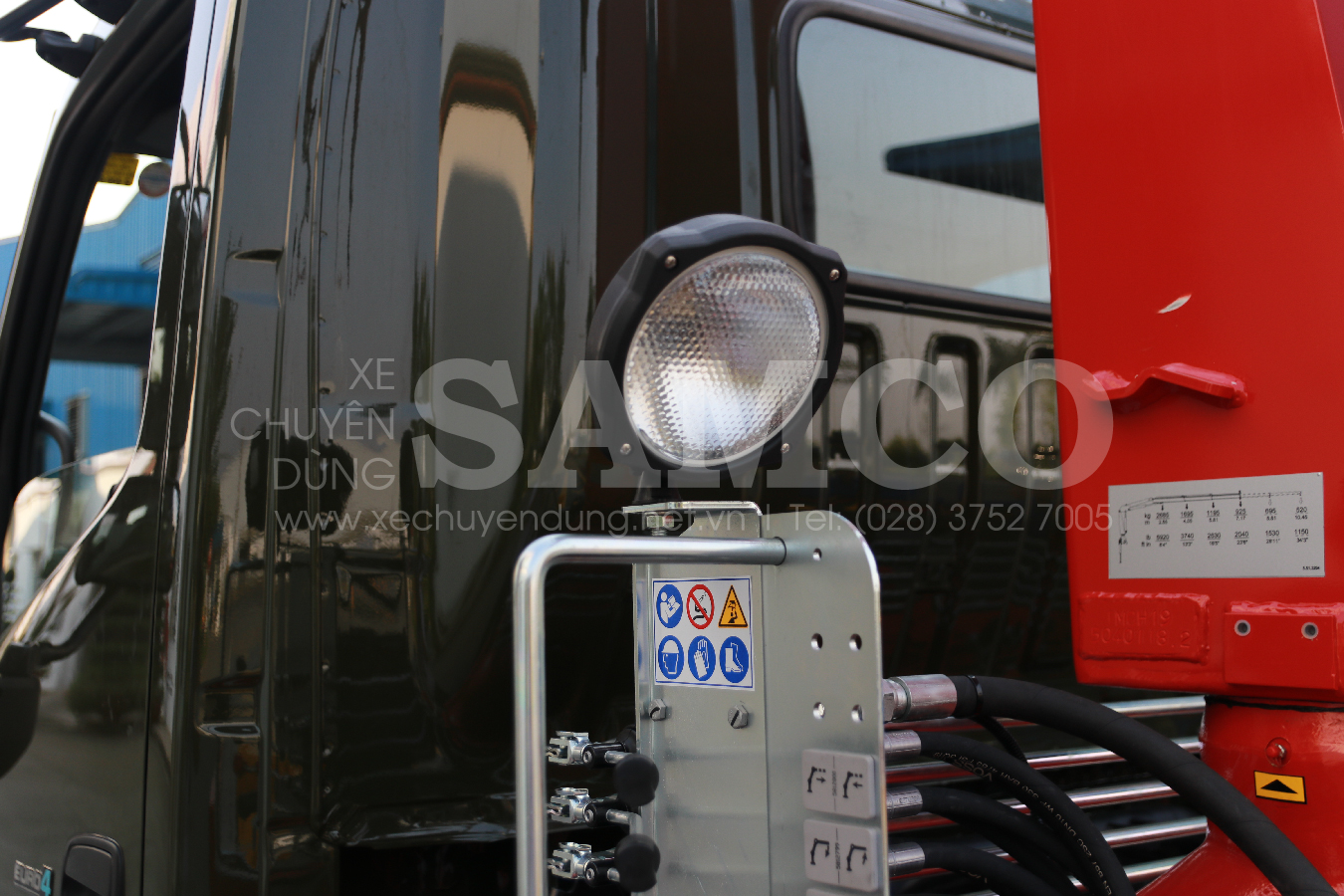

Đèn chiếu sáng Đèn chiếu sáng
Hệ thống nâng đầu xe Hệ thống nâng đầu xe

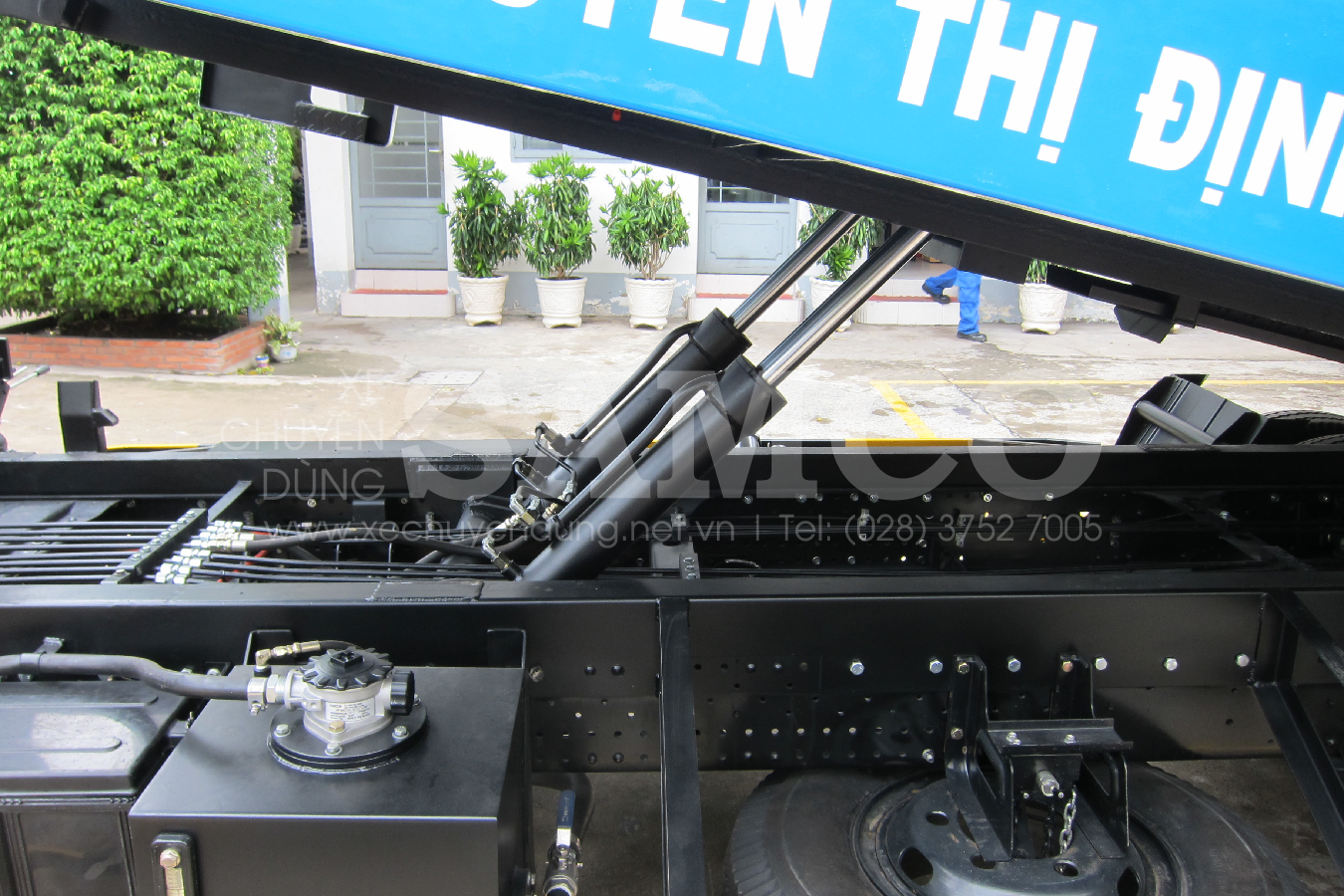

Xilanh hoạt động nâng hạ sàn Xilanh hoạt động nâng hạ sàn

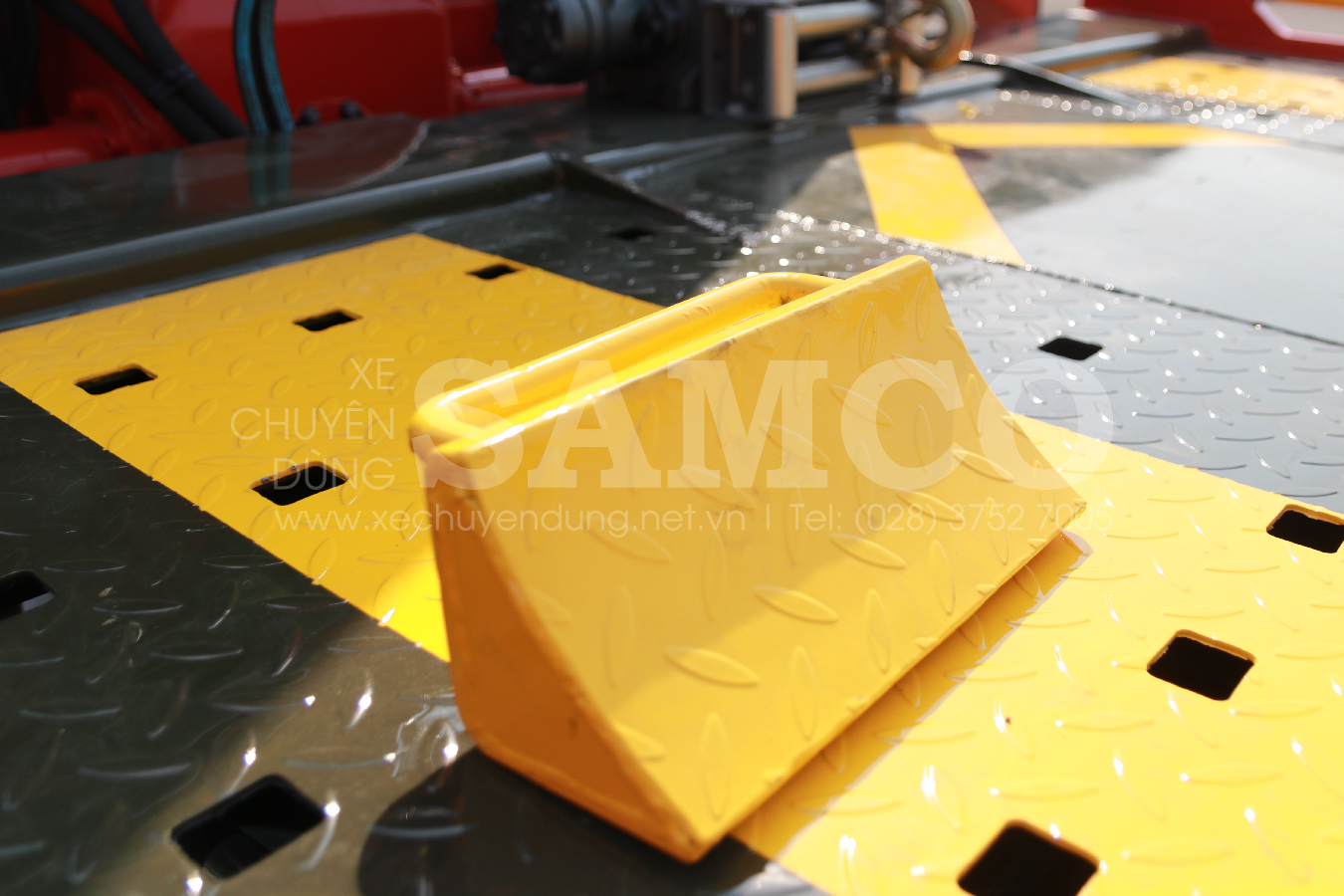

Bục cố định Bục cố định
