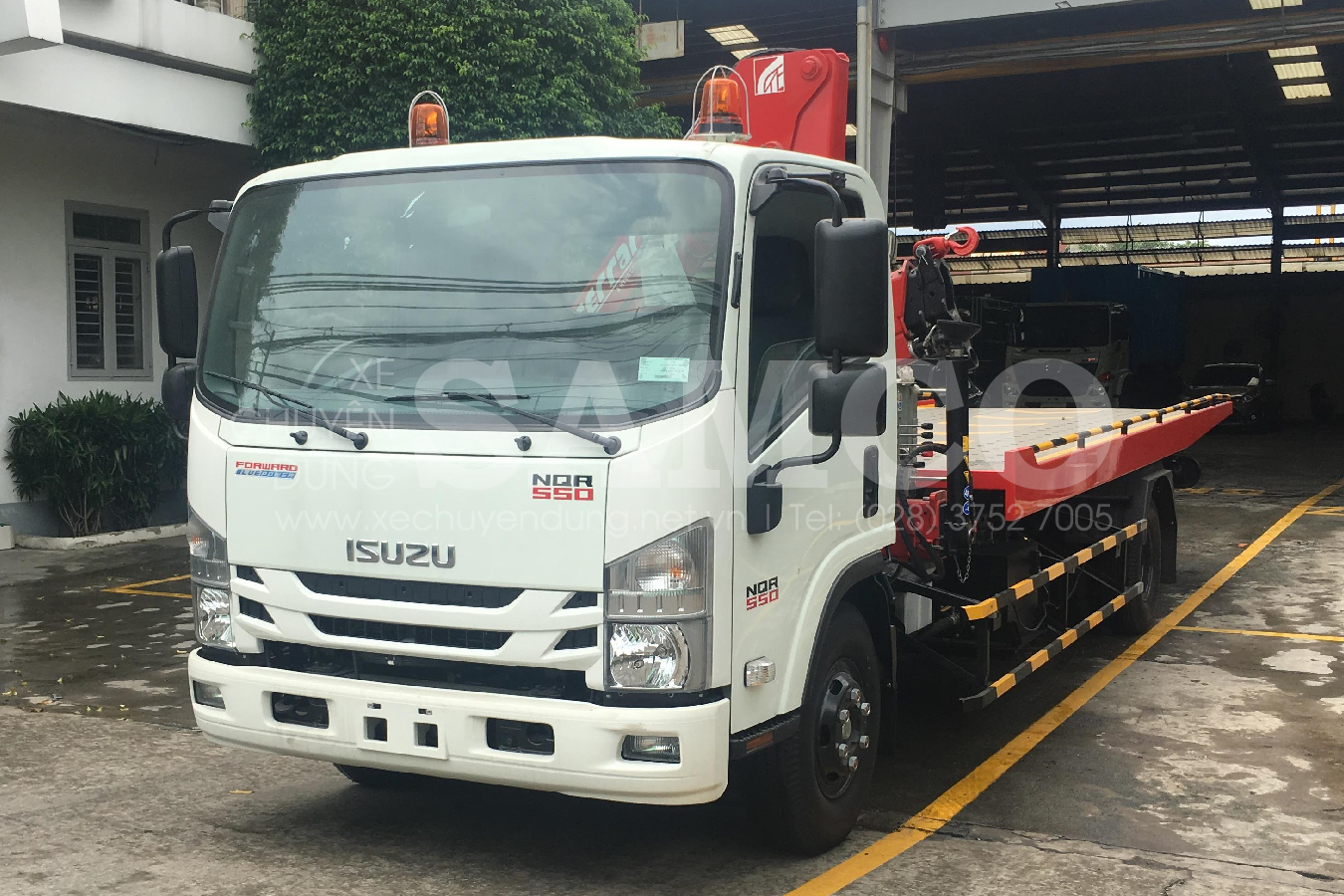

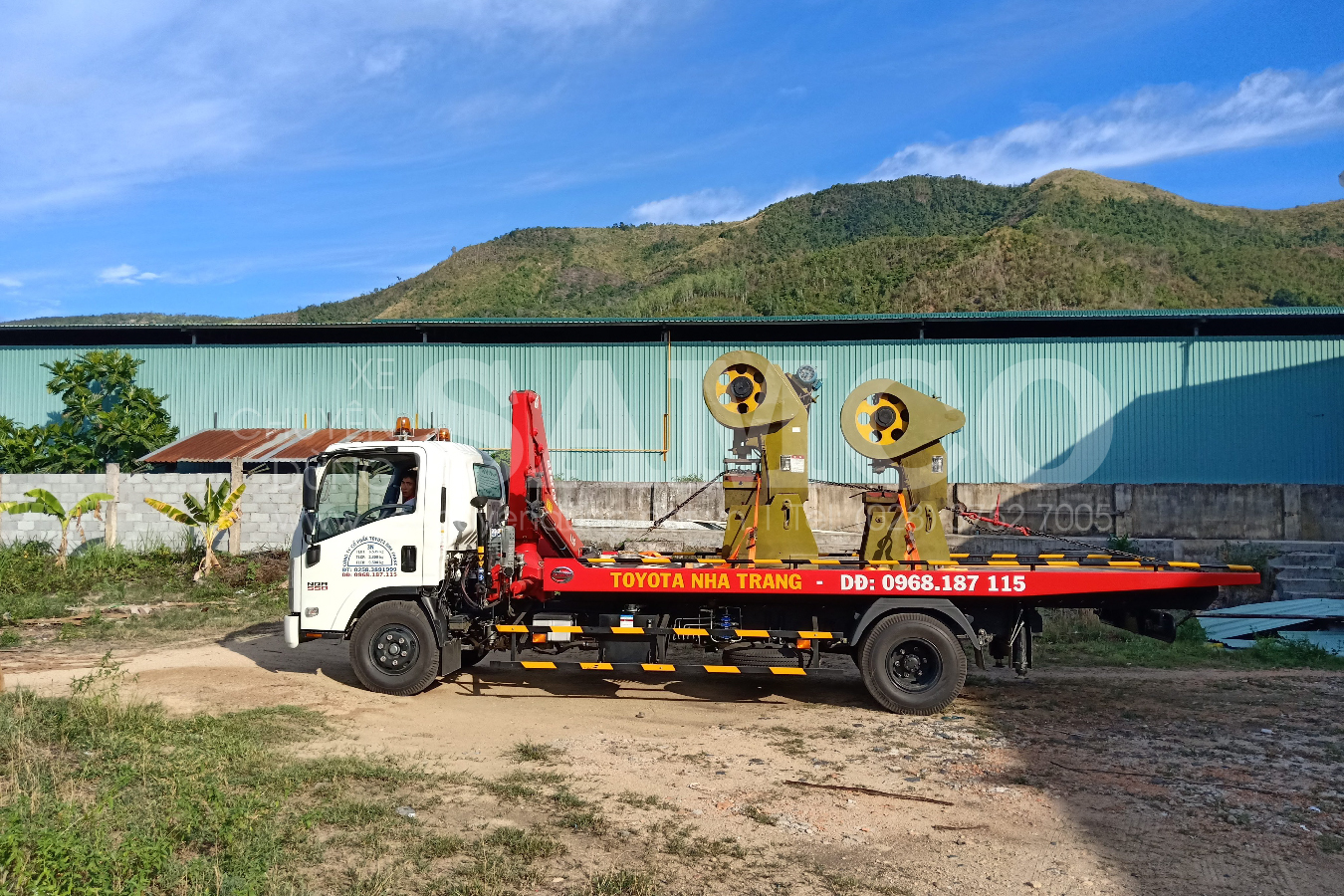

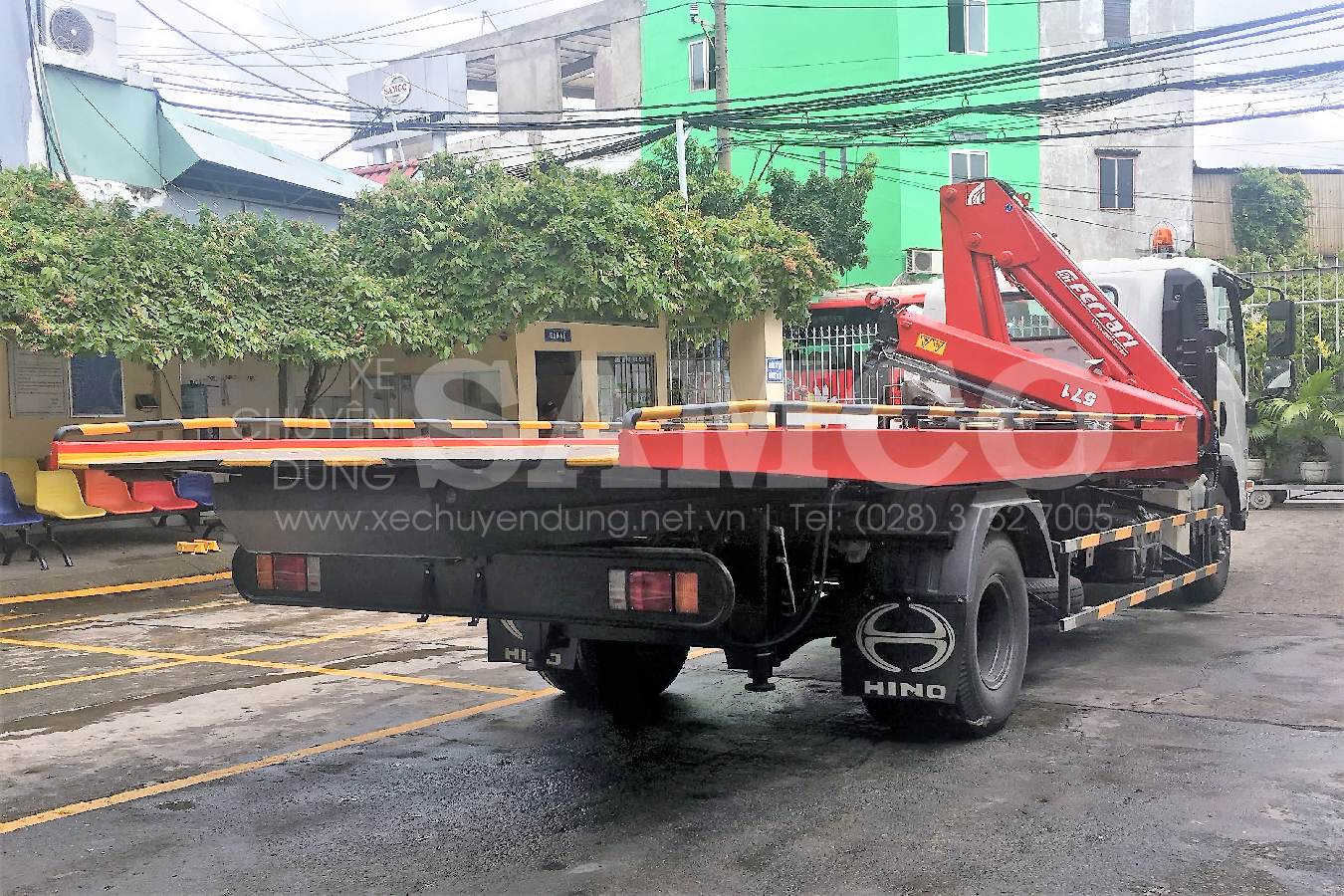

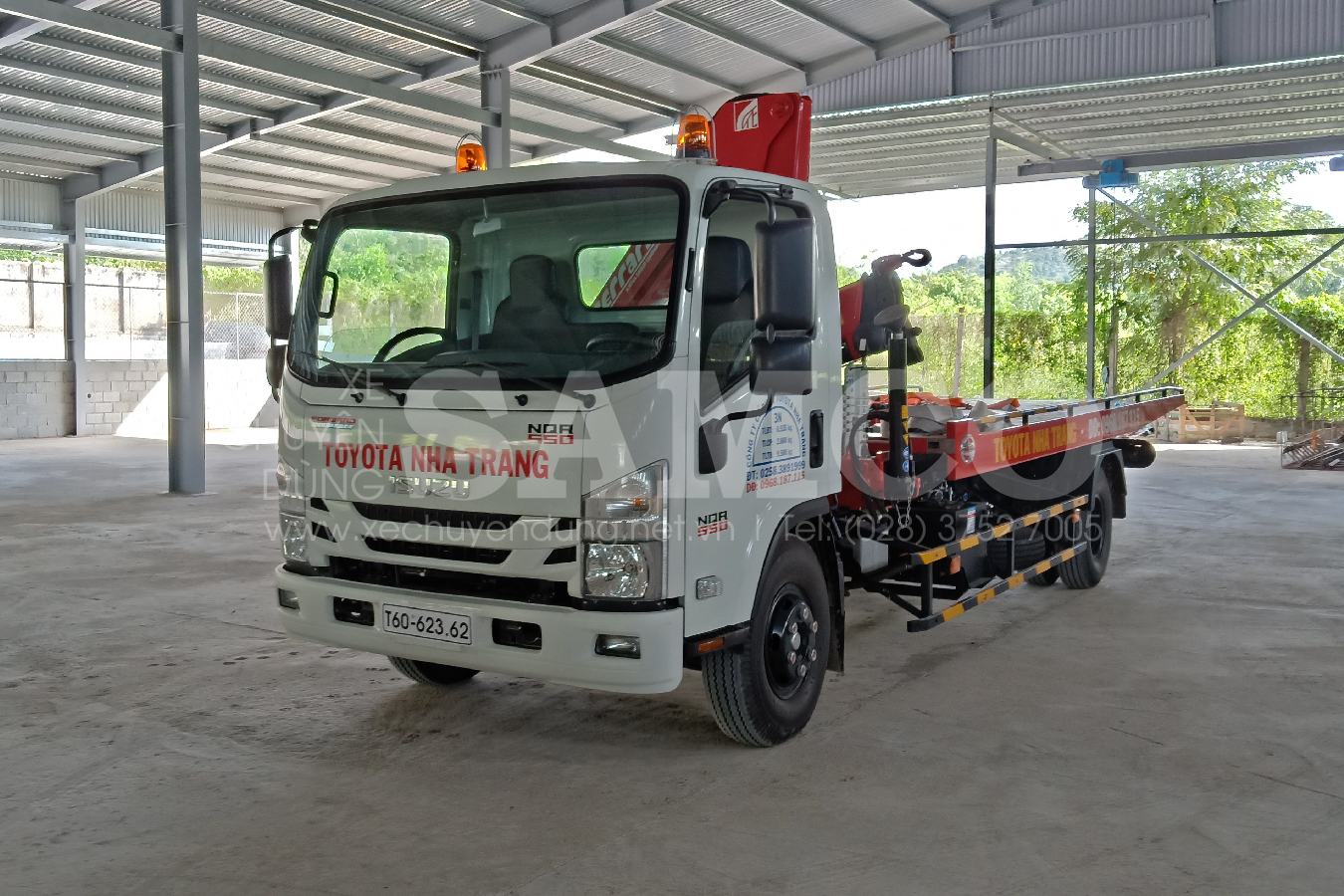

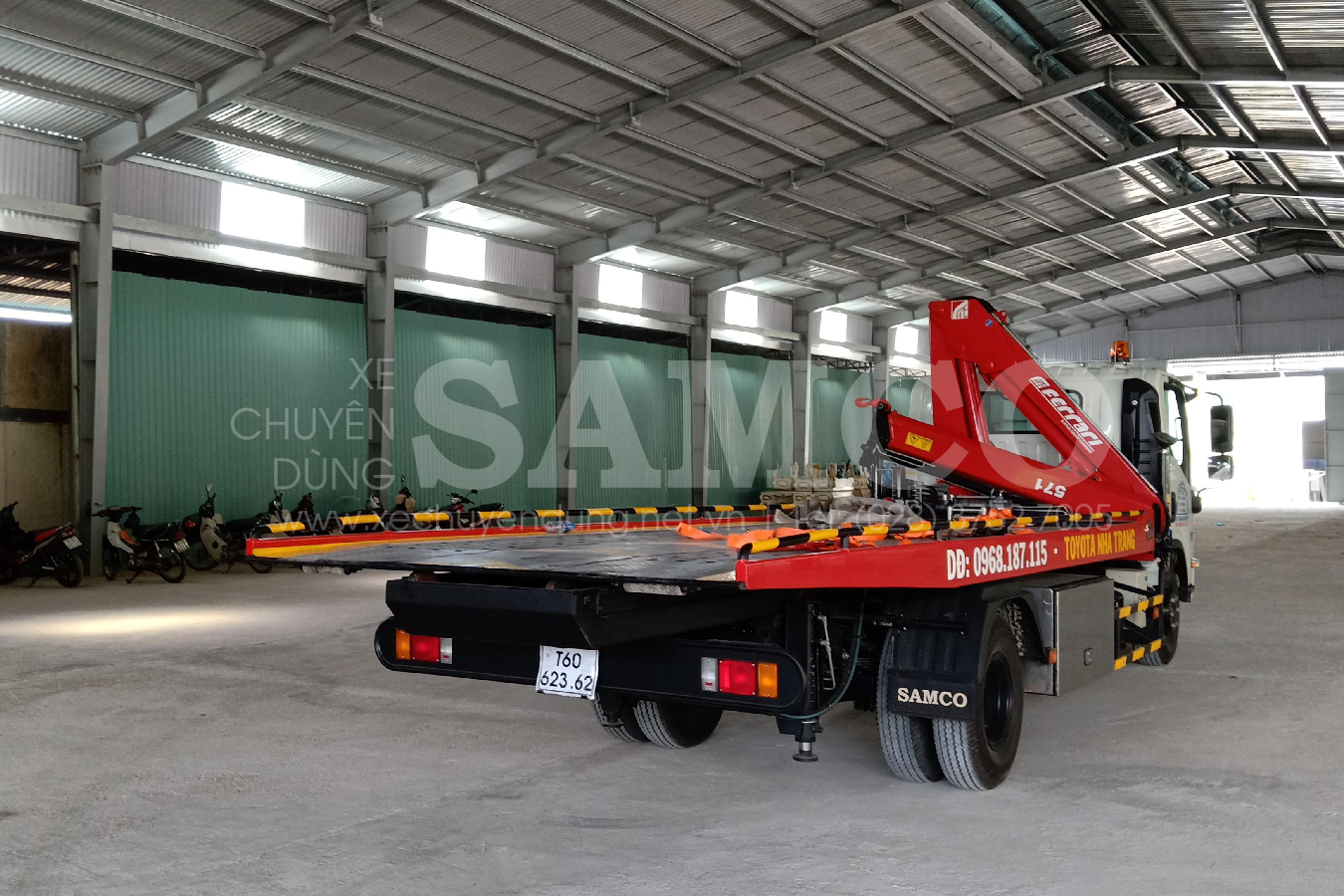

Recovery Truck - CHKIS 028

Overall

CHKIS 028 recovery trucks are very popular with car dealers in Vietnam.

With a maximum payload of 2.8 tons, CHKIS 028 can transport 4-seats and 7-seats vehicle safely and conveniently.

Besides, the vehicle is equipped with a tow to pull the accidental vehicle that cannot be loaded onto the floor or towing a vehicle at the same time recovering another one. In addition, SAMCO also installs a 360-degree rotating crane, which is convenient for hoisting an accident vehicle.

  • Chasis: ISUZU NQR75ME4
  • G.M.W: 9,500 kg
  • Payload: 2,800 kg
  • Kerb mass: 6,505 kg
  • Emision standard: EURO 4

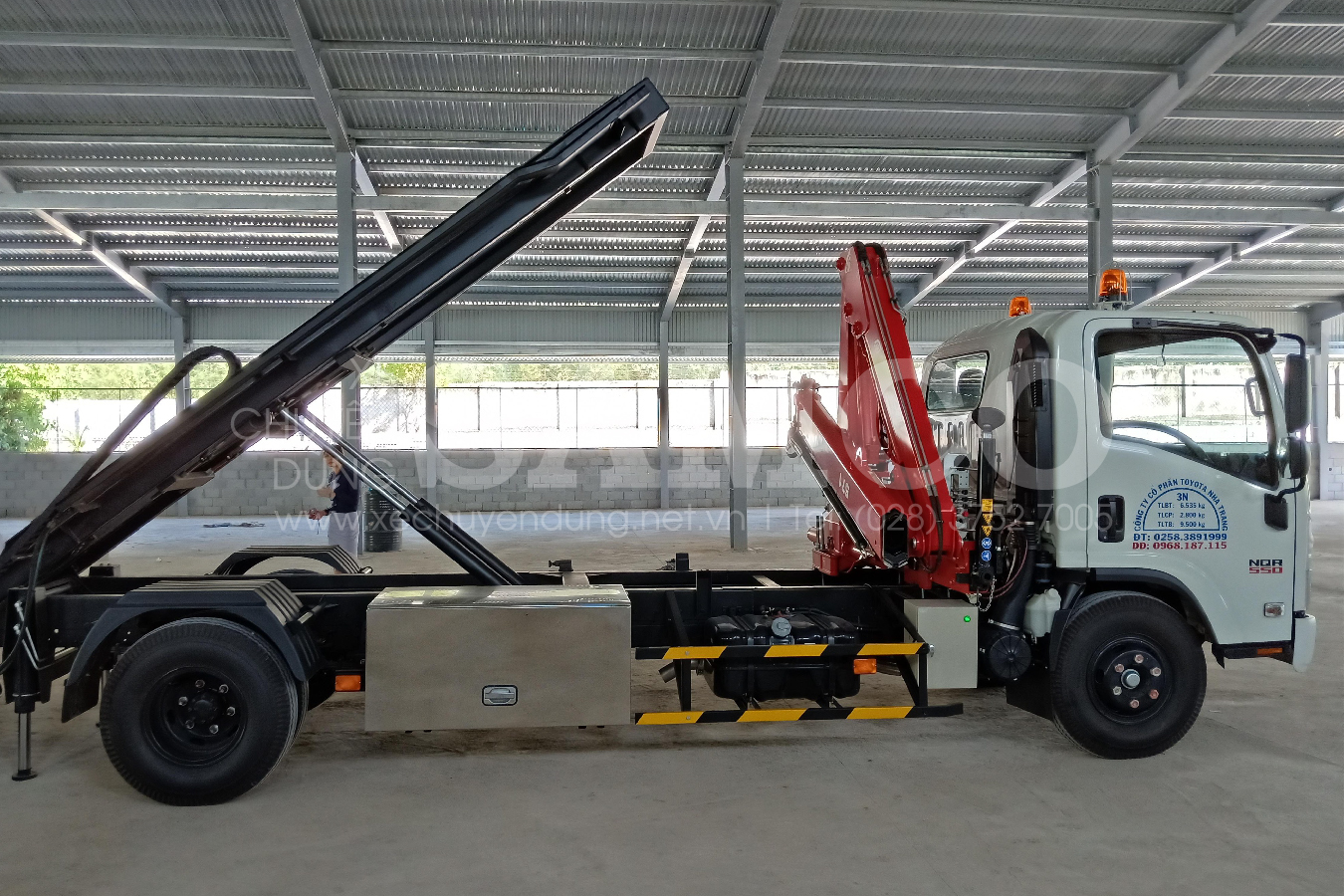

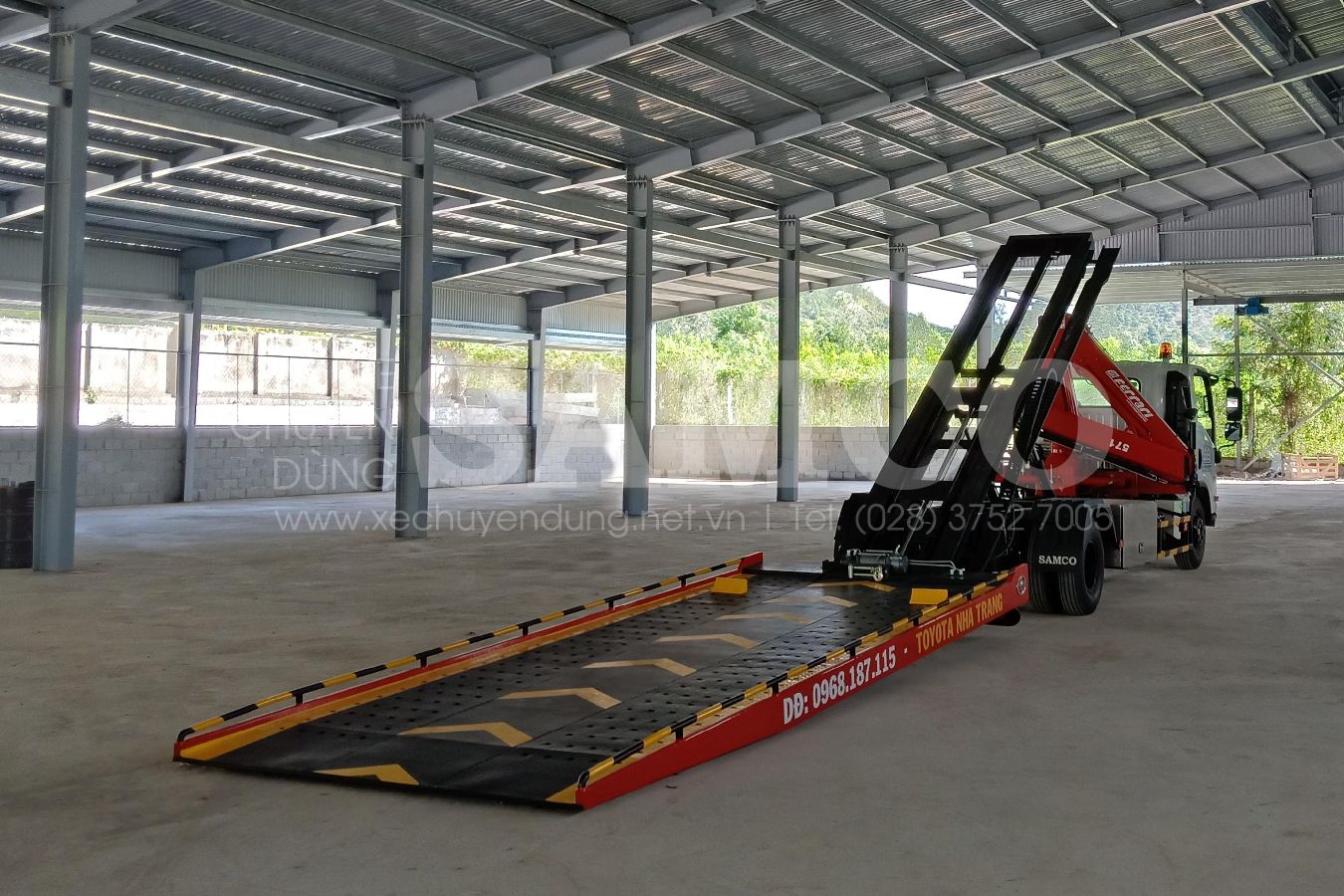

  • Lowering Stage: Tilt positioning Stage

Technical Specifications

Chasis ISUZU NQR75ME4
Engine model 4HK1E4NC
Max. output 114/2,600 kw/rpm
Displacement 5,193 cc
Dimensions (L x W x H) 8,270 x 2,310 x 2,800 mm
Wheel Spase 4,475 mm
G.V.W 9,500 kg
Payload 2,800 kg
Kerb mass 6,505 kg
Carrying floor Dimensions: 5,430 x 2,180 mm
Made of atmospheric corrosion resistant steels SPA-H (Japan)

Max. angle of inclined: 03 degree
Tow system Lifting and pulling vehicles from 4 to 16 seats, trucks with total tonnage of 5 tons or less
Towing winch Operated by hydraulic motor

 Traction 2.500 (kgf)
Outriggers Hydraulic stabilized outrigger

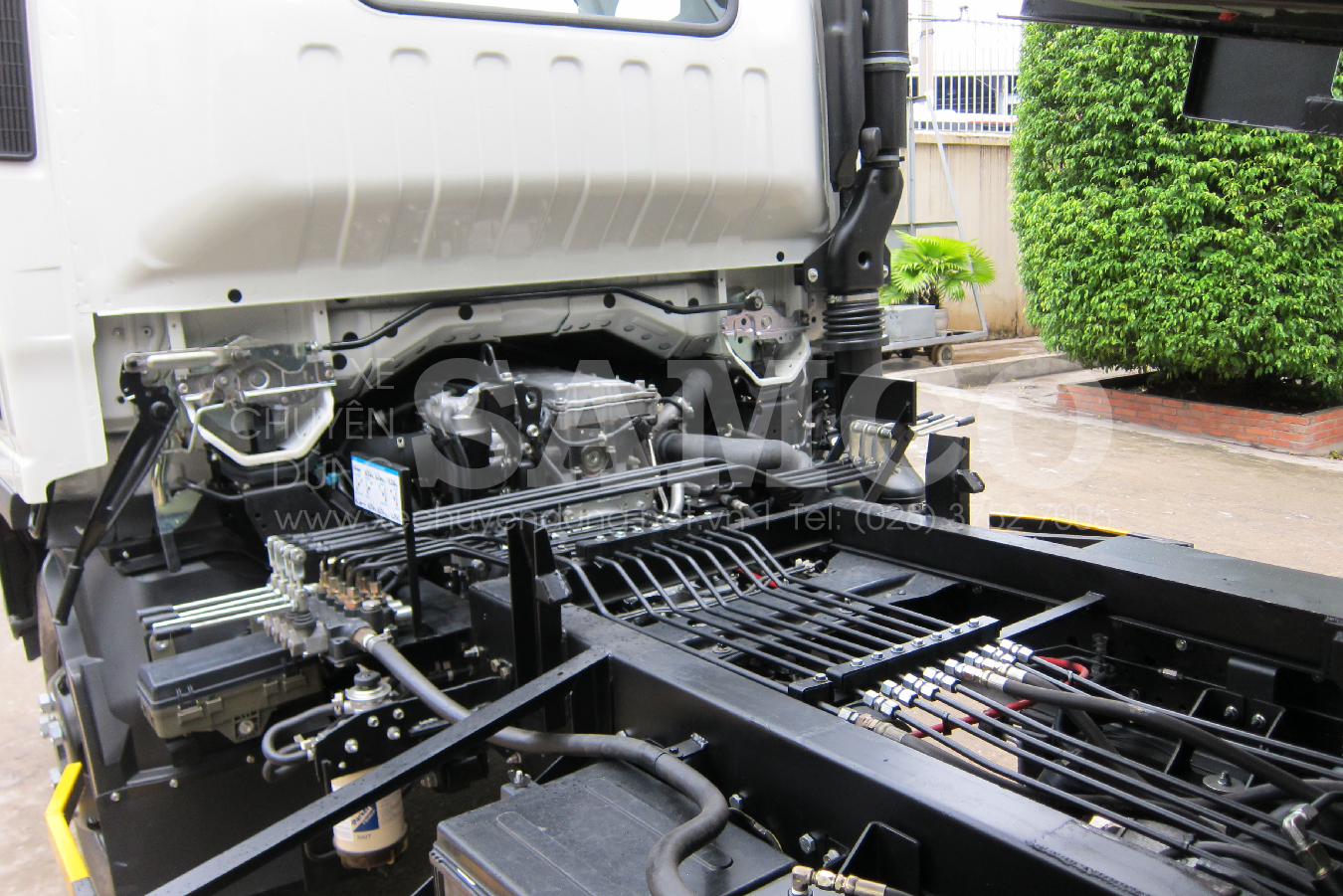

Hydraulic system Imported from EURO

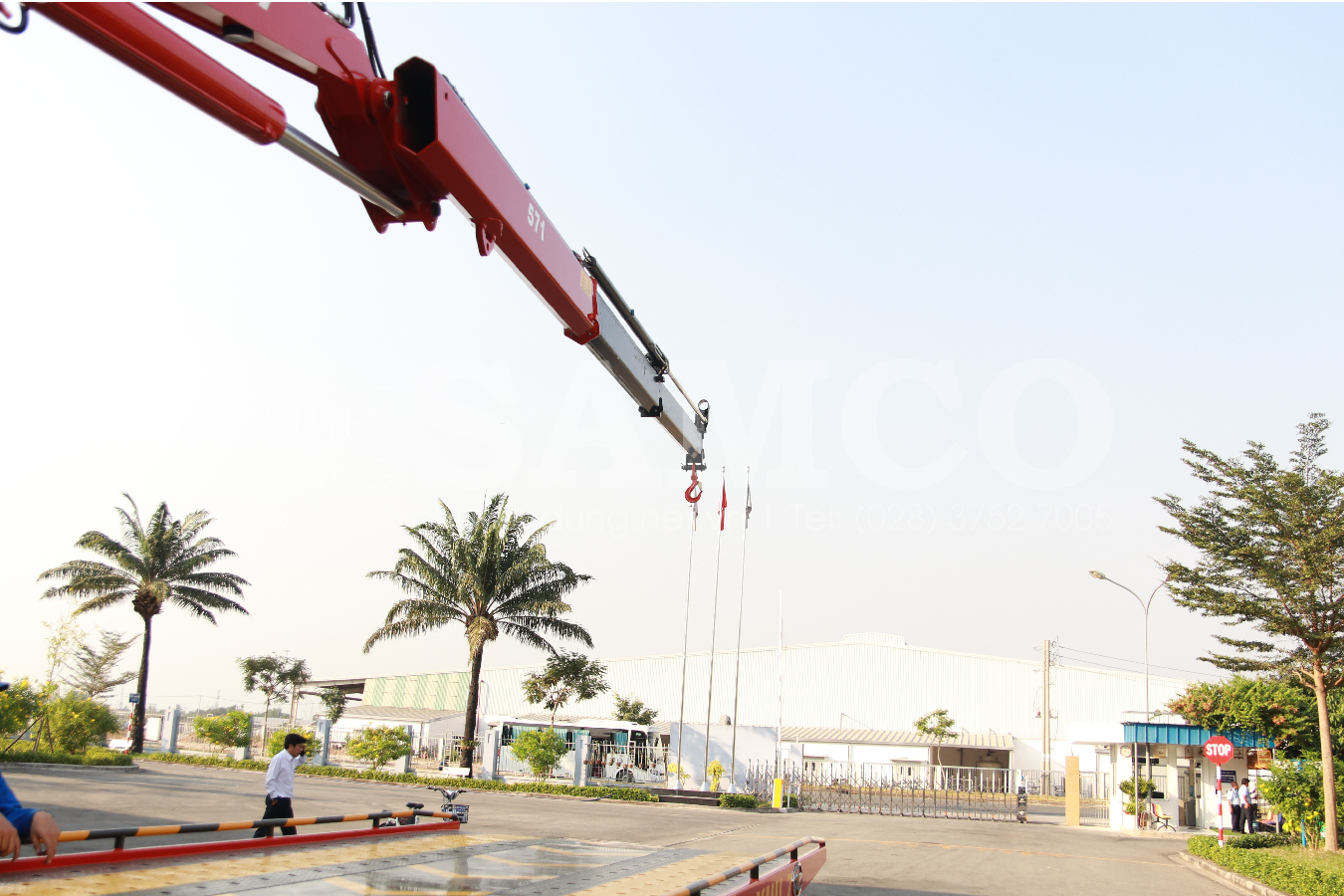

Mounted crane Branded F.lii FERRARI 571 A2 (from Italia)
Knuckle boom crane
Lifting power 925 ~ 2685 kg (depends on the outreach radius )
Max. working height: 10,2 m
Max working radius: 7,17 m
Lifting angle: 83 degree and Rotating angle: 400 degree
Operation Operated by hydraulic system
Lifting carrying floor control Control box at rear of the vehicle

Wireless remote control
Tow system control Hydraulic lifting mechanism, 2-stage sliding box
Warning lights 02 pcs.
Light support working 01 pc.
Ropes to fix the wheel 04 pcs.

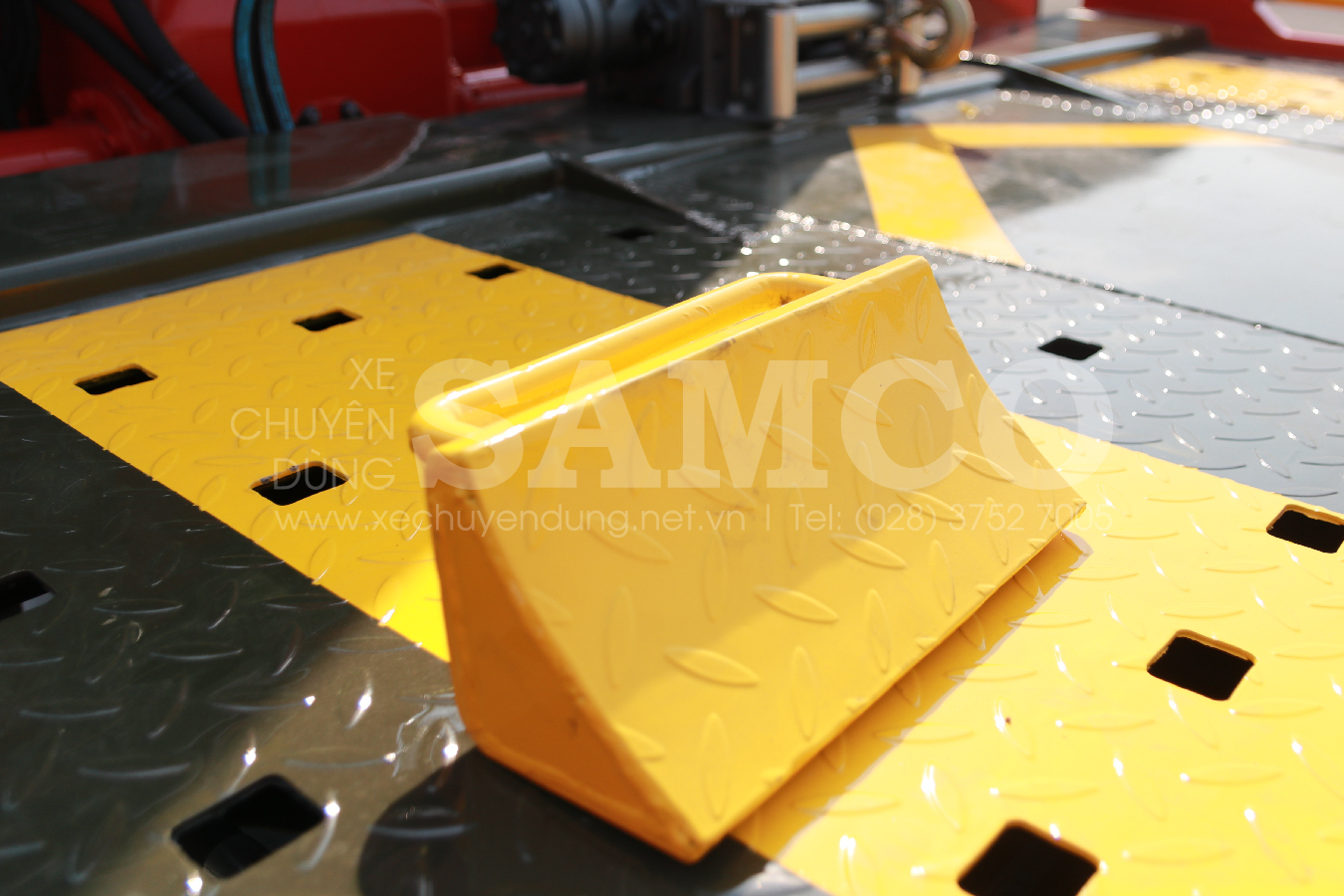

Wheel blocker 04 pcs.
Cabin As truck or customers demand
Carrying system Customers demand
Product policy In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation.
Trucks

Detail images

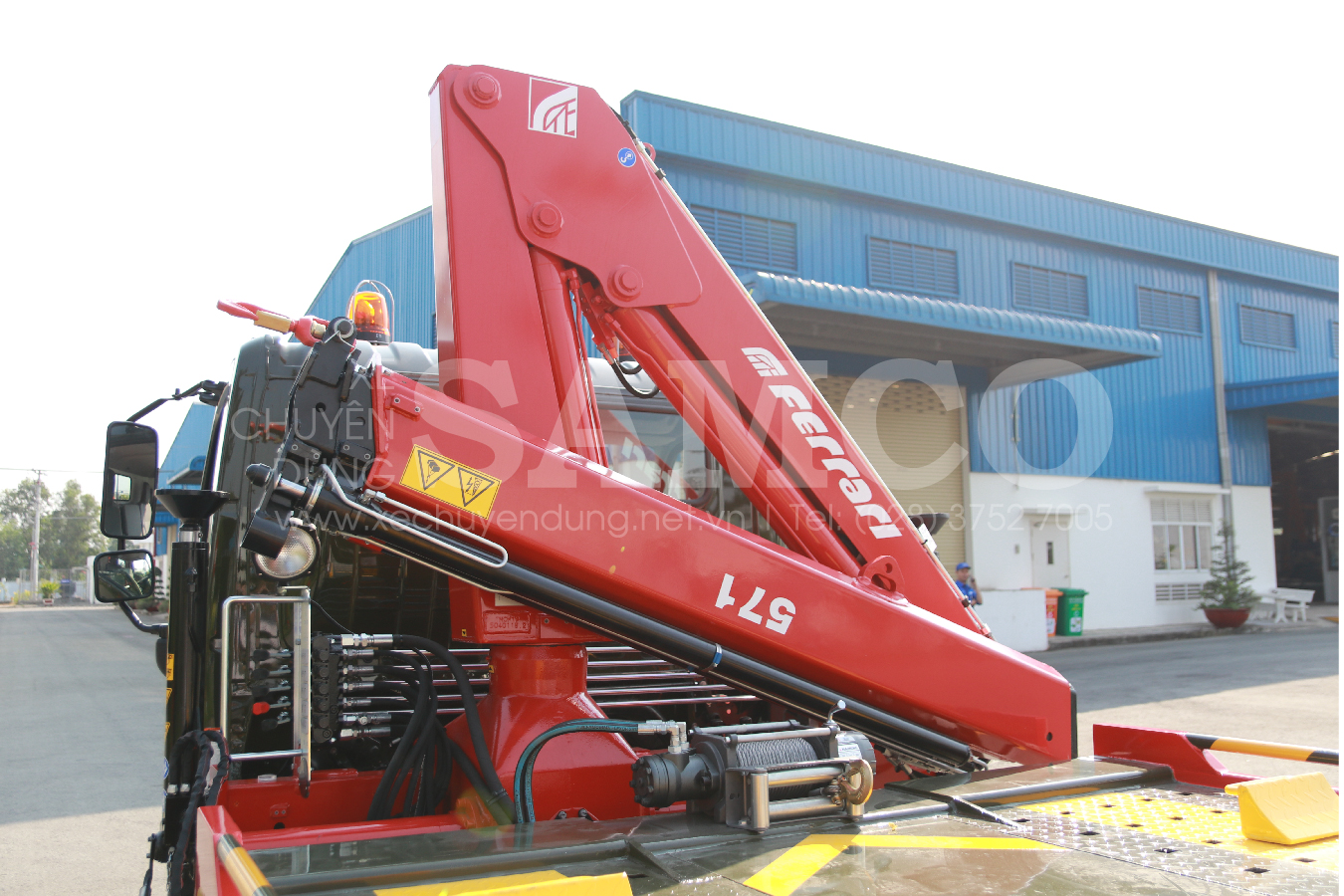

Cẩu F.Ferari được trang bị Cẩu F.Ferari được trang bị

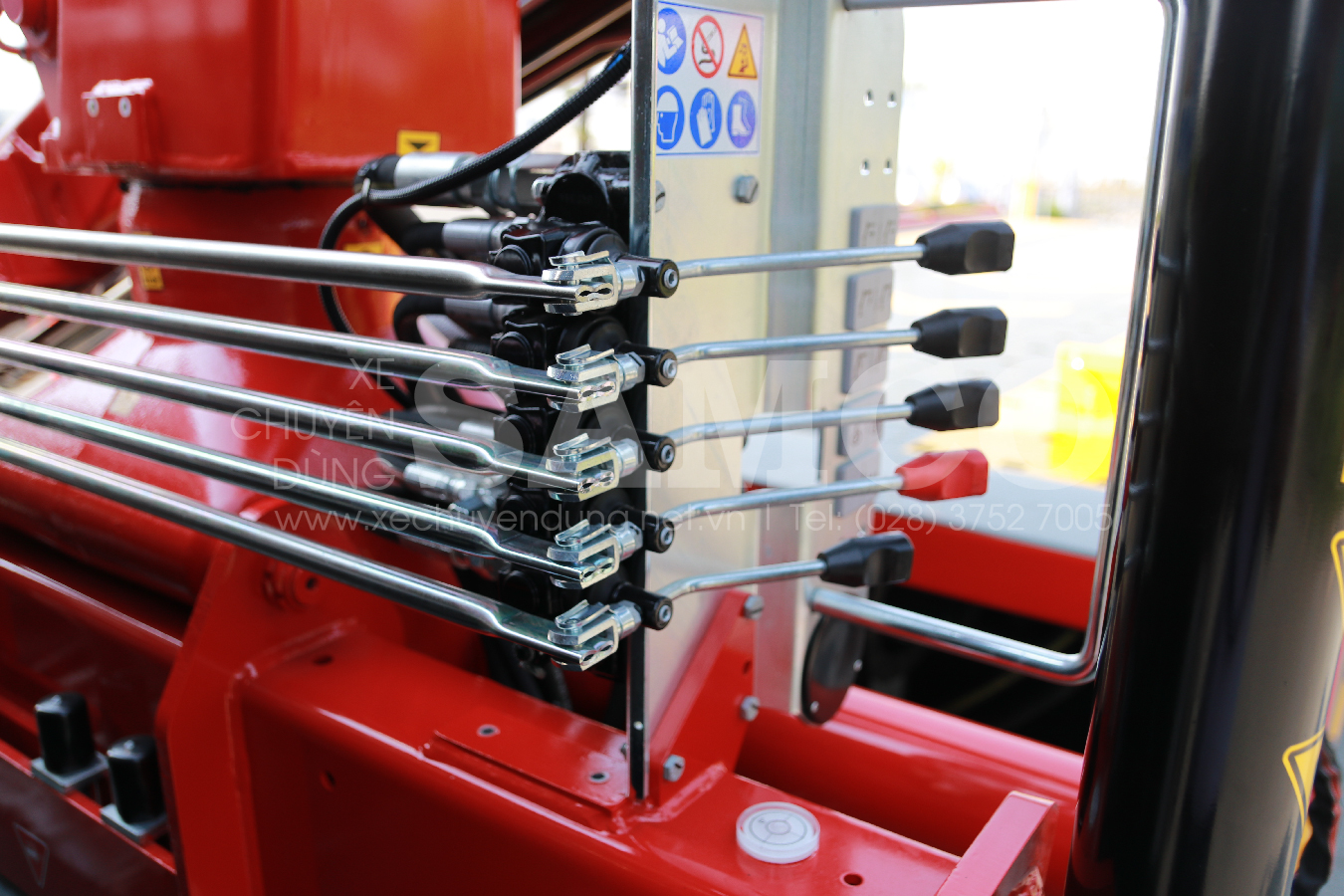

Hệ thống cần điều khiển cẩu Hệ thống cần điều khiển cẩu

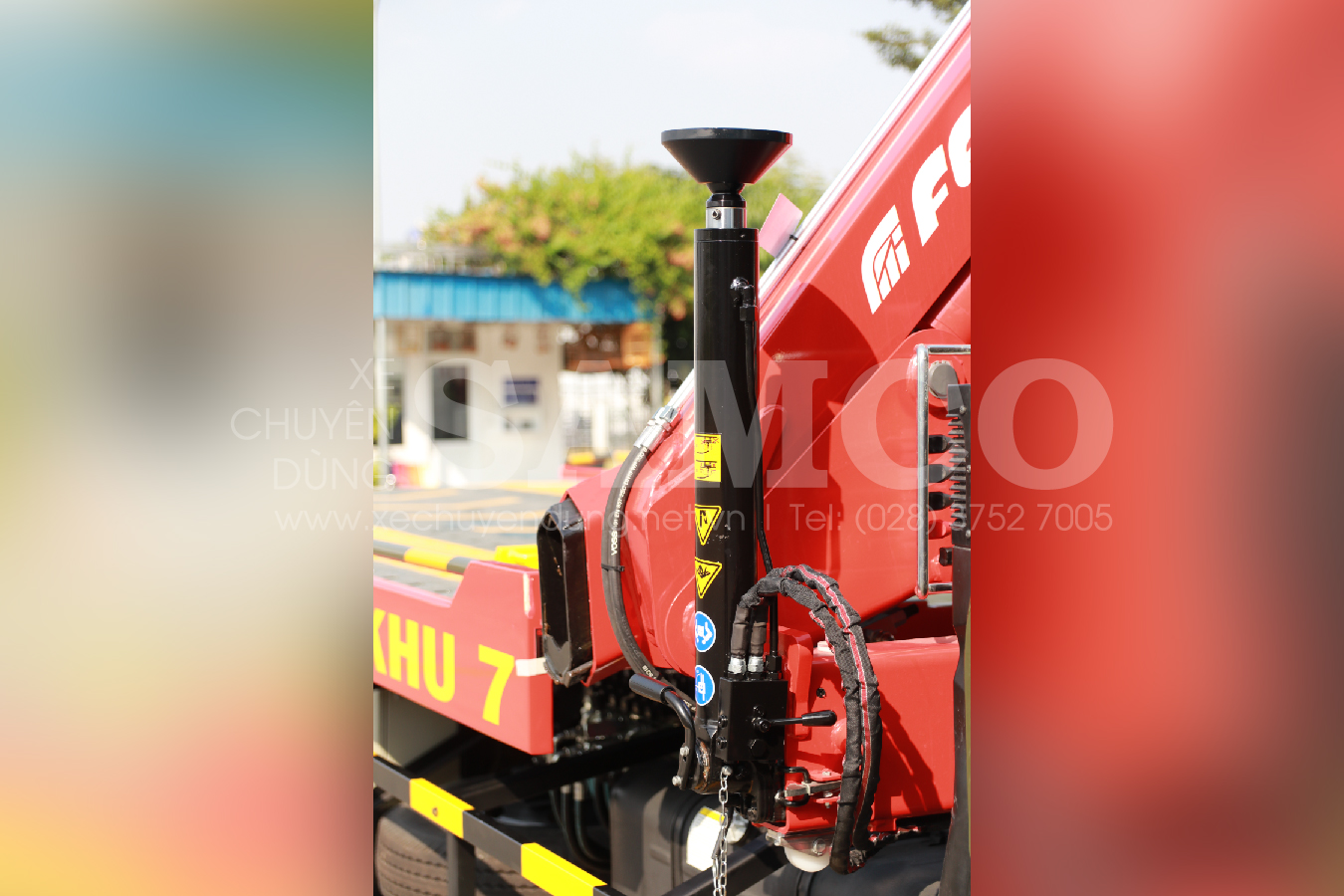

Chân chống cố định được trang bị đi cùng theo cẩu cứu hộ Chân chống cố định được trang bị đi cùng theo cẩu cứu hộ

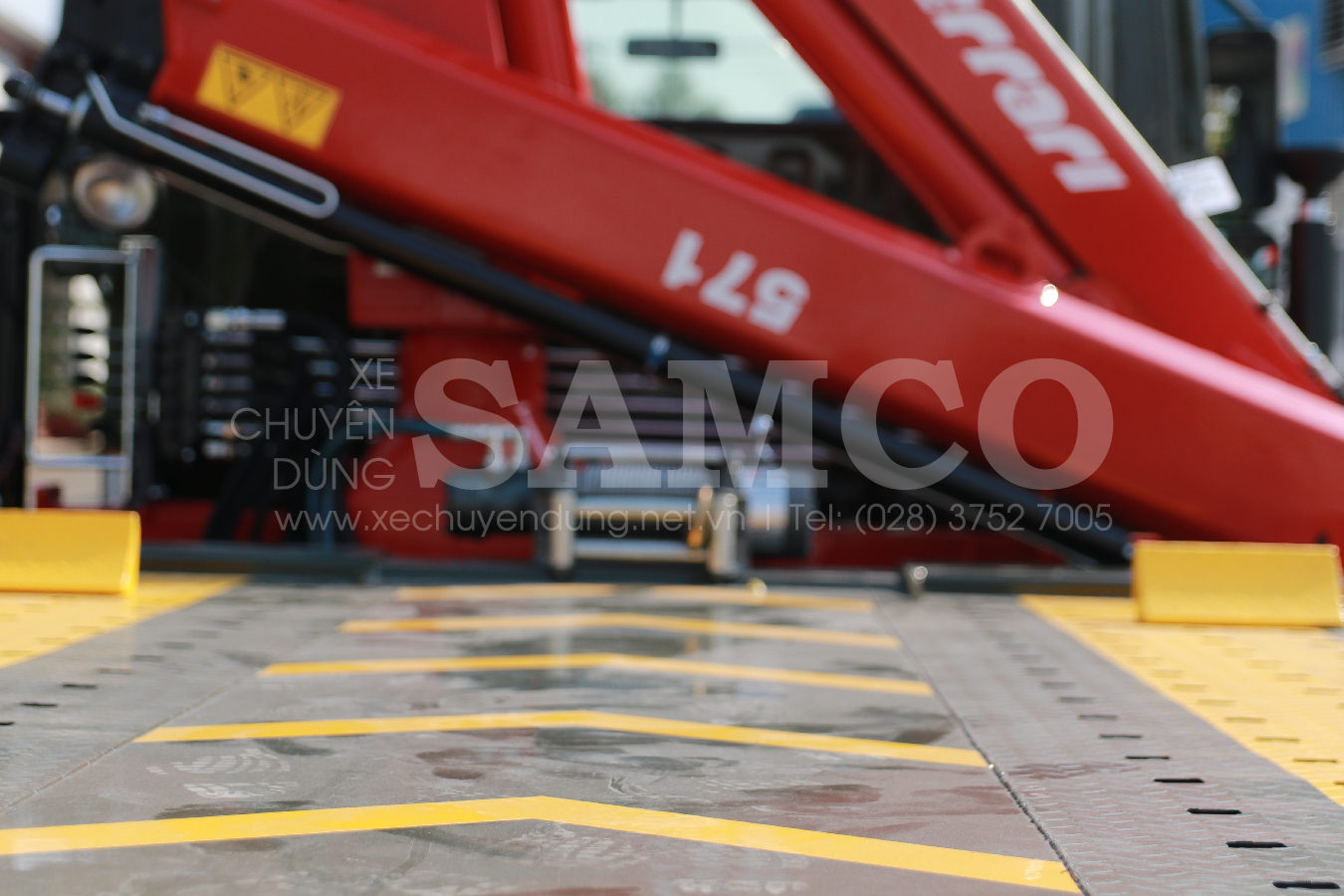

Sàn xe được làm từ thép SPA-H Nippon Steel với độ dày: 2,5 ~ 6 mm Sàn xe được làm từ thép SPA-H Nippon Steel với độ dày: 2,5 ~ 6 mm

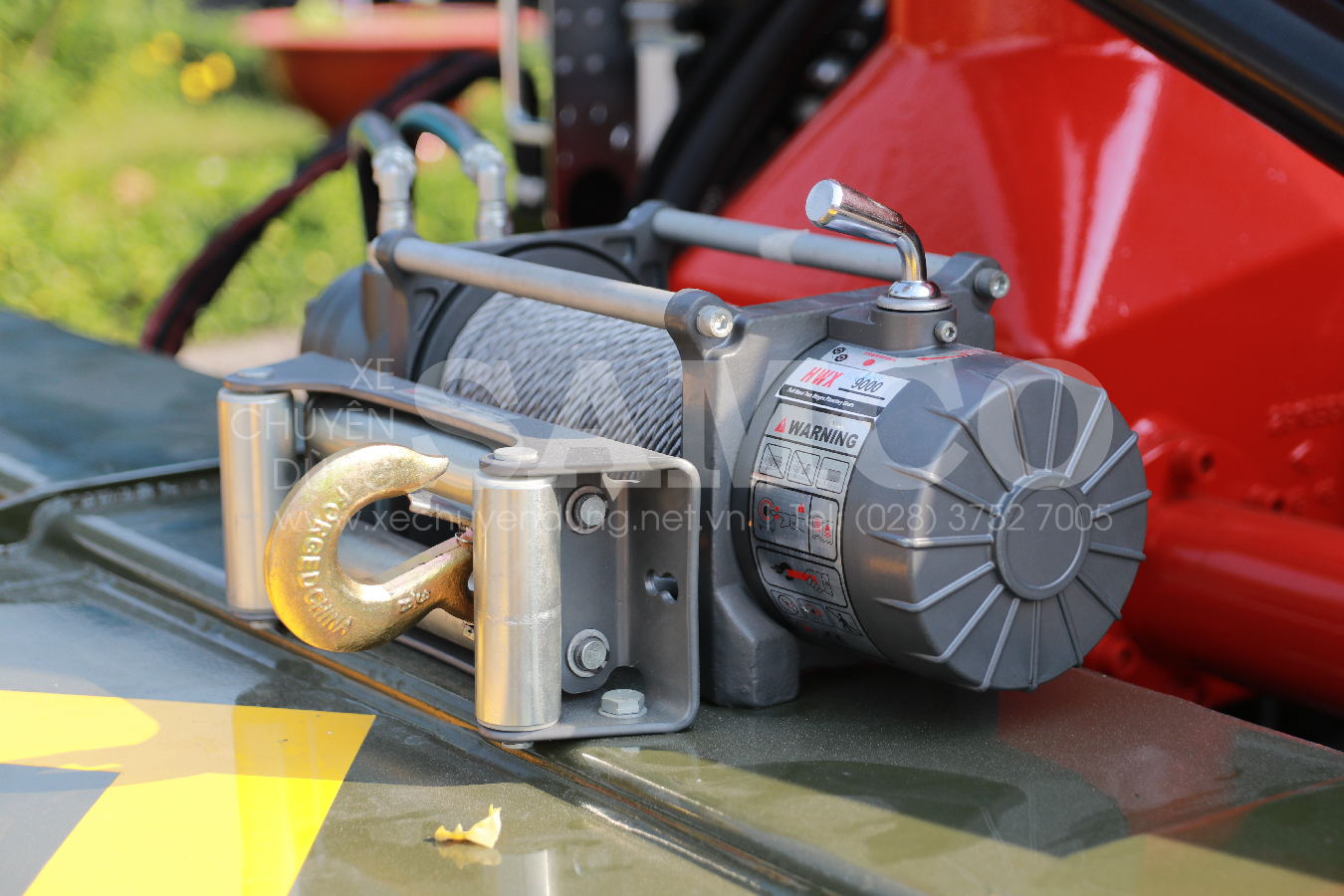

Tời kéo xe với lực kéo lên đến 2.500 kgf Tời kéo xe với lực kéo lên đến 2.500 kgf

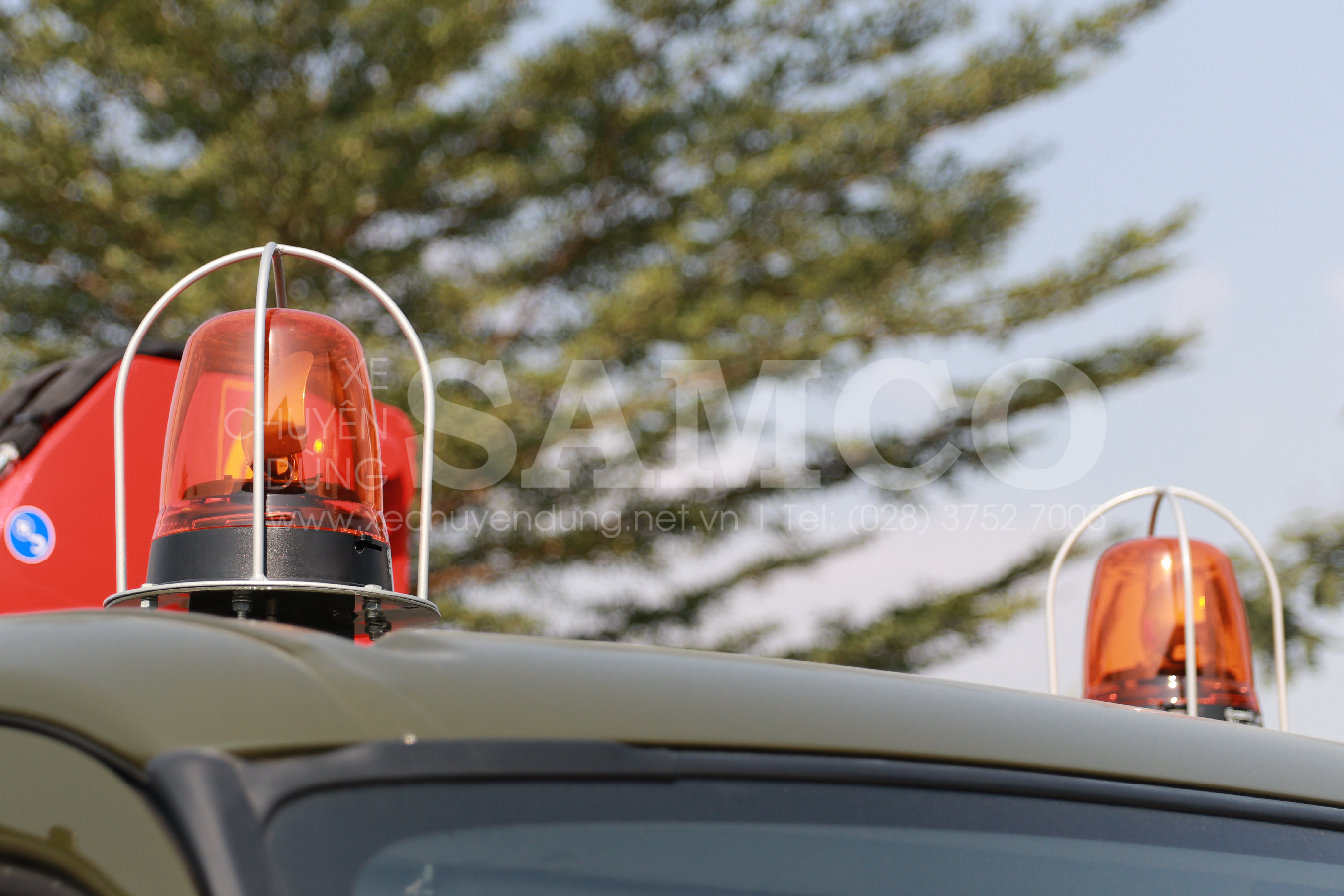

Hệ thống đèn báo hiệu Hệ thống đèn báo hiệu

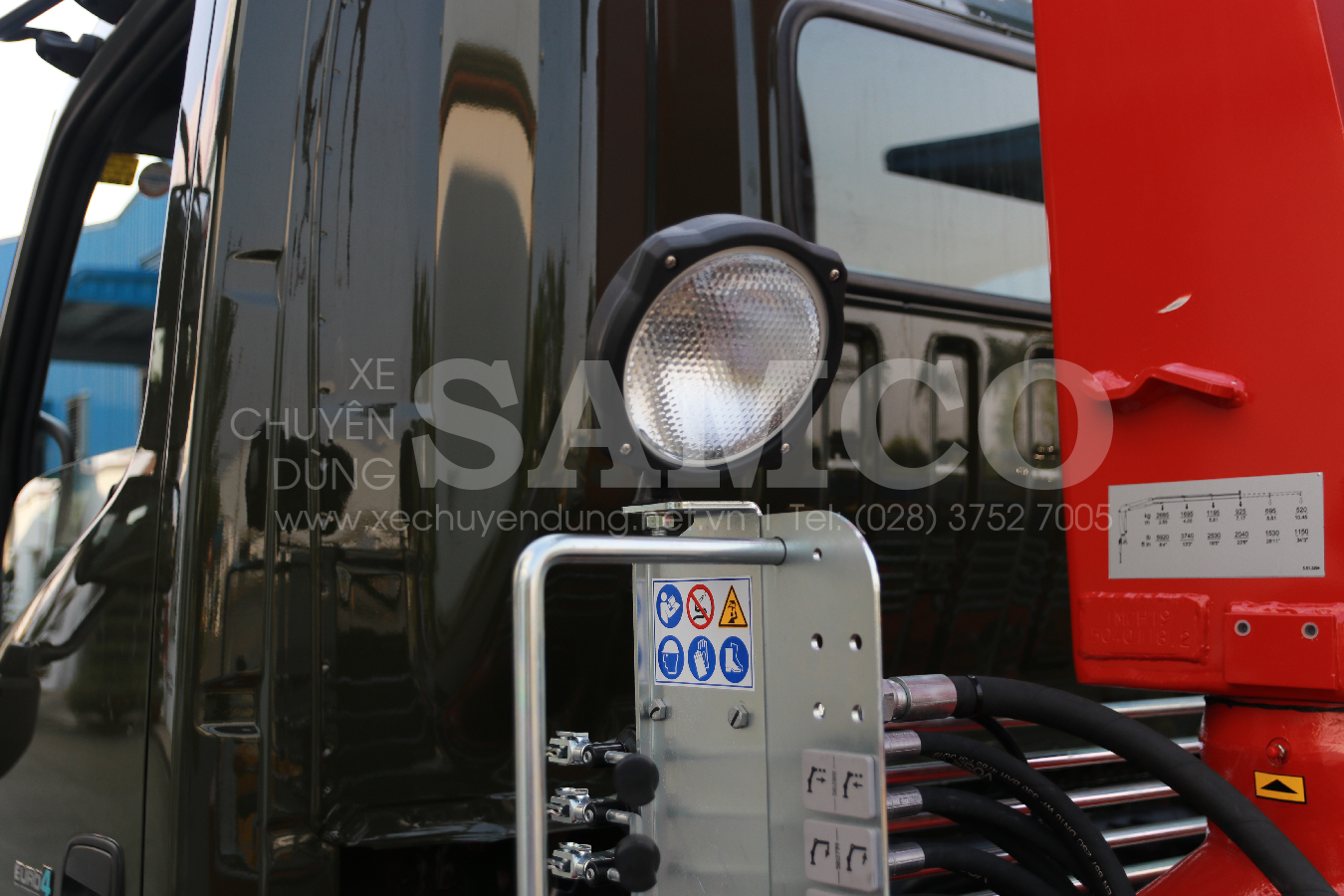

Đèn chiếu sáng Đèn chiếu sáng

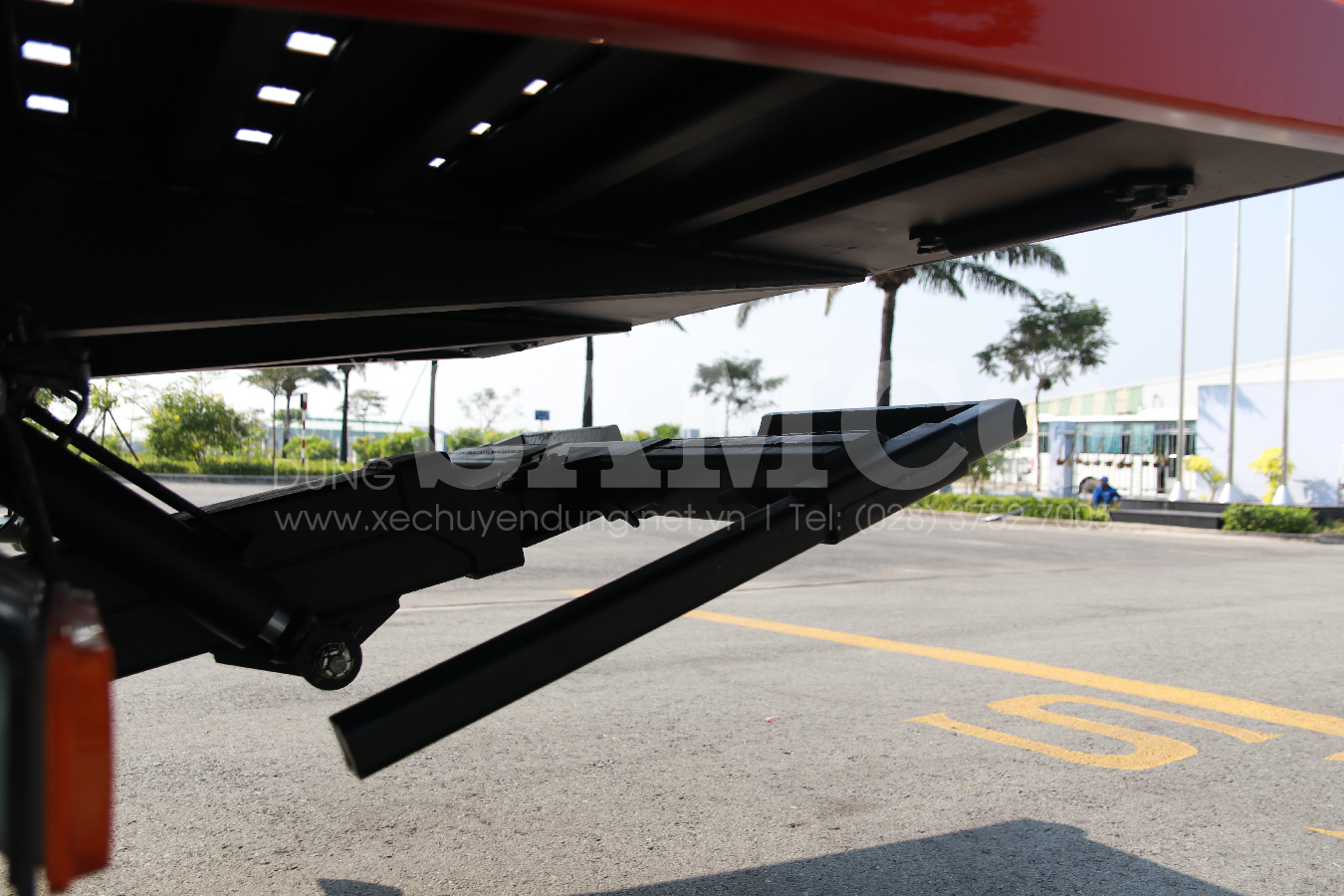

Hệ thống nâng đầu xe Hệ thống nâng đầu xe

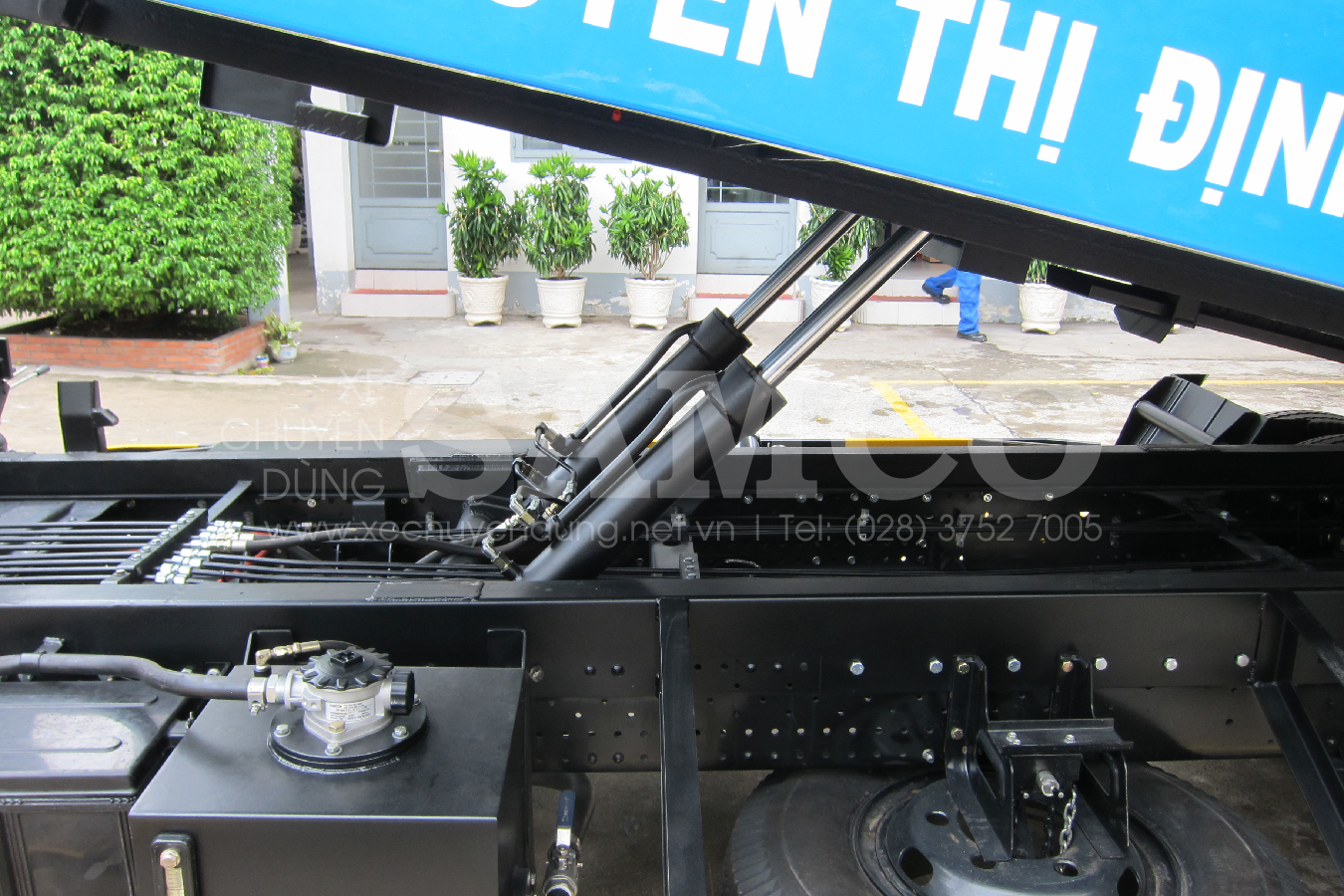

Xilanh hoạt động nâng hạ sàn Xilanh hoạt động nâng hạ sàn
Bục cố định Bục cố định
