Mobile Performing Truck - SKLIS 045

Overview

Stage truck SKLIS 045 are the products used in the fields of event and convention in order to serve the performance and disseminate information to the community effectively. Especially, the automation capabilities can up to 85% help the owner to deploy the truck faster and safer

The SKLIS 045 can support performing organizatipon that bring art to all region.

  • Chasis: ISUZU NQR75LE4
  • G.V.W : 9,130 kg
  • Stage area: 45 m²
  • Dimensions: 7,770 x 2,250 x 3,100 mm
  • Emission standard: EURO 4
<p>stage truck, Isuzu, stage, performing truck, truck for performance, mobile stage truck</p>

Technical Specifications

Cab chasis ISUZU NQR75LE4
Engine model ISUZU 4HK1E4NC
Max. output 114/2,600 kW/rpm
Displacement 5,193 cc
Dimensions (L x W x H) 7,770 x 2,250 x 3,100 mm
Wheel spase 4,175 mm
Kerb  mass 6,985 kg
G.V.W 9,130 kg
Stage floor Surface area 45 m2
01 stage in middle, 04 stages around.
Stage material made from SPA-H stainless steel, Japan
The floors are connected by hinges and push - fold linkage controlled by hydraulic system.
Outriggers The head of the stand has a self-aligning part and a screw can adjust to stabilize the flat surface.
The stabilized outriggers of the floors automatically fold in and open according to the floor thanks to a dedicated thrust mechanism.
Dressing room Equipped 01 fan and 01 exhaust fan (no seat)
2 stairs for 2 entrance
Lift system 400kg lifting capacity operated by hydraulic
Support moving equipment up and down the floor conveniently
Hydraulic system Imported from Italy, 100% new
Upstair 05 unit

Width 600mm with ribbed aluminum.
Headlight 02 sets
Extra floor for loudspeakers 02 floors
Frame and tarpaulin cover 01 set
Aluminum frame on stage 01 set
Hand hoist 02 sets
Operation Hydraulic system

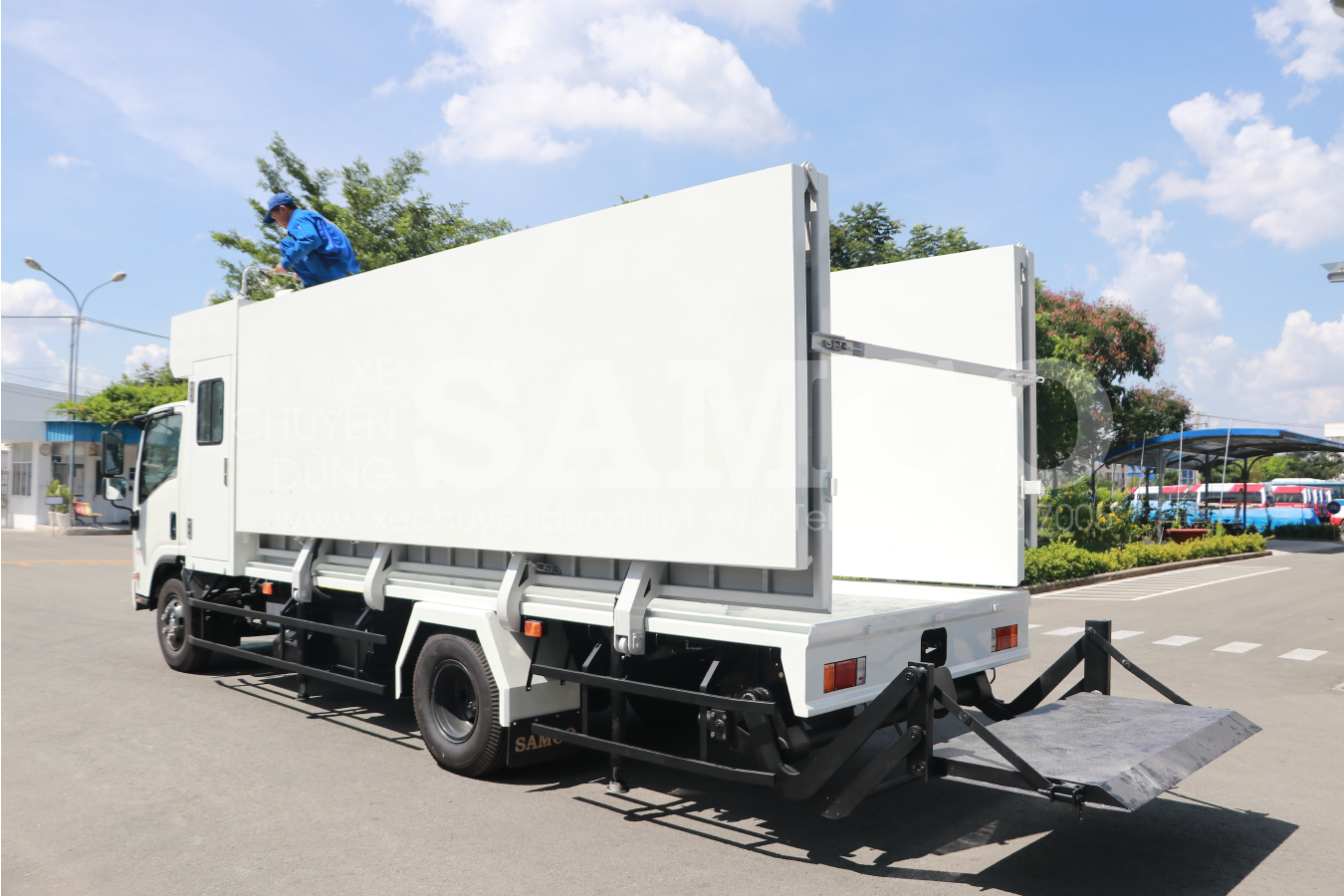

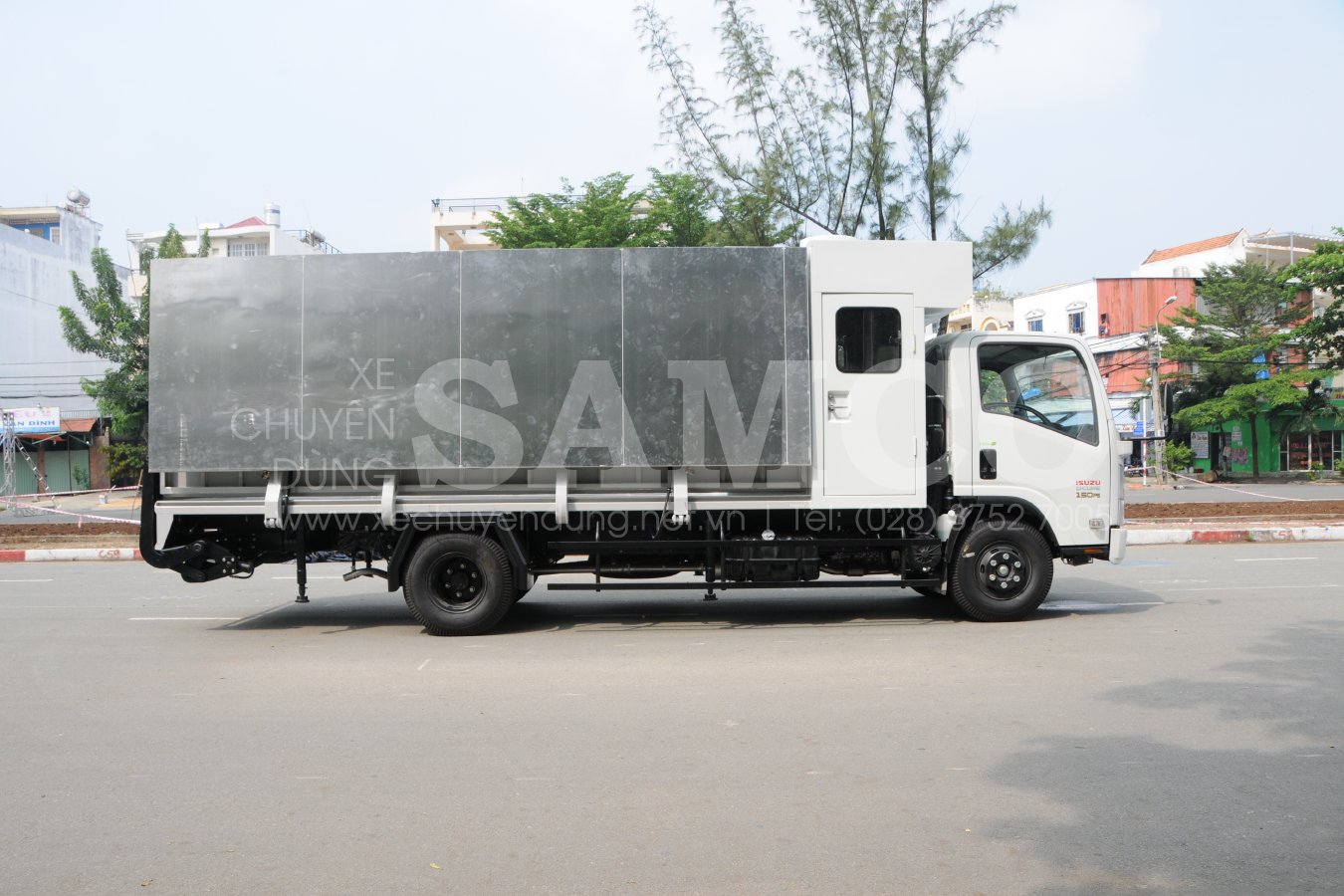

The stage floor after folding will be like a normal truck, convenient for storing stage accessories
The floor is locked after folding, ensuring safety when the vehicle is moving.
Stage floor control system At rear of vehicle
Lifting floor system Beside of vehicle
Cabin As truck or customers demand
Cargo body Customers demand
 Product policy:  In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation.
Trucks

Detail images

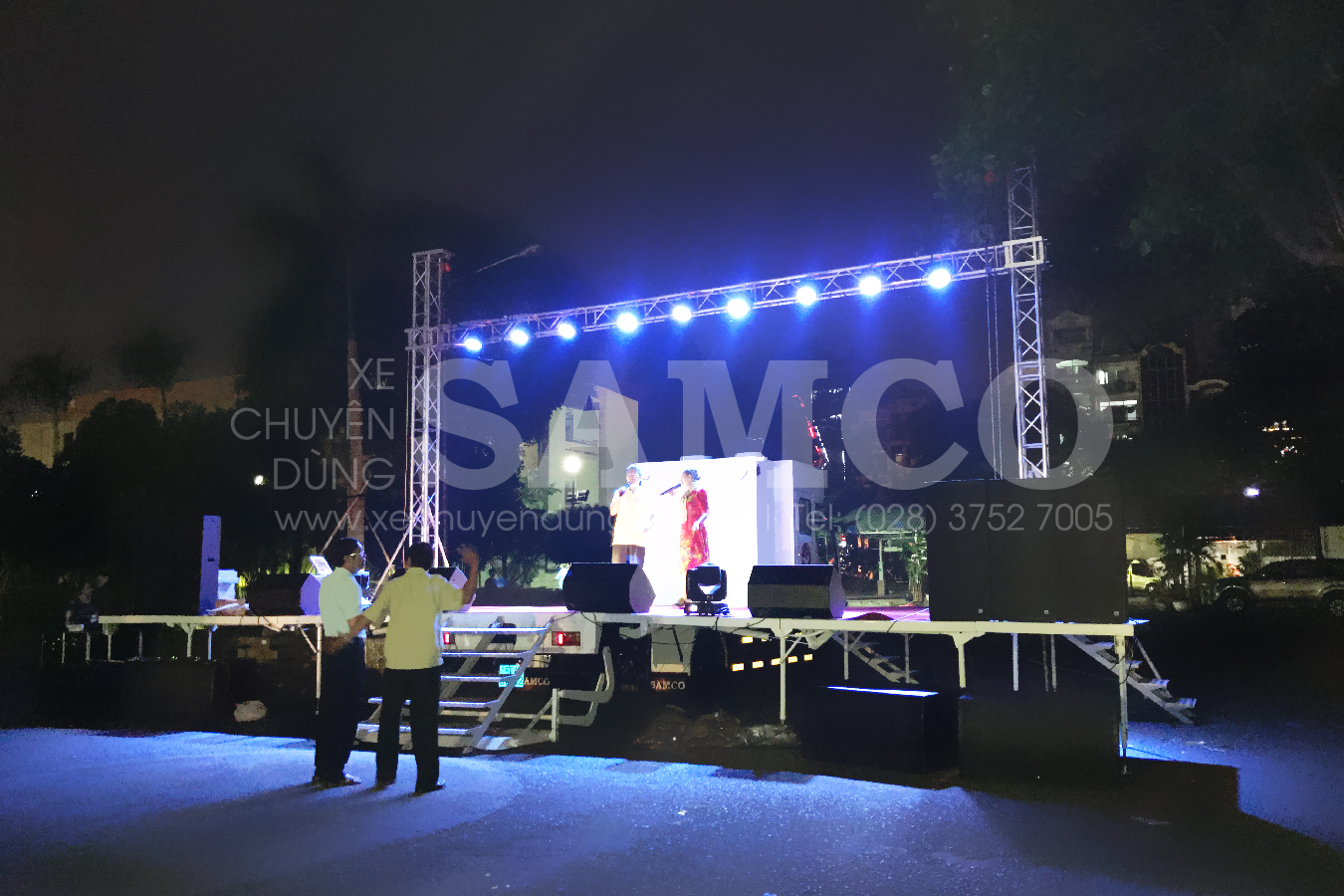

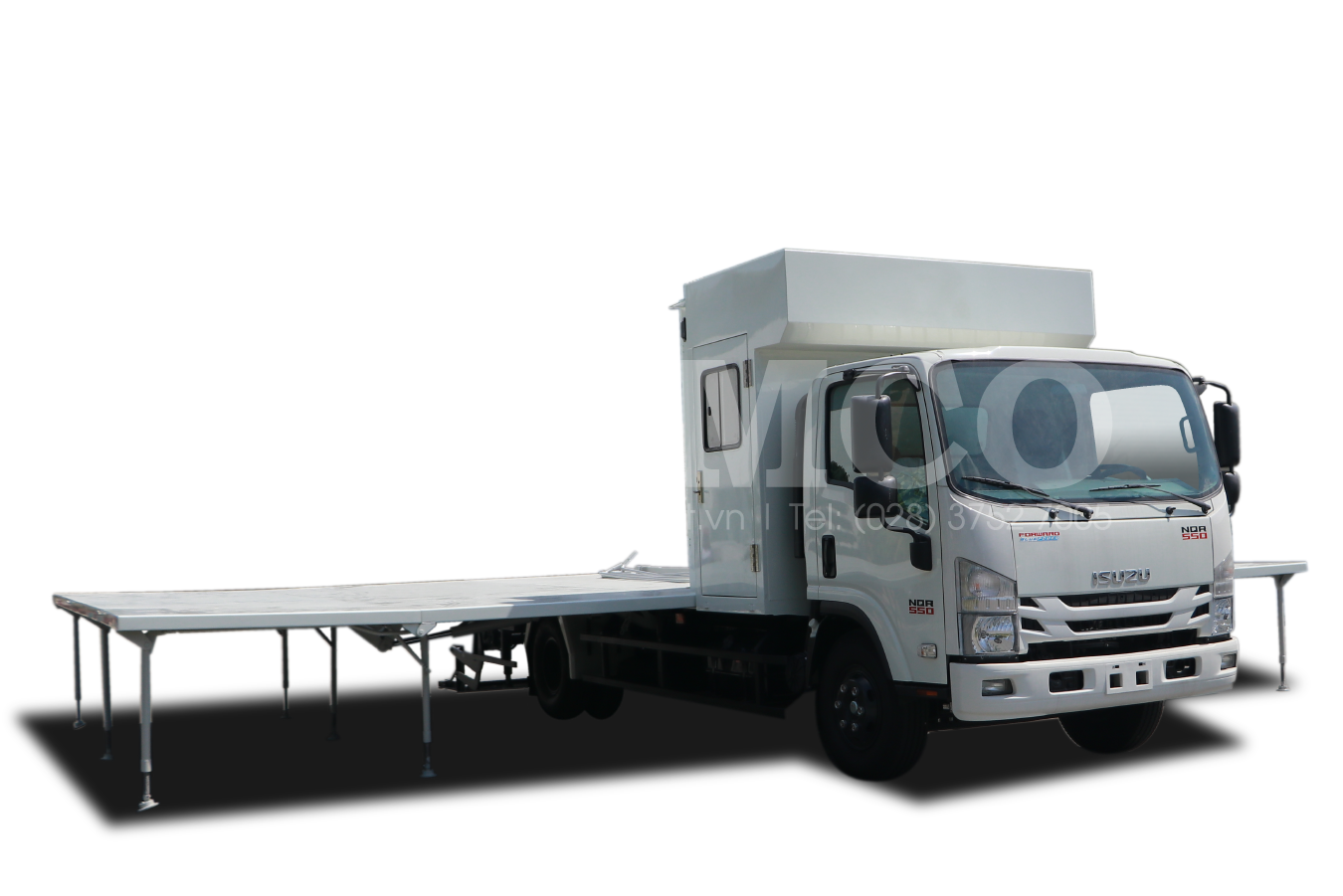

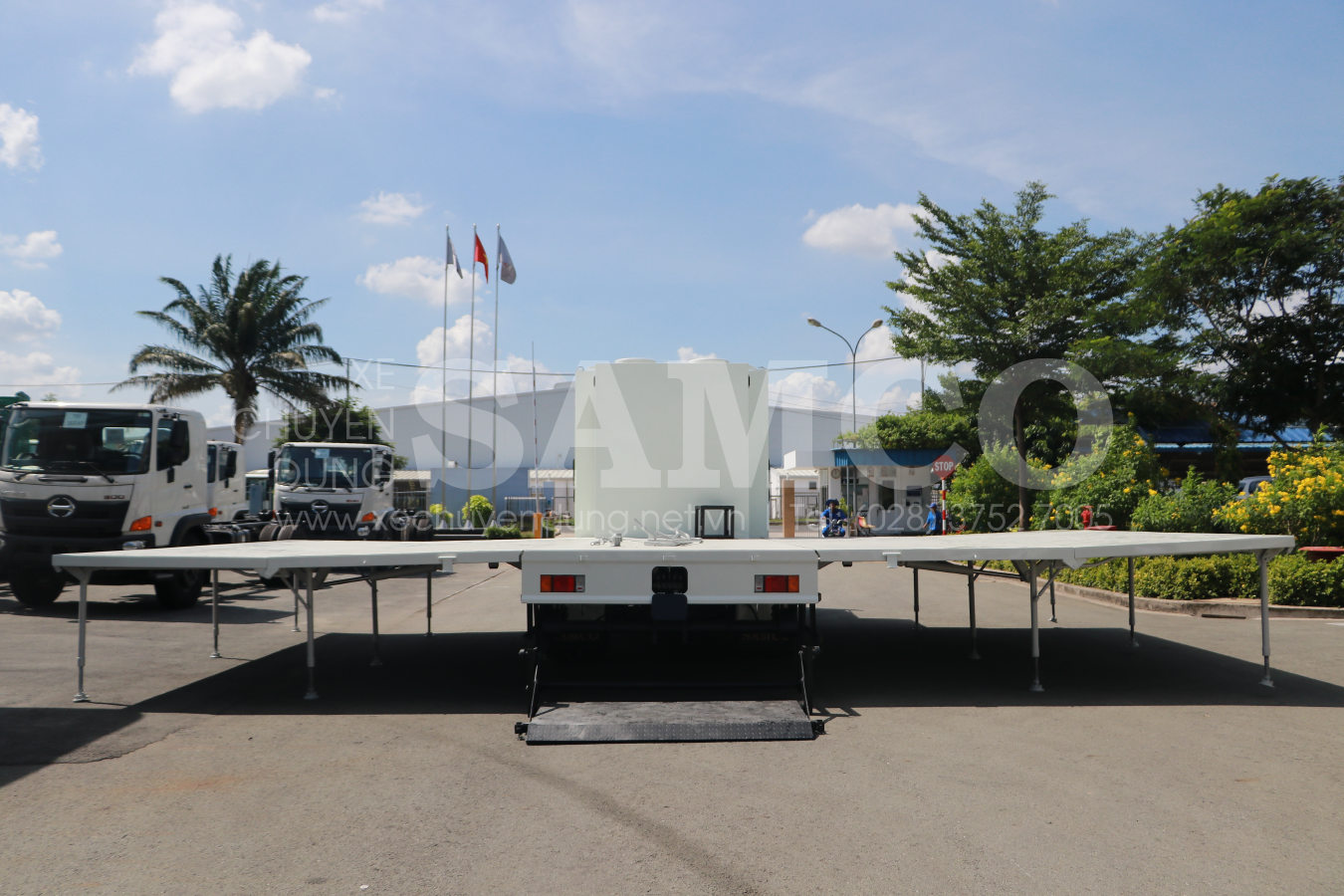

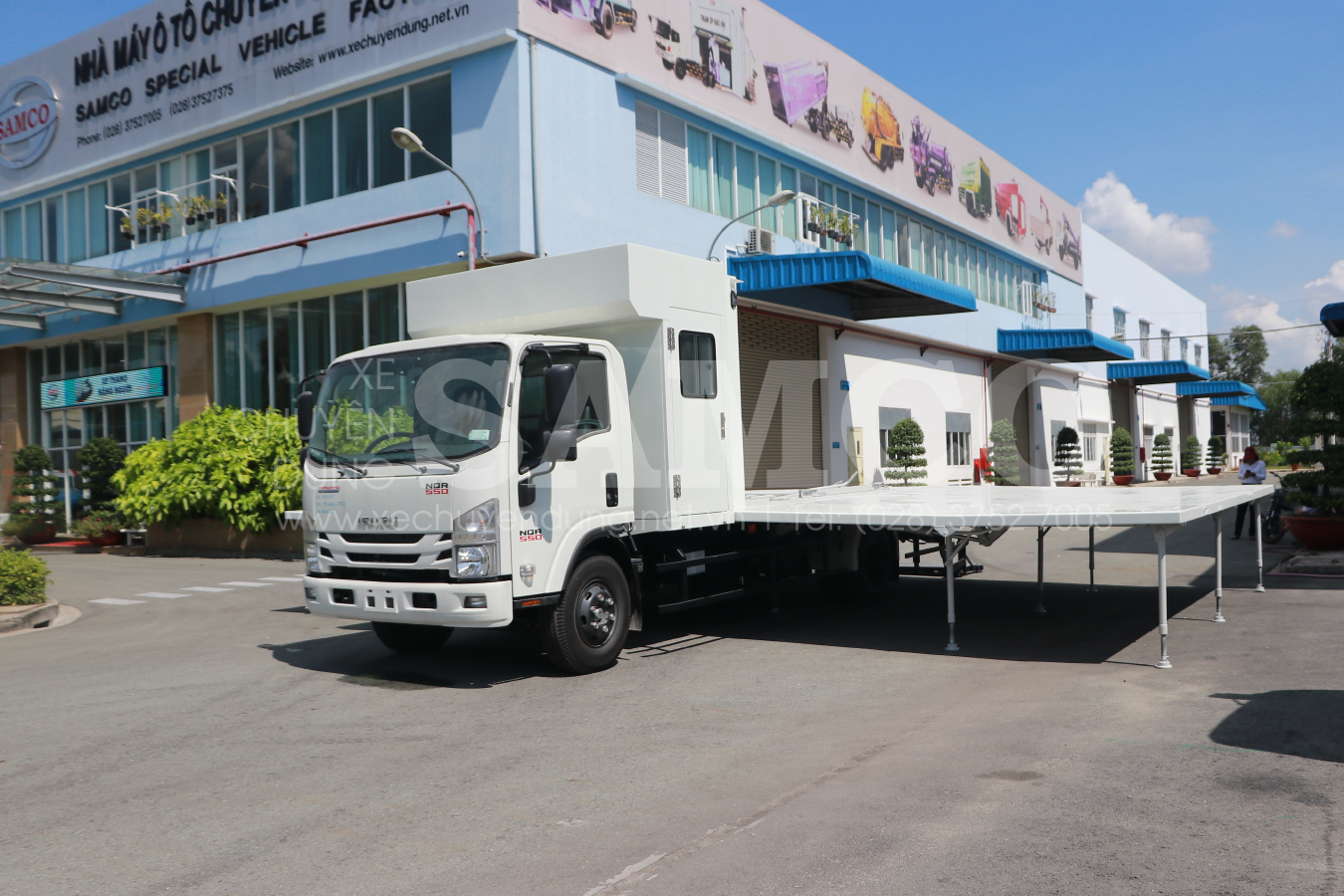

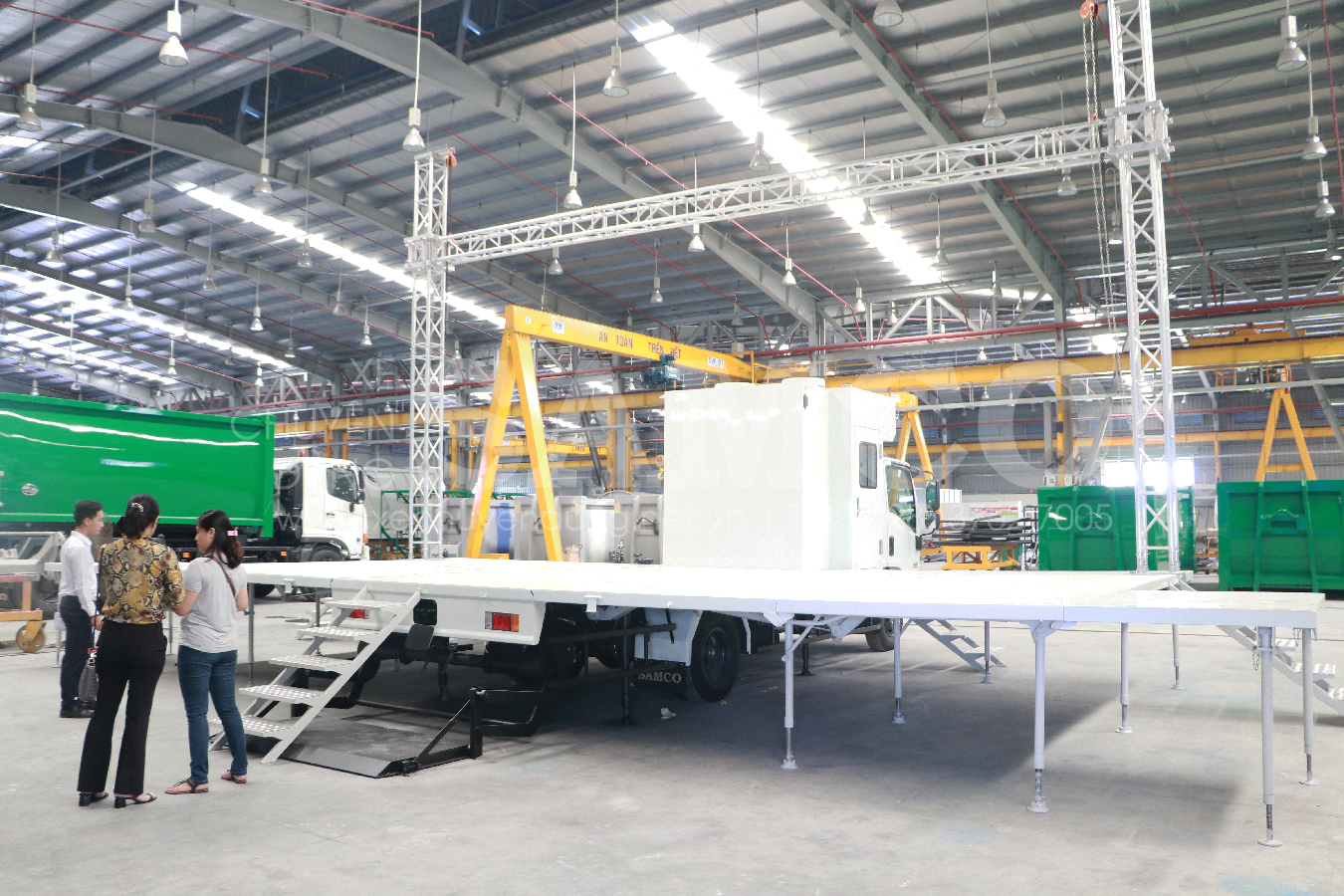

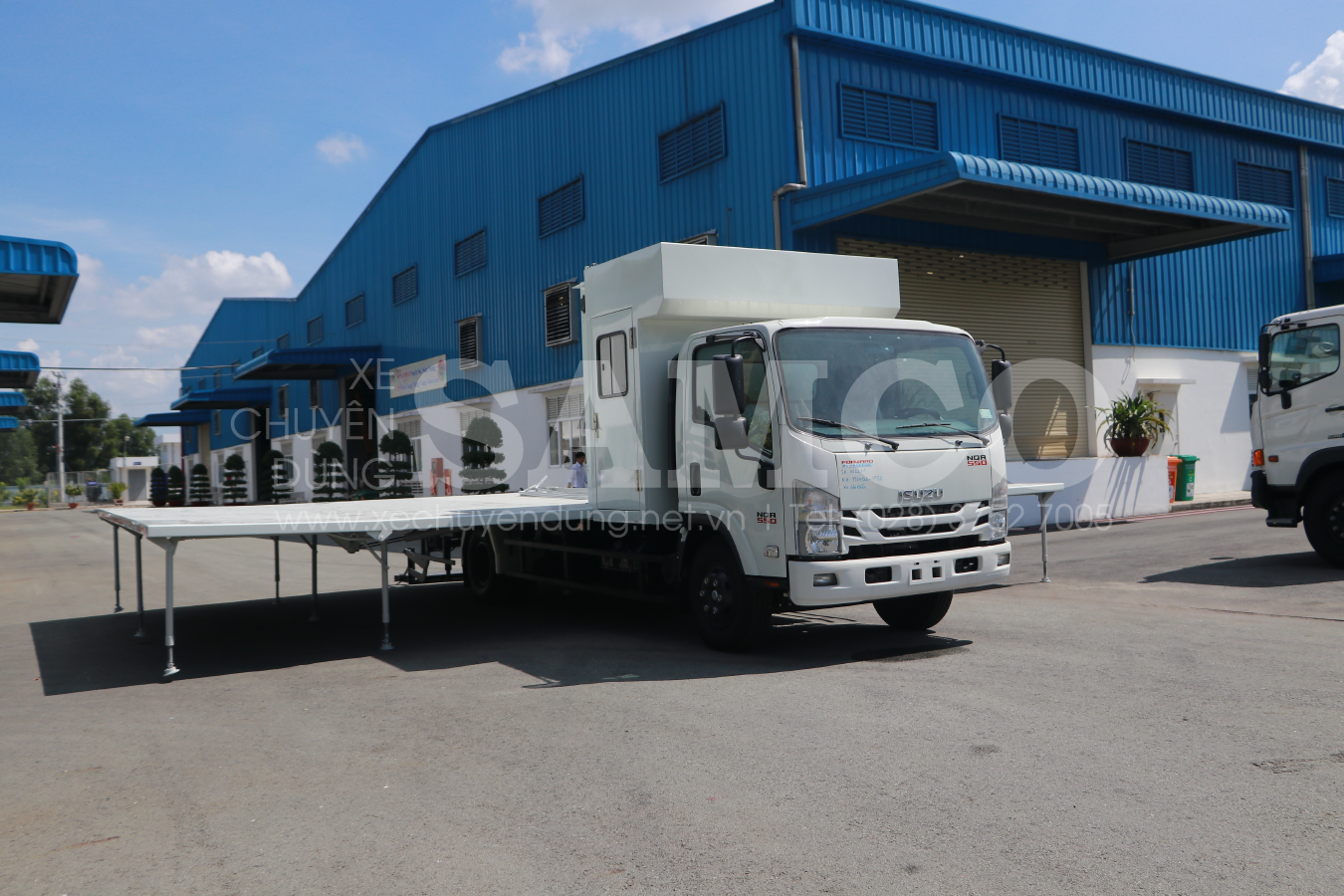

Xe sân khấu lưu động SAMCO Xe sân khấu lưu động SAMCO

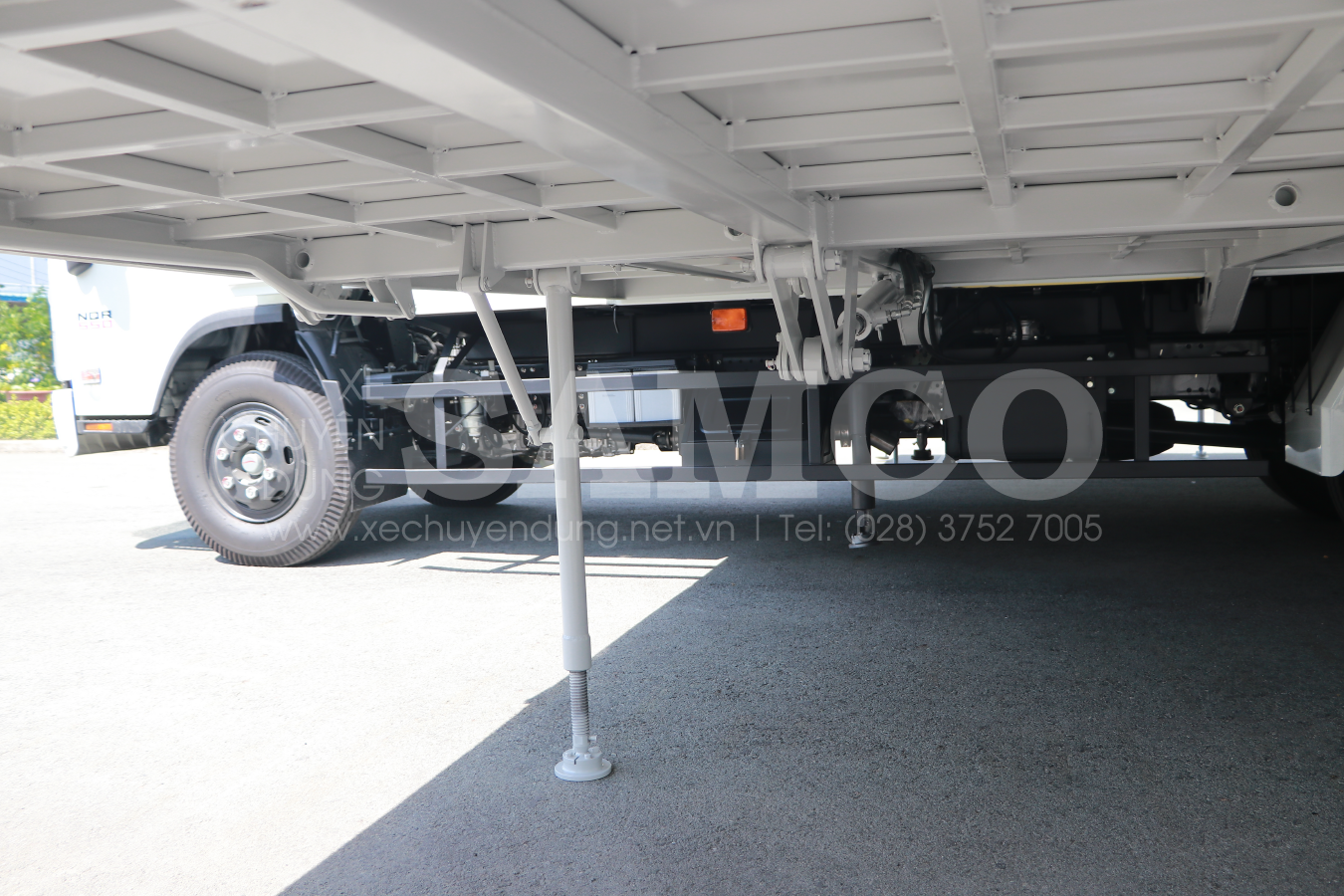

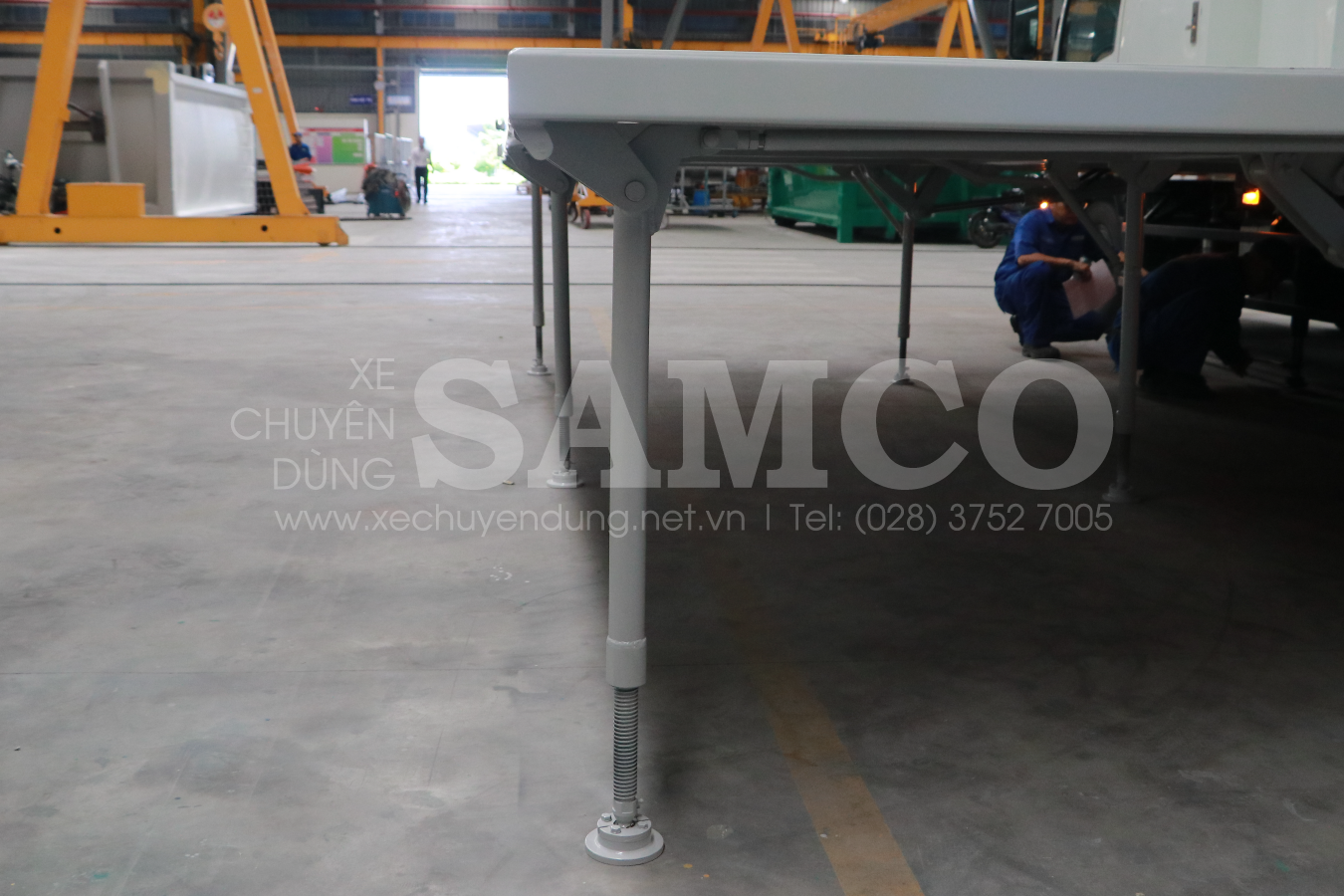

Chân chống sàn Chân chống sàn

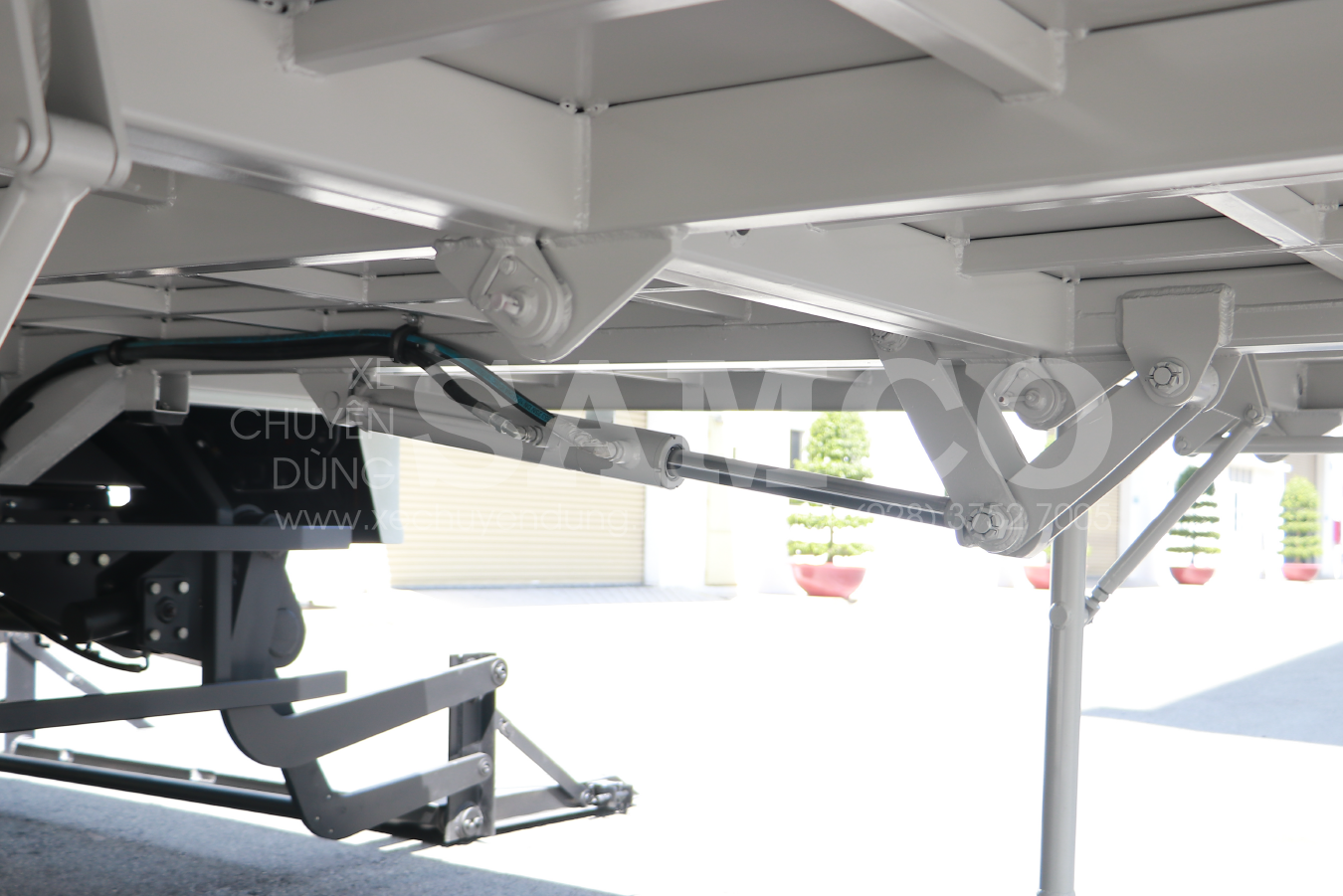

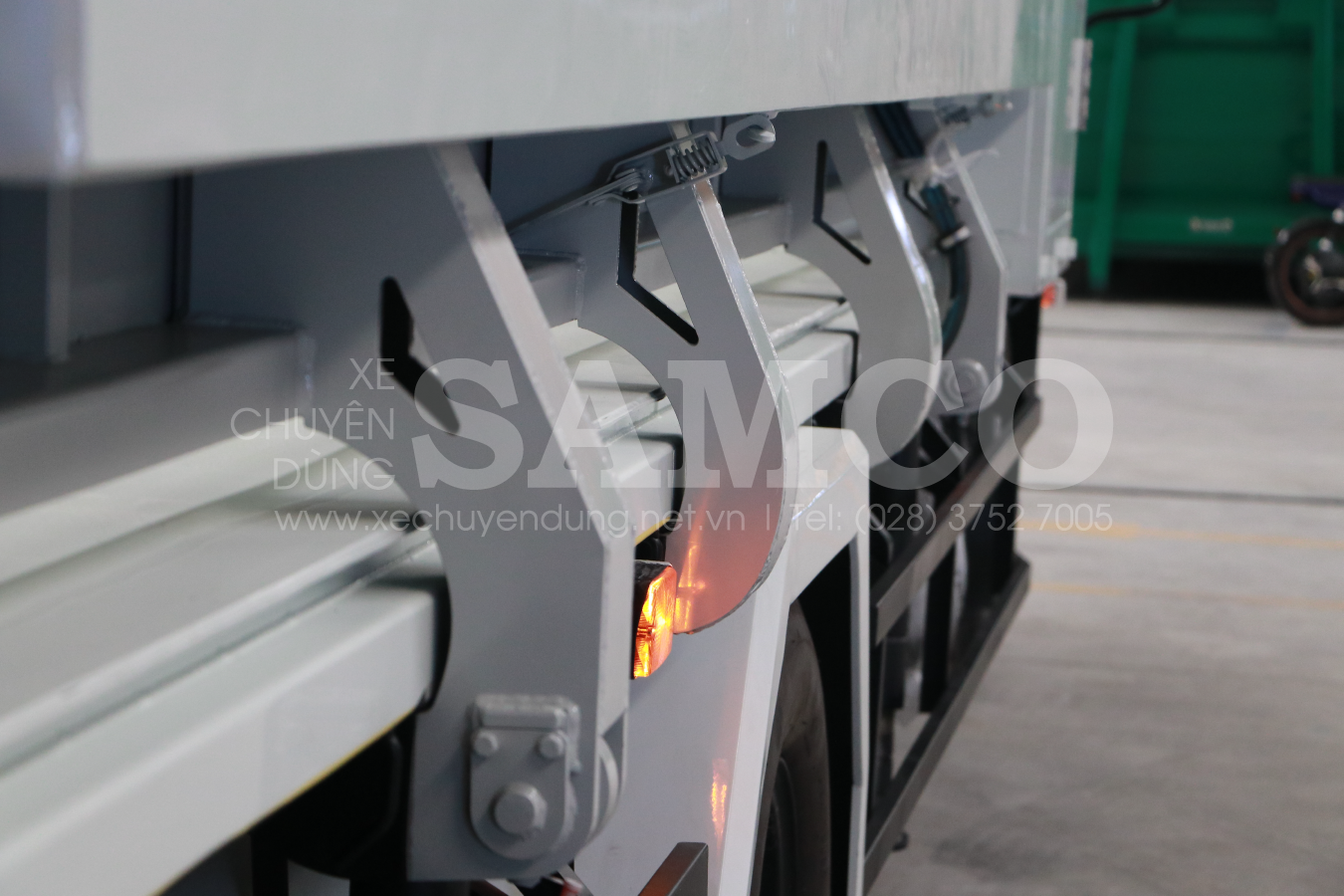

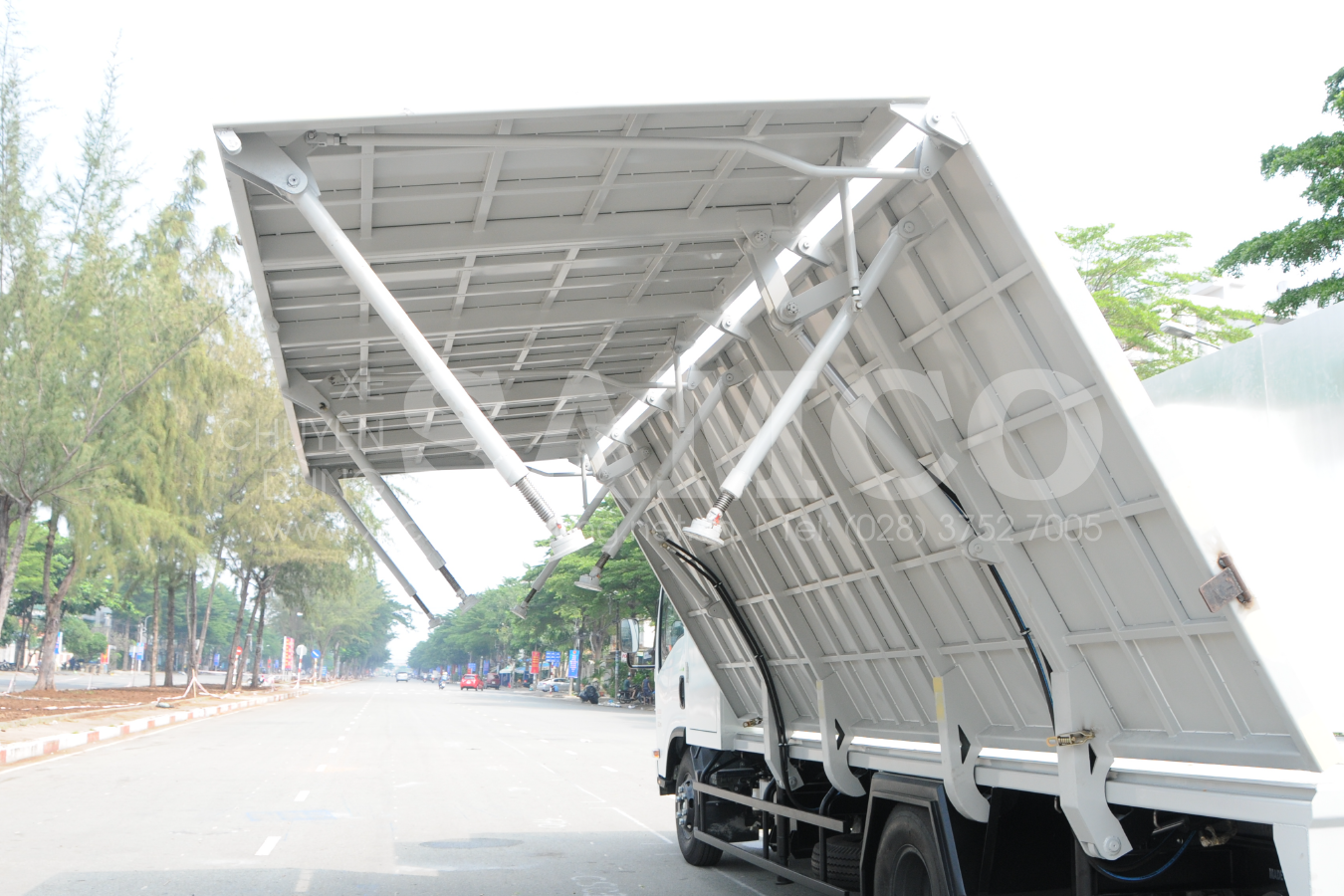

Các sàn liên kết với nhau bằng bản lề và hệ thống liên kết đẩy - xếp vận hành bằng thủy lực. Các sàn liên kết với nhau bằng bản lề và hệ thống liên kết đẩy - xếp vận hành bằng thủy lực.
Khớp khóa sàn Khớp khóa sàn
Cụm sàn cánh ngoài Cụm sàn cánh ngoài

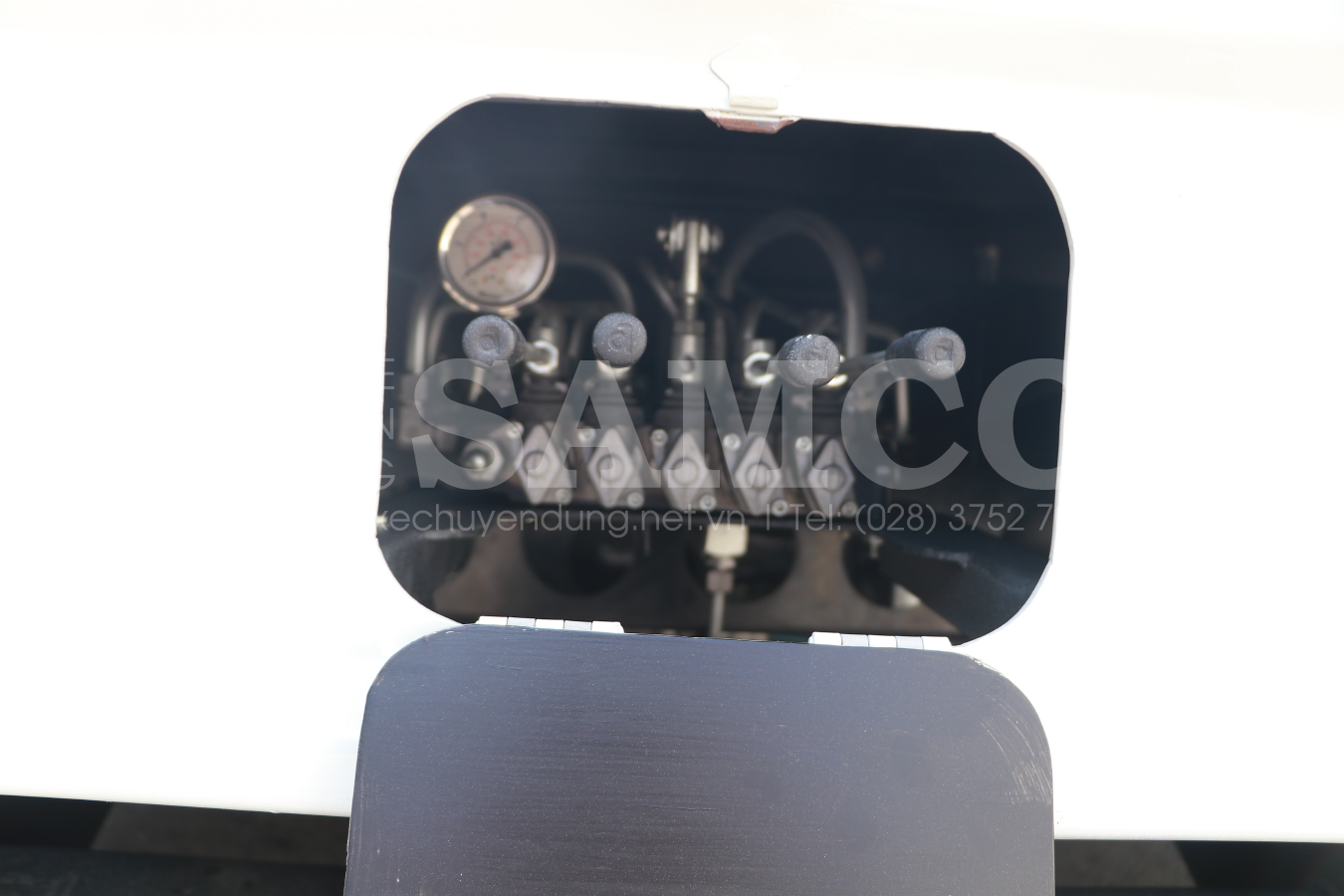

Hệ thống điều khiển sàn sân khấu Hệ thống điều khiển sàn sân khấu

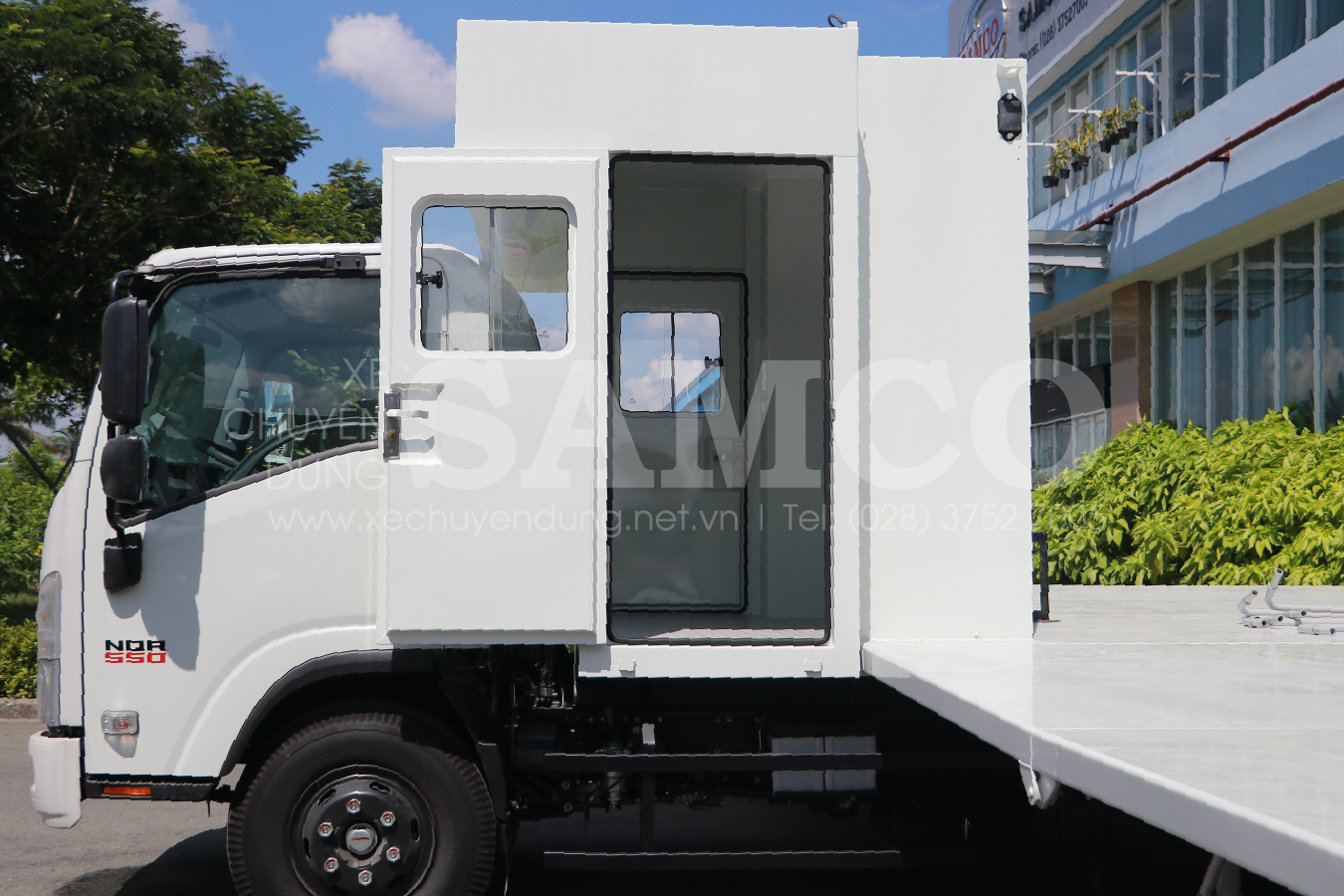

Buồng hóa trang rộng rãi tiện nghi Buồng hóa trang rộng rãi tiện nghi

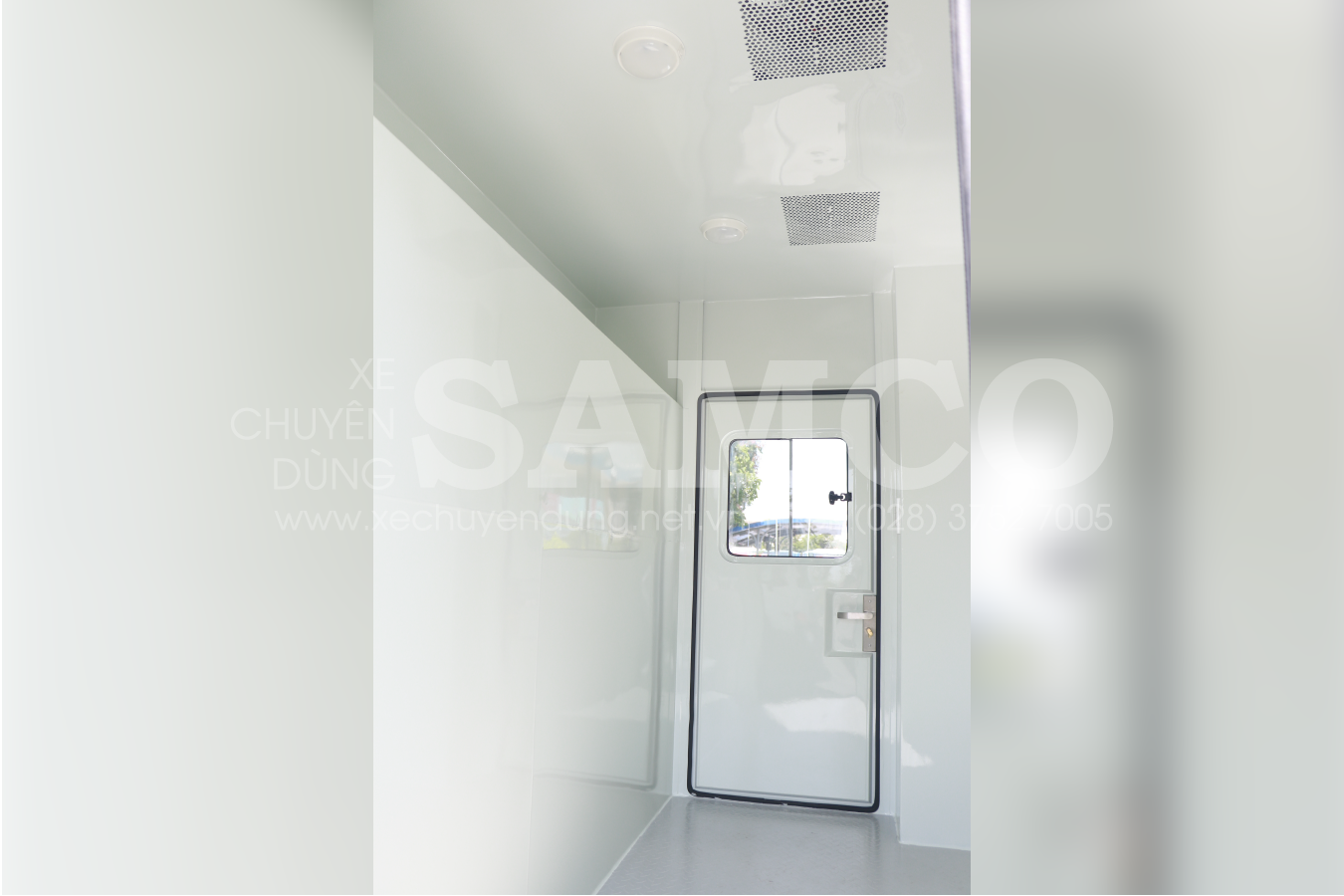

Bên trong buồng hóa trang xe sân khấu lưu động SAMCO Bên trong buồng hóa trang xe sân khấu lưu động SAMCO
Triển khai phông màng sân khấu Triển khai phông màng sân khấu

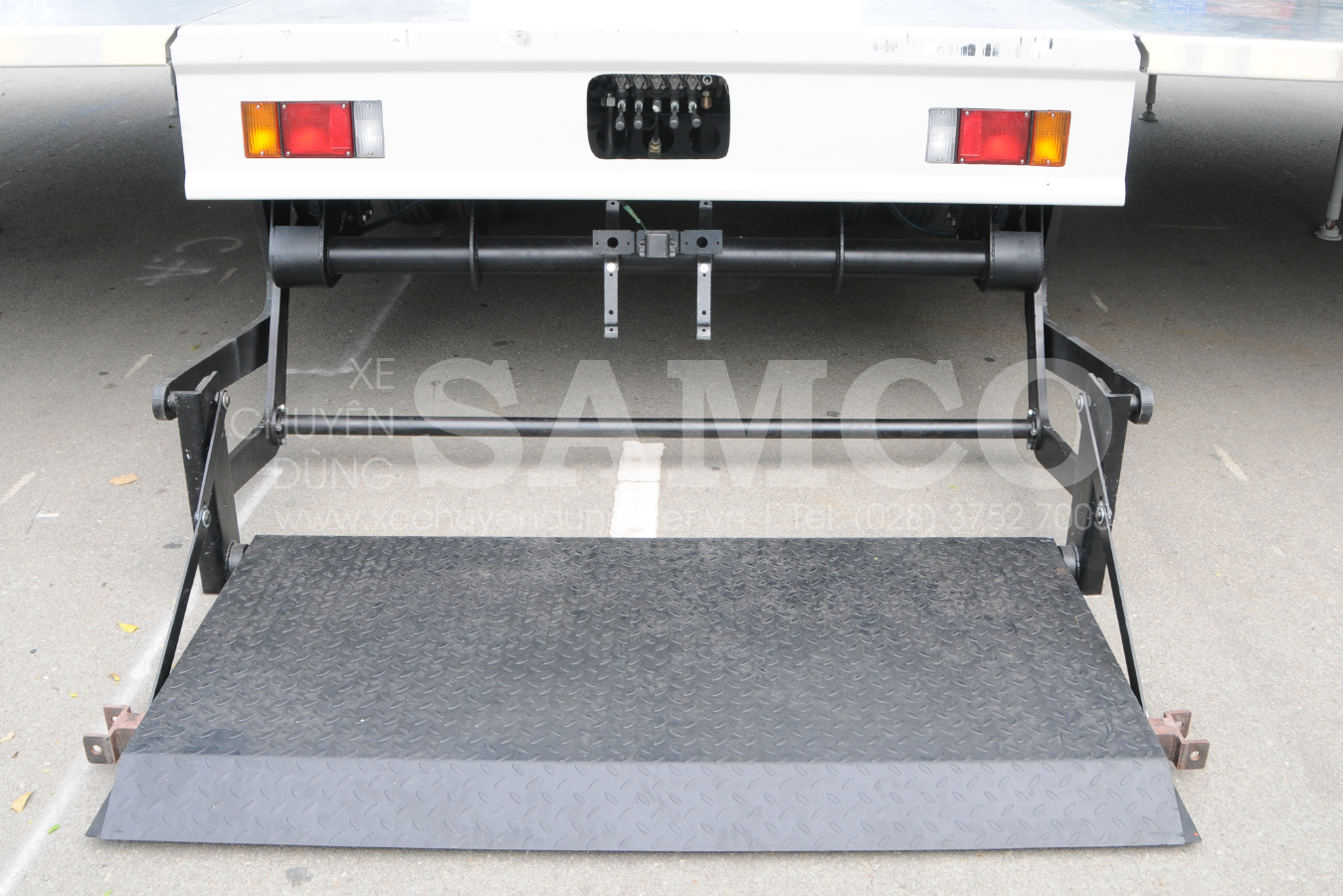

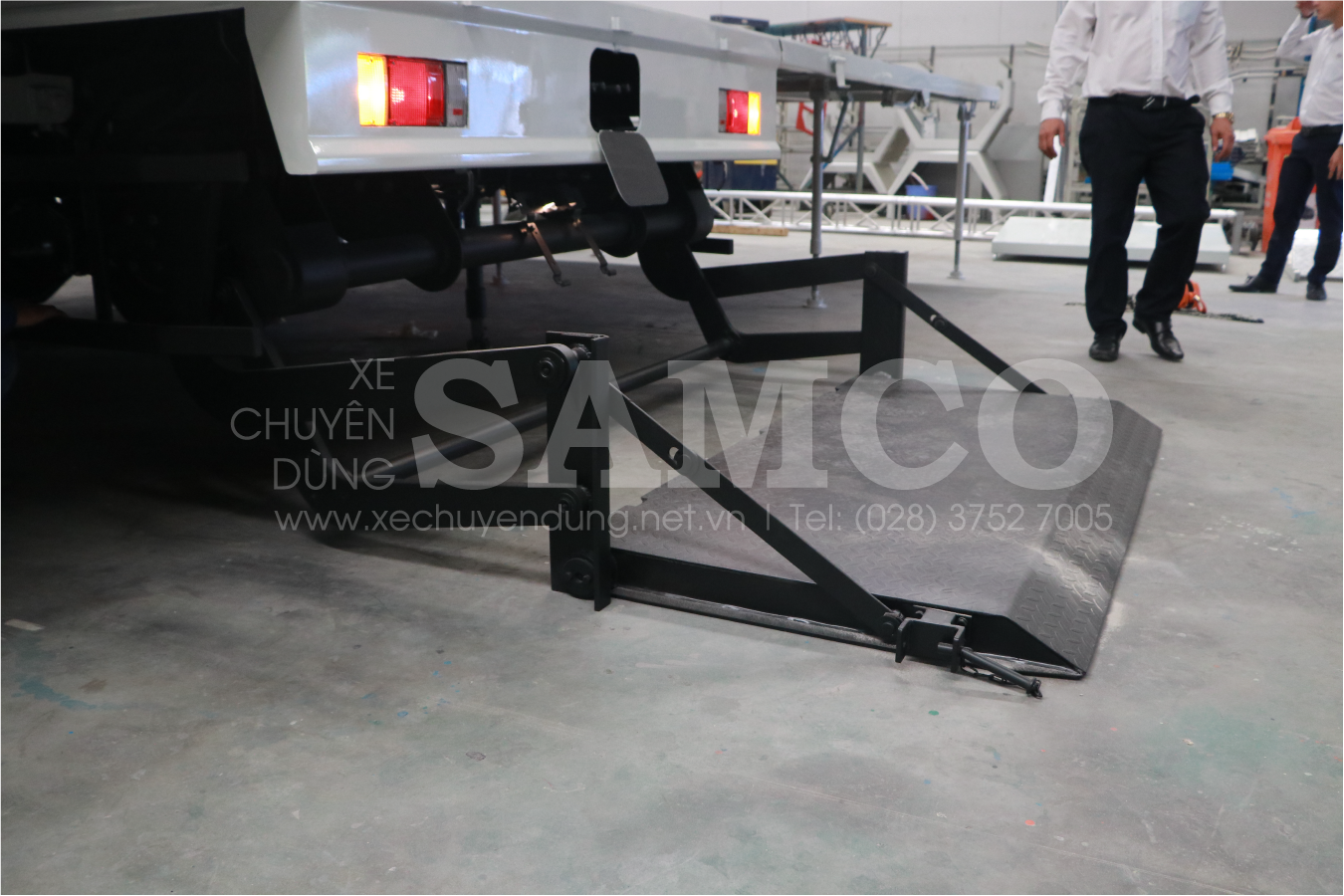

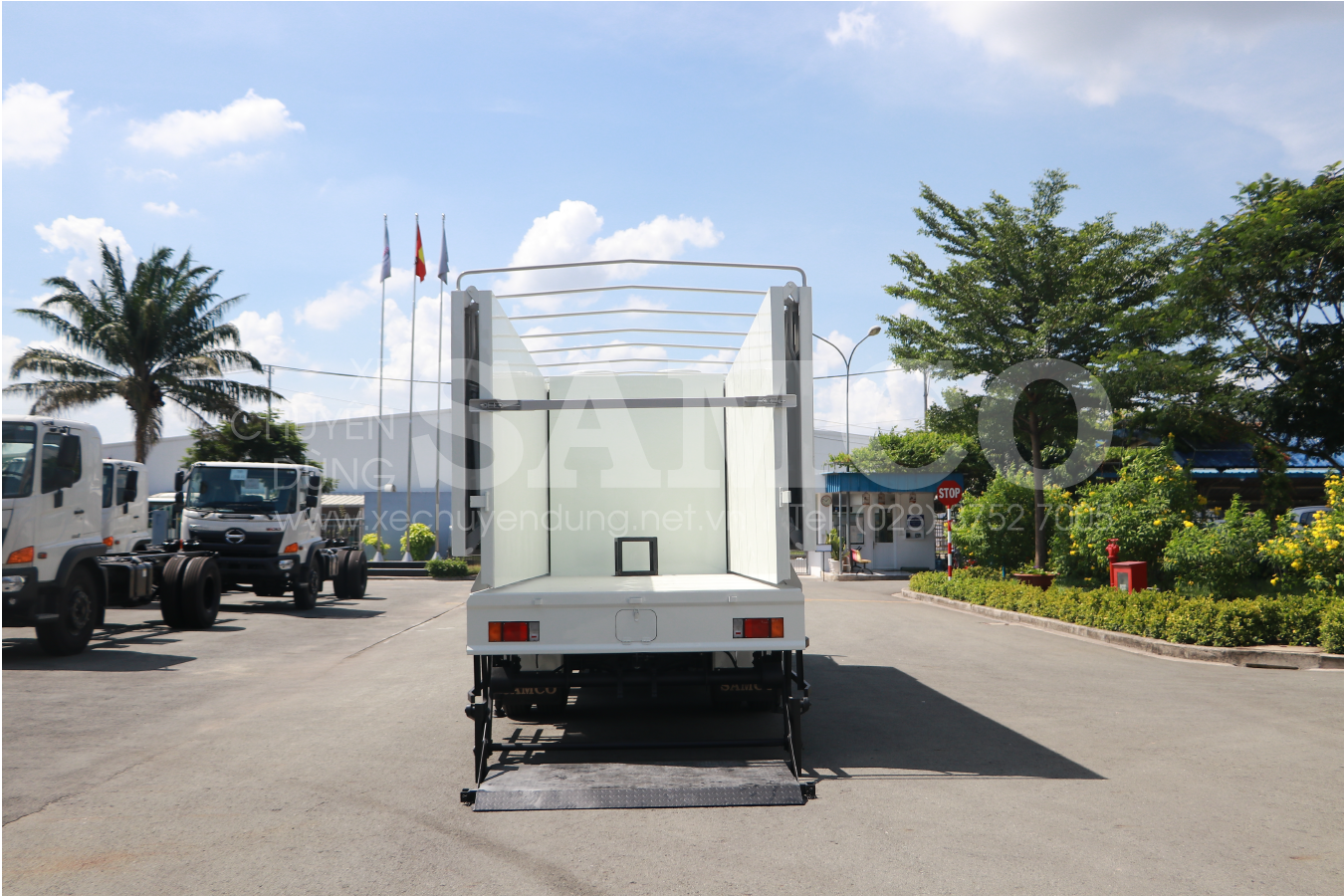

Bàn nâng thiết bị Bàn nâng thiết bị

Sản phẩm liên quan

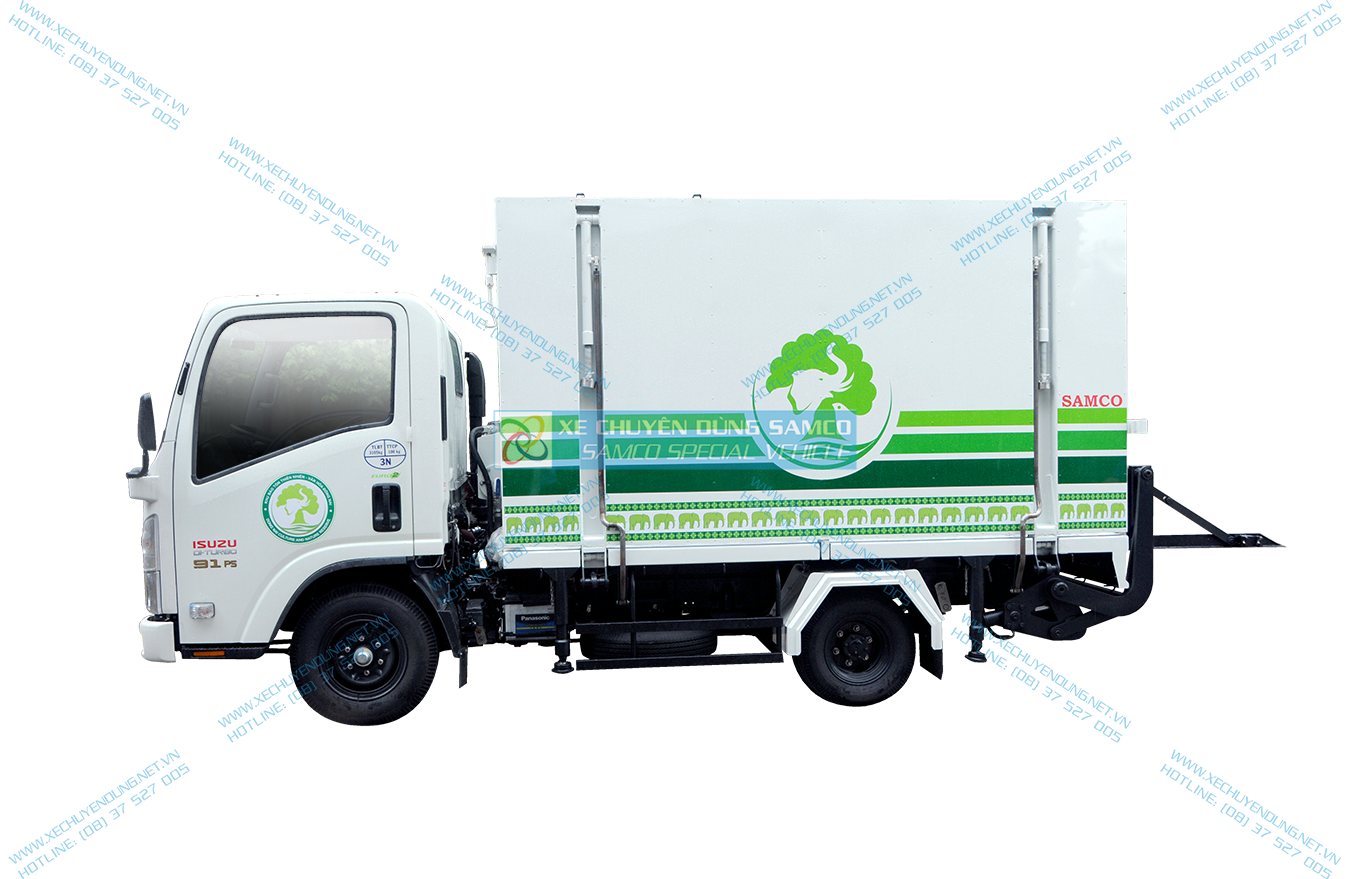

SKLIS 020

SKLIS 020

  • Chassis: Isuzu NLR55E
  • Gross vehicle weight: 3,400 kg
  • Stage area: 20 m²

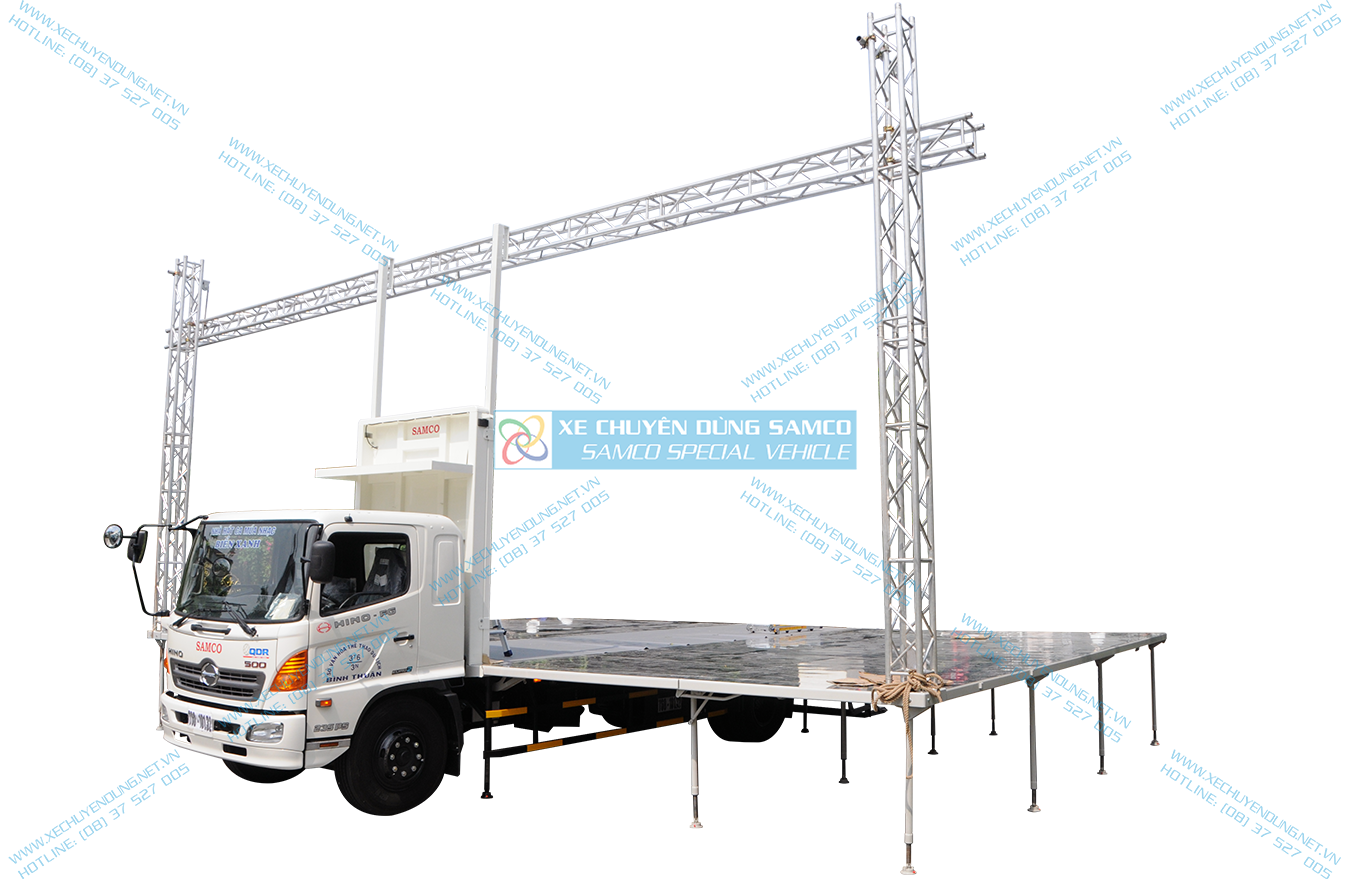

SKLHI 083
